IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

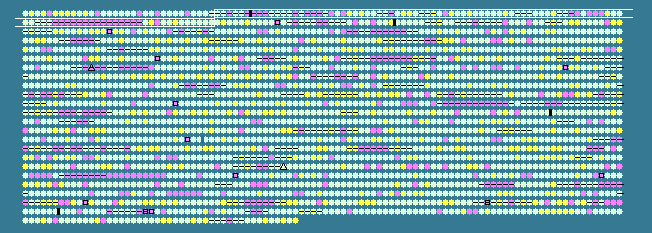

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
33	 69.45	0	34237..35277	-	346	115358003	-	Bamb_3252	-	O-sialoglycoprotein endopeptidase
34	 69.62	0	35409..36626	+	405	115358004	-	Bamb_3253	-	hypothetical protein
35	 55.87	-2	36732..36944	+	70	115358005	rpsU	Bamb_3254	-	30S ribosomal protein S21
36	 65.32	0	37131..37577	+	148	115358006	-	Bamb_3255	-	GatB/Yqey domain-containing protein
37	 65.76	0	37642..39510	+	622	115358007	dnaG	Bamb_3256	-	DNA primase
38	 62.82	-1	39599..42016	+	805	115358008	-	Bamb_3257	-	RNA polymerase sigma factor RpoD
39	 60.73	-1	42358..43149	-	263	115358009	-	Bamb_3258	-	carboxymuconolactone decarboxylase
40	 62.70	-1	43127..43630	-	167	115358010	-	Bamb_3259	-	cupin 2 domain-containing protein
41	 62.50	-1	43648..44415	-	255	115358011	-	Bamb_3260	-	short-chain dehydrogenase/reductase SDR
42	 63.87	0	45193..45942	-	249	115358012	-	Bamb_3261	-	creatininase
43	 64.57	0	45955..47241	-	428	115358013	-	Bamb_3262	-	major facilitator transporter
44	 65.91	0	47412..48335	+	307	115358014	-	Bamb_3263	-	LysR family transcriptional regulator
45	 64.75	0	48569..49561	+	330	115358015	-	Bamb_3264	-	hypothetical protein
46	 57.17	-2	49604..50224	-	206	115358016	-	Bamb_3265	-	TetR family transcriptional regulator
47	 63.80	0	50440..52635	+	731	115358017	-	Bamb_3266	-	Beta-glucosidase
48	 62.58	-1	52783..54030	+	415	115358018	-	Bamb_3267	-	major facilitator transporter
49	 63.37	0	54062..55549	+	495	115358019	-	Bamb_3268	-	sulfatase
50	 61.58	-1	55728..56750	+	340	115358020	-	Bamb_3269	-	porin
51	 65.48	0	56763..57182	+	139	115358021	-	Bamb_3270	-	transport-associated
52	 61.18	-1	57216..58838	+	540	115358022	-	Bamb_3271	-	sulfatase
53	 65.79	0	59028..60632	-	534	115358023	-	Bamb_3272	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
54	 63.14	0	60697..61320	-	207	115358024	-	Bamb_3273	-	hypothetical protein
55	 70.56	0	61569..63056	-	495	115358025	-	Bamb_3274	-	RND efflux system outer membrane lipoprotein
56	 67.55	0	63070..64656	-	528	115358026	-	Bamb_3275	-	EmrB/QacA family drug resistance transporter
57	 71.22	+1	64649..65767	-	372	115358027	-	Bamb_3276	-	secretion protein HlyD family protein
58	 69.08	0	65860..66687	+	275	115358028	-	Bamb_3277	-	TetR family transcriptional regulator
59	 70.02	0	66701..69295	-	864	115358029	-	Bamb_3278	-	MscS mechanosensitive ion channel
60	 70.39	0	69333..70298	-	321	115358030	-	Bamb_3279	-	luciferase family protein
61	 67.65	0	70347..70652	-	101	115358031	-	Bamb_3280	-	hypothetical protein
62	 62.80	-1	70649..71062	-	137	115358032	-	Bamb_3281	-	hypothetical protein
63	 65.22	0	71189..71395	+	68	115358033	-	Bamb_3282	-	hypothetical protein
64	 70.90	0	71392..72288	+	298	115358034	-	Bamb_3283	-	NAD-dependent deacetylase
65	 72.74	+1	72285..72926	+	213	115358035	-	Bamb_3284	-	hypothetical protein
66	 66.17	0	73024..74436	+	470	115358036	-	Bamb_3285	-	6-phosphogluconate dehydrogenase
67	 66.38	0	74635..74979	+	114	115358037	-	Bamb_3286	-	hypothetical protein
68	 70.09	0	75091..75411	-	106	115358038	-	Bamb_3287	-	hypothetical protein
69	 72.27	+1	75826..76557	+	243	115358039	-	Bamb_3288	-	peptidase M23B
70	 65.26	0	76606..77316	-	236	115358040	-	Bamb_3289	-	hypothetical protein
71	 62.94	0	77476..78012	+	178	115358041	-	Bamb_3290	-	cytochrome B561
72	 71.00	0	78169..78537	+	122	115358042	-	Bamb_3291	-	hypothetical protein
73	 68.83	0	78621..80750	+	709	115358043	-	Bamb_3292	-	TonB-dependent copper receptor
74	 66.85	0	80980..82074	+	364	115358044	-	Bamb_3293	-	triacylglycerol lipase
75	 74.30	+1	82078..83112	+	344	115358045	-	Bamb_3294	-	lipase chaperone
76	 69.55	0	83152..84675	-	507	115358046	-	Bamb_3295	-	GntR family transcriptional regulator
77	 66.39	0	84784..85878	+	364	115358047	-	Bamb_3296	-	spermidine/putrescine ABC transporter ATPase subunit
78	 64.47	0	85956..87002	+	348	115358048	-	Bamb_3297	-	extracellular solute-binding protein
79	 68.17	0	87105..88367	+	420	115358049	-	Bamb_3298	-	binding-protein-dependent transport systems inner membrane component
80	 67.50	0	88405..89241	+	278	115358050	-	Bamb_3299	-	binding-protein-dependent transport systems inner membrane component
81	 71.95	+1	89371..90864	+	497	115358051	-	Bamb_3300	-	major facilitator transporter
82	 67.59	0	90937..92676	-	579	115358052	-	Bamb_3301	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
83	 65.12	0	93377..93700	+	107	115358053	-	Bamb_3302	-	ArsR family transcriptional regulator
84	 65.05	0	93697..94128	+	143	115358054	-	Bamb_3303	-	activator of Hsp90 ATPase 1 family protein
85	 68.71	0	94125..94565	+	146	115358055	-	Bamb_3304	-	hypothetical protein
86	 64.42	0	94709..97426	-	905	115358056	acnA	Bamb_3305	-	aconitate hydratase
87	 67.01	0	97479..98930	-	483	115358057	prpD	Bamb_3306	-	2-methylcitrate dehydratase
88	 65.88	0	98962..99471	-	169	115358058	-	Bamb_3307	-	hypothetical protein
89	 72.14	+1	99695..100699	-	334	115358059	-	Bamb_3308	-	HpcH/HpaI aldolase
90	 65.65	0	100886..101872	-	328	115358060	-	Bamb_3309	-	malate dehydrogenase
91	 66.79	0	102161..102985	+	274	115358061	-	Bamb_3310	-	GntR family transcriptional regulator
92	 58.27	-2	103155..103571	+	138	115358062	-	Bamb_3311	-	succinate dehydrogenase, cytochrome b subunit
93	 62.33	-1	103576..103944	+	122	115358063	-	Bamb_3312	-	succinate dehydrogenase, cytochrome b subunit
94	 65.32	0	103948..105723	+	591	115358064	sdhA	Bamb_3313	-	succinate dehydrogenase flavoprotein subunit
95	 62.54	-1	105745..106446	+	233	115358065	sdhB	Bamb_3314	-	succinate dehydrogenase iron-sulfur subunit
96	 60.81	-1	106453..106725	+	90	115358066	-	Bamb_3315	-	hypothetical protein
97	 60.75	-1	106792..108093	+	433	115358067	gltA	Bamb_3316	-	type II citrate synthase
98	 72.76	+1	108183..109166	-	327	115358068	-	Bamb_3317	-	AraC family transcriptional regulator
99	 68.21	0	109238..109627	+	129	115358069	-	Bamb_3318	-	glyoxalase/bleomycin resistance protein/dioxygenase
100	 70.10	0	109739..110992	+	417	115358070	-	Bamb_3319	-	hypothetical protein
101	 69.13	0	111217..111987	+	256	115358071	-	Bamb_3320	-	dimethylargininase
102	 64.09	0	112089..112553	+	154	115358072	-	Bamb_3321	-	AsnC family transcriptional regulator
103	 66.54	0	112694..114229	+	511	115358073	-	Bamb_3322	-	amino acid permease-associated region
104	 65.43	0	114431..115156	-	241	115358074	-	Bamb_3323	-	glutathione S-transferase domain-containing protein
105	 67.57	0	115284..115616	-	110	115358075	-	Bamb_3324	-	cupin 2 domain-containing protein
106	 58.83	-1	115836..116882	-	348	115358076	-	Bamb_3325	-	hypothetical protein
107	 57.66	-2	117318..118172	-	284	115358077	-	Bamb_3326	-	xylose isomerase domain-containing protein
108	 59.01	-1	118514..119479	+	321	115358078	-	Bamb_3327	-	periplasmic binding protein/LacI transcriptional regulator
109	 61.02	-1	119611..120690	+	359	115358079	-	Bamb_3328	-	oxidoreductase domain-containing protein
110	 59.60	-1	121149..122732	+	527	115358080	-	Bamb_3329	-	ABC transporter related
111	 61.33	-1	122725..123735	+	336	115358081	-	Bamb_3330	-	inner-membrane translocator
112	 59.08	-1	123750..124724	+	324	115358082	-	Bamb_3331	-	inner-membrane translocator
113	 58.01	-2	124976..125899	-	307	115358083	-	Bamb_3332	-	LysR family transcriptional regulator
114	 58.73	-2	126199..127080	+	293	115358084	-	Bamb_3333	-	catechol 1,2-dioxygenase
115	 55.56	-2	127077..127427	+	116	115358085	-	Bamb_3334	-	stress responsive alpha-beta barrel domain-containing protein
116	 62.67	-1	127414..128490	+	358	115358086	-	Bamb_3335	-	iron-containing alcohol dehydrogenase
117	 53.68	-2	128535..128819	+	94	115358087	-	Bamb_3336	-	YciI-like protein
118	 60.57	-1	128973..129776	+	267	115358088	-	Bamb_3337	-	short-chain dehydrogenase/reductase SDR
119	 60.22	-1	130208..131200	+	330	115358089	-	Bamb_3338	-	inositol 2-dehydrogenase
120	 59.74	-1	131309..132217	+	302	115358090	-	Bamb_3339	-	LysR family transcriptional regulator
121	 66.45	0	132441..133850	+	469	115358091	-	Bamb_3340	-	isopropylmalate isomerase large subunit
122	 72.11	+1	133854..134000	+	48	115358092	-	Bamb_3341	-	entericidin EcnAB
123	 63.44	0	134066..134716	+	216	115358093	leuD	Bamb_3342	-	isopropylmalate isomerase small subunit
124	 66.39	0	134792..135859	+	355	115358094	-	Bamb_3343	-	3-isopropylmalate dehydrogenase
125	 64.35	0	136181..137302	+	373	115358095	-	Bamb_3344	-	aspartate-semialdehyde dehydrogenase
126	 73.53	+1	137569..139653	+	694	115358096	-	Bamb_3345	-	hypothetical protein
127	 68.51	0	139653..140465	+	270	115358097	truA	Bamb_3346	-	tRNA pseudouridine synthase A
128	 69.09	0	140462..141163	+	233	115358098	-	Bamb_3347	-	N-(5'-phosphoribosyl)anthranilate isomerase
129	 66.42	0	141220..142413	+	397	115358099	-	Bamb_3348	-	tryptophan synthase subunit beta
130	 65.61	0	142421..143272	+	283	115358100	-	Bamb_3349	-	DNA methylase N-4/N-6 domain-containing protein
131	 69.11	0	143314..144132	+	272	115358101	trpA	Bamb_3350	-	tryptophan synthase subunit alpha
132	 65.86	0	144199..145071	+	290	115358102	-	Bamb_3351	-	acetyl-CoA carboxylase subunit beta
66.96	MEAN

4.07	STD DEV
