IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

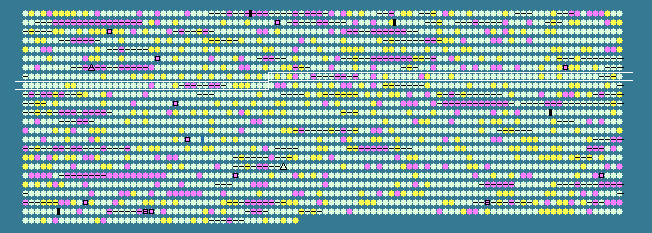

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
742	 69.64	0	860937..861845	-	302	115358712	-	Bamb_3962	-	LysR family transcriptional regulator
743	 72.95	+1	861946..862311	+	121	115358713	-	Bamb_3963	-	hypothetical protein
744	 67.18	0	862271..863239	-	322	115358714	-	Bamb_3964	-	LysR family transcriptional regulator
745	 72.19	+1	863604..864779	+	391	115358715	-	Bamb_3965	-	CBS domain-containing protein
746	 62.96	0	864851..865309	+	152	115358716	-	Bamb_3966	-	MarR family transcriptional regulator
747	 68.96	0	865340..867127	+	595	115358717	-	Bamb_3967	-	Cl- channel, voltage-gated family protein
748	 63.61	0	867615..867941	+	108	115358718	-	Bamb_3968	-	hypothetical protein
749	 61.99	-1	868053..868373	-	106	115358719	-	Bamb_3969	-	hypothetical protein
750	 69.32	0	868551..869453	-	300	115358720	-	Bamb_3970	-	LysR family transcriptional regulator
751	 68.78	0	869636..870820	+	394	115358721	-	Bamb_3971	-	amidohydrolase
752	 68.70	0	870864..872189	+	441	115358722	-	Bamb_3972	-	major facilitator transporter
753	 57.76	-2	872368..873063	-	231	115358723	-	Bamb_3973	-	hypothetical protein
754	 53.05	-2	873476..876757	-	1093	115358724	-	Bamb_3974	-	type III restriction enzyme, res subunit
755	 63.60	0	877310..878419	-	369	115358725	-	Bamb_3975	-	porin
756	 62.86	-1	878477..879001	-	174	115358726	-	Bamb_3976	-	DoxX family protein
757	 67.84	0	879084..880361	-	425	115358727	-	Bamb_3977	-	cytochrome c, class I
758	 65.19	0	880364..881983	-	539	115358728	-	Bamb_3978	-	glucose-methanol-choline oxidoreductase
759	 62.72	-1	881983..882489	-	168	115358729	-	Bamb_3979	-	hypothetical protein
760	 69.98	0	882798..888839	+	2013	115358730	-	Bamb_3980	-	alpha-2-macroglobulin domain-containing protein
761	 72.16	+1	888847..891084	+	745	115358731	-	Bamb_3981	-	penicillin-binding protein 1C
762	 68.98	0	891266..891958	+	230	115358732	-	Bamb_3982	-	hypothetical protein
763	 66.59	0	891994..893241	-	415	115358733	-	Bamb_3983	-	major facilitator transporter
764	 70.00	0	893598..894137	+	179	115358734	-	Bamb_3984	-	hypothetical protein
765	 66.43	0	894431..895291	+	286	115358735	-	Bamb_3985	-	hypothetical protein
766	 64.89	0	895377..896051	+	224	115358736	-	Bamb_3986	-	GntR family transcriptional regulator
767	 62.16	-1	896116..896514	-	132	115358737	ectC	Bamb_3987	-	L-ectoine synthase
768	 72.26	+1	896581..897921	-	446	115358738	-	Bamb_3988	-	amidase
769	 65.00	0	897945..899447	-	500	115358739	-	Bamb_3989	-	polar amino acid ABC transporter, inner membrane subunit
770	 67.26	0	899532..900374	-	280	115358740	-	Bamb_3990	-	extracellular solute-binding protein
771	 63.66	0	900844..901740	-	298	115358741	-	Bamb_3991	-	extracellular solute-binding protein
772	 71.22	+1	902153..903820	+	555	115358742	-	Bamb_3992	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
773	 65.84	0	904548..907328	+	926	115358743	-	Bamb_3993	-	magnesium-translocating P-type ATPase
774	 66.67	0	907397..908140	+	247	115358744	-	Bamb_3994	-	hypothetical protein
775	 68.07	0	908213..908497	-	94	115358745	-	Bamb_3995	-	hypothetical protein
776	 69.18	0	908570..909445	-	291	115358746	-	Bamb_3996	-	LysR family transcriptional regulator
777	 68.93	0	909550..909858	-	102	115358747	-	Bamb_3997	-	hypothetical protein
778	 70.19	0	909981..911060	+	359	115358748	-	Bamb_3998	-	peptidase S11, D-alanyl-D-alanine carboxypeptidase 1
779	 65.02	0	911107..911349	+	80	115358749	-	Bamb_3999	-	hypothetical protein
780	 69.74	0	911499..911954	+	151	115358750	-	Bamb_4000	-	MarR family transcriptional regulator
781	 67.38	0	912025..912588	+	187	115358751	-	Bamb_4001	-	isochorismatase hydrolase
782	 69.89	0	912585..914042	+	485	115358752	-	Bamb_4002	-	EmrB/QacA family drug resistance transporter
783	 65.64	0	915182..916543	+	453	115358753	-	Bamb_4004	-	MscS mechanosensitive ion channel
784	 69.34	0	916611..918032	-	473	115358754	-	Bamb_4005	-	GntR family transcriptional regulator
785	 67.53	0	918186..920510	+	774	115358755	-	Bamb_4006	-	oxidoreductase alpha (molybdopterin) subunit
786	 68.73	0	920523..921443	+	306	115358756	-	Bamb_4007	-	hypothetical protein
787	 72.38	+1	921485..923515	-	676	115358757	-	Bamb_4008	-	fusaric acid resistance protein region
788	 68.16	0	923632..924567	+	311	115358758	-	Bamb_4009	-	LysR family transcriptional regulator
789	 66.60	0	924987..926546	+	519	115358759	-	Bamb_4010	-	EmrB/QacA family drug resistance transporter
790	 71.17	+1	927122..927454	+	110	115358760	-	Bamb_4011	-	hypothetical protein
791	 64.97	0	927591..929180	+	529	115358761	-	Bamb_4012	-	extracellular solute-binding protein
792	 69.16	0	929263..930588	-	441	115358762	-	Bamb_4013	-	Mn2+/Fe2+ transporter
793	 63.56	0	930670..931926	-	418	115358763	-	Bamb_4014	-	oxalate decarboxylase
794	 67.56	0	932553..933446	+	297	115358764	-	Bamb_4015	-	RpiR family transcriptional regulator
795	 68.79	0	933461..934024	+	187	115358765	-	Bamb_4016	-	D-alanyl-D-alanine dipeptidase
796	 64.86	0	934107..935708	+	533	115358766	-	Bamb_4017	-	extracellular solute-binding protein
797	 69.19	0	935719..936789	+	356	115358767	-	Bamb_4018	-	binding-protein-dependent transport systems inner membrane component
798	 70.27	0	936856..937770	+	304	115358768	-	Bamb_4019	-	binding-protein-dependent transport systems inner membrane component
799	 70.93	0	937772..938686	+	304	115358769	-	Bamb_4020	-	ABC transporter related
800	 70.01	0	938683..939459	+	258	115358770	-	Bamb_4021	-	ABC transporter related
801	 66.49	0	939898..940449	+	183	115358771	-	Bamb_4022	-	fimbrial protein
802	 66.53	0	940562..941302	+	246	115358772	-	Bamb_4023	-	pili assembly chaperone
803	 68.67	0	941499..944099	+	866	115358773	-	Bamb_4024	-	fimbrial biogenesis outer membrane usher protein
804	 65.77	0	944109..945113	+	334	115358774	-	Bamb_4025	-	fimbrial protein
805	 69.80	0	945266..945520	+	84	115358775	-	Bamb_4026	-	transglycosylase-associated protein
806	 65.18	0	945870..946205	+	111	115358776	-	Bamb_4027	-	hypothetical protein
807	 68.04	0	946228..947100	-	290	115358777	-	Bamb_4028	-	LysR family transcriptional regulator
808	 72.33	+1	947225..948124	-	299	115358778	-	Bamb_4029	-	Beta-lactamase
809	 70.83	0	948325..949164	-	279	115358779	-	Bamb_4030	-	peptidase M23B
810	 63.96	0	949432..949542	-	36	115358780	-	Bamb_4031	-	hypothetical protein
811	 67.89	0	949702..950598	+	298	115358781	-	Bamb_4032	-	LysR family transcriptional regulator
812	 65.12	0	950659..951045	+	128	115358782	-	Bamb_4033	-	hypothetical protein
813	 69.40	0	951110..951913	-	267	115358783	-	Bamb_4034	-	hypothetical protein
814	 70.21	0	951995..953011	-	338	115358784	-	Bamb_4035	-	aldo/keto reductase
815	 69.30	0	953148..954059	+	303	115358785	-	Bamb_4036	-	LysR family transcriptional regulator
816	 64.68	0	954107..955261	-	384	115358786	-	Bamb_4037	-	porin
817	 69.87	0	955591..956745	+	384	115358787	-	Bamb_4038	-	hypothetical protein
818	 69.42	0	956807..957751	+	314	115358788	-	Bamb_4039	-	putative esterase
819	 69.71	0	957991..959205	-	404	115358789	-	Bamb_4040	-	salicylate 1-monooxygenase
820	 68.15	0	959389..960333	+	314	115358790	-	Bamb_4041	-	LysR family transcriptional regulator
821	 65.35	0	960434..961192	+	252	115358791	-	Bamb_4042	-	short-chain dehydrogenase/reductase SDR
822	 61.77	-1	961337..962317	+	326	115358792	-	Bamb_4043	-	MarR family transcriptional regulator
823	 64.86	0	962355..962687	-	110	115358793	-	Bamb_4044	-	cupin 2 domain-containing protein
824	 65.79	0	962914..964392	-	492	115358794	-	Bamb_4045	-	diguanylate cyclase
825	 66.03	0	964552..965646	-	364	115358795	-	Bamb_4046	-	TrkA domain-containing protein
826	 70.69	0	965750..967117	-	455	115358796	-	Bamb_4047	-	FAD dependent oxidoreductase
827	 64.35	0	967334..967981	+	215	115358797	-	Bamb_4048	-	GP32
828	 61.23	-1	968336..968611	-	91	115358798	-	Bamb_4049	-	hypothetical protein
829	 59.18	-1	968895..969161	-	88	115358799	-	Bamb_4050	-	hypothetical protein
830	 67.25	0	969641..970495	+	284	115358800	-	Bamb_4051	-	response regulator receiver protein
831	 68.35	0	970616..972283	+	555	115358801	-	Bamb_4052	-	hypothetical protein
832	 48.69	-2	972473..973696	+	407	115358802	-	Bamb_4053	-	hypothetical protein
833	 49.04	-2	973786..974097	+	103	115358803	-	Bamb_4054	-	hypothetical protein
834	 69.49	0	974235..975794	-	519	115358804	-	Bamb_4055	-	methyl-accepting chemotaxis sensory transducer
835	 69.15	0	976008..977537	+	509	115358805	-	Bamb_4056	-	EmrB/QacA family drug resistance transporter
836	 74.27	+1	977631..978629	-	332	115358806	-	Bamb_4057	-	alcohol dehydrogenase
837	 74.48	+1	978755..979675	+	306	115358807	-	Bamb_4058	-	LysR family transcriptional regulator
838	 71.63	+1	979705..980328	+	207	115358808	-	Bamb_4059	-	GCN5-related N-acetyltransferase
839	 67.84	0	980338..981186	+	282	115358809	-	Bamb_4060	-	MerR family transcriptional regulator
840	 67.48	0	981311..982291	+	326	115358810	-	Bamb_4061	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
841	 65.78	0	982383..983288	-	301	115358811	-	Bamb_4062	-	LysR family transcriptional regulator
66.96	MEAN

4.07	STD DEV
