IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

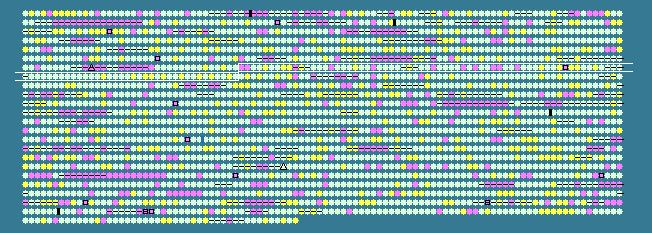

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
637	 60.41	-1	744655..745725	-	356	115358607	-	Bamb_3857	-	hypothetical protein
638	 62.54	-1	745964..746884	+	306	162389969	rdgC	Bamb_3858	-	recombination associated protein
639	 69.66	0	747187..747753	+	188	115358609	-	Bamb_3859	-	GCN5-related N-acetyltransferase
640	 68.66	0	747817..748770	+	317	115358610	-	Bamb_3860	-	extracellular solute-binding protein
641	 71.81	+1	748810..749859	+	349	115358611	-	Bamb_3861	-	luciferase family protein
642	 68.87	0	749867..751225	+	452	115358612	-	Bamb_3862	-	flavin-dependent oxidoreductase
643	 69.13	0	751285..753069	+	594	115358613	-	Bamb_3863	-	polar amino acid ABC transporter, inner membrane subunit
644	 71.02	0	753104..754045	+	313	115358614	-	Bamb_3864	-	extracellular solute-binding protein
645	 71.15	+1	754140..754919	-	259	115358615	-	Bamb_3865	-	alkanesulfonate monooxygenase
646	 54.30	-2	755258..756397	+	379	115358616	-	Bamb_3866	-	acyltransferase 3
647	 72.77	+1	756822..757739	+	305	115358617	-	Bamb_3867	-	alpha/beta hydrolase-like protein
648	 68.52	0	757736..758167	+	143	115358618	-	Bamb_3868	-	MarR family transcriptional regulator
649	 67.08	0	758667..760109	+	480	115358619	-	Bamb_3869	-	BNR/Asp-box repeat-containing protein
650	 67.94	0	760172..761188	-	338	115358620	-	Bamb_3870	-	alcohol dehydrogenase
651	 69.12	0	761646..763727	+	693	115358621	-	Bamb_3871	-	TonB-dependent receptor
652	 60.81	-1	763759..764151	+	130	115358622	-	Bamb_3872	-	hypothetical protein
653	 67.35	0	764426..765895	+	489	115358623	-	Bamb_3873	-	alpha,alpha-trehalose-phosphate synthase (UDP-forming)
654	 68.85	0	766000..767967	-	655	115358624	-	Bamb_3874	-	ATP-dependent metalloprotease FtsH
655	 70.15	0	768399..770063	+	554	115358625	-	Bamb_3875	-	phosphoesterase
656	 70.61	0	770099..770428	+	109	115358626	-	Bamb_3876	-	hypothetical protein
657	 66.13	0	770521..772386	-	621	115358627	-	Bamb_3877	-	phosphoenolpyruvate carboxykinase
658	 67.84	0	772914..773168	-	84	115358628	-	Bamb_3878	-	short-chain dehydrogenase/reductase SDR
659	 62.76	-1	773431..775017	-	528	115358629	-	Bamb_3879	-	isocitrate lyase
660	 69.49	0	775403..775933	+	176	115358630	-	Bamb_3880	-	YbaK/prolyl-tRNA synthetase associated region
661	 68.39	0	775930..776568	+	212	115358631	-	Bamb_3881	-	YheO domain-containing protein
662	 68.10	0	776617..777591	+	324	115358632	-	Bamb_3882	-	serine/threonine dehydratase
663	 70.28	0	777722..777970	+	82	115358633	-	Bamb_3883	-	hypothetical protein
664	 64.91	0	778024..778194	-	56	115358634	-	Bamb_3884	-	short-chain dehydrogenase/reductase SDR
665	 70.71	0	778236..778433	+	65	115358635	-	Bamb_3885	-	hypothetical protein
666	 66.41	0	778950..780878	+	642	115358636	-	Bamb_3886	-	TonB-dependent receptor
667	 67.92	0	780941..781579	-	212	115358637	-	Bamb_3887	-	lysine exporter protein LysE/YggA
668	 66.23	0	781694..782155	+	153	115358638	-	Bamb_3888	-	AsnC family transcriptional regulator
669	 62.03	-1	782177..782629	+	150	115358639	-	Bamb_3889	-	glyoxalase/bleomycin resistance protein/dioxygenase
670	 66.54	0	782762..783547	-	261	115358640	-	Bamb_3890	-	AraC family transcriptional regulator
671	 68.66	0	783795..786107	+	770	115358641	-	Bamb_3891	-	molybdopterin oxidoreductase
672	 64.37	0	786132..786479	-	115	115358642	-	Bamb_3892	-	RND family efflux transporter MFP subunit
673	 67.80	0	786520..787311	-	263	115358643	-	Bamb_3893	-	metal-binding integral membrane protein-like protein
674	 61.86	-1	787308..787952	-	214	115358644	-	Bamb_3894	-	hypothetical protein
675	 68.43	0	788143..789387	+	414	115358645	-	Bamb_3895	-	major facilitator transporter
676	 60.13	-1	789411..789716	-	101	115358646	-	Bamb_3896	-	hypothetical protein
677	 68.36	0	789935..790465	-	176	115358647	-	Bamb_3897	-	carbonic anhydrase
678	 67.99	0	790469..790921	-	150	115358648	-	Bamb_3898	-	electron transfer flavoprotein, alpha subunit
679	 60.23	-1	791139..791402	-	87	115358649	-	Bamb_3899	-	translation initiation factor IF-1
680	 57.35	-2	791862..792065	-	67	115358650	-	Bamb_3900	-	cold-shock DNA-binding domain-containing protein
681	 68.25	0	792405..792656	-	83	115358651	-	Bamb_3901	-	hypothetical protein
682	 64.48	0	792869..793279	-	136	115358652	-	Bamb_3902	-	PilT domain-containing protein
683	 61.60	-1	793272..793508	-	78	115358653	-	Bamb_3903	-	hypothetical protein
684	 68.80	0	793755..794927	-	390	115358654	-	Bamb_3904	-	hypothetical protein
685	 66.29	0	795337..796410	+	357	115358655	-	Bamb_3905	-	acyltransferase 3
686	 64.14	0	796423..796659	-	78	115358656	-	Bamb_3906	-	hypothetical protein
687	 71.26	+1	797135..798004	-	289	115358657	-	Bamb_3907	-	LysR family transcriptional regulator
688	 69.55	0	798145..799533	+	462	115358658	-	Bamb_3908	-	major facilitator transporter
689	 69.57	0	799559..799903	-	114	115358659	-	Bamb_3909	-	hypothetical protein
690	 72.15	+1	800044..800262	-	72	115358660	-	Bamb_3910	-	hypothetical protein
691	 61.06	-1	800382..801434	+	350	115358661	-	Bamb_3911	-	IS605 family transposase OrfB
692	 71.48	+1	801491..802654	-	387	115358662	-	Bamb_3912	-	hypothetical protein
693	 71.25	+1	802657..804051	-	464	115358663	-	Bamb_3913	-	hypothetical protein
694	 64.30	0	804256..805101	-	281	115358664	-	Bamb_3914	-	GCN5-related N-acetyltransferase
695	 66.07	0	805329..805832	-	167	115358665	-	Bamb_3915	-	integral membrane protein
696	 71.67	+1	805829..806248	-	139	115358666	-	Bamb_3916	-	hypothetical protein
697	 69.99	0	806245..806997	-	250	115358667	-	Bamb_3917	-	RNA polymerase sigma factor
698	 64.91	0	807032..807145	-	37	115358668	-	Bamb_3918	-	hypothetical protein
699	 69.33	0	807215..807514	-	99	115358669	-	Bamb_3919	-	hypothetical protein
700	 68.39	0	807727..809526	+	599	115358670	-	Bamb_3920	-	metallophosphoesterase
701	 67.46	0	809639..810271	-	210	115358671	-	Bamb_3921	-	lysine exporter protein LysE/YggA
702	 67.89	0	810401..811297	-	298	115358672	-	Bamb_3922	-	LysR family transcriptional regulator
703	 68.60	0	811603..811860	+	85	115358673	-	Bamb_3923	-	hypothetical protein
704	 66.00	0	812138..812437	+	99	115358674	-	Bamb_3924	-	hypothetical protein
705	 67.45	0	812539..814323	-	594	115358675	-	Bamb_3925	-	diguanylate cyclase
706	 65.78	0	814320..815444	-	374	115358676	-	Bamb_3926	-	extracellular solute-binding protein
707	 69.04	0	815948..817381	+	477	115358677	-	Bamb_3927	-	GntR family transcriptional regulator
708	 70.40	0	817478..817879	+	133	115358678	-	Bamb_3928	-	hypothetical protein
709	 69.02	0	818074..819858	+	594	115358679	-	Bamb_3929	-	nitrite/sulfite reductase hemoprotein beta subunit
710	 67.75	0	819855..820316	+	153	115358680	-	Bamb_3930	-	hypothetical protein
711	 70.10	0	820390..821670	-	426	115358681	-	Bamb_3931	-	virulence factor family protein
712	 70.33	0	821667..824261	-	864	115358682	-	Bamb_3932	-	hypothetical protein
713	 67.82	0	824621..825055	-	144	115358683	-	Bamb_3933	-	hypothetical protein
714	 70.60	0	825164..829357	-	1397	115358684	-	Bamb_3934	-	molybdopterin oxidoreductase
715	 66.67	0	829374..829721	-	115	115358685	-	Bamb_3935	-	nitrite reductase (NAD(P)H), small subunit
716	 67.97	0	829760..832363	-	867	115358686	-	Bamb_3936	-	nitrite reductase (NAD(P)H), large subunit
717	 68.70	0	832384..833709	-	441	115358687	-	Bamb_3937	-	major facilitator transporter
718	 68.23	0	833861..834052	-	63	115358688	-	Bamb_3938	-	hypothetical protein
719	 73.36	+1	834304..835155	+	283	115358689	-	Bamb_3939	-	uroporphyrin-III C-methyltransferase
720	 68.51	0	835321..835917	+	198	115358690	-	Bamb_3940	-	response regulator receiver/ANTAR domain-containing protein
721	 73.18	+1	835923..836966	+	347	115358691	-	Bamb_3941	-	ABC-type nitrate/sulfonate/bicarbonate transport systems periplasmic components-like protein
722	 72.67	+1	837134..837733	+	199	115358692	-	Bamb_3942	-	uracil-DNA glycosylase superfamily protein
723	 69.82	0	837766..838557	+	263	115358693	-	Bamb_3943	-	hypothetical protein
724	 71.44	+1	838684..839625	+	313	115358694	-	Bamb_3944	-	AraC family transcriptional regulator
725	 69.81	0	839755..840453	+	232	115358695	-	Bamb_3945	-	fumarylacetoacetate (FAA) hydrolase
726	 69.62	0	840572..841858	-	428	115358696	-	Bamb_3946	-	major facilitator transporter
727	 72.39	+1	842010..843635	-	541	115358697	-	Bamb_3947	-	peptidase S1 and S6, chymotrypsin/Hap
728	 69.52	0	843896..844771	-	291	115358698	-	Bamb_3948	-	LysR family transcriptional regulator
729	 68.58	0	844921..846174	+	417	115358699	-	Bamb_3949	-	major facilitator transporter
730	 72.87	+1	846367..847914	-	515	115358700	-	Bamb_3950	-	GntR family transcriptional regulator
731	 70.13	0	848204..849445	+	413	115358701	-	Bamb_3951	-	GCN5-related N-acetyltransferase
732	 71.30	+1	849468..849920	-	150	115358702	-	Bamb_3952	-	hypothetical protein
733	 67.51	0	850415..851479	+	354	115358703	-	Bamb_3953	-	alcohol dehydrogenase
734	 68.95	0	851745..852401	+	218	115358704	-	Bamb_3954	-	hypothetical protein
735	 71.22	+1	852467..853345	+	292	115358705	-	Bamb_3955	-	abortive infection protein
736	 67.07	0	853388..854368	-	326	115358706	-	Bamb_3956	-	aldo/keto reductase
66.96	MEAN

4.07	STD DEV
