IslandPath Analysis: Burkholderia ambifaria AMMD

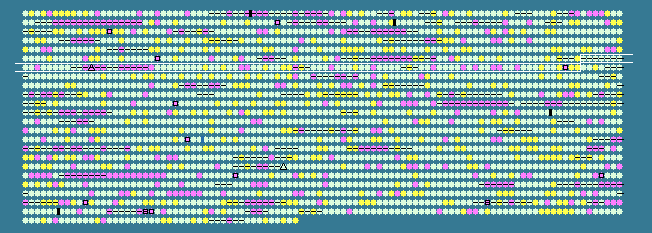

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
594	 68.47	0	684624..685457	-	277	115358564	-	Bamb_3814	-	UspA domain-containing protein
595	 69.44	0	685454..685957	-	167	115358565	-	Bamb_3815	-	UspA domain-containing protein
596	 69.83	0	686027..687226	-	399	115358566	-	Bamb_3816	-	acetate kinase
597	 67.50	0	687235..688074	-	279	115358567	-	Bamb_3817	-	UspA domain-containing protein
598	 68.15	0	688265..688804	+	179	115358568	-	Bamb_3818	-	hypothetical protein
599	 66.67	0	688794..689540	+	248	115358569	-	Bamb_3819	-	acetoacetyl-CoA reductase
600	 69.19	0	689621..691441	+	606	115358570	-	Bamb_3820	-	poly-beta-hydroxybutyrate polymerase domain-containing protein
601	 69.89	0	691438..692460	+	340	115358571	-	Bamb_3821	-	phosphate butyryltransferase
602	 66.86	0	692466..693506	+	346	115358572	-	Bamb_3822	-	alcohol dehydrogenase
603	 62.90	0	693594..693779	-	61	115358573	-	Bamb_3823	-	hypothetical protein
604	 64.41	0	694137..694757	+	206	115358574	-	Bamb_3824	-	TetR family transcriptional regulator
605	 67.52	0	694960..696018	+	352	115358575	-	Bamb_3825	-	alcohol dehydrogenase
606	 63.67	0	696101..696400	+	99	115358576	-	Bamb_3826	-	antibiotic biosynthesis monooxygenase
607	 70.18	0	696530..696985	+	151	115358577	-	Bamb_3827	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
608	 69.01	0	696987..699206	+	739	115358578	-	Bamb_3828	-	aldehyde oxidase and xanthine dehydrogenase, molybdopterin binding
609	 68.79	0	699222..700541	+	439	115358579	-	Bamb_3829	-	cytochrome c, class I
610	 68.81	0	700703..702148	+	481	115358580	-	Bamb_3830	-	succinate-semialdehyde dehydrogenase (NAD(P)(+))
611	 63.45	0	703002..703250	-	82	115358581	-	Bamb_3831	-	hypothetical protein
612	 62.44	-1	703575..705065	+	496	115358582	-	Bamb_3832	-	integrase catalytic subunit
613	 63.03	0	705266..705760	+	164	115358583	-	Bamb_3833	-	hypothetical protein
614	 62.20	-1	705783..707393	-	536	115358584	-	Bamb_3834	-	YadA domain-containing protein
615	 64.21	0	707879..708325	+	148	115358585	-	Bamb_3835	-	hypothetical protein
616	 65.19	0	708937..710634	+	565	115358586	-	Bamb_3836	-	propeptide, peptidase M4 and M36
617	 56.72	-2	710842..711414	-	190	115358587	-	Bamb_3837	-	YbhB and YbcL
618	 57.88	-2	711557..711829	+	90	115358588	-	Bamb_3838	-	hypothetical protein
619	 55.48	-2	711836..712264	+	142	115358589	-	Bamb_3839	-	hypothetical protein
620	 59.10	-1	712311..713315	+	334	115358590	-	Bamb_3840	-	NADH:flavin oxidoreductase/NADH oxidase
621	 58.00	-2	713382..714131	+	249	115358591	-	Bamb_3841	-	short-chain dehydrogenase/reductase SDR
622	 62.15	-1	714094..714447	-	117	115358592	-	Bamb_3842	-	hypothetical protein
623	 66.82	0	714431..715093	-	220	115358593	-	Bamb_3843	-	hypothetical protein
624	 67.91	0	715814..717898	-	694	115358594	-	Bamb_3844	-	hypothetical protein
625	 64.16	0	718144..719262	+	372	115358595	-	Bamb_3845	-	LuxR family transcriptional regulator
626	 69.87	0	719301..731777	-	4158	115358596	-	Bamb_3846	-	peptidoglycan-binding LysM
627	 70.22	0	731936..732526	+	196	115358597	-	Bamb_3847	-	hypothetical protein
628	 68.42	0	732740..733996	+	418	115358598	-	Bamb_3848	-	porin
629	 63.82	0	734334..734825	+	163	115358599	-	Bamb_3849	-	OmpA/MotB domain-containing protein
630	 64.17	0	735011..735490	-	159	115358600	-	Bamb_3850	-	hypothetical protein
631	 70.70	0	735971..737233	-	420	115358601	-	Bamb_3851	-	cytochrome c, class I
632	 68.68	0	737230..737925	-	231	115358602	-	Bamb_3852	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
633	 68.06	0	737922..740798	-	958	115358603	-	Bamb_3853	-	aldehyde oxidase and xanthine dehydrogenase, molybdopterin binding
634	 70.73	0	741191..742741	+	516	115358604	-	Bamb_3854	-	diguanylate cyclase with PAS/PAC sensor
635	 66.67	0	743005..743280	+	91	115358605	-	Bamb_3855	-	hypothetical protein
636	 67.69	0	743495..744568	+	357	115358606	-	Bamb_3856	-	succinylglutamate desuccinylase/aspartoacylase
637	 60.41	-1	744655..745725	-	356	115358607	-	Bamb_3857	-	hypothetical protein
638	 62.54	-1	745964..746884	+	306	162389969	rdgC	Bamb_3858	-	recombination associated protein
639	 69.66	0	747187..747753	+	188	115358609	-	Bamb_3859	-	GCN5-related N-acetyltransferase
640	 68.66	0	747817..748770	+	317	115358610	-	Bamb_3860	-	extracellular solute-binding protein
641	 71.81	+1	748810..749859	+	349	115358611	-	Bamb_3861	-	luciferase family protein
642	 68.87	0	749867..751225	+	452	115358612	-	Bamb_3862	-	flavin-dependent oxidoreductase
643	 69.13	0	751285..753069	+	594	115358613	-	Bamb_3863	-	polar amino acid ABC transporter, inner membrane subunit
644	 71.02	0	753104..754045	+	313	115358614	-	Bamb_3864	-	extracellular solute-binding protein
645	 71.15	+1	754140..754919	-	259	115358615	-	Bamb_3865	-	alkanesulfonate monooxygenase
646	 54.30	-2	755258..756397	+	379	115358616	-	Bamb_3866	-	acyltransferase 3
647	 72.77	+1	756822..757739	+	305	115358617	-	Bamb_3867	-	alpha/beta hydrolase-like protein
648	 68.52	0	757736..758167	+	143	115358618	-	Bamb_3868	-	MarR family transcriptional regulator
649	 67.08	0	758667..760109	+	480	115358619	-	Bamb_3869	-	BNR/Asp-box repeat-containing protein
650	 67.94	0	760172..761188	-	338	115358620	-	Bamb_3870	-	alcohol dehydrogenase
651	 69.12	0	761646..763727	+	693	115358621	-	Bamb_3871	-	TonB-dependent receptor
652	 60.81	-1	763759..764151	+	130	115358622	-	Bamb_3872	-	hypothetical protein
653	 67.35	0	764426..765895	+	489	115358623	-	Bamb_3873	-	alpha,alpha-trehalose-phosphate synthase (UDP-forming)
654	 68.85	0	766000..767967	-	655	115358624	-	Bamb_3874	-	ATP-dependent metalloprotease FtsH
655	 70.15	0	768399..770063	+	554	115358625	-	Bamb_3875	-	phosphoesterase
656	 70.61	0	770099..770428	+	109	115358626	-	Bamb_3876	-	hypothetical protein
657	 66.13	0	770521..772386	-	621	115358627	-	Bamb_3877	-	phosphoenolpyruvate carboxykinase
658	 67.84	0	772914..773168	-	84	115358628	-	Bamb_3878	-	short-chain dehydrogenase/reductase SDR
659	 62.76	-1	773431..775017	-	528	115358629	-	Bamb_3879	-	isocitrate lyase
660	 69.49	0	775403..775933	+	176	115358630	-	Bamb_3880	-	YbaK/prolyl-tRNA synthetase associated region
661	 68.39	0	775930..776568	+	212	115358631	-	Bamb_3881	-	YheO domain-containing protein
662	 68.10	0	776617..777591	+	324	115358632	-	Bamb_3882	-	serine/threonine dehydratase
663	 70.28	0	777722..777970	+	82	115358633	-	Bamb_3883	-	hypothetical protein
664	 64.91	0	778024..778194	-	56	115358634	-	Bamb_3884	-	short-chain dehydrogenase/reductase SDR
665	 70.71	0	778236..778433	+	65	115358635	-	Bamb_3885	-	hypothetical protein
666	 66.41	0	778950..780878	+	642	115358636	-	Bamb_3886	-	TonB-dependent receptor
667	 67.92	0	780941..781579	-	212	115358637	-	Bamb_3887	-	lysine exporter protein LysE/YggA
668	 66.23	0	781694..782155	+	153	115358638	-	Bamb_3888	-	AsnC family transcriptional regulator
669	 62.03	-1	782177..782629	+	150	115358639	-	Bamb_3889	-	glyoxalase/bleomycin resistance protein/dioxygenase
670	 66.54	0	782762..783547	-	261	115358640	-	Bamb_3890	-	AraC family transcriptional regulator
671	 68.66	0	783795..786107	+	770	115358641	-	Bamb_3891	-	molybdopterin oxidoreductase
672	 64.37	0	786132..786479	-	115	115358642	-	Bamb_3892	-	RND family efflux transporter MFP subunit
673	 67.80	0	786520..787311	-	263	115358643	-	Bamb_3893	-	metal-binding integral membrane protein-like protein
674	 61.86	-1	787308..787952	-	214	115358644	-	Bamb_3894	-	hypothetical protein
675	 68.43	0	788143..789387	+	414	115358645	-	Bamb_3895	-	major facilitator transporter
676	 60.13	-1	789411..789716	-	101	115358646	-	Bamb_3896	-	hypothetical protein
677	 68.36	0	789935..790465	-	176	115358647	-	Bamb_3897	-	carbonic anhydrase
678	 67.99	0	790469..790921	-	150	115358648	-	Bamb_3898	-	electron transfer flavoprotein, alpha subunit
679	 60.23	-1	791139..791402	-	87	115358649	-	Bamb_3899	-	translation initiation factor IF-1
680	 57.35	-2	791862..792065	-	67	115358650	-	Bamb_3900	-	cold-shock DNA-binding domain-containing protein
681	 68.25	0	792405..792656	-	83	115358651	-	Bamb_3901	-	hypothetical protein
682	 64.48	0	792869..793279	-	136	115358652	-	Bamb_3902	-	PilT domain-containing protein
683	 61.60	-1	793272..793508	-	78	115358653	-	Bamb_3903	-	hypothetical protein
684	 68.80	0	793755..794927	-	390	115358654	-	Bamb_3904	-	hypothetical protein
685	 66.29	0	795337..796410	+	357	115358655	-	Bamb_3905	-	acyltransferase 3
686	 64.14	0	796423..796659	-	78	115358656	-	Bamb_3906	-	hypothetical protein
687	 71.26	+1	797135..798004	-	289	115358657	-	Bamb_3907	-	LysR family transcriptional regulator
688	 69.55	0	798145..799533	+	462	115358658	-	Bamb_3908	-	major facilitator transporter
689	 69.57	0	799559..799903	-	114	115358659	-	Bamb_3909	-	hypothetical protein
690	 72.15	+1	800044..800262	-	72	115358660	-	Bamb_3910	-	hypothetical protein
691	 61.06	-1	800382..801434	+	350	115358661	-	Bamb_3911	-	IS605 family transposase OrfB
692	 71.48	+1	801491..802654	-	387	115358662	-	Bamb_3912	-	hypothetical protein
693	 71.25	+1	802657..804051	-	464	115358663	-	Bamb_3913	-	hypothetical protein
66.96	MEAN

4.07	STD DEV
