IslandPath Analysis: Burkholderia ambifaria AMMD

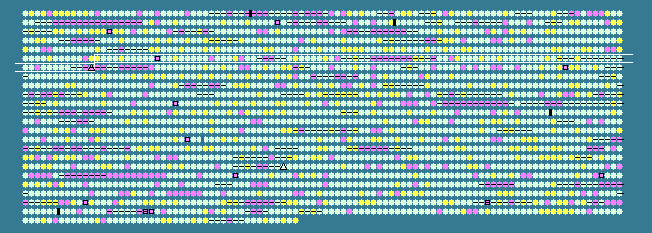

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
513	 70.56	0	591786..592736	-	316	115358483	-	Bamb_3733	-	LysR family transcriptional regulator
514	 65.87	0	592960..593337	+	125	115358484	-	Bamb_3734	-	hypothetical protein
515	 67.79	0	593356..594156	-	266	115358485	-	Bamb_3735	-	LuxR family transcriptional regulator
516	 67.95	0	594340..595746	+	468	115358486	-	Bamb_3736	-	amino acid permease-associated region
517	 71.17	+1	595811..596920	+	369	115358487	-	Bamb_3737	-	peptidase S58, DmpA
518	 69.95	0	597080..597292	-	70	115358488	-	Bamb_3738	-	hypothetical protein
519	 69.19	0	597462..599642	-	726	115358489	-	Bamb_3739	-	fusaric acid resistance protein region
520	 67.09	0	599834..600781	+	315	115358490	-	Bamb_3740	-	LysR family transcriptional regulator
521	 67.70	0	600927..601313	-	128	115358491	-	Bamb_3741	-	hypothetical protein
522	 66.84	0	601457..602599	-	380	115358492	-	Bamb_3742	-	porin
523	 60.21	-1	602719..603771	+	350	115358493	-	Bamb_3743	-	IS605 family transposase OrfB
524	 66.45	0	604096..604560	+	154	115358494	-	Bamb_3744	-	glyoxalase/bleomycin resistance protein/dioxygenase
525	 67.15	0	604634..605875	+	413	115358495	-	Bamb_3745	-	N-isopropylammelide isopropylaminohydrolase
526	 71.75	+1	606054..607391	+	445	115358496	-	Bamb_3746	-	Cl- channel, voltage-gated family protein
527	 66.89	0	607586..608938	+	450	115358497	-	Bamb_3747	-	hypothetical protein
528	 68.62	0	609003..610331	-	442	115358498	-	Bamb_3748	-	major facilitator transporter
529	 67.20	0	610565..611497	-	310	115358499	-	Bamb_3749	-	hypothetical protein
530	 69.17	0	611533..612330	-	265	115358500	-	Bamb_3750	-	short chain dehydrogenase
531	 69.48	0	612405..613115	-	236	115358501	-	Bamb_3751	-	GntR family transcriptional regulator
532	 57.10	-2	613413..613757	+	114	115358502	-	Bamb_3752	-	XRE family transcriptional regulator
533	 63.73	0	613750..615009	+	419	115358503	-	Bamb_3753	-	HipA domain-containing protein
534	 69.34	0	615025..616443	-	472	115358504	-	Bamb_3754	-	di-haem cytochrome c peroxidase
535	 66.91	0	616552..618225	-	557	115358505	-	Bamb_3755	-	phospholipase C
536	 71.10	+1	618625..619482	+	285	115358506	-	Bamb_3756	-	hypothetical protein
537	 61.81	-1	619531..620004	-	157	115358507	-	Bamb_3757	-	AsnC family transcriptional regulator
538	 64.43	0	620324..621709	+	461	115358508	-	Bamb_3758	-	amino acid permease-associated region
539	 67.58	0	621753..622955	+	400	115358509	-	Bamb_3759	-	aromatic amino acid aminotransferase
540	 70.43	0	623085..623483	+	132	115358510	-	Bamb_3760	-	hypothetical protein
541	 62.59	-1	623601..623894	+	97	115358511	-	Bamb_3761	-	hypothetical protein
542	 60.00	-1	623911..624150	+	79	115358512	-	Bamb_3762	-	hypothetical protein
543	 69.21	0	624293..624646	+	117	115358513	-	Bamb_3763	-	hypothetical protein
544	 65.64	0	624671..625450	-	259	115358514	-	Bamb_3764	-	Crp/FNR family transcriptional regulator
545	 67.65	0	625468..625875	-	135	115358515	-	Bamb_3765	-	response regulator receiver protein
546	 74.36	+1	626064..626999	-	311	115358516	-	Bamb_3766	-	ornithine cyclodeaminase
547	 68.70	0	627215..628000	+	261	115358517	-	Bamb_3767	-	regulatory protein GntR, HTH
548	 66.67	0	628122..629243	+	373	115358518	-	Bamb_3768	-	extracellular ligand-binding receptor
549	 67.76	0	629298..630305	+	335	115358519	-	Bamb_3769	-	proline racemase
550	 69.77	0	630503..633115	+	870	115358520	-	Bamb_3770	-	peptidoglycan glycosyltransferase
551	 72.37	+1	633195..634070	+	291	115358521	-	Bamb_3771	-	type IV pilus assembly PilZ
552	 64.24	0	634355..634684	+	109	115358522	-	Bamb_3772	-	hypothetical protein
553	 62.96	0	634954..635358	+	134	115358523	-	Bamb_3773	-	hypothetical protein
554	 65.90	0	635436..636083	-	215	115358524	-	Bamb_3774	-	two component LuxR family transcriptional regulator
555	 69.73	0	636080..638203	-	707	115358525	-	Bamb_3775	-	multi-sensor signal transduction histidine kinase
556	 72.15	+1	638512..638985	+	157	115358526	-	Bamb_3776	-	UspA domain-containing protein
557	 69.23	0	639344..639850	+	168	115358527	-	Bamb_3777	-	hypothetical protein
558	 66.10	0	639996..641045	+	349	115358528	-	Bamb_3778	-	rhodanese domain-containing protein
559	 59.18	-1	641708..650794	+	3028	115358529	-	Bamb_3779	-	filamentous haemagglutinin outer membrane protein
560	 47.29	-2	651502..651759	+	85	115358530	-	Bamb_3780	-	hypothetical protein
561	 43.33	-2	651762..652031	+	89	115358531	-	Bamb_3781	-	hypothetical protein
562	 59.97	-1	652105..653865	+	586	115358532	-	Bamb_3782	-	polypeptide-transport-associated domain-containing protein
563	 51.00	-2	653901..654251	+	116	115358533	-	Bamb_3783	-	hypothetical protein
564	 43.25	-2	654362..654835	+	157	115358534	-	Bamb_3784	-	hypothetical protein
565	 49.44	-2	654981..655334	+	117	115358535	-	Bamb_3785	-	hypothetical protein
566	 71.47	+1	655755..656690	+	311	115358536	-	Bamb_3786	-	UspA domain-containing protein
567	 71.78	+1	657222..657632	-	136	115358537	-	Bamb_3787	-	hypothetical protein
568	 68.17	0	657726..658124	-	132	115358538	-	Bamb_3788	-	hypothetical protein
569	 62.40	-1	658223..658480	+	85	115358539	-	Bamb_3789	-	hypothetical protein
570	 69.33	0	658724..660523	+	599	115358540	-	Bamb_3790	-	methyl-accepting chemotaxis sensory transducer
571	 67.05	0	660566..661603	-	345	115358541	-	Bamb_3791	-	sigma-54 dependent trancsriptional regulator
572	 60.98	-1	661649..661894	+	81	115358542	-	Bamb_3792	-	hypothetical protein
573	 71.53	+1	661977..663971	+	664	115358543	-	Bamb_3793	-	multi-sensor hybrid histidine kinase
574	 67.91	0	664097..664741	+	214	115358544	-	Bamb_3794	-	hypothetical protein
575	 69.28	0	664770..665267	-	165	115358545	-	Bamb_3795	-	PRC-barrel domain-containing protein
576	 68.06	0	665335..665766	-	143	115358546	-	Bamb_3796	-	CBS domain-containing protein
577	 73.49	+1	666108..666356	-	82	115358547	-	Bamb_3797	-	hypothetical protein
578	 66.67	0	666928..667239	+	103	115358548	-	Bamb_3798	-	hypothetical protein
579	 67.46	0	667447..668325	+	292	115358549	-	Bamb_3799	-	MltA-interacting MipA family protein
580	 70.68	0	668431..670125	+	564	115358550	-	Bamb_3800	-	hypothetical protein
581	 70.14	0	670122..672422	+	766	115358551	-	Bamb_3801	-	helicase c2
582	 68.74	0	672478..673248	-	256	115358552	-	Bamb_3802	-	IclR family transcriptional regulator
583	 65.36	0	673500..674111	+	203	115358553	-	Bamb_3803	-	hypothetical protein
584	 66.97	0	674197..675534	-	445	115358554	-	Bamb_3804	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
585	 67.28	0	675709..677016	-	435	115358555	-	Bamb_3805	-	shikimate transporter
586	 67.64	0	677372..678499	+	375	115358556	-	Bamb_3806	-	4-hydroxyphenylpyruvate dioxygenase
587	 70.34	0	678680..680014	-	444	115358557	-	Bamb_3807	-	HipA domain-containing protein
588	 71.92	+1	680017..680454	-	145	115358558	-	Bamb_3808	-	XRE family transcriptional regulator
589	 64.91	0	680519..680803	-	94	115358559	-	Bamb_3809	-	hypothetical protein
590	 73.27	+1	680886..681551	-	221	115358560	-	Bamb_3810	-	cation efflux protein
591	 68.38	0	681891..682880	+	329	115358561	-	Bamb_3811	-	alcohol dehydrogenase
592	 63.70	0	682908..683681	-	257	115358562	-	Bamb_3812	-	Crp/FNR family transcriptional regulator
593	 71.76	+1	684102..684572	+	156	115358563	-	Bamb_3813	-	UspA domain-containing protein
594	 68.47	0	684624..685457	-	277	115358564	-	Bamb_3814	-	UspA domain-containing protein
595	 69.44	0	685454..685957	-	167	115358565	-	Bamb_3815	-	UspA domain-containing protein
596	 69.83	0	686027..687226	-	399	115358566	-	Bamb_3816	-	acetate kinase
597	 67.50	0	687235..688074	-	279	115358567	-	Bamb_3817	-	UspA domain-containing protein
598	 68.15	0	688265..688804	+	179	115358568	-	Bamb_3818	-	hypothetical protein
599	 66.67	0	688794..689540	+	248	115358569	-	Bamb_3819	-	acetoacetyl-CoA reductase
600	 69.19	0	689621..691441	+	606	115358570	-	Bamb_3820	-	poly-beta-hydroxybutyrate polymerase domain-containing protein
601	 69.89	0	691438..692460	+	340	115358571	-	Bamb_3821	-	phosphate butyryltransferase
602	 66.86	0	692466..693506	+	346	115358572	-	Bamb_3822	-	alcohol dehydrogenase
603	 62.90	0	693594..693779	-	61	115358573	-	Bamb_3823	-	hypothetical protein
604	 64.41	0	694137..694757	+	206	115358574	-	Bamb_3824	-	TetR family transcriptional regulator
605	 67.52	0	694960..696018	+	352	115358575	-	Bamb_3825	-	alcohol dehydrogenase
606	 63.67	0	696101..696400	+	99	115358576	-	Bamb_3826	-	antibiotic biosynthesis monooxygenase
607	 70.18	0	696530..696985	+	151	115358577	-	Bamb_3827	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
608	 69.01	0	696987..699206	+	739	115358578	-	Bamb_3828	-	aldehyde oxidase and xanthine dehydrogenase, molybdopterin binding
609	 68.79	0	699222..700541	+	439	115358579	-	Bamb_3829	-	cytochrome c, class I
610	 68.81	0	700703..702148	+	481	115358580	-	Bamb_3830	-	succinate-semialdehyde dehydrogenase (NAD(P)(+))
611	 63.45	0	703002..703250	-	82	115358581	-	Bamb_3831	-	hypothetical protein
612	 62.44	-1	703575..705065	+	496	115358582	-	Bamb_3832	-	integrase catalytic subunit
66.96	MEAN

4.07	STD DEV
