IslandPath Analysis: Burkholderia ambifaria AMMD

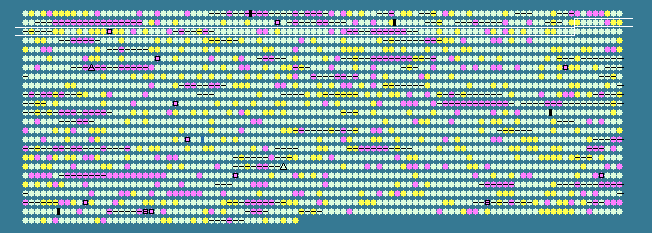

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
193	 70.77	0	208187..208771	+	194	115358163	-	Bamb_3413	-	hypothetical protein
194	 69.79	0	208792..209784	-	330	115358164	-	Bamb_3414	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
195	 67.16	0	210003..210410	-	135	115358165	-	Bamb_3415	-	hypothetical protein
196	 66.54	0	210851..212437	+	528	115358166	-	Bamb_3416	-	extracellular solute-binding protein
197	 68.65	0	212571..213527	-	318	115358167	-	Bamb_3417	-	taurine dioxygenase
198	 58.89	-1	214248..214427	+	59	115358168	-	Bamb_3418	-	Flp/Fap pilin component
199	 72.92	+1	214516..214995	+	159	115358169	-	Bamb_3419	-	peptidase A24A, prepilin type IV
200	 74.44	+1	215016..216044	+	342	115358170	-	Bamb_3420	-	Flp pilus assembly CpaB
201	 67.68	0	216099..217481	+	460	115358171	-	Bamb_3421	-	type II and III secretion system protein
202	 73.18	+1	217496..217879	+	127	115358172	-	Bamb_3422	-	hypothetical protein
203	 68.22	0	217901..219124	+	407	115358173	-	Bamb_3423	-	response regulator receiver protein
204	 68.50	0	219121..220539	+	472	115358174	-	Bamb_3424	-	type II secretion system protein E
205	 68.71	0	220536..221513	+	325	115358175	-	Bamb_3425	-	type II secretion system protein
206	 70.79	0	221510..222454	+	314	115358176	-	Bamb_3426	-	type II secretion system protein
207	 72.73	+1	222451..223308	+	285	115358177	-	Bamb_3427	-	TPR repeat-containing protein
208	 67.83	0	223305..223733	+	142	115358178	-	Bamb_3428	-	TadE family protein
209	 70.12	0	223726..224766	+	346	115358179	-	Bamb_3429	-	hypothetical protein
210	 70.51	0	224730..226004	-	424	115358180	-	Bamb_3430	-	hypothetical protein
211	 68.06	0	226019..227095	-	358	115358181	-	Bamb_3431	-	glycosyl transferase family protein
212	 71.76	+1	227369..227761	+	130	115358182	-	Bamb_3432	-	hypothetical protein
213	 73.54	+1	227778..228767	-	329	115358183	-	Bamb_3433	-	nitrate/sulfonate/bicarbonate ABC transporter periplasmic ligand-binding protein
214	 72.47	+1	228908..229786	-	292	115358184	-	Bamb_3434	-	LysR family transcriptional regulator
215	 58.97	-1	229906..230958	+	350	115358185	-	Bamb_3435	-	IS605 family transposase OrfB
216	 73.41	+1	231076..232632	+	518	115358186	-	Bamb_3436	-	major facilitator transporter
217	 71.87	+1	232692..233864	-	390	115358187	-	Bamb_3437	-	LysR family transcriptional regulator
218	 69.50	0	233959..235227	+	422	115358188	-	Bamb_3438	-	hypothetical protein
219	 62.99	0	235291..236052	-	253	115358189	-	Bamb_3439	-	hypothetical protein
220	 66.07	0	236595..236927	+	110	115358190	-	Bamb_3440	-	hypothetical protein
221	 72.05	+1	237017..237907	-	296	115358191	-	Bamb_3441	-	3-hydroxyisobutyrate dehydrogenase
222	 67.78	0	237922..239448	-	508	115358192	-	Bamb_3442	-	methylmalonate-semialdehyde dehydrogenase
223	 69.47	0	239570..240889	-	439	115358193	-	Bamb_3443	-	major facilitator transporter
224	 69.34	0	241034..242005	+	323	115358194	-	Bamb_3444	-	LysR family transcriptional regulator
225	 61.23	-1	242149..242424	+	91	115358195	-	Bamb_3445	-	hypothetical protein
226	 68.54	0	242450..243250	-	266	115358196	-	Bamb_3446	-	haloacid dehalogenase, type II
227	 59.56	-1	243334..243516	-	60	115358197	-	Bamb_3447	-	hypothetical protein
228	 68.80	0	243731..245980	+	749	115358198	-	Bamb_3448	-	diguanylate cyclase/phosphodiesterase with GAF sensor
229	 69.74	0	245985..247058	-	357	115358199	-	Bamb_3449	-	diguanylate cyclase
230	 73.23	+1	247114..248118	-	334	115358200	-	Bamb_3450	-	chemotaxis-specific methylesterase
231	 61.78	-1	248509..248733	-	74	115358201	-	Bamb_3451	-	hypothetical protein
232	 68.41	0	249026..249715	+	229	115358202	-	Bamb_3452	-	hypothetical protein
233	 67.19	0	249712..250662	+	316	115358203	-	Bamb_3453	-	hypothetical protein
234	 70.09	0	250673..251695	+	340	115358204	-	Bamb_3454	-	hypothetical protein
235	 69.58	0	251847..252911	+	354	115358205	-	Bamb_3455	-	L-asparaginase II
236	 65.79	0	253007..254029	-	340	115358206	-	Bamb_3456	-	LysR family transcriptional regulator
237	 66.95	0	254138..255544	+	468	115358207	aspA	Bamb_3457	-	aspartate ammonia-lyase
238	 67.60	0	255648..257141	+	497	115358208	-	Bamb_3458	-	amino acid permease-associated region
239	 70.03	0	257185..257928	-	247	115358209	-	Bamb_3459	-	phospholipase/carboxylesterase
240	 61.73	-1	258139..258381	+	80	115358210	-	Bamb_3460	-	SpoVT/AbrB domain-containing protein
241	 60.29	-1	258378..258785	+	135	115358211	-	Bamb_3461	-	PilT domain-containing protein
242	 67.67	0	259235..261625	+	796	115358212	-	Bamb_3462	-	putative CheA signal transduction histidine kinases
243	 72.33	+1	261628..262368	+	246	115358213	-	Bamb_3463	-	methyl-accepting chemotaxis sensory transducer
244	 69.57	0	262365..262949	+	194	115358214	-	Bamb_3464	-	hypothetical protein
245	 66.56	0	263027..263929	+	300	115358215	-	Bamb_3465	-	hypothetical protein
246	 64.75	0	263965..264330	+	121	115358216	-	Bamb_3466	-	response regulator receiver protein
247	 64.49	0	264557..265660	-	367	115358217	-	Bamb_3467	-	ImpA domain-containing protein
248	 64.80	0	265657..266730	-	357	115358218	-	Bamb_3468	-	hypothetical protein
249	 63.60	0	266730..268619	-	629	115358219	-	Bamb_3469	-	hypothetical protein
250	 65.05	0	268652..269209	-	185	115358220	-	Bamb_3470	-	hypothetical protein
251	 65.96	0	269202..270053	-	283	115358221	-	Bamb_3471	-	virulence protein, SciE type
252	 63.09	0	270050..270496	-	148	115358222	-	Bamb_3472	-	hypothetical protein
253	 65.07	0	271254..273947	+	897	115358223	-	Bamb_3473	-	ATPase
254	 62.43	-1	273986..274528	+	180	115358224	-	Bamb_3474	-	hypothetical protein
255	 61.45	-1	274556..276049	+	497	115358225	-	Bamb_3475	-	hypothetical protein
256	 60.29	-1	276142..276627	+	161	115358226	-	Bamb_3476	-	hypothetical protein
257	 64.30	0	276714..277220	+	168	115358227	-	Bamb_3477	-	hypothetical protein
258	 64.21	0	277252..278595	+	447	115358228	-	Bamb_3478	-	hypothetical protein
259	 60.01	-1	278884..281421	+	845	115358229	-	Bamb_3479	-	Rhs element Vgr protein
260	 56.95	-2	281396..282280	+	294	115358230	-	Bamb_3480	-	hypothetical protein
261	 56.25	-2	282817..284832	+	671	115358231	-	Bamb_3481	-	hypothetical protein
262	 48.06	-2	284825..285754	+	309	115358232	-	Bamb_3482	-	hypothetical protein
263	 55.20	-2	285825..286103	+	92	115358233	-	Bamb_3483	-	PAAR repeat-containing protein
264	 60.82	-1	286100..287398	+	432	115358234	-	Bamb_3484	-	hypothetical protein
265	 63.79	0	287424..291521	+	1365	115358235	-	Bamb_3485	-	ImcF domain-containing protein
266	 65.19	0	291542..292756	+	404	115358236	-	Bamb_3486	-	OmpA/MotB domain-containing protein
267	 66.78	0	292778..293659	-	293	115358237	-	Bamb_3487	-	LysR family transcriptional regulator
268	 68.94	0	293790..295199	+	469	115358238	-	Bamb_3488	-	major facilitator transporter
269	 68.81	0	295318..296112	+	264	115358239	-	Bamb_3489	-	enoyl-CoA hydratase
270	 70.59	0	296261..297382	-	373	115358240	-	Bamb_3490	-	alanine racemase
271	 66.40	0	297686..298057	+	123	115358241	-	Bamb_3491	-	membrane protein-like protein
272	 68.99	0	298100..299047	-	315	115358242	-	Bamb_3492	-	LysR family transcriptional regulator
273	 71.44	+1	299168..302707	+	1179	115358243	-	Bamb_3493	-	ABC transporter related
274	 65.66	0	303195..303392	+	65	115358244	-	Bamb_3494	-	hypothetical protein
275	 70.00	0	303413..304462	+	349	115358245	-	Bamb_3495	-	peptidase C45, acyl-coenzyme A:6-aminopenicillanic acid acyl-transferase
276	 66.52	0	304478..305812	+	444	115358246	-	Bamb_3496	-	hypothetical protein
277	 67.57	0	305838..306392	+	184	115358247	-	Bamb_3497	-	carboxymuconolactone decarboxylase
278	 63.33	0	306601..307500	+	299	115358248	-	Bamb_3498	-	aspartyl/asparaginyl beta-hydroxylase
279	 73.29	+1	307683..308543	+	286	115358249	-	Bamb_3499	-	hypothetical protein
280	 66.60	0	308658..310256	-	532	115358250	-	Bamb_3500	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
281	 61.88	-1	310379..310942	-	187	115358251	-	Bamb_3501	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
282	 72.02	+1	311263..312270	+	335	115358252	-	Bamb_3502	-	extracellular solute-binding protein
283	 69.09	0	312254..313576	+	440	115358253	-	Bamb_3503	-	sodium:dicarboxylate symporter
284	 72.22	+1	313587..314288	+	233	115358254	-	Bamb_3504	-	aspartate racemase
285	 69.35	0	314373..315266	-	297	115358255	-	Bamb_3505	-	LysR family transcriptional regulator
286	 70.01	0	315444..316610	+	388	115358256	-	Bamb_3506	-	extracellular ligand-binding receptor
287	 68.70	0	316627..317166	+	179	115358257	-	Bamb_3507	-	hypothetical protein
288	 71.28	+1	317159..318415	+	418	115358258	-	Bamb_3508	-	allantoate amidohydrolase
289	 72.40	+1	318426..319262	-	278	115358259	-	Bamb_3509	-	cytochrome c, class I
290	 70.43	0	319615..320916	-	433	115358260	-	Bamb_3510	-	hypothetical protein
291	 67.32	0	320913..322736	-	607	115358261	-	Bamb_3511	-	glucosamine--fructose-6-phosphate aminotransferase, isomerizing
292	 68.10	0	322859..323347	-	162	115358262	-	Bamb_3512	-	hypothetical protein
66.96	MEAN

4.07	STD DEV
