IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

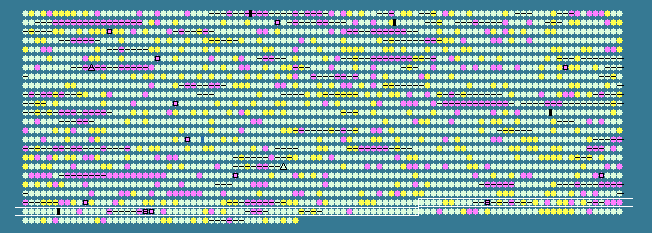

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2167	 69.87	0	2442019..2442612	-	197	115360137	-	Bamb_5394	-	hypothetical protein
2168	 65.04	0	2442621..2442743	-	40	115360138	-	Bamb_5395	-	GCN5-related N-acetyltransferase
2169	 69.95	0	2442905..2443543	+	212	115360139	-	Bamb_5396	-	lysine exporter protein LysE/YggA
2170	 69.69	0	2443648..2444904	-	418	115360140	-	Bamb_5397	-	hypothetical protein
2171	 72.52	+1	2445047..2445268	+	73	115360141	-	Bamb_5398	-	hypothetical protein
2172	 73.47	+1	2445388..2446137	+	249	115360142	-	Bamb_5399	-	hypothetical protein
2173	 68.77	0	2446148..2449195	+	1015	115360143	-	Bamb_5400	-	hypothetical protein
2174	 69.92	0	2449199..2449843	+	214	115360144	-	Bamb_5401	-	hypothetical protein
2175	 70.22	0	2449840..2450487	+	215	115360145	-	Bamb_5402	-	hypothetical protein
2176	 68.94	0	2450517..2451089	-	190	115360146	-	Bamb_5403	-	NADPH-dependent FMN reductase
2177	 70.03	0	2451144..2451857	-	237	115360147	-	Bamb_5404	-	hypothetical protein
2178	 60.30	-1	2452050..2453102	-	350	115360148	-	Bamb_5405	-	IS605 family transposase OrfB
2179	 66.74	0	2453609..2454892	-	427	115360149	-	Bamb_5406	-	hypothetical protein
2180	 75.12	+2	2455013..2456242	-	409	115360150	-	Bamb_5407	-	triple helix repeat-containing collagen
2181	 67.18	0	2456407..2456985	+	192	115360151	-	Bamb_5408	-	hypothetical protein
2182	 58.44	-2	2457077..2457307	+	76	115360152	-	Bamb_5409	-	hypothetical protein
2183	 69.42	0	2457454..2457852	+	132	115360153	-	Bamb_5410	-	carboxymuconolactone decarboxylase
2184	 71.83	+1	2457930..2458916	-	328	115360154	-	Bamb_5411	-	alpha/beta hydrolase fold
2185	 67.63	0	2458924..2460486	-	520	115360155	-	Bamb_5412	-	FAD dependent oxidoreductase
2186	 72.06	+1	2460483..2461409	-	308	115360156	-	Bamb_5413	-	short-chain dehydrogenase/reductase SDR
2187	 68.19	0	2461497..2462153	+	218	115360157	-	Bamb_5414	-	TetR family transcriptional regulator
2188	 63.26	0	2462465..2462728	-	87	115360158	-	Bamb_5415	-	hypothetical protein
2189	 70.07	0	2462864..2463802	-	312	115360159	-	Bamb_5416	-	LysR family transcriptional regulator
2190	 72.25	+1	2463930..2464574	+	214	115360160	-	Bamb_5417	-	glutathione S-transferase domain-containing protein
2191	 71.63	+1	2464622..2466676	+	684	115360161	-	Bamb_5418	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
2192	 60.78	-1	2466798..2467001	+	67	115360162	-	Bamb_5419	-	hypothetical protein
2193	 69.22	0	2467474..2469705	+	743	115360163	-	Bamb_5420	-	TonB-dependent siderophore receptor
2194	 70.59	0	2469765..2470376	+	203	115360164	-	Bamb_5421	-	nicotinamide mononucleotide transporter PnuC
2195	 69.86	0	2470413..2471603	+	396	115360165	-	Bamb_5422	-	aminoglycoside phosphotransferase
2196	 61.05	-1	2471760..2472044	-	94	115360166	-	Bamb_5423	-	hypothetical protein
2197	 65.12	0	2472346..2472603	+	85	115360167	-	Bamb_5424	-	hypothetical protein
2198	 53.47	-2	2472896..2473327	-	143	115360168	-	Bamb_5425	-	hypothetical protein
2199	 47.87	-2	2473550..2473996	-	148	115360169	-	Bamb_5426	-	two component LuxR family transcriptional regulator
2200	 50.00	-2	2474164..2474643	-	159	115360170	-	Bamb_5427	-	hypothetical protein
2201	 66.82	0	2475086..2476381	-	431	115360171	-	Bamb_5428	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
2202	 67.71	0	2476514..2477182	+	222	115360172	-	Bamb_5429	-	O-methyltransferase family protein
2203	 68.23	0	2477192..2478343	-	383	115360173	-	Bamb_5430	-	hypothetical protein
2204	 67.04	0	2478602..2479414	-	270	115360174	-	Bamb_5431	-	nucleotidyltransferase-like protein
2205	 66.91	0	2479470..2480693	-	407	115360175	-	Bamb_5432	-	hypothetical protein
2206	 66.32	0	2480758..2481897	-	379	115360176	-	Bamb_5433	-	band 7 protein
2207	 67.84	0	2482564..2484180	+	538	115360177	-	Bamb_5434	-	regulator of RNA terminal phosphate cyclase
2208	 69.42	0	2484205..2484966	-	253	115360178	-	Bamb_5435	-	methyltransferase type 12
2209	 67.94	0	2484981..2485610	-	209	115360179	-	Bamb_5436	-	lysine exporter protein LysE/YggA
2210	 62.74	-1	2485701..2486972	-	423	115360180	-	Bamb_5437	-	HipA domain-containing protein
2211	 68.24	0	2486969..2487475	-	168	115360181	-	Bamb_5438	-	XRE family transcriptional regulator
2212	 68.73	0	2487727..2488647	-	306	115360182	-	Bamb_5439	-	LysR family transcriptional regulator
2213	 69.44	0	2488744..2489826	+	360	115360183	-	Bamb_5440	-	tartrate dehydrogenase
2214	 67.20	0	2490020..2491330	+	436	115360184	-	Bamb_5441	-	major facilitator transporter
2215	 61.95	-1	2491367..2491663	-	98	115360185	-	Bamb_5442	-	hypothetical protein
2216	 65.98	0	2492029..2494221	+	730	115360186	-	Bamb_5443	-	filamentous haemagglutinin outer membrane protein
2217	 66.94	0	2494221..2496047	+	608	115360187	-	Bamb_5444	-	polypeptide-transport-associated domain-containing protein
2218	 66.12	0	2496242..2496979	+	245	115360188	-	Bamb_5445	-	PpiC-type peptidyl-prolyl cis-trans isomerase
2219	 65.83	0	2497213..2509002	+	3929	115360189	-	Bamb_5446	-	adhesin
2220	 52.87	-2	2509004..2509351	+	115	115360190	-	Bamb_5447	-	hypothetical protein
2221	 63.02	0	2509577..2509987	+	136	115360191	-	Bamb_5448	-	transposase mutator family protein
2222	 62.93	0	2510070..2510792	+	240	115360192	-	Bamb_5449	-	transposase, mutator type
2223	 65.27	0	2511417..2512349	+	310	115360193	-	Bamb_5450	-	hypothetical protein
2224	 61.23	-1	2512402..2513247	+	281	115360194	-	Bamb_5451	-	hypothetical protein
2225	 64.20	0	2513391..2514728	-	445	115360195	-	Bamb_5452	-	argininosuccinate synthase
2226	 69.37	0	2515080..2516150	-	356	115360196	-	Bamb_5453	-	membrane protein
2227	 68.04	0	2516322..2517854	-	510	115360197	-	Bamb_5454	-	diguanylate cyclase
2228	 66.48	0	2518351..2519961	+	536	115360198	-	Bamb_5455	-	amino acid permease-associated region
2229	 67.89	0	2520221..2520466	+	81	115360199	-	Bamb_5456	-	hypothetical protein
2230	 65.47	0	2520761..2521678	+	305	115360200	-	Bamb_5457	-	LysR family transcriptional regulator
2231	 71.91	+1	2521795..2522652	+	285	115360201	-	Bamb_5458	-	alpha/beta hydrolase fold
2232	 61.11	-1	2522695..2523072	-	125	115360202	-	Bamb_5459	-	hypothetical protein
2233	 67.15	0	2523270..2523890	-	206	115360203	-	Bamb_5460	-	TetR family transcriptional regulator
2234	 72.20	+1	2523985..2525232	+	415	115360204	-	Bamb_5461	-	glycosyl transferase family protein
2235	 67.10	0	2525249..2525944	-	231	115360205	-	Bamb_5462	-	histidine utilization repressor
2236	 63.57	0	2526439..2527212	+	257	115360206	-	Bamb_5463	-	cationic amino acid ABC transporter, periplasmic binding protein
2237	 64.64	0	2527279..2527968	+	229	115360207	-	Bamb_5464	-	polar amino acid ABC transporter, inner membrane subunit
2238	 64.57	0	2527965..2528678	+	237	115360208	-	Bamb_5465	-	polar amino acid ABC transporter, inner membrane subunit
2239	 62.63	-1	2528697..2529464	+	255	115360209	-	Bamb_5466	-	ABC transporter related
2240	 61.59	-1	2529646..2529921	+	91	115360210	-	Bamb_5467	-	hypothetical protein
2241	 66.90	0	2530259..2531542	+	427	115360211	-	Bamb_5468	-	cyclic nucleotide-binding protein
2242	 67.71	0	2531566..2532330	+	254	115360212	-	Bamb_5469	-	MotA/TolQ/ExbB proton channel
2243	 69.00	0	2532349..2533035	+	228	115360213	-	Bamb_5470	-	OmpA/MotB domain-containing protein
2244	 66.88	0	2533185..2535047	+	620	115360214	-	Bamb_5471	-	methyl-accepting chemotaxis sensory transducer
2245	 67.26	0	2535098..2535937	+	279	115360215	-	Bamb_5472	-	hypothetical protein
2246	 64.04	0	2536020..2537237	-	405	115360216	-	Bamb_5473	-	UDP-N-acetylglucosamine 2-epimerase
2247	 71.79	+1	2537940..2538212	+	90	115360217	-	Bamb_5474	-	hypothetical protein
2248	 67.58	0	2538472..2540001	+	509	115360218	-	Bamb_5475	-	glycosyl transferase family protein
2249	 71.39	+1	2540005..2541000	+	331	115360219	-	Bamb_5476	-	hypothetical protein
2250	 65.15	0	2541224..2542078	+	284	115360220	-	Bamb_5477	-	hypothetical protein
2251	 65.87	0	2542093..2542848	+	251	115360221	-	Bamb_5478	-	hypothetical protein
2252	 64.41	0	2543201..2545369	+	722	115360222	-	Bamb_5479	-	outer membrane protein
2253	 67.13	0	2545461..2546549	+	362	115360223	-	Bamb_5480	-	hypothetical protein
2254	 66.83	0	2546613..2548430	+	605	115360224	-	Bamb_5481	-	glucosamine--fructose-6-phosphate aminotransferase, isomerizing
2255	 61.45	-1	2548532..2549509	-	325	115360225	-	Bamb_5482	-	hypothetical protein
2256	 65.15	0	2549778..2550239	+	153	115360226	-	Bamb_5483	-	hypothetical protein
2257	 70.38	0	2550303..2551757	-	484	115360227	-	Bamb_5484	-	RND efflux system outer membrane lipoprotein
2258	 66.92	0	2551774..2553348	-	524	115360228	-	Bamb_5485	-	EmrB/QacA family drug resistance transporter
2259	 70.05	0	2553362..2554453	-	363	115360229	-	Bamb_5486	-	secretion protein HlyD family protein
2260	 69.44	0	2554518..2554949	-	143	115360230	-	Bamb_5487	-	MarR family transcriptional regulator
2261	 69.38	0	2555057..2555977	-	306	115360231	-	Bamb_5488	-	LysR family transcriptional regulator
2262	 66.02	0	2556050..2556514	+	154	115360232	-	Bamb_5489	-	MarR family transcriptional regulator
2263	 66.99	0	2556581..2557828	+	415	115360233	-	Bamb_5490	-	hypothetical protein
2264	 68.44	0	2557821..2558270	+	149	115360234	-	Bamb_5491	-	hypothetical protein
2265	 69.07	0	2558280..2559362	-	360	115360235	-	Bamb_5492	-	AraC family transcriptional regulator
2266	 69.03	0	2559438..2561471	+	677	115360236	-	Bamb_5493	-	NADH:flavin oxidoreductase/NADH oxidase
66.96	MEAN

4.07	STD DEV
