IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

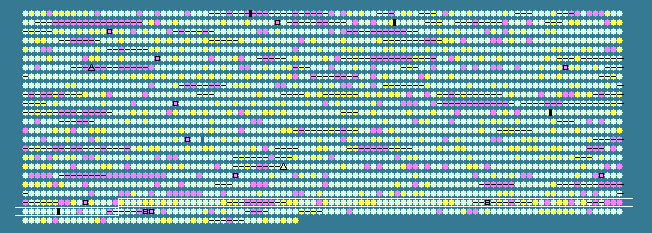

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2117	 73.56	+1	2385951..2387198	+	415	115360087	-	Bamb_5344	-	major facilitator transporter
2118	 69.41	0	2387261..2387806	-	181	115360088	-	Bamb_5345	-	4-hydroxyphenylacetate 3-monooxygenase, reductase subunit
2119	 67.14	0	2388140..2388772	+	210	115360089	-	Bamb_5346	-	two component LuxR family transcriptional regulator
2120	 69.76	0	2388825..2389568	-	247	115360090	-	Bamb_5347	-	short-chain dehydrogenase/reductase SDR
2121	 72.89	+1	2389625..2390749	-	374	115360091	-	Bamb_5348	-	amidase
2122	 72.38	+1	2390782..2391324	-	180	115360092	-	Bamb_5349	-	hypothetical protein
2123	 68.52	0	2391333..2391710	-	125	115360093	-	Bamb_5350	-	hypothetical protein
2124	 72.78	+1	2391764..2392957	-	397	115360094	-	Bamb_5351	-	acyl-CoA dehydrogenase type 2
2125	 69.88	0	2393099..2394652	+	517	115360095	-	Bamb_5352	-	PAS/PAC sensor signal transduction histidine kinase
2126	 70.80	0	2394716..2395102	-	128	115360096	-	Bamb_5353	-	4-oxalocrotonate tautomerase
2127	 65.87	0	2395282..2395785	-	167	115360097	-	Bamb_5354	-	aromatic-ring-hydroxylating dioxygenase, beta subunit
2128	 66.43	0	2395782..2397065	-	427	115360098	-	Bamb_5355	-	Rieske (2Fe-2S) domain-containing protein
2129	 70.03	0	2397205..2398125	+	306	115360099	-	Bamb_5356	-	LysR family transcriptional regulator
2130	 69.72	0	2398177..2399157	-	326	115360100	-	Bamb_5357	-	ferredoxin
2131	 68.74	0	2399313..2400710	-	465	115360101	-	Bamb_5358	-	major facilitator transporter
2132	 70.38	0	2401122..2402252	+	376	115360102	-	Bamb_5359	-	porin
2133	 70.42	0	2402285..2403322	-	345	115360103	-	Bamb_5360	-	LysR family transcriptional regulator
2134	 72.62	+1	2403319..2404293	-	324	115360104	-	Bamb_5361	-	AraC family transcriptional regulator
2135	 71.82	+1	2404443..2405549	+	368	115360105	-	Bamb_5362	-	NAD/NADP octopine/nopaline dehydrogenase
2136	 70.72	0	2405546..2406556	+	336	115360106	-	Bamb_5363	-	3-hydroxybutyryl-CoA dehydrogenase
2137	 70.21	0	2406583..2407965	-	460	115360107	-	Bamb_5364	-	major facilitator transporter
2138	 60.00	-1	2408440..2408709	+	89	115360108	-	Bamb_5365	-	GP29
2139	 61.04	-1	2408710..2412564	+	1284	115360109	-	Bamb_5366	-	Rhs element Vgr protein
2140	 51.23	-2	2412566..2413420	+	284	115360110	-	Bamb_5367	-	hypothetical protein
2141	 51.28	-2	2413612..2413923	+	103	115360111	-	Bamb_5368	-	hypothetical protein
2142	 52.05	-2	2413925..2414779	+	284	115360112	-	Bamb_5369	-	hypothetical protein
2143	 66.57	0	2414978..2416024	-	348	115360113	-	Bamb_5370	-	extracellular solute-binding protein
2144	 72.93	+1	2416021..2417169	-	382	115360114	-	Bamb_5371	-	FAD dependent oxidoreductase
2145	 74.00	+1	2417162..2418607	-	481	115360115	-	Bamb_5372	-	BFD/(2Fe-2S)-binding domain-containing protein
2146	 72.46	+1	2418604..2418948	-	114	115360116	-	Bamb_5373	-	hypothetical protein
2147	 66.54	0	2418951..2419745	-	264	115360117	-	Bamb_5374	-	binding-protein-dependent transport systems inner membrane component
2148	 70.34	0	2419742..2420722	-	326	115360118	-	Bamb_5375	-	binding-protein-dependent transport systems inner membrane component
2149	 68.70	0	2420723..2421805	-	360	115360119	-	Bamb_5376	-	ABC transporter related
2150	 57.83	-2	2421829..2422077	+	82	115360120	-	Bamb_5377	-	hypothetical protein
2151	 71.40	+1	2422098..2422985	+	295	115360121	-	Bamb_5378	-	IclR family transcriptional regulator
2152	 65.42	0	2422986..2423225	+	79	115360122	-	Bamb_5379	-	hypothetical protein
2153	 67.43	0	2423263..2424825	-	520	115360123	-	Bamb_5380	-	methyl-accepting chemotaxis sensory transducer
2154	 66.40	0	2425114..2426592	-	492	115360124	-	Bamb_5381	-	phosphoesterase
2155	 64.38	0	2426682..2427161	+	159	115360125	-	Bamb_5382	-	hypothetical protein
2156	 66.15	0	2427192..2427575	+	127	115360126	-	Bamb_5383	-	hypothetical protein
2157	 72.68	+1	2427783..2429012	-	409	115360127	-	Bamb_5384	-	major facilitator transporter
2158	 71.61	+1	2429226..2430095	-	289	115360128	-	Bamb_5385	-	XRE family transcriptional regulator
2159	 71.92	+1	2430191..2431084	+	297	115360129	-	Bamb_5386	-	3-beta hydroxysteroid dehydrogenase/isomerase
2160	 70.00	0	2431139..2432128	-	329	115360130	-	Bamb_5387	-	alcohol dehydrogenase
2161	 63.53	0	2432515..2435508	+	997	115360131	-	Bamb_5388	-	amino acid adenylation domain-containing protein
2162	 66.22	0	2435537..2436439	-	300	115360132	-	Bamb_5389	-	LysR family transcriptional regulator
2163	 68.92	0	2436536..2437912	-	458	115360133	-	Bamb_5390	-	mercuric reductase
2164	 63.60	0	2438167..2439210	-	347	115360134	-	Bamb_5391	-	LysR family transcriptional regulator
2165	 64.78	0	2439255..2440421	+	388	115360135	-	Bamb_5392	-	mandelate racemase/muconate lactonizing protein
2166	 65.57	0	2440584..2441951	+	455	115360136	-	Bamb_5393	-	sodium:dicarboxylate symporter
2167	 69.87	0	2442019..2442612	-	197	115360137	-	Bamb_5394	-	hypothetical protein
2168	 65.04	0	2442621..2442743	-	40	115360138	-	Bamb_5395	-	GCN5-related N-acetyltransferase
2169	 69.95	0	2442905..2443543	+	212	115360139	-	Bamb_5396	-	lysine exporter protein LysE/YggA
2170	 69.69	0	2443648..2444904	-	418	115360140	-	Bamb_5397	-	hypothetical protein
2171	 72.52	+1	2445047..2445268	+	73	115360141	-	Bamb_5398	-	hypothetical protein
2172	 73.47	+1	2445388..2446137	+	249	115360142	-	Bamb_5399	-	hypothetical protein
2173	 68.77	0	2446148..2449195	+	1015	115360143	-	Bamb_5400	-	hypothetical protein
2174	 69.92	0	2449199..2449843	+	214	115360144	-	Bamb_5401	-	hypothetical protein
2175	 70.22	0	2449840..2450487	+	215	115360145	-	Bamb_5402	-	hypothetical protein
2176	 68.94	0	2450517..2451089	-	190	115360146	-	Bamb_5403	-	NADPH-dependent FMN reductase
2177	 70.03	0	2451144..2451857	-	237	115360147	-	Bamb_5404	-	hypothetical protein
2178	 60.30	-1	2452050..2453102	-	350	115360148	-	Bamb_5405	-	IS605 family transposase OrfB
2179	 66.74	0	2453609..2454892	-	427	115360149	-	Bamb_5406	-	hypothetical protein
2180	 75.12	+2	2455013..2456242	-	409	115360150	-	Bamb_5407	-	triple helix repeat-containing collagen
2181	 67.18	0	2456407..2456985	+	192	115360151	-	Bamb_5408	-	hypothetical protein
2182	 58.44	-2	2457077..2457307	+	76	115360152	-	Bamb_5409	-	hypothetical protein
2183	 69.42	0	2457454..2457852	+	132	115360153	-	Bamb_5410	-	carboxymuconolactone decarboxylase
2184	 71.83	+1	2457930..2458916	-	328	115360154	-	Bamb_5411	-	alpha/beta hydrolase fold
2185	 67.63	0	2458924..2460486	-	520	115360155	-	Bamb_5412	-	FAD dependent oxidoreductase
2186	 72.06	+1	2460483..2461409	-	308	115360156	-	Bamb_5413	-	short-chain dehydrogenase/reductase SDR
2187	 68.19	0	2461497..2462153	+	218	115360157	-	Bamb_5414	-	TetR family transcriptional regulator
2188	 63.26	0	2462465..2462728	-	87	115360158	-	Bamb_5415	-	hypothetical protein
2189	 70.07	0	2462864..2463802	-	312	115360159	-	Bamb_5416	-	LysR family transcriptional regulator
2190	 72.25	+1	2463930..2464574	+	214	115360160	-	Bamb_5417	-	glutathione S-transferase domain-containing protein
2191	 71.63	+1	2464622..2466676	+	684	115360161	-	Bamb_5418	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
2192	 60.78	-1	2466798..2467001	+	67	115360162	-	Bamb_5419	-	hypothetical protein
2193	 69.22	0	2467474..2469705	+	743	115360163	-	Bamb_5420	-	TonB-dependent siderophore receptor
2194	 70.59	0	2469765..2470376	+	203	115360164	-	Bamb_5421	-	nicotinamide mononucleotide transporter PnuC
2195	 69.86	0	2470413..2471603	+	396	115360165	-	Bamb_5422	-	aminoglycoside phosphotransferase
2196	 61.05	-1	2471760..2472044	-	94	115360166	-	Bamb_5423	-	hypothetical protein
2197	 65.12	0	2472346..2472603	+	85	115360167	-	Bamb_5424	-	hypothetical protein
2198	 53.47	-2	2472896..2473327	-	143	115360168	-	Bamb_5425	-	hypothetical protein
2199	 47.87	-2	2473550..2473996	-	148	115360169	-	Bamb_5426	-	two component LuxR family transcriptional regulator
2200	 50.00	-2	2474164..2474643	-	159	115360170	-	Bamb_5427	-	hypothetical protein
2201	 66.82	0	2475086..2476381	-	431	115360171	-	Bamb_5428	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
2202	 67.71	0	2476514..2477182	+	222	115360172	-	Bamb_5429	-	O-methyltransferase family protein
2203	 68.23	0	2477192..2478343	-	383	115360173	-	Bamb_5430	-	hypothetical protein
2204	 67.04	0	2478602..2479414	-	270	115360174	-	Bamb_5431	-	nucleotidyltransferase-like protein
2205	 66.91	0	2479470..2480693	-	407	115360175	-	Bamb_5432	-	hypothetical protein
2206	 66.32	0	2480758..2481897	-	379	115360176	-	Bamb_5433	-	band 7 protein
2207	 67.84	0	2482564..2484180	+	538	115360177	-	Bamb_5434	-	regulator of RNA terminal phosphate cyclase
2208	 69.42	0	2484205..2484966	-	253	115360178	-	Bamb_5435	-	methyltransferase type 12
2209	 67.94	0	2484981..2485610	-	209	115360179	-	Bamb_5436	-	lysine exporter protein LysE/YggA
2210	 62.74	-1	2485701..2486972	-	423	115360180	-	Bamb_5437	-	HipA domain-containing protein
2211	 68.24	0	2486969..2487475	-	168	115360181	-	Bamb_5438	-	XRE family transcriptional regulator
2212	 68.73	0	2487727..2488647	-	306	115360182	-	Bamb_5439	-	LysR family transcriptional regulator
2213	 69.44	0	2488744..2489826	+	360	115360183	-	Bamb_5440	-	tartrate dehydrogenase
2214	 67.20	0	2490020..2491330	+	436	115360184	-	Bamb_5441	-	major facilitator transporter
2215	 61.95	-1	2491367..2491663	-	98	115360185	-	Bamb_5442	-	hypothetical protein
2216	 65.98	0	2492029..2494221	+	730	115360186	-	Bamb_5443	-	filamentous haemagglutinin outer membrane protein
66.96	MEAN

4.07	STD DEV
