IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

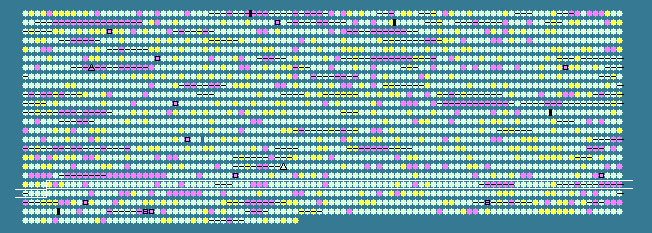

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1905	 71.32	+1	2161630..2162982	+	450	115359875	-	Bamb_5130	-	pyridoxal-dependent decarboxylase
1906	 61.54	-1	2163215..2163682	+	155	115359876	-	Bamb_5131	-	cupin 2 domain-containing protein
1907	 70.80	0	2163752..2164573	+	273	115359877	-	Bamb_5132	-	short-chain dehydrogenase/reductase SDR
1908	 68.37	0	2164679..2165500	-	273	115359878	-	Bamb_5133	-	stationary-phase survival protein SurE
1909	 68.32	0	2165646..2165948	-	100	115359879	-	Bamb_5134	-	branched-chain amino acid transport
1910	 68.70	0	2165938..2166675	-	245	115359880	-	Bamb_5135	-	AzlC family protein
1911	 62.36	-1	2166725..2167258	+	177	115359881	-	Bamb_5136	-	AsnC family transcriptional regulator
1912	 64.72	0	2167377..2168045	+	222	115359882	-	Bamb_5137	-	hypothetical protein
1913	 68.60	0	2168195..2168920	+	241	115359883	-	Bamb_5138	-	hypothetical protein
1914	 63.89	0	2169003..2169290	-	95	115359884	-	Bamb_5139	-	XRE family transcriptional regulator
1915	 69.67	0	2169446..2170078	-	210	115359885	-	Bamb_5140	-	lysine exporter protein LysE/YggA
1916	 70.14	0	2170280..2171143	-	287	115359886	-	Bamb_5141	-	hypothetical protein
1917	 64.56	0	2171150..2171482	-	110	115359887	-	Bamb_5142	-	hypothetical protein
1918	 68.81	0	2171700..2172026	+	108	115359888	-	Bamb_5143	-	hypothetical protein
1919	 65.00	0	2172037..2172456	+	139	115359889	-	Bamb_5144	-	hypothetical protein
1920	 66.67	0	2172511..2174322	-	603	115359890	-	Bamb_5145	-	periplasmic sensor hybrid histidine kinase
1921	 64.87	0	2174332..2174832	-	166	115359891	-	Bamb_5146	-	oxidoreductase, molybdopterin binding
1922	 66.44	0	2174894..2175787	-	297	115359892	-	Bamb_5147	-	response regulator receiver protein
1923	 61.90	-1	2176144..2176731	+	195	115359893	-	Bamb_5148	-	Sel1 domain-containing protein
1924	 69.32	0	2176854..2177681	+	275	115359894	-	Bamb_5149	-	hypothetical protein
1925	 65.98	0	2177802..2178818	+	338	115359895	-	Bamb_5150	-	hypothetical protein
1926	 69.53	0	2179199..2182267	+	1022	115359896	-	Bamb_5151	-	periplasmic sensor hybrid histidine kinase
1927	 61.52	-1	2182919..2183578	+	219	115359897	-	Bamb_5152	-	two component LuxR family transcriptional regulator
1928	 67.43	0	2183660..2186668	+	1002	115359898	-	Bamb_5153	-	multi-sensor hybrid histidine kinase
1929	 70.18	0	2186674..2186901	+	75	115359899	-	Bamb_5154	-	hypothetical protein
1930	 66.27	0	2187021..2188037	-	338	115359900	-	Bamb_5155	-	1-aminocyclopropane-1-carboxylate deaminase
1931	 64.27	0	2188235..2188735	+	166	115359901	-	Bamb_5156	-	AsnC family transcriptional regulator
1932	 67.89	0	2189002..2190723	+	573	115359902	-	Bamb_5157	-	pyruvate dehydrogenase
1933	 67.97	0	2190720..2191025	+	101	115359903	-	Bamb_5158	-	hypothetical protein
1934	 70.39	0	2191181..2191771	+	196	115359904	-	Bamb_5159	-	methyltransferase type 11
1935	 66.67	0	2191829..2192965	-	378	115359905	-	Bamb_5160	-	acyltransferase 3
1936	 70.19	0	2193420..2193986	+	188	115359906	-	Bamb_5161	-	hypothetical protein
1937	 67.01	0	2194017..2194892	-	291	115359907	-	Bamb_5162	-	LysR family transcriptional regulator
1938	 67.80	0	2195056..2196381	+	441	115359908	-	Bamb_5163	-	uncharacterized membrane-anchored protein
1939	 59.20	-1	2196412..2196612	+	66	115359909	-	Bamb_5164	-	hypothetical protein
1940	 54.78	-2	2196658..2197128	-	156	115359910	-	Bamb_5165	-	hypothetical protein
1941	 53.91	-2	2197146..2197631	-	161	115359911	-	Bamb_5166	-	hypothetical protein
1942	 67.13	0	2198142..2198576	+	144	115359912	-	Bamb_5167	-	GCN5-related N-acetyltransferase
1943	 67.11	0	2198592..2199488	-	298	115359913	-	Bamb_5168	-	LysR family transcriptional regulator
1944	 68.19	0	2199611..2200399	+	262	115359914	-	Bamb_5169	-	trans-aconitate 2-methyltransferase
1945	 69.54	0	2200442..2201032	-	196	115359915	-	Bamb_5170	-	GCN5-related N-acetyltransferase
1946	 65.93	0	2201569..2201973	+	134	115359916	-	Bamb_5171	-	hypothetical protein
1947	 67.62	0	2202212..2203048	-	278	115359917	-	Bamb_5172	-	LuxR family transcriptional regulator
1948	 65.68	0	2203132..2203536	-	134	115359918	-	Bamb_5173	-	hypothetical protein
1949	 68.79	0	2203533..2204942	-	469	115359919	-	Bamb_5174	-	major facilitator transporter
1950	 67.60	0	2205137..2205997	-	286	115359920	-	Bamb_5175	-	hypothetical protein
1951	 60.81	-1	2206046..2206438	-	130	115359921	-	Bamb_5176	-	hypothetical protein
1952	 66.95	0	2206435..2206791	-	118	115359922	-	Bamb_5177	-	HxlR family transcriptional regulator
1953	 66.67	0	2206932..2207567	+	211	115359923	-	Bamb_5178	-	glutathione S-transferase domain-containing protein
1954	 63.78	0	2207646..2208026	+	126	115359924	-	Bamb_5179	-	hypothetical protein
1955	 69.61	0	2208118..2209410	+	430	115359925	-	Bamb_5180	-	outer membrane efflux protein
1956	 69.50	0	2209422..2210939	+	505	115359926	-	Bamb_5181	-	RND family efflux transporter MFP subunit
1957	 68.38	0	2210936..2214142	+	1068	115359927	-	Bamb_5182	-	CzcA family heavy metal efflux protein
1958	 65.03	0	2214139..2214504	+	121	115359928	-	Bamb_5183	-	RND family efflux transporter MFP subunit
1959	 67.06	0	2214628..2215638	-	336	115359929	-	Bamb_5184	-	sodium/calcium exchanger membrane region
1960	 69.42	0	2216032..2217447	-	471	115359930	-	Bamb_5185	-	heavy metal sensor signal transduction histidine kinase
1961	 64.88	0	2217444..2218115	-	223	115359931	-	Bamb_5186	-	two component heavy metal response transcriptional regulator
1962	 67.03	0	2218226..2218780	+	184	115359932	-	Bamb_5187	-	hypothetical protein
1963	 71.38	+1	2218875..2219171	+	98	115359933	-	Bamb_5188	-	hypothetical protein
1964	 69.66	0	2219168..2220739	+	523	115359934	-	Bamb_5189	-	outer membrane efflux protein
1965	 67.82	0	2220741..2222036	+	431	115359935	-	Bamb_5190	-	multicopper oxidase, type 2; multicopper oxidase, type 3
1966	 63.25	0	2222116..2222466	+	116	115359936	-	Bamb_5191	-	hypothetical protein
1967	 68.69	0	2222481..2222876	+	131	115359937	-	Bamb_5192	-	copper resistance protein CopC
1968	 71.34	+1	2222873..2223814	+	313	115359938	-	Bamb_5193	-	copper resistance D domain-containing protein
1969	 68.48	0	2224012..2225826	+	604	115359939	-	Bamb_5194	-	endonuclease/exonuclease/phosphatase
1970	 66.40	0	2226633..2228483	+	616	115359940	-	Bamb_5195	-	peptidase S10, serine carboxypeptidase
1971	 66.20	0	2228528..2228956	+	142	115359941	-	Bamb_5196	-	hypothetical protein
1972	 68.27	0	2229119..2230117	-	332	115359942	-	Bamb_5197	-	AraC family transcriptional regulator
1973	 64.98	0	2230323..2231570	+	415	115359943	-	Bamb_5198	-	FAD-linked oxidoreductase
1974	 66.54	0	2231604..2232383	+	259	115359944	-	Bamb_5199	-	short-chain dehydrogenase/reductase SDR
1975	 64.18	0	2232705..2233952	+	415	115359945	-	Bamb_5200	-	serine hydroxymethyltransferase
1976	 64.28	0	2234102..2235694	-	530	115359946	-	Bamb_5201	-	amino acid permease-associated region
1977	 69.43	0	2236397..2237881	-	494	115359947	-	Bamb_5203	-	aminotransferase, class V
1978	 62.76	-1	2238146..2238478	-	110	115359948	-	Bamb_5204	-	hypothetical protein
1979	 62.40	-1	2238479..2238736	-	85	115359949	-	Bamb_5205	-	PAAR repeat-containing protein
1980	 59.51	-1	2238803..2240143	-	446	115359950	-	Bamb_5206	-	hypothetical protein
1981	 60.25	-1	2240363..2241703	-	446	115359951	-	Bamb_5207	-	hypothetical protein
1982	 59.49	-1	2241838..2244150	-	770	115359952	-	Bamb_5208	-	putative transmembrane protein
1983	 64.97	0	2244169..2246937	-	922	115359953	-	Bamb_5209	-	Rhs element Vgr protein
1984	 68.67	0	2247683..2248933	+	416	115359954	-	Bamb_5210	-	major facilitator transporter
1985	 65.16	0	2249080..2250009	+	309	115359955	-	Bamb_5211	-	LysR family transcriptional regulator
1986	 65.45	0	2250124..2250618	+	164	115359956	-	Bamb_5212	-	hypothetical protein
1987	 64.51	0	2250662..2251681	+	339	115359957	-	Bamb_5213	-	hypothetical protein
1988	 67.69	0	2251714..2253180	+	488	115359958	-	Bamb_5214	-	betaine-aldehyde dehydrogenase
1989	 71.63	+1	2253188..2254255	+	355	115359959	-	Bamb_5215	-	iron-containing alcohol dehydrogenase
1990	 65.64	0	2254284..2255156	+	290	115359960	-	Bamb_5216	-	intradiol ring-cleavage dioxygenase
1991	 66.99	0	2255162..2255473	+	103	115359961	-	Bamb_5217	-	YCII-related
1992	 67.26	0	2255477..2255812	+	111	115359962	-	Bamb_5218	-	Rieske (2Fe-2S) domain-containing protein
1993	 61.98	-1	2256047..2257135	+	362	115359963	-	Bamb_5219	-	porin
1994	 67.27	0	2257208..2257867	-	219	115359964	-	Bamb_5220	-	glutathione S-transferase domain-containing protein
1995	 66.33	0	2257910..2258803	+	297	115359965	-	Bamb_5221	-	AraC family transcriptional regulator
1996	 63.95	0	2259105..2259878	+	257	115359966	-	Bamb_5222	-	hypothetical protein
1997	 56.67	-2	2259975..2260544	-	189	115359967	-	Bamb_5223	-	hypothetical protein
1998	 57.11	-2	2260974..2264144	+	1056	115359968	-	Bamb_5224	-	DNA helicase related protein
1999	 59.01	-1	2264185..2265072	+	295	115359969	-	Bamb_5225	-	hypothetical protein
2000	 58.02	-2	2265966..2267156	-	396	115359970	-	Bamb_5226	-	hypothetical protein
2001	 64.81	0	2267445..2269274	-	609	115359971	-	Bamb_5227	-	glucosamine--fructose-6-phosphate aminotransferase, isomerizing
2002	 68.29	0	2269431..2269922	+	163	115359972	-	Bamb_5228	-	AsnC family transcriptional regulator
2003	 68.30	0	2269952..2270806	-	284	115359973	-	Bamb_5229	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2004	 68.38	0	2270884..2271702	+	272	115359974	-	Bamb_5230	-	AraC family transcriptional regulator
66.96	MEAN

4.07	STD DEV
