IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

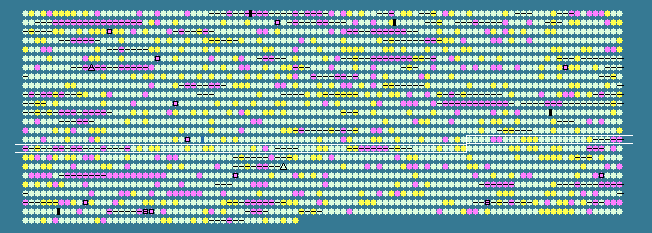

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1475	 69.05	0	1688134..1689351	-	405	115359445	-	Bamb_4699	-	RND family efflux transporter MFP subunit
1476	 67.83	0	1689383..1690243	-	286	115359446	-	Bamb_4700	-	alpha/beta hydrolase domain-containing protein
1477	 65.07	0	1690414..1691418	+	334	115359447	-	Bamb_4701	-	LysR family transcriptional regulator
1478	 68.87	0	1691472..1692152	-	226	115359448	-	Bamb_4702	-	hypothetical protein
1479	 59.12	-1	1692385..1692702	-	105	115359449	-	Bamb_4703	-	H-NS histone family protein
1480	 61.86	-1	1692955..1693641	+	228	115359450	-	Bamb_4704	-	two component transcriptional regulator
1481	 67.68	0	1693964..1694260	+	98	115359451	-	Bamb_4705	-	hypothetical protein
1482	 67.50	0	1694497..1695576	-	359	115359452	-	Bamb_4706	-	purine nucleoside permease
1483	 69.20	0	1695803..1696393	-	196	115359453	-	Bamb_4707	-	lysine exporter protein LysE/YggA
1484	 71.60	+1	1696466..1697539	-	357	115359454	-	Bamb_4708	-	selenophosphate synthetase
1485	 71.21	+1	1697639..1698475	+	278	115359455	-	Bamb_4709	-	hypothetical protein
1486	 70.97	0	1698564..1700072	-	502	115359456	-	Bamb_4710	-	GntR family transcriptional regulator
1487	 66.82	0	1700141..1701481	+	446	115359457	-	Bamb_4711	-	4-aminobutyrate aminotransferase
1488	 67.82	0	1701572..1703041	+	489	115359458	-	Bamb_4712	-	succinic semialdehyde dehydrogenase
1489	 63.67	0	1703398..1704330	+	310	115359459	-	Bamb_4713	-	hypothetical protein
1490	 66.85	0	1704378..1705985	-	535	115359460	-	Bamb_4714	-	methyl-accepting chemotaxis sensory transducer with Pas/Pac sensor
1491	 68.67	0	1706196..1707740	-	514	115359461	-	Bamb_4715	-	methyl-accepting chemotaxis sensory transducer with Pas/Pac sensor
1492	 70.29	0	1708109..1708633	+	174	115359462	-	Bamb_4716	-	hypothetical protein
1493	 69.21	0	1708737..1709957	-	406	115359463	-	Bamb_4717	-	beta-ketoadipyl CoA thiolase
1494	 67.27	0	1710128..1710955	+	275	115359464	-	Bamb_4718	-	IclR family transcriptional regulator
1495	 73.96	+1	1711223..1711318	-	31	115359465	-	Bamb_4719	-	succinylglutamate desuccinylase/aspartoacylase
1496	 68.47	0	1711487..1712818	-	443	115359466	-	Bamb_4720	-	major facilitator transporter
1497	 68.51	0	1712882..1714072	-	396	115359467	-	Bamb_4721	-	amidohydrolase
1498	 64.43	0	1714447..1715517	-	356	115359468	-	Bamb_4722	-	NADH:flavin oxidoreductase/NADH oxidase
1499	 61.11	-1	1715573..1716148	-	191	115359469	-	Bamb_4723	-	isochorismatase hydrolase
1500	 62.92	0	1716179..1717033	-	284	115359470	-	Bamb_4724	-	pirin domain-containing protein
1501	 59.98	-1	1717254..1718135	+	293	115359471	-	Bamb_4725	-	LysR family transcriptional regulator
1502	 64.50	0	1718841..1720457	+	538	115359472	-	Bamb_4726	-	tryptophan halogenase
1503	 70.90	0	1720457..1721542	+	361	115359473	-	Bamb_4727	-	prnB; PrnB
1504	 64.32	0	1721587..1723287	+	566	115359474	-	Bamb_4728	-	FAD dependent oxidoreductase
1505	 67.57	0	1723312..1724424	+	370	115359475	-	Bamb_4729	-	Rieske (2Fe-2S) domain-containing protein
1506	 57.69	-2	1724476..1725522	-	348	115359476	-	Bamb_4730	-	alcohol dehydrogenase
1507	 61.11	-1	1725544..1726407	-	287	115359477	-	Bamb_4731	-	alpha/beta hydrolase fold
1508	 63.95	0	1726555..1727805	-	416	115359478	-	Bamb_4732	-	NADH:flavin oxidoreductase/NADH oxidase
1509	 59.40	-1	1727812..1728210	-	132	115359479	-	Bamb_4733	-	hypothetical protein
1510	 61.07	-1	1728265..1729122	-	285	115359480	-	Bamb_4734	-	alpha/beta hydrolase fold
1511	 65.53	0	1729151..1729939	-	262	115359481	-	Bamb_4735	-	short-chain dehydrogenase/reductase SDR
1512	 65.19	0	1729997..1731079	-	360	115359482	-	Bamb_4736	-	NADH:flavin oxidoreductase/NADH oxidase
1513	 66.19	0	1731211..1731840	+	209	115359483	-	Bamb_4737	-	TetR family transcriptional regulator
1514	 63.08	0	1731919..1732839	-	306	115359484	-	Bamb_4738	-	LysR family transcriptional regulator
1515	 65.72	0	1732950..1733687	+	245	115359485	-	Bamb_4739	-	short-chain dehydrogenase/reductase SDR
1516	 63.72	0	1733742..1734827	+	361	115359486	-	Bamb_4740	-	NADH:flavin oxidoreductase/NADH oxidase
1517	 63.95	0	1734911..1735168	-	85	115359487	-	Bamb_4741	-	hypothetical protein
1518	 61.29	-1	1735190..1736026	+	278	115359488	-	Bamb_4742	-	alpha/beta hydrolase fold
1519	 67.92	0	1736335..1736973	+	212	115359489	-	Bamb_4743	-	TetR family transcriptional regulator
1520	 70.63	0	1737019..1738002	+	327	115359490	-	Bamb_4744	-	alcohol dehydrogenase
1521	 63.90	0	1738082..1738660	+	192	115359491	-	Bamb_4745	-	uncharacterized peroxidase-related enzyme
1522	 70.98	0	1738780..1739661	-	293	115359492	-	Bamb_4746	-	short-chain dehydrogenase/reductase SDR
1523	 71.50	+1	1739835..1740413	-	192	115359493	-	Bamb_4747	-	TetR family transcriptional regulator
1524	 67.28	0	1740617..1742092	+	491	115359494	-	Bamb_4748	-	glucose-6-phosphate 1-dehydrogenase
1525	 68.78	0	1742215..1743159	-	314	115359495	-	Bamb_4749	-	LysR family transcriptional regulator
1526	 70.41	0	1743270..1744472	+	400	115359496	-	Bamb_4750	-	major facilitator transporter
1527	 66.67	0	1744502..1744825	+	107	115359497	-	Bamb_4751	-	hypothetical protein
1528	 70.77	0	1744842..1745792	+	316	115359498	-	Bamb_4752	-	luciferase family protein
1529	 66.42	0	1745926..1746732	+	268	115359499	dkgB	Bamb_4753	-	2,5-diketo-D-gluconate reductase B
1530	 70.16	0	1746798..1747913	+	371	115359500	-	Bamb_4754	-	NADH:flavin oxidoreductase/NADH oxidase
1531	 70.45	0	1747945..1748949	+	334	115359501	-	Bamb_4755	-	aldo/keto reductase
1532	 72.07	+1	1749139..1749675	+	178	115359502	-	Bamb_4756	-	hypothetical protein
1533	 65.29	0	1749781..1750506	-	241	115359503	-	Bamb_4757	-	O-methyltransferase family protein
1534	 67.93	0	1750540..1751172	+	210	115359504	-	Bamb_4758	-	TetR family transcriptional regulator
1535	 68.39	0	1751676..1753064	+	462	115359505	-	Bamb_4759	-	xanthine/uracil/vitamin C permease
1536	 68.79	0	1753237..1753896	+	219	115359506	-	Bamb_4760	-	hypothetical protein
1537	 68.41	0	1753901..1754302	-	133	115359507	-	Bamb_4761	-	hypothetical protein
1538	 67.64	0	1754299..1754607	-	102	115359508	-	Bamb_4762	-	hypothetical protein
1539	 72.57	+1	1754716..1755663	+	315	115359509	-	Bamb_4763	-	AraC family transcriptional regulator
1540	 70.03	0	1755717..1756637	+	306	115359510	-	Bamb_4764	-	LysR family transcriptional regulator
1541	 63.09	0	1756864..1757646	+	260	115359511	-	Bamb_4765	-	cationic amino acid ABC transporter, periplasmic binding protein
1542	 68.01	0	1757905..1759020	+	371	115359512	-	Bamb_4766	-	succinylglutamate desuccinylase/aspartoacylase
1543	 66.54	0	1759190..1759996	-	268	115359513	-	Bamb_4767	-	YaeC family lipoprotein
1544	 64.76	0	1760305..1761459	+	384	115359514	-	Bamb_4768	-	porin
1545	 67.43	0	1761668..1761928	+	86	115359515	-	Bamb_4769	-	hypothetical protein
1546	 68.49	0	1762052..1762435	+	127	115359516	-	Bamb_4770	-	hypothetical protein
1547	 65.35	0	1762507..1762734	+	75	115359517	-	Bamb_4771	-	hypothetical protein
1548	 67.58	0	1762968..1765277	+	769	115359518	-	Bamb_4772	-	TonB-dependent hemoglobin/transferrin/lactoferrin family receptor
1549	 69.23	0	1765327..1766418	+	363	115359519	-	Bamb_4773	-	hemin-degrading family protein
1550	 75.58	+2	1766415..1767323	+	302	115359520	-	Bamb_4774	-	periplasmic binding protein
1551	 74.41	+1	1767339..1768436	+	365	115359521	-	Bamb_4775	-	transport system permease protein
1552	 69.59	0	1768456..1769277	+	273	115359522	-	Bamb_4776	-	hemin importer ATP-binding subunit
1553	 63.54	0	1769375..1769758	+	127	115359523	-	Bamb_4777	-	hypothetical protein
1554	 67.65	0	1769790..1770401	-	203	115359524	-	Bamb_4778	-	hypothetical protein
1555	 70.87	0	1770410..1772527	-	705	115359525	-	Bamb_4779	-	1A family penicillin-binding protein
1556	 70.47	0	1772671..1773537	+	288	115359526	-	Bamb_4780	-	aminoglycoside/hydroxyurea antibiotic resistance kinase
1557	 58.09	-2	1773757..1774269	+	170	115359527	-	Bamb_4781	-	hypothetical protein
1558	 52.12	-2	1775377..1775706	+	109	115359528	-	Bamb_4783	-	hypothetical protein
1559	 49.77	-2	1776714..1777376	+	220	115359529	-	Bamb_4784	-	hypothetical protein
1560	 50.48	-2	1777709..1778437	+	242	115359530	-	Bamb_4785	-	hypothetical protein
1561	 49.90	-2	1778997..1780004	+	335	115359531	-	Bamb_4786	-	hypothetical protein
1562	 64.16	0	1780977..1781813	-	278	115359532	-	Bamb_4787	-	hypothetical protein
1563	 74.20	+1	1782477..1782914	-	145	115359533	-	Bamb_4788	-	17 kDa surface antigen
1564	 68.03	0	1783283..1783942	-	219	115359534	-	Bamb_4789	-	isoprenylcysteine carboxyl methyltransferase
1565	 64.85	0	1784118..1784282	-	54	115359535	-	Bamb_4790	-	hypothetical protein
1566	 69.05	0	1784515..1784934	-	139	115359536	-	Bamb_4791	-	histidine triad (HIT) protein
1567	 70.23	0	1785199..1786602	+	467	115359537	-	Bamb_4792	-	beta-lactamase
1568	 66.51	0	1786677..1787300	-	207	115359538	-	Bamb_4793	-	glutathione S-transferase domain-containing protein
1569	 66.03	0	1787441..1787911	-	156	115359539	-	Bamb_4794	-	integral membrane protein-like protein
1570	 71.29	+1	1787908..1789161	-	417	115359540	-	Bamb_4795	-	NAD-dependent epimerase/dehydratase
1571	 64.79	0	1789303..1789836	-	177	115359541	-	Bamb_4796	-	transcriptional regulators-like protein
1572	 63.92	0	1790042..1791244	+	400	115359542	-	Bamb_4797	-	trans-2-enoyl-CoA reductase
1573	 70.50	0	1791299..1792003	-	234	115359543	-	Bamb_4798	-	short chain dehydrogenase
1574	 70.92	0	1792300..1792887	+	195	115359544	-	Bamb_4799	-	TetR family transcriptional regulator
66.96	MEAN

4.07	STD DEV
