IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

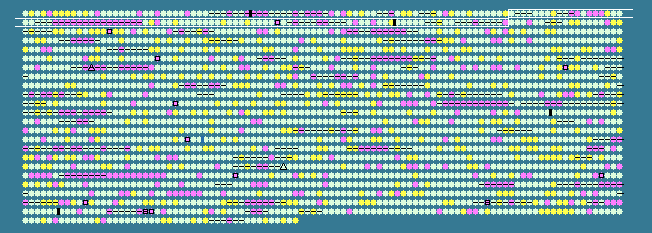

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
82	 67.59	0	90937..92676	-	579	115358052	-	Bamb_3301	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
83	 65.12	0	93377..93700	+	107	115358053	-	Bamb_3302	-	ArsR family transcriptional regulator
84	 65.05	0	93697..94128	+	143	115358054	-	Bamb_3303	-	activator of Hsp90 ATPase 1 family protein
85	 68.71	0	94125..94565	+	146	115358055	-	Bamb_3304	-	hypothetical protein
86	 64.42	0	94709..97426	-	905	115358056	acnA	Bamb_3305	-	aconitate hydratase
87	 67.01	0	97479..98930	-	483	115358057	prpD	Bamb_3306	-	2-methylcitrate dehydratase
88	 65.88	0	98962..99471	-	169	115358058	-	Bamb_3307	-	hypothetical protein
89	 72.14	+1	99695..100699	-	334	115358059	-	Bamb_3308	-	HpcH/HpaI aldolase
90	 65.65	0	100886..101872	-	328	115358060	-	Bamb_3309	-	malate dehydrogenase
91	 66.79	0	102161..102985	+	274	115358061	-	Bamb_3310	-	GntR family transcriptional regulator
92	 58.27	-2	103155..103571	+	138	115358062	-	Bamb_3311	-	succinate dehydrogenase, cytochrome b subunit
93	 62.33	-1	103576..103944	+	122	115358063	-	Bamb_3312	-	succinate dehydrogenase, cytochrome b subunit
94	 65.32	0	103948..105723	+	591	115358064	sdhA	Bamb_3313	-	succinate dehydrogenase flavoprotein subunit
95	 62.54	-1	105745..106446	+	233	115358065	sdhB	Bamb_3314	-	succinate dehydrogenase iron-sulfur subunit
96	 60.81	-1	106453..106725	+	90	115358066	-	Bamb_3315	-	hypothetical protein
97	 60.75	-1	106792..108093	+	433	115358067	gltA	Bamb_3316	-	type II citrate synthase
98	 72.76	+1	108183..109166	-	327	115358068	-	Bamb_3317	-	AraC family transcriptional regulator
99	 68.21	0	109238..109627	+	129	115358069	-	Bamb_3318	-	glyoxalase/bleomycin resistance protein/dioxygenase
100	 70.10	0	109739..110992	+	417	115358070	-	Bamb_3319	-	hypothetical protein
101	 69.13	0	111217..111987	+	256	115358071	-	Bamb_3320	-	dimethylargininase
102	 64.09	0	112089..112553	+	154	115358072	-	Bamb_3321	-	AsnC family transcriptional regulator
103	 66.54	0	112694..114229	+	511	115358073	-	Bamb_3322	-	amino acid permease-associated region
104	 65.43	0	114431..115156	-	241	115358074	-	Bamb_3323	-	glutathione S-transferase domain-containing protein
105	 67.57	0	115284..115616	-	110	115358075	-	Bamb_3324	-	cupin 2 domain-containing protein
106	 58.83	-1	115836..116882	-	348	115358076	-	Bamb_3325	-	hypothetical protein
107	 57.66	-2	117318..118172	-	284	115358077	-	Bamb_3326	-	xylose isomerase domain-containing protein
108	 59.01	-1	118514..119479	+	321	115358078	-	Bamb_3327	-	periplasmic binding protein/LacI transcriptional regulator
109	 61.02	-1	119611..120690	+	359	115358079	-	Bamb_3328	-	oxidoreductase domain-containing protein
110	 59.60	-1	121149..122732	+	527	115358080	-	Bamb_3329	-	ABC transporter related
111	 61.33	-1	122725..123735	+	336	115358081	-	Bamb_3330	-	inner-membrane translocator
112	 59.08	-1	123750..124724	+	324	115358082	-	Bamb_3331	-	inner-membrane translocator
113	 58.01	-2	124976..125899	-	307	115358083	-	Bamb_3332	-	LysR family transcriptional regulator
114	 58.73	-2	126199..127080	+	293	115358084	-	Bamb_3333	-	catechol 1,2-dioxygenase
115	 55.56	-2	127077..127427	+	116	115358085	-	Bamb_3334	-	stress responsive alpha-beta barrel domain-containing protein
116	 62.67	-1	127414..128490	+	358	115358086	-	Bamb_3335	-	iron-containing alcohol dehydrogenase
117	 53.68	-2	128535..128819	+	94	115358087	-	Bamb_3336	-	YciI-like protein
118	 60.57	-1	128973..129776	+	267	115358088	-	Bamb_3337	-	short-chain dehydrogenase/reductase SDR
119	 60.22	-1	130208..131200	+	330	115358089	-	Bamb_3338	-	inositol 2-dehydrogenase
120	 59.74	-1	131309..132217	+	302	115358090	-	Bamb_3339	-	LysR family transcriptional regulator
121	 66.45	0	132441..133850	+	469	115358091	-	Bamb_3340	-	isopropylmalate isomerase large subunit
122	 72.11	+1	133854..134000	+	48	115358092	-	Bamb_3341	-	entericidin EcnAB
123	 63.44	0	134066..134716	+	216	115358093	leuD	Bamb_3342	-	isopropylmalate isomerase small subunit
124	 66.39	0	134792..135859	+	355	115358094	-	Bamb_3343	-	3-isopropylmalate dehydrogenase
125	 64.35	0	136181..137302	+	373	115358095	-	Bamb_3344	-	aspartate-semialdehyde dehydrogenase
126	 73.53	+1	137569..139653	+	694	115358096	-	Bamb_3345	-	hypothetical protein
127	 68.51	0	139653..140465	+	270	115358097	truA	Bamb_3346	-	tRNA pseudouridine synthase A
128	 69.09	0	140462..141163	+	233	115358098	-	Bamb_3347	-	N-(5'-phosphoribosyl)anthranilate isomerase
129	 66.42	0	141220..142413	+	397	115358099	-	Bamb_3348	-	tryptophan synthase subunit beta
130	 65.61	0	142421..143272	+	283	115358100	-	Bamb_3349	-	DNA methylase N-4/N-6 domain-containing protein
131	 69.11	0	143314..144132	+	272	115358101	trpA	Bamb_3350	-	tryptophan synthase subunit alpha
132	 65.86	0	144199..145071	+	290	115358102	-	Bamb_3351	-	acetyl-CoA carboxylase subunit beta
133	 67.51	0	145172..146482	+	436	115358103	-	Bamb_3352	-	FolC bifunctional protein
134	 72.14	+1	146512..147369	+	285	115358104	-	Bamb_3353	-	sporulation domain-containing protein
135	 65.86	0	147376..147870	+	164	115358105	-	Bamb_3354	-	colicin V production protein
136	 64.84	0	147922..149454	+	510	115358106	-	Bamb_3355	-	amidophosphoribosyltransferase
137	 66.67	0	149673..150905	+	410	115358107	-	Bamb_3356	-	O-succinylhomoserine sulfhydrylase
138	 70.69	0	151001..151969	-	322	115358108	-	Bamb_3357	-	NAD-dependent epimerase/dehydratase
139	 65.14	0	151956..153002	-	348	115358109	-	Bamb_3358	-	GDP-mannose 4,6-dehydratase
140	 69.30	0	153038..154102	-	354	115358110	-	Bamb_3359	-	acyltransferase 3
141	 68.74	0	154572..156788	+	738	115358111	-	Bamb_3361	-	hypothetical protein
142	 66.33	0	156830..158296	+	488	115358112	-	Bamb_3362	-	polysaccharide biosynthesis protein
143	 59.83	-1	158310..159362	-	350	115358113	-	Bamb_3363	-	IS605 family transposase OrfB
144	 70.03	0	159479..161947	+	822	115358114	-	Bamb_3364	-	glycosyl transferase, group 1
145	 68.03	0	162364..163539	-	391	115358115	-	Bamb_3365	-	acyltransferase 3
146	 62.50	-1	163753..163896	+	47	115358116	-	Bamb_3366	-	hypothetical protein
147	 64.19	0	164126..165013	+	295	115358117	-	Bamb_3367	-	UTP-glucose-1-phosphate uridylyltransferase
148	 68.57	0	165223..165537	+	104	115358118	-	Bamb_3368	-	hypothetical protein
149	 67.20	0	165501..166619	-	372	115358119	-	Bamb_3369	-	acyltransferase 3
150	 57.14	-2	166646..167107	-	153	115358120	-	Bamb_3370	-	acyltransferase family protein
151	 63.19	0	167138..167425	-	95	115358121	-	Bamb_3371	-	acyltransferase family protein
152	 67.93	0	167797..168192	+	131	115358122	-	Bamb_3372	-	streptomycin 3''-adenylyltransferase
153	 66.46	0	168645..169118	-	157	115358123	-	Bamb_3373	-	3-demethylubiquinone-9 3-methyltransferase
154	 64.51	0	169507..170664	-	385	115358124	-	Bamb_3374	-	porin
155	 67.52	0	171109..172041	-	310	115358125	-	Bamb_3375	-	putative ribonuclease BN
156	 62.77	-1	172181..172771	+	196	115358126	-	Bamb_3376	-	formate dehydrogenase
157	 63.71	0	172784..175252	+	822	115358127	-	Bamb_3377	-	formate dehydrogenase, alpha subunit
158	 65.79	0	175263..176177	+	304	115358128	-	Bamb_3378	-	formate dehydrogenase, beta subunit
159	 63.16	0	176174..176800	+	208	115358129	-	Bamb_3379	-	formate dehydrogenase, gamma subunit
160	 67.26	0	176827..177843	+	338	115358130	-	Bamb_3380	-	formate dehydrogenase accessory protein FdhE
161	 70.08	0	177920..179356	+	478	115358131	-	Bamb_3381	-	selenocysteine synthase
162	 71.13	+1	179357..181282	+	641	115358132	-	Bamb_3382	-	selenocysteine-specific translation elongation factor
163	 63.52	0	181580..182596	-	338	115358133	-	Bamb_3383	-	dTDP-glucose 4,6-dehydratase
164	 69.94	0	182593..183477	-	294	115358134	-	Bamb_3384	-	dTDP-4-dehydrorhamnose reductase
165	 68.38	0	183474..184055	-	193	115358135	-	Bamb_3385	-	dTDP-4-dehydrorhamnose 3,5-epimerase
166	 64.10	0	184052..184948	-	298	115358136	-	Bamb_3386	-	glucose-1-phosphate thymidylyltransferase
167	 69.17	0	185048..186445	-	465	115358137	-	Bamb_3387	-	major facilitator transporter
168	 68.47	0	186442..187161	-	239	115358138	-	Bamb_3388	-	ABC transporter related
169	 69.21	0	187158..187943	-	261	115358139	-	Bamb_3389	-	ABC transporter related
170	 71.85	+1	187940..188827	-	295	115358140	-	Bamb_3390	-	inner-membrane translocator
171	 68.12	0	188820..189713	-	297	115358141	-	Bamb_3391	-	inner-membrane translocator
172	 67.39	0	189749..190849	-	366	115358142	-	Bamb_3392	-	extracellular ligand-binding receptor
173	 64.67	0	191168..191518	+	116	115358143	-	Bamb_3393	-	endoribonuclease L-PSP
174	 66.59	0	191596..192840	+	414	115358144	-	Bamb_3394	-	FAD dependent oxidoreductase
175	 69.00	0	192837..193652	+	271	115358145	-	Bamb_3395	-	Asp/Glu racemase
176	 62.25	-1	193742..194443	+	233	115358146	-	Bamb_3396	-	GntR family transcriptional regulator
177	 65.31	0	194598..195482	+	294	115358147	-	Bamb_3397	-	rhamnosyltransferase
178	 66.88	0	195561..196496	+	311	115358148	-	Bamb_3398	-	dihydrodipicolinate synthetase
179	 65.73	0	196602..197780	+	392	115358149	-	Bamb_3399	-	mandelate racemase/muconate lactonizing protein
180	 67.68	0	197799..198587	+	262	115358150	-	Bamb_3400	-	short-chain dehydrogenase/reductase SDR
181	 61.37	-1	198599..198919	+	106	115358151	-	Bamb_3401	-	L-rhamnose 1-epimerase
66.96	MEAN

4.07	STD DEV
