IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

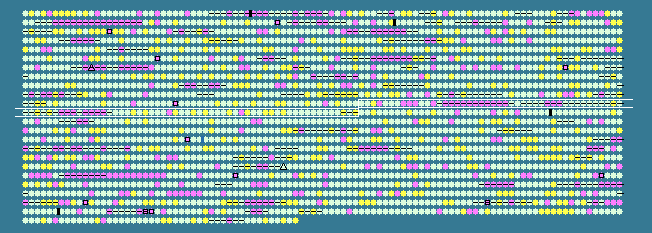

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1057	 67.11	0	1201846..1203192	-	448	115359027	-	Bamb_4278	-	glutamine synthetase, catalytic region
1058	 66.31	0	1203339..1203896	-	185	115359028	-	Bamb_4279	-	XRE family transcriptional regulator
1059	 70.89	0	1203922..1205247	-	441	115359029	-	Bamb_4280	-	FAD dependent oxidoreductase
1060	 62.33	-1	1205501..1205938	-	145	115359030	-	Bamb_4281	-	AsnC family transcriptional regulator
1061	 68.60	0	1205935..1206864	-	309	115359031	-	Bamb_4282	-	homocysteine S-methyltransferase
1062	 64.62	0	1206968..1208137	-	389	115359032	-	Bamb_4283	-	cystathionine gamma-synthase
1063	 64.66	0	1208182..1208877	-	231	115359033	-	Bamb_4284	-	polar amino acid ABC transporter, inner membrane subunit
1064	 62.83	-1	1208891..1209568	-	225	115359034	-	Bamb_4285	-	polar amino acid ABC transporter, inner membrane subunit
1065	 63.46	0	1209640..1210419	-	259	115359035	-	Bamb_4286	-	extracellular solute-binding protein
1066	 63.16	0	1210451..1211248	-	265	115359036	-	Bamb_4287	-	ABC transporter related
1067	 67.71	0	1211329..1212759	-	476	115359037	-	Bamb_4288	-	aldehyde dehydrogenase
1068	 66.49	0	1212756..1213880	-	374	115359038	-	Bamb_4289	-	homoserine dehydrogenase
1069	 61.85	-1	1213987..1214484	-	165	115359039	-	Bamb_4290	-	AsnC family transcriptional regulator
1070	 67.65	0	1214516..1215226	-	236	115359040	-	Bamb_4291	-	hypothetical protein
1071	 59.13	-1	1215720..1216064	-	114	115359041	-	Bamb_4292	-	small multidrug resistance protein
1072	 60.21	-1	1216126..1217829	-	567	115359042	-	Bamb_4293	-	glucose-methanol-choline oxidoreductase
1073	 57.86	-2	1217923..1218762	-	279	115359043	-	Bamb_4294	-	binding-protein-dependent transport systems inner membrane component
1074	 59.62	-1	1218767..1220029	-	420	115359044	-	Bamb_4295	-	binding-protein-dependent transport systems inner membrane component
1075	 58.96	-1	1220047..1221084	-	345	115359045	-	Bamb_4296	-	ABC spermidine/putrescine transporter, periplasmic ligand binding protein
1076	 57.08	-2	1221119..1222213	-	364	115359046	-	Bamb_4297	-	spermidine/putrescine ABC transporter ATPase subunit
1077	 61.70	-1	1222393..1224891	-	832	115359047	-	Bamb_4298	-	L-carnitine dehydratase/bile acid-inducible protein F
1078	 58.61	-2	1225163..1226068	-	301	115359048	-	Bamb_4299	-	LysR family transcriptional regulator
1079	 59.10	-1	1226255..1228264	-	669	115359049	-	Bamb_4300	-	Beta-glucosidase
1080	 58.50	-2	1228339..1229820	-	493	115359050	-	Bamb_4301	-	hypothetical protein
1081	 59.94	-1	1230106..1230417	-	103	115359051	-	Bamb_4302	-	putative methyl-accepting chemotaxis sensory transducer
1082	 66.03	0	1230453..1231859	-	468	115359052	-	Bamb_4303	-	major facilitator transporter
1083	 67.56	0	1231979..1233541	-	520	115359053	-	Bamb_4304	-	monooxygenase, FAD-binding
1084	 65.75	0	1233547..1234422	-	291	115359054	-	Bamb_4305	-	5-oxopent-3-ene-1,2,5-tricarboxylate decarboxylase
1085	 66.67	0	1234419..1235354	-	311	115359055	-	Bamb_4306	-	glyoxalase/bleomycin resistance protein/dioxygenase
1086	 65.81	0	1235351..1236406	-	351	115359056	-	Bamb_4307	-	aminocarboxymuconate-semialdehyde decarboxylase
1087	 69.25	0	1236399..1236824	-	141	115359057	-	Bamb_4308	-	hypothetical protein
1088	 63.25	0	1236992..1237723	+	243	115359058	-	Bamb_4309	-	GntR family transcriptional regulator
1089	 57.03	-2	1238076..1238843	+	255	115359059	-	Bamb_4311	-	hypothetical protein
1090	 54.74	-2	1238860..1239228	+	122	115359060	-	Bamb_4312	-	hypothetical protein
1091	 66.86	0	1239496..1240524	-	342	115359061	proX	Bamb_4313	-	glycine betaine transporter periplasmic subunit
1092	 66.48	0	1240643..1241170	-	175	115359062	-	Bamb_4314	-	AsnC family transcriptional regulator
1093	 67.14	0	1241321..1241533	-	70	115359063	-	Bamb_4315	-	succinate-semialdehyde dehydrogenase (NAD(P)+)
1094	 64.36	0	1241682..1242071	-	129	115359064	-	Bamb_4316	-	carboxymuconolactone decarboxylase
1095	 65.11	0	1242139..1243167	-	342	115359065	proX	Bamb_4317	-	glycine betaine transporter periplasmic subunit
1096	 69.30	0	1243297..1244247	-	316	115359066	-	Bamb_4318	-	binding-protein-dependent transport systems inner membrane component
1097	 70.03	0	1244240..1245427	-	395	115359067	-	Bamb_4319	-	glycine betaine/L-proline ABC transporter, ATPase subunit
1098	 69.92	0	1245433..1245801	-	122	115359068	-	Bamb_4320	-	NIPSNAP family protein
1099	 71.17	+1	1245798..1246640	-	280	115359069	-	Bamb_4321	-	alpha/beta hydrolase fold
1100	 68.25	0	1246644..1247720	-	358	115359070	-	Bamb_4322	-	luciferase family protein
1101	 68.19	0	1247752..1249263	-	503	115359071	-	Bamb_4323	-	aldehyde dehydrogenase
1102	 69.92	0	1249292..1250275	-	327	115359072	-	Bamb_4324	-	flavin reductase domain-containing protein
1103	 70.48	0	1250740..1252548	-	602	115359073	-	Bamb_4325	-	hypothetical protein
1104	 69.47	0	1252693..1253298	+	201	115359074	-	Bamb_4326	-	hypothetical protein
1105	 72.59	+1	1253400..1254344	+	314	115359075	-	Bamb_4327	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1106	 67.01	0	1254476..1255651	+	391	115359076	-	Bamb_4328	-	porin
1107	 56.28	-2	1255784..1256746	-	320	115359077	-	Bamb_4329	-	ferredoxin
1108	 55.31	-2	1256786..1257886	-	366	115359078	-	Bamb_4330	-	vanillate monooxygenase
1109	 55.30	-2	1258653..1259549	-	298	115359079	-	Bamb_4331	-	LysR family transcriptional regulator
1110	 65.01	0	1260053..1260415	-	120	115359080	-	Bamb_4332	-	hypothetical protein
1111	 62.93	0	1260449..1260769	+	106	115359081	-	Bamb_4333	-	hypothetical protein
1112	 60.06	-1	1260797..1261870	+	357	115359082	-	Bamb_4334	-	hypothetical protein
1113	 58.99	-1	1261946..1262362	+	138	115359083	-	Bamb_4335	-	hypothetical protein
1114	 60.53	-1	1262854..1263081	+	75	115359084	-	Bamb_4336	-	hypothetical protein
1115	 65.63	0	1263078..1263656	+	192	115359085	-	Bamb_4337	-	hypothetical protein
1116	 68.97	0	1263870..1264607	+	245	115359086	-	Bamb_4338	-	hypothetical protein
1117	 67.36	0	1264734..1265312	-	192	115359087	-	Bamb_4339	-	NnrU family protein
1118	 70.09	0	1265549..1265986	-	145	115359088	-	Bamb_4340	-	TfoX domain-containing protein
1119	 71.62	+1	1265983..1267092	-	369	115359089	-	Bamb_4341	-	hypothetical protein
1120	 69.55	0	1267163..1268617	-	484	115359090	-	Bamb_4342	-	peptidase M20
1121	 74.46	+1	1268768..1269832	-	354	115359091	-	Bamb_4343	-	2-nitropropane dioxygenase, NPD
1122	 67.26	0	1270277..1271803	+	508	115359092	-	Bamb_4344	-	arginine:agmatin antiporter
1123	 67.35	0	1271806..1274145	+	779	115359093	-	Bamb_4345	-	lysine decarboxylase
1124	 67.04	0	1274215..1275009	-	264	115359094	-	Bamb_4346	-	hypothetical protein
1125	 61.48	-1	1275276..1276181	+	301	115359095	-	Bamb_4347	-	hypothetical protein
1126	 72.00	+1	1276201..1277175	-	324	115359096	ftrA	Bamb_4348	-	transcriptional activator FtrA
1127	 70.00	0	1277287..1277706	+	139	115359097	-	Bamb_4349	-	rhodanese domain-containing protein
1128	 64.22	0	1277797..1278123	+	108	115359098	-	Bamb_4350	-	hypothetical protein
1129	 72.84	+1	1278139..1279320	-	393	115359099	-	Bamb_4351	-	cytochrome P450-like protein
1130	 65.53	0	1279485..1279748	-	87	115359100	-	Bamb_4352	-	hypothetical protein
1131	 71.20	+1	1280081..1280941	-	286	115359101	-	Bamb_4353	-	PEP phosphonomutase
1132	 67.83	0	1281342..1282202	-	286	115359102	-	Bamb_4354	-	RpiR family transcriptional regulator
1133	 64.69	0	1282258..1282611	-	117	115359103	-	Bamb_4355	-	hypothetical protein
1134	 68.02	0	1282837..1283499	+	220	115359104	-	Bamb_4356	-	two component transcriptional regulator
1135	 70.66	0	1283496..1284872	+	458	115359105	-	Bamb_4357	-	periplasmic sensor signal transduction histidine kinase
1136	 67.11	0	1285083..1285529	+	148	115359106	-	Bamb_4358	-	MarR family transcriptional regulator
1137	 61.79	-1	1285568..1285936	+	122	115359107	-	Bamb_4359	-	antibiotic biosynthesis monooxygenase
1138	 71.48	+1	1286725..1287618	-	297	115359108	-	Bamb_4360	-	Beta-lactamase
1139	 70.15	0	1287735..1288625	+	296	115359109	-	Bamb_4361	-	LysR family transcriptional regulator
1140	 67.06	0	1289122..1289373	-	83	115359110	-	Bamb_4362	-	hypothetical protein
1141	 71.38	+1	1289472..1291697	-	741	115359111	-	Bamb_4363	-	Amylo-alpha-1,6-glucosidase
1142	 71.51	+1	1291854..1298969	-	2371	115359112	-	Bamb_4364	-	outer membrane autotransporter
1143	 68.09	0	1299703..1300335	-	210	115359113	-	Bamb_4365	-	hypothetical protein
1144	 71.21	+1	1300568..1301602	-	344	115359114	-	Bamb_4366	-	cell shape determining protein MreB
1145	 69.26	0	1301859..1304249	+	796	115359115	-	Bamb_4367	-	patatin
1146	 68.08	0	1304328..1305458	-	376	115359116	-	Bamb_4368	-	periplasmic sensor signal transduction histidine kinase
1147	 67.08	0	1305523..1306251	-	242	115359117	-	Bamb_4369	-	two component transcriptional regulator
1148	 65.77	0	1306365..1307366	+	333	115359118	-	Bamb_4370	-	glutaminase
1149	 64.39	0	1307534..1308454	+	306	115359119	-	Bamb_4371	-	LysR family transcriptional regulator
1150	 65.25	0	1308584..1309219	+	211	115359120	-	Bamb_4372	-	isochorismatase hydrolase
1151	 64.89	0	1309288..1310019	-	243	115359121	-	Bamb_4373	-	ribonuclease T2
1152	 68.38	0	1310201..1311604	-	467	115359122	-	Bamb_4374	-	hypothetical protein
1153	 64.97	0	1311967..1312614	+	215	115359123	-	Bamb_4375	-	hypothetical protein
1154	 71.51	+1	1312686..1313243	+	185	115359124	-	Bamb_4376	-	XRE family transcriptional regulator
1155	 67.53	0	1313352..1313933	+	193	115359125	-	Bamb_4377	-	metal-dependent phosphohydrolase
1156	 70.89	0	1314013..1315551	-	512	115359126	-	Bamb_4378	-	major facilitator transporter
66.96	MEAN

4.07	STD DEV
