IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

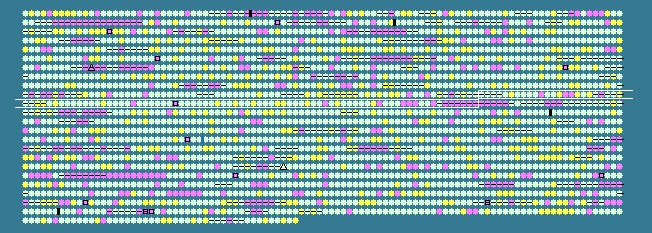

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
977	 65.93	0	1116870..1117958	-	362	115358947	-	Bamb_4198	-	alcohol dehydrogenase
978	 66.37	0	1118008..1119021	-	337	115358948	-	Bamb_4199	-	inner-membrane translocator
979	 67.04	0	1119008..1120594	-	528	115358949	-	Bamb_4200	-	ABC transporter related
980	 67.19	0	1120591..1121544	-	317	115358950	-	Bamb_4201	-	periplasmic binding protein/LacI transcriptional regulator
981	 67.40	0	1121661..1122620	-	319	115358951	-	Bamb_4202	-	AraC family transcriptional regulator
982	 71.52	+1	1122871..1123818	-	315	115358952	-	Bamb_4203	-	2-dehydropantoate 2-reductase
983	 67.25	0	1124075..1125628	+	517	115358953	-	Bamb_4204	-	methyl-accepting chemotaxis sensory transducer
984	 66.67	0	1125904..1126581	-	225	115358954	-	Bamb_4205	-	two component LuxR family transcriptional regulator
985	 66.26	0	1126942..1127433	+	163	115358955	-	Bamb_4206	-	hypothetical protein
986	 68.27	0	1127803..1129236	-	477	115358956	-	Bamb_4207	-	sigma-54 dependent trancsriptional regulator
987	 60.82	-1	1129605..1130117	+	170	115358957	-	Bamb_4208	-	hypothetical protein
988	 68.72	0	1130185..1131111	-	308	115358958	-	Bamb_4209	-	AraC family transcriptional regulator
989	 68.83	0	1131293..1131754	+	153	115358959	-	Bamb_4210	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
990	 70.51	0	1131757..1133967	+	736	115358960	-	Bamb_4211	-	aldehyde oxidase and xanthine dehydrogenase, molybdopterin binding
991	 59.84	-1	1134076..1135350	-	424	115358961	-	Bamb_4212	-	filamentation induced by cAMP protein Fic
992	 61.40	-1	1135718..1136116	+	132	115358962	-	Bamb_4213	-	response regulator receiver protein
993	 74.52	+1	1136505..1137650	+	381	115358963	-	Bamb_4214	-	type III secretion system apparatus protein YscQ/HrcQ
994	 65.48	0	1137654..1138328	+	224	115358964	-	Bamb_4215	-	type III secretion system protein
995	 72.01	+1	1138325..1139128	+	267	115358965	-	Bamb_4216	-	lytic transglycosylase, catalytic
996	 70.12	0	1139201..1141168	-	655	115358966	-	Bamb_4217	-	asparagine synthase (glutamine-hydrolyzing)
997	 60.08	-1	1141178..1141435	-	85	115358967	-	Bamb_4218	-	hypothetical protein
998	 67.73	0	1141414..1142445	-	343	115358968	-	Bamb_4219	-	type III secretion exporter
999	 67.28	0	1142470..1143279	-	269	115358969	-	Bamb_4220	-	type III secretion protein SpaR/YscT/HrcT
1000	 74.30	+1	1143273..1143953	-	226	115358970	-	Bamb_4221	-	hypothetical protein
1001	 69.84	0	1143946..1145331	-	461	115358971	-	Bamb_4222	-	type III secretion apparatus H+-transporting two-sector ATPase
1002	 70.00	0	1145328..1145957	-	209	115358972	-	Bamb_4223	-	HrpE/YscL family type III secretion apparatus protein
1003	 72.20	+1	1145939..1146679	-	246	115358973	-	Bamb_4224	-	hypothetical protein
1004	 71.94	+1	1146676..1147605	-	309	115358974	-	Bamb_4225	-	YscJ/HrcJ family type III secretion apparatus lipoprotein
1005	 68.55	0	1147684..1148214	-	176	115358975	-	Bamb_4226	-	hypothetical protein
1006	 72.99	+1	1148661..1150019	-	452	115358976	-	Bamb_4227	-	YscD/HrpQ family type III secretion apparatus protein
1007	 67.45	0	1150000..1152045	-	681	115358977	-	Bamb_4228	-	YscC/HrcC family type III secretion outer membrane protein
1008	 65.23	0	1152045..1152323	-	92	115358978	-	Bamb_4229	-	HrpO family type III secretion protein
1009	 69.73	0	1152320..1154569	-	749	115358979	-	Bamb_4230	-	type III secretion FHIPEP protein
1010	 64.63	0	1154763..1155596	-	277	115358980	-	Bamb_4231	-	LuxR family transcriptional regulator
1011	 66.67	0	1155876..1156781	+	301	115358981	-	Bamb_4232	-	LuxR family transcriptional regulator
1012	 67.09	0	1156860..1158506	-	548	115358982	-	Bamb_4233	-	natural resistance-associated macrophage protein
1013	 66.32	0	1158545..1158832	+	95	115358983	-	Bamb_4234	-	hypothetical protein
1014	 71.06	+1	1159810..1160082	+	90	115358984	-	Bamb_4235	-	hypothetical protein
1015	 69.57	0	1160194..1161672	+	492	115358985	-	Bamb_4236	-	carbohydrate-selective porin OprB
1016	 68.32	0	1161766..1163520	-	584	115358986	-	Bamb_4237	-	Alpha,alpha-trehalase
1017	 67.66	0	1163813..1165228	+	471	115358987	-	Bamb_4238	-	major facilitator transporter
1018	 68.56	0	1165577..1166788	+	403	115358988	-	Bamb_4239	-	hypothetical protein
1019	 61.64	-1	1166891..1167109	-	72	115358989	-	Bamb_4240	-	hypothetical protein
1020	 66.44	0	1167165..1167608	-	147	115358990	-	Bamb_4241	-	GCN5-related N-acetyltransferase
1021	 67.44	0	1167736..1168380	+	214	115358991	-	Bamb_4242	-	hydrolase
1022	 65.97	0	1168793..1169365	+	190	115358992	-	Bamb_4243	-	hypothetical protein
1023	 64.00	0	1169483..1170082	-	199	115358993	-	Bamb_4244	-	GCN5-related N-acetyltransferase
1024	 70.16	0	1170193..1171107	-	304	115358994	-	Bamb_4245	-	DNA-binding transcriptional regulator LysR
1025	 67.47	0	1171217..1172455	+	412	115358995	-	Bamb_4246	-	diaminopimelate decarboxylase
1026	 59.45	-1	1172822..1173874	-	350	115358996	-	Bamb_4247	-	IS605 family transposase OrfB
1027	 65.67	0	1174202..1175002	+	266	115358997	-	Bamb_4248	-	extracellular solute-binding protein
1028	 67.27	0	1175077..1175736	+	219	115358998	-	Bamb_4249	-	polar amino acid ABC transporter, inner membrane subunit
1029	 63.70	0	1175733..1176506	+	257	115358999	-	Bamb_4250	-	ABC transporter related
1030	 69.53	0	1176556..1177743	+	395	115359000	-	Bamb_4251	-	cystathionine beta-lyase
1031	 66.67	0	1177822..1178166	+	114	115359001	-	Bamb_4252	-	hypothetical protein
1032	 68.12	0	1178599..1178943	+	114	115359002	-	Bamb_4253	-	hypothetical protein
1033	 73.39	+1	1178945..1179985	+	346	115359003	-	Bamb_4254	-	hypothetical protein
1034	 69.30	0	1180036..1180719	-	227	115359004	-	Bamb_4255	-	LuxR family transcriptional regulator
1035	 66.09	0	1181002..1181694	+	230	115359005	-	Bamb_4256	-	hypothetical protein
1036	 70.76	0	1182124..1182612	+	162	115359006	-	Bamb_4257	-	hypothetical protein
1037	 70.02	0	1182596..1183042	+	148	115359007	-	Bamb_4258	-	lysozyme
1038	 69.35	0	1183374..1184342	+	322	115359008	-	Bamb_4259	-	poly (3-hydroxybutyrate) depolymerase
1039	 73.11	+1	1184398..1184940	+	180	115359009	-	Bamb_4260	-	hypothetical protein
1040	 69.57	0	1184937..1185557	+	206	115359010	-	Bamb_4261	-	LigA
1041	 64.72	0	1185670..1186287	+	205	115359011	-	Bamb_4262	-	hypothetical protein
1042	 63.92	0	1186358..1186975	+	205	115359012	-	Bamb_4263	-	hypothetical protein
1043	 70.61	0	1187034..1187921	-	295	115359013	-	Bamb_4264	-	hypothetical protein
1044	 71.95	+1	1188049..1189506	+	485	115359014	-	Bamb_4265	-	GntR family transcriptional regulator
1045	 66.60	0	1189549..1190982	-	477	115359015	-	Bamb_4266	-	putative nicotinate phosphoribosyltransferase
1046	 65.99	0	1191057..1192097	-	346	115359016	-	Bamb_4267	-	bifunctional nicotinamide mononucleotide adenylyltransferase/ADP-ribose pyrophosphatase
1047	 66.23	0	1192283..1192735	+	150	115359017	-	Bamb_4268	-	hypothetical protein
1048	 72.22	+1	1192743..1193120	-	125	115359018	-	Bamb_4269	-	S-adenosylmethionine decarboxylase related
1049	 68.90	0	1193263..1194783	-	506	115359019	-	Bamb_4270	-	hypothetical protein
1050	 68.07	0	1194793..1195863	-	356	115359020	-	Bamb_4271	-	putative virion core protein
1051	 62.27	-1	1195890..1196276	-	128	115359021	-	Bamb_4272	-	hypothetical protein
1052	 66.73	0	1196413..1197927	+	504	115359022	-	Bamb_4273	-	spermidine synthase
1053	 71.42	+1	1197927..1199546	+	539	115359023	-	Bamb_4274	-	hypothetical protein
1054	 69.69	0	1199695..1200456	+	253	115359024	-	Bamb_4275	-	cell wall hydrolase/autolysin
1055	 64.36	0	1200506..1200895	+	129	115359025	-	Bamb_4276	-	hypothetical protein
1056	 65.90	0	1200974..1201498	+	174	115359026	-	Bamb_4277	-	GCN5-related N-acetyltransferase
1057	 67.11	0	1201846..1203192	-	448	115359027	-	Bamb_4278	-	glutamine synthetase, catalytic region
1058	 66.31	0	1203339..1203896	-	185	115359028	-	Bamb_4279	-	XRE family transcriptional regulator
1059	 70.89	0	1203922..1205247	-	441	115359029	-	Bamb_4280	-	FAD dependent oxidoreductase
1060	 62.33	-1	1205501..1205938	-	145	115359030	-	Bamb_4281	-	AsnC family transcriptional regulator
1061	 68.60	0	1205935..1206864	-	309	115359031	-	Bamb_4282	-	homocysteine S-methyltransferase
1062	 64.62	0	1206968..1208137	-	389	115359032	-	Bamb_4283	-	cystathionine gamma-synthase
1063	 64.66	0	1208182..1208877	-	231	115359033	-	Bamb_4284	-	polar amino acid ABC transporter, inner membrane subunit
1064	 62.83	-1	1208891..1209568	-	225	115359034	-	Bamb_4285	-	polar amino acid ABC transporter, inner membrane subunit
1065	 63.46	0	1209640..1210419	-	259	115359035	-	Bamb_4286	-	extracellular solute-binding protein
1066	 63.16	0	1210451..1211248	-	265	115359036	-	Bamb_4287	-	ABC transporter related
1067	 67.71	0	1211329..1212759	-	476	115359037	-	Bamb_4288	-	aldehyde dehydrogenase
1068	 66.49	0	1212756..1213880	-	374	115359038	-	Bamb_4289	-	homoserine dehydrogenase
1069	 61.85	-1	1213987..1214484	-	165	115359039	-	Bamb_4290	-	AsnC family transcriptional regulator
1070	 67.65	0	1214516..1215226	-	236	115359040	-	Bamb_4291	-	hypothetical protein
1071	 59.13	-1	1215720..1216064	-	114	115359041	-	Bamb_4292	-	small multidrug resistance protein
1072	 60.21	-1	1216126..1217829	-	567	115359042	-	Bamb_4293	-	glucose-methanol-choline oxidoreductase
1073	 57.86	-2	1217923..1218762	-	279	115359043	-	Bamb_4294	-	binding-protein-dependent transport systems inner membrane component
1074	 59.62	-1	1218767..1220029	-	420	115359044	-	Bamb_4295	-	binding-protein-dependent transport systems inner membrane component
1075	 58.96	-1	1220047..1221084	-	345	115359045	-	Bamb_4296	-	ABC spermidine/putrescine transporter, periplasmic ligand binding protein
1076	 57.08	-2	1221119..1222213	-	364	115359046	-	Bamb_4297	-	spermidine/putrescine ABC transporter ATPase subunit
66.96	MEAN

4.07	STD DEV
