IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

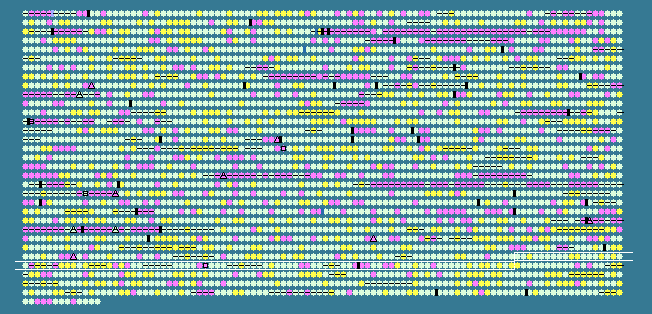

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.92 STD DEV: 4.28
Burkholderia cepacia AMMD chromosome 1, complete sequence - 1..3556545
3213 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2783	 65.58	0	3076441..3077265	+	274	115352839	queF	Bamb_2788	-	7-cyano-7-deazaguanine reductase
2784	 64.86	0	3077392..3077778	-	128	115352840	-	Bamb_2789	-	endoribonuclease L-PSP
2785	 70.72	0	3077901..3079382	-	493	115352841	-	Bamb_2790	-	N-acyl-D-amino-acid deacylase
2786	 69.54	0	3079385..3080359	-	324	115352842	-	Bamb_2791	-	RpiR family transcriptional regulator
2787	 68.54	0	3080438..3081718	+	426	115352843	-	Bamb_2792	-	amino acid aldolase or racemase-like protein
2788	 68.04	0	3081883..3082464	+	193	115352844	-	Bamb_2793	-	PfpI family intracellular peptidase
2789	 66.24	0	3082586..3083059	-	157	115352845	-	Bamb_2794	-	MarR family transcriptional regulator
2790	 67.73	0	3083068..3084663	-	531	115352846	-	Bamb_2795	-	major facilitator transporter
2791	 68.09	0	3084771..3085613	+	280	115352847	-	Bamb_2796	-	hypothetical protein
2792	 71.55	+1	3085583..3086545	-	320	115352848	-	Bamb_2797	-	alpha/beta hydrolase domain-containing protein
2793	 70.57	0	3086648..3087082	-	144	115352849	-	Bamb_2798	-	CHRD domain-containing protein
2794	 69.06	0	3087497..3088498	+	333	115352850	-	Bamb_2799	-	hypothetical protein
2795	 65.76	0	3088518..3089291	-	257	115352851	-	Bamb_2800	-	hypothetical protein
2796	 68.52	0	3089572..3091194	-	540	115352852	-	Bamb_2801	-	phospholipase D/transphosphatidylase
2797	 71.57	+1	3091429..3092142	-	237	115352853	-	Bamb_2802	-	GntR domain-containing protein
2798	 70.29	0	3092284..3093084	+	266	115352854	-	Bamb_2803	-	hypothetical protein
2799	 75.07	+1	3093081..3093806	+	241	115352855	-	Bamb_2804	-	hypothetical protein
2800	 70.26	0	3093803..3095248	+	481	115352856	-	Bamb_2805	-	iron-sulfur cluster binding protein
2801	 69.37	0	3095300..3097000	+	566	115352857	-	Bamb_2806	-	L-lactate transport
2802	 62.73	0	3097112..3097873	-	253	115352858	-	Bamb_2807	-	peptidase M48, Ste24p
2803	 71.38	+1	3098023..3098829	-	268	115352859	-	Bamb_2808	-	glycosyl transferase family protein
2804	 71.77	+1	3098955..3100247	-	430	115352860	-	Bamb_2809	-	endoribonuclease L-PSP
2805	 69.74	0	3100345..3101061	-	238	115352861	-	Bamb_2810	-	short chain dehydrogenase
2806	 61.40	-1	3101169..3101453	-	94	115352862	-	Bamb_2811	-	acyl carrier protein
2807	 72.56	+1	3102019..3102663	+	214	115352863	-	Bamb_2812	-	membrane protein-like protein
2808	 72.02	+1	3102660..3104489	+	609	115352864	-	Bamb_2813	-	Acyl-coenzyme A synthetases/AMP-(fatty) acid ligases-like protein
2809	 71.08	0	3104486..3105460	+	324	115352865	-	Bamb_2814	-	acyltransferase-like protein
2810	 69.92	0	3105457..3106101	+	214	115352866	-	Bamb_2815	-	hypothetical protein
2811	 73.60	+1	3106101..3108581	+	826	115352867	-	Bamb_2816	-	exporter-like protein
2812	 73.64	+1	3108578..3109480	+	300	115352868	-	Bamb_2817	-	polysaccharide deacetylase
2813	 71.24	+1	3109544..3110767	+	407	115352869	-	Bamb_2818	-	3-oxoacyl-(acyl carrier protein) synthase I
2814	 72.65	+1	3110764..3111582	+	272	115352870	-	Bamb_2819	-	hypothetical protein
2815	 71.54	+1	3111579..3112112	+	177	115352871	-	Bamb_2820	-	3-hydroxylacyl-(acyl carrier protein) dehydratase-like protein
2816	 62.54	-1	3112135..3112425	+	96	115352872	-	Bamb_2821	-	hypothetical protein
2817	 72.31	+1	3112506..3112877	-	123	115352873	-	Bamb_2822	-	hypothetical protein
2818	 62.77	0	3112906..3113649	-	247	115352874	-	Bamb_2823	-	acetoacetyl-CoA reductase
2819	 69.88	0	3113867..3115048	-	393	115352875	-	Bamb_2824	-	acetyl-CoA acetyltransferase
2820	 68.04	0	3115325..3115906	-	193	115352876	-	Bamb_2825	-	phasin family protein
2821	 64.58	0	3116383..3117147	-	254	115352877	-	Bamb_2826	-	cobyrinic acid a,c-diamide synthase
2822	 64.86	0	3117363..3117584	+	73	115352878	-	Bamb_2827	-	hypothetical protein
2823	 63.49	0	3118059..3118310	+	83	115352879	-	Bamb_2828	-	hypothetical protein
2824	 66.46	0	3118284..3119228	-	314	115352880	-	Bamb_2829	-	pili assembly chaperone
2825	 67.58	0	3119218..3120642	-	474	115352881	-	Bamb_2830	-	hypothetical protein
2826	 67.79	0	3120738..3123401	-	887	115352882	-	Bamb_2831	-	fimbrial biogenesis outer membrane usher protein
2827	 63.77	0	3123527..3124285	-	252	115352883	-	Bamb_2832	-	pili assembly chaperone
2828	 63.88	0	3124396..3125004	-	202	115352884	-	Bamb_2833	-	fimbrial protein
2829	 66.34	0	3125272..3127698	-	808	115352885	-	Bamb_2834	-	Hpt sensor hybrid histidine kinase
2830	 61.97	-1	3127705..3128385	-	226	115352886	-	Bamb_2835	-	two component LuxR family transcriptional regulator
2831	 56.90	-2	3128996..3129343	+	115	115352887	-	Bamb_2836	-	transposase IS3/IS911 family protein
2832	 68.62	0	3129875..3130438	-	187	115352888	-	Bamb_2837	-	single-strand DNA-binding protein
2833	 66.58	0	3130542..3131729	-	395	115352889	-	Bamb_2838	-	major facilitator transporter
2834	 66.63	0	3131982..3134867	+	961	115352890	-	Bamb_2839	-	excinuclease ABC, A subunit
2835	 64.64	0	3135125..3136207	+	360	115352891	-	Bamb_2840	-	putative transporter
2836	 65.08	0	3136313..3137197	-	294	115352892	purU	Bamb_2841	-	formyltetrahydrofolate deformylase
2837	 70.98	0	3137248..3138105	-	285	115352893	-	Bamb_2842	-	NUDIX hydrolase
2838	 68.78	0	3138111..3138725	-	204	115352894	-	Bamb_2843	-	lysine exporter protein LysE/YggA
2839	 68.43	0	3138752..3139318	-	188	115352895	-	Bamb_2844	-	adenine phosphoribosyltransferase
2840	 68.50	0	3139397..3141409	-	670	115352896	-	Bamb_2845	-	sodium/hydrogen exchanger
2841	 69.92	0	3141529..3142512	+	327	115352897	-	Bamb_2846	-	KpsF/GutQ family protein
2842	 70.58	0	3142512..3143048	+	178	115352898	-	Bamb_2847	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
2843	 65.85	0	3143052..3143666	+	204	115352899	-	Bamb_2848	-	hypothetical protein
2844	 68.17	0	3143687..3144352	+	221	115352900	-	Bamb_2849	-	OstA family protein
2845	 65.77	0	3144349..3145125	+	258	115352901	-	Bamb_2850	-	ABC transporter related
2846	 64.61	0	3145296..3146801	+	501	115352902	-	Bamb_2851	-	RNA polymerase factor sigma-54
2847	 55.56	-2	3146959..3147318	+	119	115352903	-	Bamb_2852	-	sigma 54 modulation protein/ribosomal protein S30EA
2848	 62.41	-1	3147488..3148027	+	179	115352904	-	Bamb_2853	-	putative PTS IIA-like nitrogen-regulatory protein PtsN
2849	 66.67	0	3148157..3149125	+	322	115352905	-	Bamb_2854	-	HPr kinase/phosphorylase
2850	 64.74	0	3149174..3150109	+	311	115352906	-	Bamb_2855	-	hypothetical protein
2851	 66.19	0	3150136..3150771	+	211	115352907	-	Bamb_2856	-	peptidase S16, lon domain-containing protein
2852	 71.45	+1	3150908..3152014	-	368	115352908	-	Bamb_2857	-	A/G-specific adenine glycosylase
2853	 69.71	0	3152050..3152904	-	284	115352909	-	Bamb_2858	-	formamidopyrimidine-DNA glycosylase
2854	 68.86	0	3152964..3154787	+	607	115352910	-	Bamb_2859	-	TPR repeat-containing protein
2855	 70.37	0	3154787..3155407	+	206	115352911	lolB	Bamb_2860	-	outer membrane lipoprotein LolB
2856	 59.98	-1	3155435..3156316	+	293	115352912	-	Bamb_2861	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
2857	 62.82	0	3156491..3157453	+	320	115352913	-	Bamb_2862	-	ribose-phosphate pyrophosphokinase
2858	 62.07	-1	3157615..3158223	+	202	115352914	-	Bamb_2863	-	50S ribosomal protein L25/general stress protein Ctc
2859	 68.00	0	3158353..3158952	+	199	115352915	-	Bamb_2864	-	peptidyl-tRNA hydrolase
2860	 66.85	0	3159078..3160145	+	355	115352916	-	Bamb_2865	-	histidinol-phosphate aminotransferase
2861	 60.30	-1	3160250..3160516	-	88	115352917	-	Bamb_2866	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
2862	 60.04	-1	3160576..3161073	-	165	115352918	coaD	Bamb_2867	-	phosphopantetheine adenylyltransferase
2863	 72.81	+1	3161185..3161868	-	227	115352919	-	Bamb_2868	-	putative methyltransferase
2864	 66.93	0	3162001..3163161	+	386	115352920	-	Bamb_2869	-	signal recognition particle-docking protein FtsY
2865	 64.06	0	3163271..3163960	-	229	115352921	-	Bamb_2870	-	maleylacetoacetate isomerase
2866	 72.27	+1	3164081..3165079	+	332	115352922	-	Bamb_2871	-	hypothetical protein
2867	 68.06	0	3165470..3167116	+	548	115352923	-	Bamb_2872	-	2-isopropylmalate synthase
2868	 65.36	0	3167260..3167643	-	127	115352924	-	Bamb_2873	-	hypothetical protein
2869	 61.58	-1	3167689..3168258	-	189	115352925	-	Bamb_2874	-	hypothetical protein
2870	 65.38	0	3168619..3169554	+	311	115352926	-	Bamb_2875	-	RNA polymerase factor sigma-32
2871	 64.16	0	3169894..3170172	+	92	115352927	-	Bamb_2876	-	hypothetical protein
2872	 63.62	0	3170162..3171739	+	525	115352928	-	Bamb_2877	-	cytochrome bd ubiquinol oxidase, subunit I
2873	 67.19	0	3171771..3172907	+	378	115352929	-	Bamb_2878	-	cytochrome d ubiquinol oxidase, subunit II
2874	 64.23	0	3172963..3173085	+	40	115352930	-	Bamb_2879	-	cyd operon protein YbgT
2875	 70.81	0	3173679..3176162	+	827	115352931	-	Bamb_2880	-	Beta-N-acetylhexosaminidase
2876	 69.00	0	3176473..3178230	-	585	115352932	-	Bamb_2881	-	PTS system, N-acetylglucosamine-specific IIBC subunit
2877	 72.20	+1	3178318..3180900	-	860	115352933	-	Bamb_2882	-	phosphoenolpyruvate-protein phosphotransferase
2878	 71.53	+1	3180916..3181923	-	335	115352934	-	Bamb_2883	-	glutamine--fructose-6-phosphate transaminase (isomerizing)
2879	 69.38	0	3181916..3183019	-	367	115352935	-	Bamb_2884	-	N-acetylglucosamine-6-phosphate deacetylase
2880	 70.88	0	3183137..3183871	-	244	115352936	-	Bamb_2885	-	GntR family transcriptional regulator
2881	 67.69	0	3184200..3187415	-	1071	115352937	dnaE2	Bamb_2886	-	error-prone DNA polymerase
2882	 75.20	+1	3187422..3188909	-	495	115352938	-	Bamb_2887	-	hypothetical protein
66.92	MEAN

4.28	STD DEV
