IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

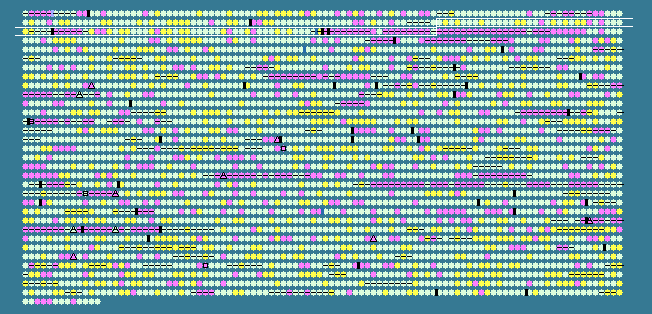

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.92 STD DEV: 4.28
Burkholderia cepacia AMMD chromosome 1, complete sequence - 1..3556545
3213 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
170	 63.95	0	202669..203184	+	171	115350226	-	Bamb_0170	-	CheW protein
171	 71.39	+1	203222..205168	+	648	115350227	-	Bamb_0171	-	methyl-accepting chemotaxis sensory transducer
172	 68.81	0	205172..206149	+	325	115350228	-	Bamb_0172	-	MCP methyltransferase, CheR-type
173	 70.60	0	206146..206907	+	253	115350229	-	Bamb_0173	-	chemoreceptor glutamine deamidase CheD
174	 70.27	0	206913..207995	+	360	115350230	-	Bamb_0174	-	chemotaxis-specific methylesterase
175	 64.39	0	208063..208458	+	131	115350231	-	Bamb_0175	-	response regulator receiver protein
176	 69.67	0	208460..209191	+	243	115350232	-	Bamb_0176	-	chemotaxis regulator CheZ
177	 74.40	+1	209489..209992	+	167	115350233	-	Bamb_0177	-	hypothetical protein
178	 66.75	0	210009..211238	+	409	115350234	-	Bamb_0178	-	hypothetical protein
179	 68.07	0	211406..211903	+	165	115350235	-	Bamb_0179	-	3-demethylubiquinone-9 3-methyltransferase
180	 65.09	0	212268..212648	+	126	115350236	-	Bamb_0180	-	hypothetical protein
181	 69.58	0	212915..214114	+	399	115350237	flhB	Bamb_0181	-	flagellar biosynthesis protein FlhB
182	 67.90	0	214111..216213	+	700	115350238	flhA	Bamb_0182	-	flagellar biosynthesis protein FlhA
183	 70.85	0	216210..217976	+	588	115350239	flhF	Bamb_0183	-	flagellar biosynthesis regulator FlhF
184	 72.41	+1	217969..218787	+	272	115350240	-	Bamb_0184	-	flagellar biosynthesisprotein, FlhG
185	 68.44	0	218805..219536	+	243	115350241	fliA	Bamb_0185	-	flagellar biosynthesis sigma factor
186	 63.85	0	219887..221305	+	472	115350242	-	Bamb_0186	-	S-adenosyl-L-homocysteine hydrolase
187	 62.15	-1	221461..221814	+	117	115350243	-	Bamb_0187	-	membrane protein of unknown function
188	 66.55	0	221839..222669	+	276	115350244	-	Bamb_0188	-	5,10-methylenetetrahydrofolate reductase
189	 72.01	+1	222772..224250	-	492	115350245	-	Bamb_0189	-	amidase
190	 69.41	0	224331..225023	-	230	115350246	-	Bamb_0190	-	carboxymethylenebutenolidase
191	 75.19	+1	225305..226384	+	359	115350247	-	Bamb_0191	-	2-nitropropane dioxygenase, NPD
192	 63.87	0	226836..227978	+	380	115350248	-	Bamb_0192	-	extracellular ligand-binding receptor
193	 72.10	+1	228099..229313	-	404	115350249	-	Bamb_0193	-	major facilitator transporter
194	 72.29	+1	229827..230573	+	248	115350250	-	Bamb_0194	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
195	 62.24	-1	230929..231222	+	97	115350251	-	Bamb_0195	-	histone family protein nucleoid-structuring protein H-NS
196	 66.42	0	231404..232618	+	404	115350252	-	Bamb_0196	-	cation diffusion facilitator family transporter
197	 62.85	0	232646..233116	-	156	115350253	-	Bamb_0197	-	AsnC family transcriptional regulator
198	 66.67	0	233196..233855	-	219	115350254	-	Bamb_0198	-	hypothetical protein
199	 66.82	0	233852..234496	-	214	115350255	-	Bamb_0199	-	beta-lactamase domain-containing protein
200	 63.89	0	235155..235766	+	203	115350256	-	Bamb_0200	-	rare lipoprotein A
201	 71.49	+1	235863..236753	-	296	115350257	-	Bamb_0201	-	hypothetical protein
202	 72.73	+1	236800..237228	+	142	115350258	-	Bamb_0202	-	hypothetical protein
203	 70.09	0	237355..237939	+	194	115350259	-	Bamb_0203	-	phosphoheptose isomerase
204	 67.67	0	237957..238754	+	265	115350260	-	Bamb_0204	-	transport-associated
205	 68.33	0	238751..239110	+	119	115350261	-	Bamb_0205	-	cytochrome c, class I
206	 60.32	-1	240397..242964	+	855	115350262	-	Bamb_0207	-	Rhs element Vgr protein
207	 60.13	-1	242980..243606	+	208	115350263	-	Bamb_0208	-	hypothetical protein
208	 58.55	-1	243603..245783	+	726	115350264	-	Bamb_0209	-	hypothetical protein
209	 60.14	-1	245816..246703	+	295	115350265	-	Bamb_0210	-	hypothetical protein
210	 57.45	-2	246714..246995	+	93	115350266	-	Bamb_0211	-	PAAR repeat-containing protein
211	 69.90	0	247296..247976	-	226	115350267	-	Bamb_0212	-	hypothetical protein
212	 71.26	+1	248056..249144	+	362	115350268	-	Bamb_0213	-	arginase/agmatinase/formiminoglutamase
213	 59.97	-1	249373..250104	+	243	115350269	-	Bamb_0214	-	hypothetical protein
214	 59.56	-1	250166..250531	+	121	115350270	-	Bamb_0215	-	hypothetical protein
215	 71.03	0	250641..252038	-	465	115350271	-	Bamb_0216	-	glucarate dehydratase
216	 66.67	0	252111..253451	-	446	115350272	-	Bamb_0217	-	d-galactonate transporter
217	 73.30	+1	253751..254383	+	210	115350273	-	Bamb_0218	-	hypothetical protein
218	 70.70	0	254380..255717	+	445	115350274	-	Bamb_0219	-	carotenoid oxygenase
219	 67.69	0	255731..256897	-	388	115350275	-	Bamb_0220	-	hypothetical protein
220	 68.48	0	256906..258060	-	384	115350276	-	Bamb_0221	-	hypothetical protein
221	 67.95	0	258079..258777	-	232	115350277	-	Bamb_0222	-	ABC transporter related
222	 71.31	+1	258788..259993	-	401	115350278	-	Bamb_0223	-	RND family efflux transporter MFP subunit
223	 61.81	-1	260294..260602	+	102	115350279	-	Bamb_0224	-	hypothetical protein
224	 74.35	+1	260677..261483	-	268	115350280	-	Bamb_0225	-	hypothetical protein
225	 72.07	+1	261581..262450	+	289	115350281	-	Bamb_0226	-	6-phosphogluconate dehydrogenase, NAD-binding
226	 68.08	0	262522..263157	+	211	115350282	-	Bamb_0227	-	lysine exporter protein LysE/YggA
227	 76.37	+2	263229..264506	-	425	115350283	-	Bamb_0228	-	major facilitator transporter
228	 73.40	+1	264604..265524	+	306	115350284	-	Bamb_0229	-	LysR family transcriptional regulator
229	 67.03	0	265738..266571	-	277	115350285	-	Bamb_0230	-	OmpW family protein
230	 67.15	0	266588..267829	-	413	115350286	-	Bamb_0231	-	hypothetical protein
231	 67.85	0	267984..269417	-	477	115350287	-	Bamb_0232	-	hypothetical protein
232	 66.77	0	269847..270797	-	316	115350288	-	Bamb_0233	-	N-acetyl-gamma-glutamyl-phosphate reductase
233	 68.24	0	270998..271570	-	190	115350289	-	Bamb_0234	-	flavodoxin/nitric oxide synthase
234	 72.31	+1	271786..272388	-	200	115350290	-	Bamb_0235	-	YbhB and YbcL
235	 62.88	0	272629..273315	-	228	115350291	pyrE	Bamb_0236	-	orotate phosphoribosyltransferase
236	 65.96	0	273776..276046	+	756	115350292	-	Bamb_0237	-	malic enzyme
237	 67.98	0	276182..279772	-	1196	115350293	-	Bamb_0238	-	indolepyruvate ferredoxin oxidoreductase
238	 70.50	0	280027..280287	+	86	115350294	-	Bamb_0239	-	hypothetical protein
239	 63.30	0	280402..281499	-	365	115350295	-	Bamb_0240	-	4-hydroxyphenylpyruvate dioxygenase
240	 66.67	0	281713..282237	+	174	115350296	-	Bamb_0241	-	AsnC family transcriptional regulator
241	 65.12	0	282305..282952	-	215	115350297	-	Bamb_0242	-	GCN5-related N-acetyltransferase
242	 64.52	0	283188..283793	-	201	115350298	-	Bamb_0243	-	TetR family transcriptional regulator
243	 71.32	+1	283816..284631	-	271	115350299	-	Bamb_0244	-	hypothetical protein
244	 65.66	0	284762..285850	-	362	115350300	-	Bamb_0245	-	phenylacetate-CoA oxygenase/reductase, PaaK subunit
245	 70.74	0	285853..286416	-	187	115350301	-	Bamb_0246	-	phenylacetate-CoA oxygenase, PaaJ subunit
246	 68.16	0	286442..287245	-	267	115350302	-	Bamb_0247	-	phenylacetate-CoA oxygenase, PaaI subunit
247	 64.91	0	287256..287540	-	94	115350303	-	Bamb_0248	-	phenylacetate-CoA oxygenase subunit PaaB
248	 66.77	0	287577..288575	-	332	115350304	-	Bamb_0249	-	phenylacetate-CoA oxygenase subunit PaaA
249	 70.22	0	288772..290037	+	421	115350305	-	Bamb_0250	-	GDSL family lipase
250	 70.44	0	296763..297239	+	158	115350306	-	Bamb_0251	-	hypothetical protein
251	 61.63	-1	298436..299626	+	396	115350307	-	Bamb_0252	-	elongation factor Tu
252	 57.48	-2	299805..300185	+	126	115350308	secE	Bamb_0253	-	preprotein translocase subunit SecE
253	 58.60	-1	300187..300744	+	185	115350309	nusG	Bamb_0254	-	transcription antitermination protein NusG
254	 60.65	-1	300885..301316	+	143	115350310	rplK	Bamb_0255	-	50S ribosomal protein L11
255	 62.37	-1	301317..302015	+	232	115350311	rplA	Bamb_0256	-	50S ribosomal protein L1
256	 58.73	-1	302254..302820	+	188	115350312	rplJ	Bamb_0257	-	50S ribosomal protein L10
257	 58.67	-1	302884..303258	+	124	115350313	rplL	Bamb_0258	-	50S ribosomal protein L7/L12
258	 61.75	-1	303636..307742	+	1368	115350314	rpoB	Bamb_0259	-	DNA-directed RNA polymerase subunit beta
259	 62.78	0	307764..312005	+	1413	115350315	-	Bamb_0260	-	DNA-directed RNA polymerase subunit beta'
260	 67.86	0	312249..314096	+	615	115350316	-	Bamb_0261	-	ATP-dependent DNA helicase RecQ
261	 61.42	-1	314325..314705	+	126	115350317	rpsL	Bamb_0262	-	30S ribosomal protein S12
262	 60.30	-1	314878..315348	+	156	115350318	-	Bamb_0263	-	30S ribosomal protein S7
263	 60.25	-1	315472..317574	+	700	115350319	-	Bamb_0264	-	elongation factor G
264	 61.54	-1	317614..318804	+	396	115350320	-	Bamb_0265	-	elongation factor Tu
265	 58.97	-1	319089..319400	+	103	115350321	rpsJ	Bamb_0266	-	30S ribosomal protein S10
266	 61.62	-1	319575..320228	+	217	115350322	rplC	Bamb_0267	-	50S ribosomal protein L3
267	 59.58	-1	320228..320848	+	206	115350323	rplD	Bamb_0268	-	50S ribosomal protein L4
268	 55.56	-2	320845..321159	+	104	115350324	rplW	Bamb_0269	-	50S ribosomal protein L23
269	 63.77	0	321162..321989	+	275	115350325	rplB	Bamb_0270	-	50S ribosomal protein L2
66.92	MEAN

4.28	STD DEV
