IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

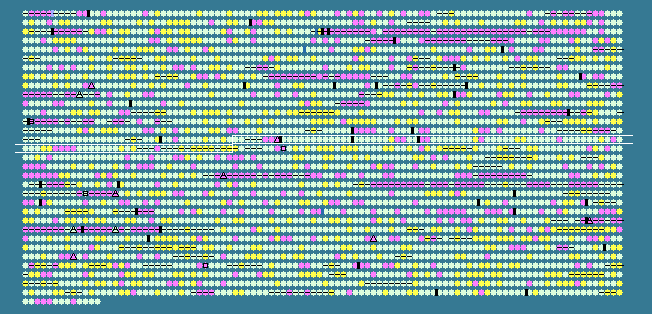

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.92 STD DEV: 4.28
Burkholderia cepacia AMMD chromosome 1, complete sequence - 1..3556545
3213 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1436	 67.29	0	1590767..1591249	+	160	115351492	-	Bamb_1439	-	general secretion pathway GspG related transmembrane protein
1437	 68.18	0	1591224..1591619	+	131	115351493	-	Bamb_1440	-	type II secretion system protein G
1438	 70.19	0	1591606..1592145	+	179	115351494	-	Bamb_1441	-	hypothetical protein
1439	 63.89	0	1592159..1592842	+	227	115351495	-	Bamb_1442	-	two component transcriptional regulator
1440	 70.21	0	1592855..1593193	+	112	115351496	-	Bamb_1443	-	hypothetical protein
1441	 59.96	-1	1593282..1593833	+	183	115351497	-	Bamb_1444	-	cytochrome B561
1442	 59.62	-1	1594070..1594594	+	174	115351498	-	Bamb_1445	-	HMG-I and HMG-Y, DNA-binding domain-containing protein
1443	 57.95	-2	1594594..1595430	+	278	115351499	-	Bamb_1446	-	integrase catalytic subunit
1444	 67.28	0	1595979..1598432	+	817	115351500	-	Bamb_1447	-	ribonuclease R
1445	 68.95	0	1598584..1599327	+	247	115351501	-	Bamb_1448	-	RNA methyltransferase
1446	 67.55	0	1599411..1600313	+	300	115351502	-	Bamb_1449	-	N-acetylmuramyl-L-alanine amidase, negative regulator of AmpC, AmpD
1447	 66.81	0	1600417..1601109	+	230	115351503	-	Bamb_1450	-	ribose-5-phosphate isomerase A
1448	 64.57	0	1601393..1602109	+	238	115351504	-	Bamb_1451	-	GntR domain-containing protein
1449	 69.30	0	1602211..1603197	+	328	115351505	-	Bamb_1452	-	oxidoreductase domain-containing protein
1450	 65.13	0	1603253..1604032	-	259	115351506	-	Bamb_1453	-	polar amino acid ABC transporter, inner membrane subunit
1451	 64.53	0	1604068..1604862	-	264	115351507	-	Bamb_1454	-	extracellular solute-binding protein
1452	 68.35	0	1604963..1606033	-	356	115351508	-	Bamb_1455	-	dihydroorotate dehydrogenase 2
1453	 65.70	0	1606180..1607010	-	276	115351509	-	Bamb_1456	-	arginyl-tRNA-protein transferase
1454	 70.33	0	1607044..1607808	-	254	115351510	aat	Bamb_1457	-	leucyl/phenylalanyl-tRNA--protein transferase
1455	 65.16	0	1607820..1608416	-	198	115351511	-	Bamb_1458	-	NUDIX hydrolase
1456	 69.68	0	1608841..1609338	+	165	115351512	-	Bamb_1459	-	hypothetical protein
1457	 66.96	0	1609342..1609680	+	112	115351513	-	Bamb_1460	-	small multidrug resistance protein
1458	 69.07	0	1609703..1610866	+	387	115351514	-	Bamb_1461	-	enoyl-CoA hydratase
1459	 67.80	0	1610986..1611426	-	146	115351515	-	Bamb_1462	-	hypothetical protein
1460	 68.31	0	1611756..1612913	+	385	115351516	-	Bamb_1463	-	alkanesulfonate monooxygenase
1461	 65.81	0	1612928..1613740	+	270	115351517	-	Bamb_1464	-	binding-protein-dependent transport systems inner membrane component
1462	 72.92	+1	1613737..1614696	+	319	115351518	-	Bamb_1465	-	ABC transporter related
1463	 61.57	-1	1614754..1614969	+	71	115351519	-	Bamb_1466	-	molybdenum-pterin binding
1464	 60.61	-1	1615109..1615306	+	65	115351520	-	Bamb_1467	-	hypothetical protein
1465	 68.63	0	1615362..1615616	+	84	115351521	-	Bamb_1468	-	hypothetical protein
1466	 63.96	0	1615694..1616728	+	344	115351522	-	Bamb_1469	-	tRNA-dihydrouridine synthase A
1467	 58.62	-1	1617105..1618235	-	376	115351523	-	Bamb_1470	-	acyltransferase 3
1468	 57.97	-2	1618423..1619457	-	344	115351524	-	Bamb_1471	-	FkbM family methyltransferase
1469	 63.58	0	1619925..1620443	+	172	115351525	-	Bamb_1472	-	GCN5-related N-acetyltransferase
1470	 65.59	0	1620516..1620980	-	154	115351526	-	Bamb_1473	-	hypothetical protein
1471	 63.84	0	1621665..1622408	-	247	115351527	-	Bamb_1474	-	hypothetical protein
1472	 64.40	0	1622618..1622926	+	102	115351528	-	Bamb_1475	-	hypothetical protein
1473	 65.49	0	1622964..1623218	+	84	115351529	-	Bamb_1476	-	hypothetical protein
1474	 67.74	0	1623215..1623775	+	186	115351530	-	Bamb_1477	-	hypothetical protein
1475	 66.88	0	1623939..1624412	+	157	115351531	-	Bamb_1478	-	glyoxalase/bleomycin resistance protein/dioxygenase
1476	 70.52	0	1624346..1624993	-	215	115351532	-	Bamb_1479	-	hypothetical protein
1477	 59.57	-1	1625017..1625298	+	93	115351533	-	Bamb_1480	-	hypothetical protein
1478	 65.54	0	1625470..1626093	-	207	115351534	-	Bamb_1481	-	phosphatidylserine/phosphatidylglycerophosphate/cardiolipin synthase-like protein
1479	 67.08	0	1626539..1627021	-	160	115351535	-	Bamb_1482	-	HxlR family transcriptional regulator
1480	 66.67	0	1627131..1627628	+	165	115351536	-	Bamb_1483	-	hypothetical protein
1481	 66.38	0	1627830..1628882	+	350	115351537	-	Bamb_1484	-	aldo/keto reductase
1482	 66.90	0	1628967..1630253	-	428	115351538	-	Bamb_1485	-	major facilitator transporter
1483	 73.21	+1	1630289..1631710	-	473	115351539	-	Bamb_1486	-	hypothetical protein
1484	 70.44	0	1631872..1632825	+	317	115351540	-	Bamb_1487	-	LysR family transcriptional regulator
1485	 66.58	0	1632890..1634017	+	375	115351541	-	Bamb_1488	-	tRNA 2-selenouridine synthase
1486	 69.31	0	1634014..1635072	+	352	115351542	-	Bamb_1489	-	permease
1487	 65.01	0	1635250..1635672	+	140	115351543	-	Bamb_1490	-	hypothetical protein
1488	 67.63	0	1635728..1636561	-	277	115351544	-	Bamb_1491	-	ABC transporter
1489	 65.44	0	1636568..1637548	-	326	115351545	-	Bamb_1492	-	lipooligosaccharide transporter ATP-binding subunit
1490	 63.25	0	1637818..1638315	+	165	115351546	-	Bamb_1493	-	UspA domain-containing protein
1491	 69.43	0	1638417..1639139	-	240	115351547	-	Bamb_1494	-	hypothetical protein
1492	 67.85	0	1639169..1639507	-	112	115351548	-	Bamb_1495	-	hypothetical protein
1493	 68.21	0	1639534..1640181	-	215	115351549	-	Bamb_1496	-	LexA repressor
1494	 65.03	0	1640446..1641483	+	345	115351550	-	Bamb_1497	-	sulfate ABC transporter, periplasmic sulfate-binding protein
1495	 66.89	0	1641630..1642529	+	299	115351551	-	Bamb_1498	-	sulfate ABC transporter, inner membrane subunit CysT
1496	 68.04	0	1642526..1643473	+	315	115351552	-	Bamb_1499	-	sulfate ABC transporter, inner membrane subunit CysW
1497	 70.63	0	1643487..1644545	+	352	115351553	-	Bamb_1500	-	sulfate ABC transporter, ATPase subunit
1498	 65.59	0	1644625..1645551	+	308	115351554	-	Bamb_1501	-	transcriptional regulator CysB-like protein
1499	 62.50	-1	1645641..1645952	-	103	115351555	-	Bamb_1502	-	hypothetical protein
1500	 65.40	0	1646380..1647330	+	316	115351556	-	Bamb_1503	-	periplasmic binding protein/LacI transcriptional regulator
1501	 69.95	0	1647476..1649089	+	537	115351557	-	Bamb_1504	-	ABC transporter related
1502	 67.94	0	1649086..1650105	+	339	115351558	-	Bamb_1505	-	inner-membrane translocator
1503	 68.80	0	1650142..1651173	+	343	115351559	-	Bamb_1506	-	LacI family transcription regulator
1504	 76.05	+2	1651170..1652096	+	308	115351560	-	Bamb_1507	-	ribokinase
1505	 70.98	0	1652386..1654149	+	587	115351561	-	Bamb_1508	-	methyl-accepting chemotaxis sensory transducer
1506	 54.85	-2	1654264..1654593	+	109	115351562	-	Bamb_1509	-	hypothetical protein
1507	 60.06	-1	1654683..1656605	+	640	115351563	-	Bamb_1510	-	putative serine protein kinase, PrkA
1508	 62.17	-1	1656731..1657999	+	422	115351564	-	Bamb_1511	-	hypothetical protein
1509	 63.04	0	1657996..1659675	+	559	115351565	-	Bamb_1512	-	hypothetical protein
1510	 65.75	0	1659911..1661215	+	434	115351566	-	Bamb_1513	-	major facilitator superfamily metabolite/H(+) symporter
1511	 67.66	0	1661576..1663495	+	639	115351567	-	Bamb_1514	-	rhomboid family protein
1512	 64.95	0	1663676..1664491	+	271	115351568	-	Bamb_1515	-	extracellular solute-binding protein
1513	 69.71	0	1664612..1665334	+	240	115351569	-	Bamb_1516	-	polar amino acid ABC transporter, inner membrane subunit
1514	 69.83	0	1665337..1666062	+	241	115351570	-	Bamb_1517	-	polar amino acid ABC transporter, inner membrane subunit
1515	 69.95	0	1666127..1667404	-	425	115351571	-	Bamb_1518	-	peptidase M23B
1516	 68.06	0	1667734..1668381	-	215	115351572	-	Bamb_1519	-	TetR family transcriptional regulator
1517	 71.46	+1	1668533..1669720	+	395	115351573	-	Bamb_1520	-	periplasmic multidrug efflux lipoprotein precursor
1518	 68.93	0	1669739..1672876	+	1045	115351574	-	Bamb_1521	-	multidrug efflux protein
1519	 72.02	+1	1672876..1674333	+	485	115351575	-	Bamb_1522	-	RND efflux system outer membrane lipoprotein
1520	 64.52	0	1675169..1675681	+	170	115351576	-	Bamb_1523	-	fimbrial protein
1521	 67.35	0	1675770..1678256	+	828	115351577	-	Bamb_1524	-	fimbrial biogenesis outer membrane usher protein
1522	 66.40	0	1678272..1679018	+	248	115351578	-	Bamb_1525	-	pili assembly chaperone
1523	 63.44	0	1679015..1680037	+	340	115351579	-	Bamb_1526	-	fimbrial protein
1524	 64.02	0	1680114..1680302	-	62	115351580	-	Bamb_1527	-	hypothetical protein
1525	 65.08	0	1680302..1680553	-	83	115351581	-	Bamb_1528	-	hypothetical protein
1526	 70.25	0	1680959..1681627	+	222	115351582	-	Bamb_1529	-	extracytoplasmic-function sigma-70 factor PvdS
1527	 71.19	0	1681723..1681965	+	80	115351583	-	Bamb_1530	-	MbtH domain-containing protein
1528	 70.10	0	1682012..1683031	+	339	115351584	-	Bamb_1531	-	taurine catabolism dioxygenase TauD/TfdA
1529	 71.71	+1	1683021..1683872	+	283	115351585	-	Bamb_1532	-	ABC transporter related
1530	 75.12	+1	1683869..1685962	+	697	115351586	-	Bamb_1533	-	iron-hydroxamate transporter permease subunit
1531	 71.04	0	1685959..1686759	+	266	115351587	-	Bamb_1534	-	ferric iron reductase
1532	 70.52	0	1686756..1687793	+	345	115351588	-	Bamb_1535	-	periplasmic binding protein
1533	 70.39	0	1688016..1689761	-	581	115351589	-	Bamb_1536	-	cyclic peptide transporter
1534	 72.79	+1	1690034..1699717	+	3227	115351590	-	Bamb_1537	-	amino acid adenylation domain-containing protein
1535	 72.83	+1	1699727..1704739	+	1670	115351591	-	Bamb_1538	-	amino acid adenylation domain-containing protein
66.92	MEAN

4.28	STD DEV
