IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

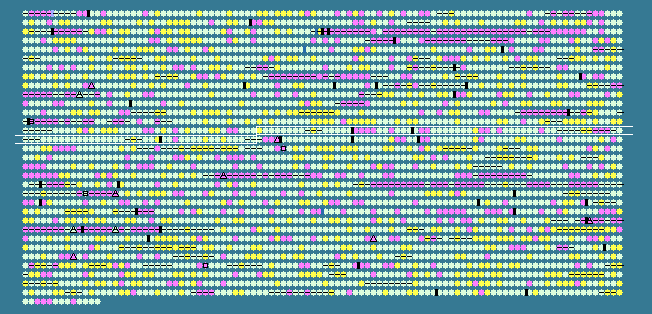

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.92 STD DEV: 4.28
Burkholderia cepacia AMMD chromosome 1, complete sequence - 1..3556545
3213 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1340	 71.51	+1	1476758..1477687	+	309	115351396	-	Bamb_1343	-	ribokinase
1341	 68.41	0	1477751..1479070	+	439	115351397	-	Bamb_1344	-	major facilitator transporter
1342	 65.72	0	1479120..1480067	+	315	115351398	-	Bamb_1345	-	dihydrodipicolinate synthetase
1343	 65.41	0	1480181..1481854	-	557	115351399	-	Bamb_1346	-	electron-transferring-flavoprotein dehydrogenase
1344	 64.74	0	1482033..1482809	+	258	115351400	-	Bamb_1347	-	short chain dehydrogenase
1345	 64.81	0	1482842..1483273	+	143	115351401	-	Bamb_1348	-	thioesterase superfamily protein
1346	 66.30	0	1483380..1483925	-	181	115351402	-	Bamb_1349	-	LuxR family transcriptional regulator
1347	 64.96	0	1484149..1484853	+	234	115351403	-	Bamb_1350	-	3-oxoacid CoA-transferase, A subunit
1348	 65.89	0	1484855..1485496	+	213	115351404	-	Bamb_1351	-	3-oxoacid CoA-transferase, B subunit
1349	 71.71	+1	1485574..1486188	-	204	115351405	-	Bamb_1352	-	short chain dehydrogenase
1350	 67.84	0	1486325..1487350	-	341	115351406	-	Bamb_1353	-	polysaccharide deacetylase
1351	 70.07	0	1487362..1487919	-	185	115351407	-	Bamb_1354	-	hypothetical protein
1352	 69.65	0	1488058..1488963	+	301	115351408	-	Bamb_1355	-	LysR family transcriptional regulator
1353	 69.46	0	1489096..1489989	+	297	115351409	-	Bamb_1356	-	alpha/beta hydrolase fold
1354	 65.54	0	1490064..1490417	+	117	115351410	-	Bamb_1357	-	endoribonuclease L-PSP
1355	 67.75	0	1490457..1492676	+	739	115351411	-	Bamb_1358	-	(p)ppGpp synthetase I, SpoT/RelA
1356	 61.84	-1	1493119..1495026	+	635	115351412	thrS	Bamb_1359	-	threonyl-tRNA synthetase
1357	 57.11	-2	1495130..1495600	+	156	115351413	-	Bamb_1360	-	translation initiation factor IF-3
1358	 55.69	-2	1495743..1495988	+	81	115351414	rpmI	Bamb_1361	-	50S ribosomal protein L35
1359	 60.00	-1	1496019..1496378	+	119	115351415	rplT	Bamb_1362	-	50S ribosomal protein L20
1360	 63.54	0	1496518..1497540	+	340	162389966	pheS	Bamb_1363	-	phenylalanyl-tRNA synthetase subunit alpha
1361	 66.05	0	1497637..1500066	+	809	115351417	pheT	Bamb_1364	-	phenylalanyl-tRNA synthetase subunit beta
1362	 62.37	-1	1500130..1500525	+	131	115351418	ihfA	Bamb_1365	-	integration host factor subunit alpha
1363	 64.49	0	1500587..1501000	+	137	115351419	-	Bamb_1366	-	MerR family transcriptional regulator
1364	 66.71	0	1501087..1503297	-	736	115351420	-	Bamb_1367	-	hypothetical protein
1365	 64.29	0	1503851..1504564	+	237	115351421	-	Bamb_1368	-	hypothetical protein
1366	 64.52	0	1504955..1506163	+	402	115351422	-	Bamb_1369	-	uncharacterized lipoprotein-like protein
1367	 61.24	-1	1506822..1507079	-	85	115351423	-	Bamb_1370	-	hypothetical protein
1368	 61.90	-1	1507216..1507488	-	90	115351424	-	Bamb_1371	-	hypothetical protein
1369	 68.15	0	1507711..1508385	-	224	115351425	-	Bamb_1372	-	hypothetical protein
1370	 63.52	0	1508585..1508902	+	105	115351426	-	Bamb_1373	-	hypothetical protein
1371	 67.86	0	1509092..1509343	-	83	115351427	-	Bamb_1374	-	hypothetical protein
1372	 67.16	0	1509543..1509944	-	133	115351428	-	Bamb_1375	-	hypothetical protein
1373	 69.88	0	1510374..1511276	+	300	115351429	-	Bamb_1376	-	LysR family transcriptional regulator
1374	 70.07	0	1511341..1512543	+	400	115351430	-	Bamb_1377	-	aspartate aminotransferase
1375	 67.64	0	1512815..1513837	+	340	115351431	-	Bamb_1378	-	putative transcriptional regulator
1376	 71.26	+1	1513898..1515616	+	572	115351432	-	Bamb_1379	-	pseudouridine synthase, Rsu
1377	 58.39	-1	1516033..1516491	+	152	115351433	-	Bamb_1380	-	hypothetical protein
1378	 62.80	0	1516491..1517966	+	491	115351434	nusA	Bamb_1381	-	transcription elongation factor NusA
1379	 65.95	0	1518058..1520973	+	971	115351435	infB	Bamb_1382	-	translation initiation factor IF-2
1380	 59.15	-1	1521088..1521486	+	132	115351436	rbfA	Bamb_1383	-	ribosome-binding factor A
1381	 67.85	0	1521500..1522432	+	310	115351437	truB	Bamb_1384	-	tRNA pseudouridine synthase B
1382	 66.35	0	1522528..1524087	-	519	115351438	-	Bamb_1385	-	EmrB/QacA family drug resistance transporter
1383	 67.08	0	1524116..1525339	-	407	115351439	-	Bamb_1386	-	secretion protein HlyD family protein
1384	 69.00	0	1525392..1526888	-	498	115351440	-	Bamb_1387	-	RND efflux system outer membrane lipoprotein
1385	 65.25	0	1526973..1527467	-	164	115351441	-	Bamb_1388	-	MarR family transcriptional regulator
1386	 65.08	0	1527790..1529616	+	608	115351442	-	Bamb_1389	-	GTP-binding protein TypA
1387	 63.00	0	1529934..1532798	+	954	115351443	kgd	Bamb_1390	-	alpha-ketoglutarate decarboxylase
1388	 65.02	0	1532934..1534211	+	425	115351444	-	Bamb_1391	-	dihydrolipoamide acetyltransferase
1389	 64.50	0	1534293..1535723	+	476	115351445	-	Bamb_1392	-	dihydrolipoamide dehydrogenase
1390	 63.48	0	1535823..1536920	+	365	115351446	-	Bamb_1393	-	AFG1 family ATPase
1391	 63.75	0	1537065..1537475	+	136	115351447	-	Bamb_1394	-	hypothetical protein
1392	 64.50	0	1537575..1538036	-	153	115351448	-	Bamb_1395	-	hypothetical protein
1393	 63.76	0	1538202..1539887	-	561	115351449	-	Bamb_1396	-	polypeptide-transport-associated domain-containing protein
1394	 71.70	+1	1540033..1541304	-	423	115351450	-	Bamb_1397	-	hypothetical protein
1395	 72.73	+1	1541345..1542928	-	527	115351451	-	Bamb_1398	-	hypothetical protein
1396	 55.15	-2	1543592..1543756	+	54	115351452	-	Bamb_1399	-	Flp/Fap pilin component
1397	 60.28	-1	1543837..1544337	+	166	115351453	-	Bamb_1400	-	peptidase A24A, prepilin type IV
1398	 63.27	0	1544334..1544804	+	156	115351454	-	Bamb_1401	-	TadE family protein
1399	 69.76	0	1544893..1545798	+	301	115351455	-	Bamb_1402	-	CpaB family Flp pilus assembly protein
1400	 64.49	0	1545863..1547197	+	444	115351456	-	Bamb_1403	-	type II and III secretion system protein
1401	 67.60	0	1547243..1548523	+	426	115351457	-	Bamb_1404	-	response regulator receiver protein
1402	 64.69	0	1548527..1549891	+	454	115351458	-	Bamb_1405	-	type II secretion system protein E
1403	 67.70	0	1549884..1550852	+	322	115351459	-	Bamb_1406	-	type II secretion system protein
1404	 65.48	0	1550857..1551870	+	337	115351460	-	Bamb_1407	-	type II secretion system protein
1405	 66.44	0	1551895..1552782	+	295	115351461	-	Bamb_1408	-	TPR repeat-containing protein
1406	 63.96	0	1552806..1553138	+	110	115351462	-	Bamb_1409	-	hypothetical protein
1407	 65.27	0	1553150..1555015	+	621	115351463	-	Bamb_1410	-	membrane protein
1408	 65.09	0	1555033..1556424	+	463	115351464	-	Bamb_1411	-	sigma-54 dependent trancsriptional regulator
1409	 66.81	0	1556480..1557187	+	235	115351465	-	Bamb_1412	-	hypothetical protein
1410	 69.71	0	1557271..1557861	-	196	115351466	-	Bamb_1413	-	RNA chaperone Hfq
1411	 64.18	0	1558157..1558438	+	93	115351467	-	Bamb_1414	-	hypothetical protein
1412	 66.34	0	1558466..1559395	-	309	115351468	-	Bamb_1415	-	hypothetical protein
1413	 65.41	0	1559425..1561179	-	584	115351469	-	Bamb_1416	-	AMP-dependent synthetase and ligase
1414	 68.62	0	1561372..1562190	-	272	115351470	-	Bamb_1417	-	TetR family transcriptional regulator
1415	 66.58	0	1562407..1563627	-	406	115351471	-	Bamb_1418	-	major facilitator transporter
1416	 68.88	0	1563919..1564461	+	180	115351472	-	Bamb_1419	-	GCN5-related N-acetyltransferase
1417	 64.43	0	1564601..1565227	+	208	115351473	-	Bamb_1420	-	hypothetical protein
1418	 69.63	0	1565252..1566970	+	572	115351474	-	Bamb_1421	-	sulphate transporter
1419	 72.24	+1	1567010..1567960	-	316	115351475	-	Bamb_1422	-	ribokinase-like domain-containing protein
1420	 64.66	0	1568088..1569032	-	314	115351476	-	Bamb_1423	-	periplasmic binding protein/LacI transcriptional regulator
1421	 68.30	0	1569118..1570155	-	345	115351477	-	Bamb_1424	-	inner-membrane translocator
1422	 68.98	0	1570196..1571749	-	517	115351478	-	Bamb_1425	-	ABC transporter related
1423	 71.23	+1	1571736..1572983	-	415	115351479	-	Bamb_1426	-	ROK family protein
1424	 67.52	0	1574467..1576797	+	776	115351480	-	Bamb_1427	-	periplasmic sensor signal transduction histidine kinase
1425	 64.61	0	1577239..1580157	-	972	115351481	-	Bamb_1428	-	chitinase
1426	 63.38	0	1580467..1581927	+	486	115351482	-	Bamb_1429	-	N-acetylglucosamine-binding protein A
1427	 64.63	0	1582198..1582638	+	146	115351483	-	Bamb_1430	-	general secretion pathway protein G
1428	 65.69	0	1582613..1583125	+	170	115351484	-	Bamb_1431	-	lytic transglycosylase, catalytic
1429	 68.70	0	1583128..1584309	+	393	115351485	-	Bamb_1432	-	type II secretion system protein
1430	 68.81	0	1584364..1585998	+	544	115351486	-	Bamb_1433	-	type II secretion system protein E
1431	 76.17	+2	1585979..1586746	+	255	115351487	-	Bamb_1434	-	hypothetical protein
1432	 67.04	0	1586743..1587273	+	176	115351488	-	Bamb_1435	-	hypothetical protein
1433	 68.11	0	1587270..1587824	+	184	115351489	-	Bamb_1436	-	hypothetical protein
1434	 72.29	+1	1587821..1588300	+	159	115351490	-	Bamb_1437	-	hypothetical protein
1435	 69.00	0	1588332..1590770	+	812	115351491	-	Bamb_1438	-	type II and III secretion system protein
1436	 67.29	0	1590767..1591249	+	160	115351492	-	Bamb_1439	-	general secretion pathway GspG related transmembrane protein
1437	 68.18	0	1591224..1591619	+	131	115351493	-	Bamb_1440	-	type II secretion system protein G
1438	 70.19	0	1591606..1592145	+	179	115351494	-	Bamb_1441	-	hypothetical protein
1439	 63.89	0	1592159..1592842	+	227	115351495	-	Bamb_1442	-	two component transcriptional regulator
66.92	MEAN

4.28	STD DEV
