IslandPath Analysis: Brucella suis ATCC 23445

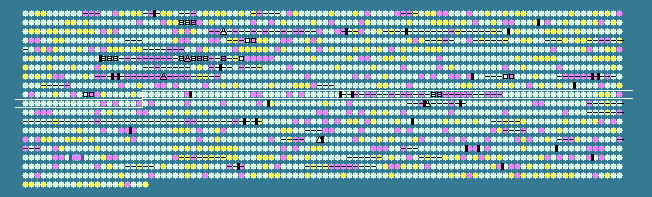

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
921	 57.63	0	921399..922073	-	224	163843198	-	BSUIS_A0969	-	hypothetical protein
922	 60.05	0	922277..923455	+	392	163843199	iscS	BSUIS_A0970	-	cysteine desulfurase
923	 55.97	0	923636..925159	+	507	163843200	sufB	BSUIS_A0971	-	cysteine desulfurase activator complex subunit SufB
924	 56.22	0	925227..925982	+	251	163843201	sufC	BSUIS_A0972	-	FeS assembly ATPase SufC
925	 59.15	0	925996..927273	+	425	163843202	sufD	BSUIS_A0973	-	FeS assembly protein SufD
926	 55.50	0	927355..928599	+	414	163843203	sufS	BSUIS_A0974	-	SufS subfamily cysteine desulfurase
927	 57.38	0	928596..929015	+	139	163843204	-	BSUIS_A0975	-	FeS assembly SUF system protein
928	 51.65	-1	929049..930020	-	323	163843205	-	BSUIS_A0976	-	glycosyl transferase, group 2 family protein
929	 54.52	0	930447..931220	+	257	163843206	ppnK	BSUIS_A0978	-	inorganic polyphosphate/ATP-NAD kinase
930	 57.90	0	931548..932996	+	482	163843207	-	BSUIS_A0979	-	ATP-dependent RNA helicase DBP2
931	 57.22	0	933233..933613	-	126	163843208	sufA	BSUIS_A0980	-	FeS assembly scaffold SufA
932	 54.65	0	933806..934429	+	207	163843209	-	BSUIS_A0981	-	hypothetical protein
933	 59.70	0	934510..934710	+	66	163843210	-	BSUIS_A0982	-	heavy metal transport/detoxification protein
934	 54.47	0	934754..934999	+	81	163843211	-	BSUIS_A0983	-	hypothetical protein
935	 55.75	0	935037..935705	+	222	163843212	pcm	BSUIS_A0984	-	protein-L-isoaspartate O-methyltransferase
936	 59.01	0	935844..937214	+	456	163843213	-	BSUIS_A0985	-	TolC family type I secretion outer membrane protein
937	 57.92	0	937464..938195	+	243	163843214	-	BSUIS_A0986	-	hypothetical protein
938	 57.19	0	938486..941218	+	910	163843215	valS	BSUIS_A0987	-	valyl-tRNA synthetase
939	 52.73	-1	941582..941911	+	109	163843216	-	BSUIS_A0988	-	membrane protein involved in aromatic hydrocarbon degradation
940	 52.64	-1	942020..942910	+	296	163843217	-	BSUIS_A0989	-	membrane protein involved in aromatic hydrocarbon degradation
941	 56.05	0	942976..943851	-	291	163843218	-	BSUIS_A0990	-	6-phosphogluconate dehydrogenase NAD-binding
942	 57.49	0	943879..944499	-	206	163843219	-	BSUIS_A0991	-	glutathione S-transferase IV
943	 56.35	0	944672..945505	-	277	163843220	-	BSUIS_A0992	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
944	 57.40	0	945508..946230	-	240	163843221	-	BSUIS_A0993	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
945	 47.22	-2	946246..946425	-	59	163843222	-	BSUIS_A0994	-	hypothetical protein
946	 55.27	0	946473..947279	-	268	163843223	-	BSUIS_A0995	-	extracellular solute-binding protein
947	 52.18	-1	947624..948127	-	167	163843224	mobB	BSUIS_A0996	-	molybdopterin-guanine dinucleotide biosynthesis protein B
948	 54.20	0	948124..948789	-	221	163843225	mobA	BSUIS_A0997	-	molybdopterin-guanine dinucleotide biosynthesis protein A
949	 58.45	0	948965..949999	-	344	163843226	moaA	BSUIS_A0998	-	molybdenum cofactor biosynthesis protein A
950	 55.28	0	950186..950545	+	119	163843227	-	BSUIS_A0999	-	hypothetical protein
951	 56.28	0	950613..951719	-	368	163843228	-	BSUIS_A1000	-	monooxygenase, FAD-binding
952	 58.46	0	952063..953682	-	539	163843229	-	BSUIS_A1001	-	tartrate/fumarate subfamily Fe-S type hydro-lyase beta subunit
953	 55.45	0	954460..955992	+	510	163843230	-	BSUIS_A1002	-	peptidoglycan binding domain-containing protein
954	 53.57	0	956793..957044	-	83	163843231	-	BSUIS_A1005	-	transglycosylase-associated protein
955	 54.94	0	957199..957360	+	53	163843232	-	BSUIS_A1006	-	hypothetical protein
956	 50.88	-1	957565..958590	-	341	163843233	-	BSUIS_A1008	-	hypothetical protein
957	 57.94	0	958765..959967	+	400	163843234	-	BSUIS_A1009	-	hypothetical protein
958	 52.45	-1	958995..959198	-	67	163843235	-	BSUIS_A1010	-	hypothetical protein
959	 51.52	-1	959964..960194	+	76	163843236	-	BSUIS_A1011	-	hypothetical protein
960	 57.25	0	960191..960466	+	91	163843237	-	BSUIS_A1012	-	hypothetical protein
961	 54.76	0	960489..961076	+	195	163843238	-	BSUIS_A1013	-	hypothetical protein
962	 51.90	-1	961311..962021	+	236	163843239	ropB	BSUIS_A1014	-	22 kDa outer membrane protein precursor
963	 57.58	0	962221..962352	-	43	163843240	-	BSUIS_A1015	-	hypothetical protein
964	 52.05	-1	962369..962539	-	56	163843241	-	BSUIS_A1016	-	hypothetical protein
965	 49.44	-1	962557..962736	+	59	163843242	-	BSUIS_A1017	-	hypothetical protein
966	 55.56	0	962887..963201	-	104	163843243	-	BSUIS_A1018	-	hypothetical protein
967	 48.29	-2	963201..963521	-	106	163843244	-	BSUIS_A1019	-	hypothetical protein
968	 59.11	0	963609..964217	+	202	163843245	-	BSUIS_A1020	-	tRNA-guanine transglycosylase
969	 57.72	0	964287..964655	+	122	163843246	-	BSUIS_A1021	-	transposase for insertion sequence element IS6501
970	 49.29	-1	964763..965044	+	93	163843247	-	BSUIS_A1022	-	transposase for insertion sequence element IS6501
971	 52.64	-1	965099..965818	+	239	163843248	-	BSUIS_A1023	-	hypothetical protein
972	 48.63	-1	965953..967599	+	548	163843249	-	BSUIS_A1024	-	hypothetical protein
973	 46.96	-2	967925..969157	+	410	163843250	-	BSUIS_A1025	-	hypothetical protein
974	 45.19	-2	969154..970713	+	519	163843251	-	BSUIS_A1026	-	hypothetical protein
975	 43.24	-2	970694..970915	-	73	163843252	-	BSUIS_A1027	-	hypothetical protein
976	 59.68	0	971060..971818	+	252	163843253	-	BSUIS_A1028	-	hypothetical protein
977	 53.70	0	971782..972051	-	89	163843254	-	BSUIS_A1029	-	hypothetical protein
978	 50.62	-1	972196..972438	+	80	163843255	-	BSUIS_A1030	-	hypothetical protein
979	 46.08	-2	972540..972641	+	33	163843256	-	BSUIS_A1031	-	hypothetical protein
980	 43.48	-2	972650..972787	+	45	163843257	-	BSUIS_A1032	-	hypothetical protein
981	 55.46	0	972778..973125	+	115	163843258	arsC	BSUIS_A1033	-	arsenate reductase
982	 57.74	0	973496..974761	+	421	163843259	rlpA	BSUIS_A1034	-	rare lipoprotein A
983	 58.27	0	974872..976062	+	396	163843260	-	BSUIS_A1035	-	Serine-type D-Ala-D-Ala carboxypeptidase
984	 57.83	0	976144..976788	+	214	163843261	tmk	BSUIS_A1036	-	thymidylate kinase
985	 59.83	0	976785..977867	+	360	163843262	holB	BSUIS_A1037	-	DNA polymerase III subunit delta'
986	 56.67	0	977887..978036	+	49	163843263	-	BSUIS_A1038	-	hypothetical protein
987	 57.69	0	978036..979583	+	515	163843264	metG	BSUIS_A1039	-	methionyl-tRNA synthetase
988	 55.81	0	979592..980383	+	263	163843265	-	BSUIS_A1040	-	TatD family hydrolase
989	 56.53	0	980386..981204	+	272	163843266	-	BSUIS_A1041	-	beta-lactamase domain-containing protein
990	 59.56	0	981254..983053	-	599	163843267	-	BSUIS_A1042	-	cyclic beta-1,2-glucan ABC transporter
991	 59.43	0	983366..984346	+	326	163843268	-	BSUIS_A1043	-	RluA family pseudouridine synthase
992	 54.33	0	984349..985272	+	307	163843269	-	BSUIS_A1044	-	hypothetical protein
993	 57.51	0	985269..985934	+	221	163843270	-	BSUIS_A1045	-	HAD family hydrolase
994	 58.49	0	985976..986758	+	260	163843271	-	BSUIS_A1046	-	ATP12 ATPase
995	 55.53	0	986884..988293	-	469	163843272	glnA	BSUIS_A1047	-	glutamine synthetase, type I
996	 53.69	0	988441..988779	-	112	163843273	glnB	BSUIS_A1048	-	nitrogen regulatory protein P-II
997	 60.56	0	989086..990591	+	501	163843274	-	BSUIS_A1049	-	YjeF family protein
998	 61.46	+1	990622..990813	-	63	163843275	-	BSUIS_A1050	-	hypothetical protein
999	 57.45	0	990891..991595	-	234	163843276	gph	BSUIS_A1051	-	phosphoglycolate phosphatase
1000	 50.00	-1	991650..991763	+	37	163843277	-	BSUIS_A1052	-	hypothetical protein
1001	 57.51	0	991942..992640	+	232	163843278	rpiA	BSUIS_A1053	-	ribose-5-phosphate isomerase A
1002	 59.96	0	992666..993202	+	178	163843279	-	BSUIS_A1054	-	hypothetical protein
1003	 55.84	0	993356..994750	+	464	163843280	gor	BSUIS_A1055	-	glutathione reductase
1004	 59.11	0	994959..996347	+	462	163843281	-	BSUIS_A1056	-	3-deoxy-7-phosphoheptulonate synthase
1005	 53.56	0	996451..996801	+	116	163843282	dgkA	BSUIS_A1057	-	diacylglycerol kinase
1006	 57.02	0	996866..998545	+	559	163843283	nadE	BSUIS_A1058	-	NAD synthetase
1007	 57.28	0	998557..999930	+	457	163843284	gltX	BSUIS_A1059	-	glutamyl-tRNA synthetase
1008	 59.66	0	1000744..1003068	-	774	163843285	-	BSUIS_A1060	-	malic enzyme
1009	 57.49	0	1003286..1004266	-	326	163843286	-	BSUIS_A1061	-	mandelate racemase/muconate lactonizing protein
1010	 55.70	0	1004327..1005502	+	391	163843287	-	BSUIS_A1062	-	hypothetical protein
1011	 56.29	0	1005720..1006577	+	285	163843288	-	BSUIS_A1063	-	ABC transporter related
1012	 55.72	0	1006581..1007576	+	331	163843289	-	BSUIS_A1064	-	hypothetical protein
1013	 55.56	0	1007600..1008202	+	200	163843290	-	BSUIS_A1065	-	hypothetical protein
1014	 44.76	-2	1008314..1008418	-	34	163843291	-	BSUIS_A1066	-	hypothetical protein
1015	 59.69	0	1008443..1013101	-	1552	163843292	-	BSUIS_A1067	-	hypothetical protein
1016	 44.24	-2	1013316..1013480	+	54	163843293	-	BSUIS_A1068	-	hypothetical protein
1017	 60.49	0	1013716..1014039	+	107	163843294	-	BSUIS_A1069	-	ferredoxin-6
1018	 55.07	0	1014265..1014678	+	137	163843295	-	BSUIS_A1070	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1019	 56.68	0	1014683..1015303	-	206	163843296	-	BSUIS_A1071	-	hypothetical protein
1020	 49.61	-1	1015239..1015367	-	42	163843297	-	BSUIS_A1072	-	hypothetical protein
57.01	MEAN

4.26	STD DEV
