IslandPathversion 1.0

IslandPath Analysis: Brucella suis ATCC 23445

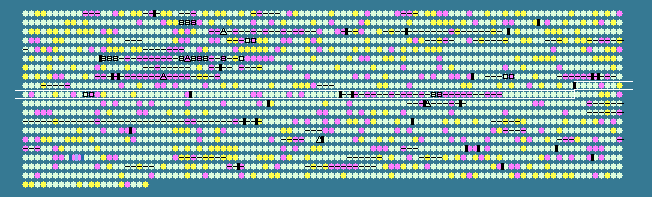

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
893	 55.85	0	891397..892764	+	455	163843170	tig	BSUIS_A0938	-	trigger factor
894	 57.06	0	892812..894320	+	502	163843171	gatB	BSUIS_A0939	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
895	 53.57	0	894320..894823	+	167	163843172	-	BSUIS_A0940	-	GCN5-related N-acetyltransferase
896	 59.12	0	894983..895393	+	136	163843173	-	BSUIS_A0941	-	NADH dehydrogenase
897	 46.83	-2	895453..895578	+	41	163843174	-	BSUIS_A0942	-	hypothetical protein
898	 57.96	0	895587..896057	+	156	163843175	-	BSUIS_A0943	-	hypothetical protein
899	 57.62	0	896722..898080	-	452	163843176	accC	BSUIS_A0945	-	acetyl-CoA carboxylase biotin carboxylase subunit
900	 61.15	0	898130..898600	-	156	163843177	accB	BSUIS_A0946	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
901	 54.85	0	898602..899075	-	157	163843178	aroQ	BSUIS_A0947	-	3-dehydroquinate dehydratase
902	 40.83	-2	899142..899261	+	39	163843179	-	BSUIS_A0948	-	hypothetical protein
903	 58.55	0	900163..901578	-	471	163843180	-	BSUIS_A0951	-	peptidase M48 Ste24p
904	 59.36	0	901770..902933	+	387	163843181	-	BSUIS_A0952	-	aminotransferase class I and II
905	 58.79	0	903052..905820	-	922	163843182	-	BSUIS_A0953	-	ribonuclease
906	 60.75	0	905823..906008	+	61	163843183	-	BSUIS_A0954	-	hypothetical protein
907	 56.90	0	906499..907767	+	422	163843184	-	BSUIS_A0955	-	N-acetylmuramoyl-L-alanine amidase
908	 58.33	0	908047..910506	+	819	163843185	-	BSUIS_A0956	-	1A family penicillin-binding protein
909	 46.97	-2	910562..910693	-	43	163843186	-	BSUIS_A0957	-	hypothetical protein
910	 57.76	0	910810..911775	+	321	163843187	prfB	BSUIS_A0958	-	peptide chain release factor 2
911	 57.99	0	911969..912337	+	122	163843188	-	BSUIS_A0959	-	transposase for insertion sequence element IS6501
912	 48.94	-1	912445..912726	+	93	163843189	-	BSUIS_A0960	-	transposase for insertion sequence element IS6501
913	 52.94	0	912780..912881	-	33	163843190	-	BSUIS_A0961	-	hypothetical protein
914	 61.71	+1	912878..913240	-	120	163843191	-	BSUIS_A0962	-	peptidase M23B
915	 56.88	0	913411..914238	-	275	163843192	-	BSUIS_A0963	-	hypothetical protein
916	 56.13	0	914260..914724	-	154	163843193	-	BSUIS_A0964	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
917	 56.50	0	914969..918409	+	1146	163843194	-	BSUIS_A0965	-	hypothetical protein
918	 58.45	0	918468..919721	-	417	163843195	tyrS	BSUIS_A0966	-	tyrosyl-tRNA synthetase
919	 60.52	0	919837..920958	+	373	163843196	anmK	BSUIS_A0967	-	anhydro-N-acetylmuramic acid kinase
920	 55.56	0	920955..921287	-	110	163843197	qacF	BSUIS_A0968	-	quaternary ammonium compound-resistance protein qacF
921	 57.63	0	921399..922073	-	224	163843198	-	BSUIS_A0969	-	hypothetical protein
922	 60.05	0	922277..923455	+	392	163843199	iscS	BSUIS_A0970	-	cysteine desulfurase
923	 55.97	0	923636..925159	+	507	163843200	sufB	BSUIS_A0971	-	cysteine desulfurase activator complex subunit SufB
924	 56.22	0	925227..925982	+	251	163843201	sufC	BSUIS_A0972	-	FeS assembly ATPase SufC
925	 59.15	0	925996..927273	+	425	163843202	sufD	BSUIS_A0973	-	FeS assembly protein SufD
926	 55.50	0	927355..928599	+	414	163843203	sufS	BSUIS_A0974	-	SufS subfamily cysteine desulfurase
927	 57.38	0	928596..929015	+	139	163843204	-	BSUIS_A0975	-	FeS assembly SUF system protein
928	 51.65	-1	929049..930020	-	323	163843205	-	BSUIS_A0976	-	glycosyl transferase, group 2 family protein
929	 54.52	0	930447..931220	+	257	163843206	ppnK	BSUIS_A0978	-	inorganic polyphosphate/ATP-NAD kinase
930	 57.90	0	931548..932996	+	482	163843207	-	BSUIS_A0979	-	ATP-dependent RNA helicase DBP2
931	 57.22	0	933233..933613	-	126	163843208	sufA	BSUIS_A0980	-	FeS assembly scaffold SufA
932	 54.65	0	933806..934429	+	207	163843209	-	BSUIS_A0981	-	hypothetical protein
933	 59.70	0	934510..934710	+	66	163843210	-	BSUIS_A0982	-	heavy metal transport/detoxification protein
934	 54.47	0	934754..934999	+	81	163843211	-	BSUIS_A0983	-	hypothetical protein
935	 55.75	0	935037..935705	+	222	163843212	pcm	BSUIS_A0984	-	protein-L-isoaspartate O-methyltransferase
936	 59.01	0	935844..937214	+	456	163843213	-	BSUIS_A0985	-	TolC family type I secretion outer membrane protein
937	 57.92	0	937464..938195	+	243	163843214	-	BSUIS_A0986	-	hypothetical protein
938	 57.19	0	938486..941218	+	910	163843215	valS	BSUIS_A0987	-	valyl-tRNA synthetase
939	 52.73	-1	941582..941911	+	109	163843216	-	BSUIS_A0988	-	membrane protein involved in aromatic hydrocarbon degradation
940	 52.64	-1	942020..942910	+	296	163843217	-	BSUIS_A0989	-	membrane protein involved in aromatic hydrocarbon degradation
941	 56.05	0	942976..943851	-	291	163843218	-	BSUIS_A0990	-	6-phosphogluconate dehydrogenase NAD-binding
942	 57.49	0	943879..944499	-	206	163843219	-	BSUIS_A0991	-	glutathione S-transferase IV
943	 56.35	0	944672..945505	-	277	163843220	-	BSUIS_A0992	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
944	 57.40	0	945508..946230	-	240	163843221	-	BSUIS_A0993	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
945	 47.22	-2	946246..946425	-	59	163843222	-	BSUIS_A0994	-	hypothetical protein
946	 55.27	0	946473..947279	-	268	163843223	-	BSUIS_A0995	-	extracellular solute-binding protein
947	 52.18	-1	947624..948127	-	167	163843224	mobB	BSUIS_A0996	-	molybdopterin-guanine dinucleotide biosynthesis protein B
948	 54.20	0	948124..948789	-	221	163843225	mobA	BSUIS_A0997	-	molybdopterin-guanine dinucleotide biosynthesis protein A
949	 58.45	0	948965..949999	-	344	163843226	moaA	BSUIS_A0998	-	molybdenum cofactor biosynthesis protein A
950	 55.28	0	950186..950545	+	119	163843227	-	BSUIS_A0999	-	hypothetical protein
951	 56.28	0	950613..951719	-	368	163843228	-	BSUIS_A1000	-	monooxygenase, FAD-binding
952	 58.46	0	952063..953682	-	539	163843229	-	BSUIS_A1001	-	tartrate/fumarate subfamily Fe-S type hydro-lyase beta subunit
953	 55.45	0	954460..955992	+	510	163843230	-	BSUIS_A1002	-	peptidoglycan binding domain-containing protein
954	 53.57	0	956793..957044	-	83	163843231	-	BSUIS_A1005	-	transglycosylase-associated protein
955	 54.94	0	957199..957360	+	53	163843232	-	BSUIS_A1006	-	hypothetical protein
956	 50.88	-1	957565..958590	-	341	163843233	-	BSUIS_A1008	-	hypothetical protein
957	 57.94	0	958765..959967	+	400	163843234	-	BSUIS_A1009	-	hypothetical protein
958	 52.45	-1	958995..959198	-	67	163843235	-	BSUIS_A1010	-	hypothetical protein
959	 51.52	-1	959964..960194	+	76	163843236	-	BSUIS_A1011	-	hypothetical protein
960	 57.25	0	960191..960466	+	91	163843237	-	BSUIS_A1012	-	hypothetical protein
961	 54.76	0	960489..961076	+	195	163843238	-	BSUIS_A1013	-	hypothetical protein
962	 51.90	-1	961311..962021	+	236	163843239	ropB	BSUIS_A1014	-	22 kDa outer membrane protein precursor
963	 57.58	0	962221..962352	-	43	163843240	-	BSUIS_A1015	-	hypothetical protein
964	 52.05	-1	962369..962539	-	56	163843241	-	BSUIS_A1016	-	hypothetical protein
965	 49.44	-1	962557..962736	+	59	163843242	-	BSUIS_A1017	-	hypothetical protein
966	 55.56	0	962887..963201	-	104	163843243	-	BSUIS_A1018	-	hypothetical protein
967	 48.29	-2	963201..963521	-	106	163843244	-	BSUIS_A1019	-	hypothetical protein
968	 59.11	0	963609..964217	+	202	163843245	-	BSUIS_A1020	-	tRNA-guanine transglycosylase
969	 57.72	0	964287..964655	+	122	163843246	-	BSUIS_A1021	-	transposase for insertion sequence element IS6501
970	 49.29	-1	964763..965044	+	93	163843247	-	BSUIS_A1022	-	transposase for insertion sequence element IS6501
971	 52.64	-1	965099..965818	+	239	163843248	-	BSUIS_A1023	-	hypothetical protein
972	 48.63	-1	965953..967599	+	548	163843249	-	BSUIS_A1024	-	hypothetical protein
973	 46.96	-2	967925..969157	+	410	163843250	-	BSUIS_A1025	-	hypothetical protein
974	 45.19	-2	969154..970713	+	519	163843251	-	BSUIS_A1026	-	hypothetical protein
975	 43.24	-2	970694..970915	-	73	163843252	-	BSUIS_A1027	-	hypothetical protein
976	 59.68	0	971060..971818	+	252	163843253	-	BSUIS_A1028	-	hypothetical protein
977	 53.70	0	971782..972051	-	89	163843254	-	BSUIS_A1029	-	hypothetical protein
978	 50.62	-1	972196..972438	+	80	163843255	-	BSUIS_A1030	-	hypothetical protein
979	 46.08	-2	972540..972641	+	33	163843256	-	BSUIS_A1031	-	hypothetical protein
980	 43.48	-2	972650..972787	+	45	163843257	-	BSUIS_A1032	-	hypothetical protein
981	 55.46	0	972778..973125	+	115	163843258	arsC	BSUIS_A1033	-	arsenate reductase
982	 57.74	0	973496..974761	+	421	163843259	rlpA	BSUIS_A1034	-	rare lipoprotein A
983	 58.27	0	974872..976062	+	396	163843260	-	BSUIS_A1035	-	Serine-type D-Ala-D-Ala carboxypeptidase
984	 57.83	0	976144..976788	+	214	163843261	tmk	BSUIS_A1036	-	thymidylate kinase
985	 59.83	0	976785..977867	+	360	163843262	holB	BSUIS_A1037	-	DNA polymerase III subunit delta'
986	 56.67	0	977887..978036	+	49	163843263	-	BSUIS_A1038	-	hypothetical protein
987	 57.69	0	978036..979583	+	515	163843264	metG	BSUIS_A1039	-	methionyl-tRNA synthetase
988	 55.81	0	979592..980383	+	263	163843265	-	BSUIS_A1040	-	TatD family hydrolase
989	 56.53	0	980386..981204	+	272	163843266	-	BSUIS_A1041	-	beta-lactamase domain-containing protein
990	 59.56	0	981254..983053	-	599	163843267	-	BSUIS_A1042	-	cyclic beta-1,2-glucan ABC transporter
991	 59.43	0	983366..984346	+	326	163843268	-	BSUIS_A1043	-	RluA family pseudouridine synthase
992	 54.33	0	984349..985272	+	307	163843269	-	BSUIS_A1044	-	hypothetical protein
57.01	MEAN

4.26	STD DEV
