IslandPath Analysis: Brucella suis ATCC 23445

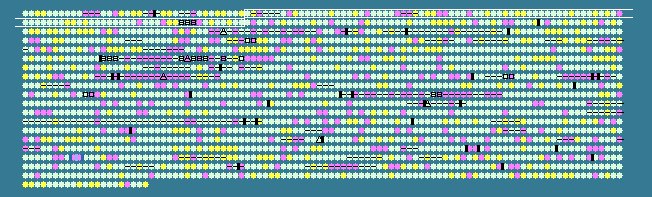

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
38	 56.98	0	44278..44886	+	202	163842315	-	BSUIS_A0042	-	cytochrome c
39	 61.70	+1	44931..45896	-	321	163842316	-	BSUIS_A0043	-	hypothetical protein
40	 50.16	-1	45952..46260	+	102	163842317	-	BSUIS_A0044	-	hypothetical protein
41	 56.02	0	46435..47448	+	337	163842318	cyoA	BSUIS_A0045	-	ubiquinol oxidase, subunit II
42	 57.93	0	47528..49507	+	659	163842319	cyoB	BSUIS_A0046	-	cytochrome o ubiquinol oxidase, subunit I
43	 58.10	0	49511..50140	+	209	163842320	cyoC	BSUIS_A0047	-	cytochrome o ubiquinol oxidase, subunit III
44	 55.46	0	50140..50505	+	121	163842321	cyoD	BSUIS_A0048	-	cytochrome o ubiquinol oxidase subunit IV
45	 50.54	-1	50502..50780	-	92	163842322	-	BSUIS_A0049	-	hypothetical protein
46	 64.63	+1	50956..51543	+	195	163842323	-	BSUIS_A0050	-	SH3 type 3 domain-containing protein
47	 59.22	0	52139..54058	+	639	163842324	-	BSUIS_A0051	-	surface antigen (D15)
48	 59.87	0	54055..58794	+	1579	163842325	-	BSUIS_A0052	-	hypothetical protein
49	 57.58	0	58939..59664	+	241	163842326	-	BSUIS_A0053	-	ErfK/YbiS/YcfS/YnhG family protein
50	 55.56	0	59715..59930	-	71	163842327	-	BSUIS_A0054	-	hypothetical protein
51	 58.63	0	60000..60509	-	169	163842328	-	BSUIS_A0055	-	hypothetical protein
52	 61.19	0	60840..61040	-	66	163842329	-	BSUIS_A0056	-	hypothetical protein
53	 58.61	0	61051..62055	-	334	163842330	-	BSUIS_A0057	-	hypothetical protein
54	 59.40	0	62190..62588	-	132	163842331	-	BSUIS_A0058	-	hypothetical protein
55	 58.59	0	62865..63260	-	131	163842332	-	BSUIS_A0059	-	glyoxalase/bleomycin resistance protein/dioxygenase
56	 62.11	+1	63457..64620	+	387	163842333	-	BSUIS_A0060	-	nucleotide-binding protein-like protein
57	 57.90	0	64865..66496	-	543	163842334	pgm	BSUIS_A0061	-	phosphoglucomutase
58	 44.62	-2	66552..66737	-	61	163842335	-	BSUIS_A0062	-	hypothetical protein
59	 59.73	0	66712..67605	-	297	163842336	-	BSUIS_A0063	-	LysR family transcriptional regulator
60	 54.65	0	67730..68653	+	307	163842337	-	BSUIS_A0064	-	hypothetical protein
61	 58.94	0	68726..69424	+	232	163842338	-	BSUIS_A0065	-	putative fructose transport system kinase
62	 58.99	0	69524..70213	+	229	163842339	-	BSUIS_A0066	-	fumarylacetoacetate hydrolase domain-containing protein
63	 52.60	-1	70233..70424	+	63	163842340	-	BSUIS_A0067	-	hypothetical protein
64	 46.30	-2	70486..70701	+	71	163842341	-	BSUIS_A0068	-	hypothetical protein
65	 51.85	-1	70867..71055	+	62	163842342	-	BSUIS_A0069	-	hypothetical protein
66	 62.38	+1	71070..71933	+	287	163842343	-	BSUIS_A0070	-	lytic transglycosylase catalytic
67	 57.84	0	72119..72775	+	218	163842344	-	BSUIS_A0071	-	hemolysin-3
68	 64.71	+1	76052..77638	-	528	163842345	-	BSUIS_A0073	-	hypothetical protein
69	 64.00	+1	77529..78392	-	287	163842346	-	BSUIS_A0074	-	hypothetical protein
70	 52.97	0	78911..81472	+	853	163842347	-	BSUIS_A0075	-	hypothetical protein
71	 53.52	0	81492..82229	+	245	163842348	-	BSUIS_A0076	-	invasion associated locus B family protein
72	 58.23	0	82308..83528	-	406	163842349	argG	BSUIS_A0077	-	argininosuccinate synthase
73	 57.54	0	84378..84881	-	167	163842350	-	BSUIS_A0079	-	hypothetical protein
74	 59.14	0	84915..86150	-	411	163842351	-	BSUIS_A0080	-	radical SAM protein
75	 50.52	-1	86094..86285	+	63	163842352	-	BSUIS_A0081	-	hypothetical protein
76	 55.38	0	86270..86464	+	64	163842353	-	BSUIS_A0082	-	hypothetical protein
77	 57.54	0	86410..86913	-	167	163842354	-	BSUIS_A0083	-	hypothetical protein
78	 61.58	+1	87238..87768	-	176	163842355	-	BSUIS_A0084	-	hypothetical protein
79	 54.76	0	87856..88149	-	97	163842356	-	BSUIS_A0085	-	pterin-4-alpha-carbinolamine dehydratase
80	 55.61	0	88376..88981	+	201	163842357	-	BSUIS_A0086	-	protein tyrosine phosphatase
81	 61.25	0	88891..89481	-	196	163842358	-	BSUIS_A0087	-	2'-5' RNA ligase
82	 55.92	0	89662..90387	-	241	163842359	-	BSUIS_A0088	-	arylesterase precursor
83	 61.73	+1	90534..91262	+	242	163842360	-	BSUIS_A0089	-	ABC transporter related
84	 61.65	+1	91259..93808	+	849	163842361	-	BSUIS_A0090	-	hypothetical protein
85	 57.99	0	94044..94781	+	245	163842362	-	BSUIS_A0092	-	hypothetical protein
86	 59.44	0	94896..95435	+	179	163842363	pat	BSUIS_A0093	-	phosphinothricin N-acetyltransferase
87	 54.73	0	95455..95856	-	133	163842364	-	BSUIS_A0094	-	hypothetical protein
88	 57.01	0	96406..97140	-	244	163842365	-	BSUIS_A0095	-	hypothetical protein
89	 56.74	0	97293..97433	-	46	163842366	-	BSUIS_A0096	-	hypothetical protein
90	 60.27	0	97417..100104	-	895	163842367	acnA	BSUIS_A0097	-	aconitate hydratase
91	 58.33	0	100448..101095	+	215	163842368	ccmA	BSUIS_A0098	-	cytochrome c biogenesis protein CcmA
92	 62.01	+1	101095..101760	+	221	163842369	ccmB	BSUIS_A0099	-	heme exporter protein CcmB
93	 58.52	0	101818..102603	+	261	163842370	ccmC	BSUIS_A0100	-	heme exporter protein CcmC
94	 56.90	0	102600..102773	+	57	163842371	-	BSUIS_A0101	-	Heme exporter protein D (CcmD)
95	 59.31	0	102770..103381	+	203	163842372	dsbE	BSUIS_A0102	-	DsbE subfamily periplasmic protein thiol:disulfide oxidoreductase
96	 61.00	0	103630..105465	-	611	163842373	ilvD	BSUIS_A0103	-	dihydroxy-acid dehydratase
97	 54.35	0	105647..105784	+	45	163842374	-	BSUIS_A0104	-	hypothetical protein
98	 61.57	+1	105865..106296	-	143	163842375	-	BSUIS_A0105	-	hypothetical protein
99	 59.79	0	106323..106700	-	125	163842376	-	BSUIS_A0106	-	response regulator receiver protein
100	 49.37	-1	106875..107111	-	78	163842377	-	BSUIS_A0107	-	AsnC family transcriptional regulator
101	 57.04	0	107764..108168	+	134	163842378	-	BSUIS_A0108	-	hypothetical protein
102	 57.02	0	108254..108958	-	234	163842379	-	BSUIS_A0109	-	hypothetical protein
103	 53.97	0	109031..109849	+	272	163842380	-	BSUIS_A0110	-	hypothetical protein
104	 57.63	0	110127..111155	+	342	163842381	-	BSUIS_A0111	-	sulfate ABC transporter, sulfate-binding protein
105	 59.25	0	111199..112128	-	309	163842382	-	BSUIS_A0112	-	hypothetical protein
106	 59.40	0	111250..112116	+	288	163842383	cysT	BSUIS_A0113	-	sulfate ABC transporter, permease protein CysT
107	 58.94	0	112106..112972	+	288	163842384	cysW	BSUIS_A0114	-	sulfate ABC transporter, permease protein CysW
108	 61.39	+1	113070..114149	+	359	163842385	cysA	BSUIS_A0115	-	sulfate ABC transporter, ATP-binding protein
109	 60.52	0	114535..123138	+	2867	163842386	-	BSUIS_A0116	-	glycosyltransferase 36
110	 58.31	0	123228..124532	+	434	163842387	pncB	BSUIS_A0117	-	nicotinate phosphoribosyltransferase
111	 60.65	0	124574..125404	-	276	163842388	-	BSUIS_A0118	-	PhzF family phenazine biosynthesis protein
112	 55.77	0	125514..126302	-	262	163842389	-	BSUIS_A0119	-	methyltransferase type 11
113	 59.55	0	126325..127251	-	308	163842390	frk	BSUIS_A0120	-	fructokinase
114	 59.60	0	127342..128148	-	268	163842391	-	BSUIS_A0121	-	short-chain dehydrogenase/reductase SDR
115	 60.03	0	128269..130560	-	763	163842392	-	BSUIS_A0122	-	1A family penicillin-binding protein
116	 56.13	0	130765..131457	-	230	163842393	ropB	BSUIS_A0123	-	22 kDa outer membrane protein precursor
117	 56.19	0	131725..132411	-	228	163842394	ropB	BSUIS_A0124	-	22 kDa outer membrane protein precursor
118	 56.47	0	132643..133260	-	205	163842395	-	BSUIS_A0125	-	hypothetical protein
119	 59.53	0	133299..134714	-	471	163842396	-	BSUIS_A0126	-	hypothetical protein
120	 52.61	-1	134945..135193	+	82	163842397	-	BSUIS_A0127	-	hypothetical protein
121	 59.45	0	135275..138211	+	978	163842398	polA	BSUIS_A0128	-	DNA polymerase I
122	 60.07	0	138353..140233	+	626	163842399	ydbR	BSUIS_A0129	-	DEAD-box ATP-dependent RNA helicase ydbR
123	 59.79	0	140329..142770	-	813	163842400	gyrB	BSUIS_A0130	-	DNA gyrase subunit B
124	 50.00	-1	142821..142988	-	55	163842401	-	BSUIS_A0131	-	hypothetical protein
125	 64.54	+1	143410..145431	+	673	163842402	hrpB	BSUIS_A0132	-	ATP-dependent helicase HrpB
126	 60.94	0	145526..146818	+	430	163842403	regB	BSUIS_A0133	-	sensor histidine kinase regB
127	 58.54	0	146888..147256	+	122	163842404	-	BSUIS_A0134	-	transposase for insertion sequence element IS6501
128	 58.01	0	146910..147221	+	103	163842405	-	BSUIS_A0135	-	IS711, transposase orfA
129	 50.13	-1	147253..147645	+	130	163842406	-	BSUIS_A0136	-	transposase for insertion sequence element IS6501
130	 51.03	-1	147711..148049	+	112	163842407	-	BSUIS_A0137	-	hypothetical protein
131	 60.46	0	148245..148808	+	187	163842408	regA	BSUIS_A0138	-	photosynthetic apparatus regulatory protein regA
132	 63.70	+1	148814..149116	-	100	163842409	-	BSUIS_A0139	-	hypothetical protein
133	 57.33	0	149578..150198	+	206	163842410	-	BSUIS_A0140	-	ErfK/YbiS/YcfS/YnhG family protein
134	 59.69	0	150288..150860	-	190	163842411	-	BSUIS_A0141	-	HIRA-interacting protein 5
135	 60.93	0	150969..151508	-	179	163842412	-	BSUIS_A0142	-	UspA domain-containing protein
136	 59.41	0	151515..152672	-	385	163842413	trpS	BSUIS_A0143	-	tryptophanyl-tRNA synthetase
137	 59.87	0	152679..154268	-	529	163842414	mviN	BSUIS_A0144	-	integral membrane protein MviN
57.01	MEAN

4.26	STD DEV
