IslandPath Analysis: Brucella suis ATCC 23445

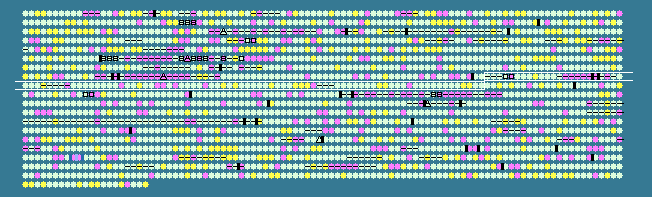

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
778	 53.57	0	785560..786147	-	195	163843055	-	BSUIS_A0819	-	polysaccharide export protein
779	 54.90	0	786271..786933	+	220	163843056	-	BSUIS_A0820	-	exopolysaccharide transport protein family
780	 53.88	0	787001..787219	-	72	163843057	-	BSUIS_A0821	-	hypothetical protein
781	 57.72	0	787360..787728	+	122	163843058	-	BSUIS_A0822	-	transposase for insertion sequence element IS6501
782	 49.29	-1	787836..788117	+	93	163843059	-	BSUIS_A0823	-	transposase for insertion sequence element IS6501
783	 58.59	0	788415..789491	+	358	163843060	-	BSUIS_A0824	-	cytochrome oxidase assembly
784	 59.16	0	789644..790576	-	310	163843061	argC	BSUIS_A0825	-	N-acetyl-gamma-glutamyl-phosphate reductase
785	 59.41	0	790666..791616	-	316	163843062	speB	BSUIS_A0826	-	agmatinase
786	 61.22	0	791707..792183	-	158	163843063	rpsI	BSUIS_A0827	-	30S ribosomal protein S9
787	 57.42	0	792186..792650	-	154	163843064	rplM	BSUIS_A0828	-	50S ribosomal protein L13
788	 58.61	0	792886..793332	-	148	163843065	-	BSUIS_A0829	-	hypothetical protein
789	 57.24	0	793566..794849	+	427	163843066	-	BSUIS_A0830	-	O-acetylhomoserine aminocarboxypropyltransferase
790	 59.76	0	794921..795340	-	139	163843067	-	BSUIS_A0831	-	hypothetical protein
791	 49.44	-1	795390..795569	-	59	163843068	-	BSUIS_A0832	-	hypothetical protein
792	 46.08	-2	795903..796412	+	169	163843069	-	BSUIS_A0833	-	hypothetical protein
793	 47.98	-2	796409..796804	+	131	163843070	-	BSUIS_A0834	-	hypothetical protein
794	 51.49	-1	796858..797193	+	111	163843071	-	BSUIS_A0835	-	hypothetical protein
795	 48.76	-1	797250..797651	-	133	163843072	-	BSUIS_A0836	-	hypothetical protein
796	 44.26	-2	797948..798130	+	60	163843073	-	BSUIS_A0838	-	hypothetical protein
797	 53.92	0	798514..798717	-	67	163843074	-	BSUIS_A0840	-	hypothetical protein
798	 52.19	-1	799225..799590	+	121	163843075	nuoA	BSUIS_A0841	-	NADH dehydrogenase subunit A
799	 60.14	0	799581..800162	+	193	163843076	-	BSUIS_A0842	-	NADH dehydrogenase subunit B
800	 56.81	0	800275..800883	+	202	163843077	nuoC	BSUIS_A0843	-	NADH dehydrogenase subunit C
801	 58.02	0	800901..802091	+	396	163843078	nuoD	BSUIS_A0844	-	NADH dehydrogenase subunit D
802	 58.68	0	802091..802804	+	237	163843079	nuoE	BSUIS_A0845	-	NADH dehydrogenase subunit E
803	 59.40	0	802808..804115	+	435	163843080	nuoF	BSUIS_A0846	-	NADH dehydrogenase I subunit F
804	 61.15	0	804250..806334	+	694	163843081	-	BSUIS_A0847	-	NADH dehydrogenase subunit G
805	 55.27	0	806354..807397	+	347	163843082	nuoH	BSUIS_A0848	-	NADH dehydrogenase subunit H
806	 58.13	0	807410..807901	+	163	163843083	-	BSUIS_A0849	-	NADH dehydrogenase subunit I
807	 57.77	0	808075..808692	+	205	163843084	nuoJ	BSUIS_A0850	-	NADH dehydrogenase subunit J
808	 51.78	-1	808703..809011	+	102	163843085	nuoK	BSUIS_A0851	-	NADH dehydrogenase subunit K
809	 56.95	0	809019..811004	+	661	163843086	-	BSUIS_A0852	-	NADH dehydrogenase subunit L
810	 57.65	0	811004..812512	+	502	163843087	-	BSUIS_A0853	-	NADH dehydrogenase subunit M
811	 57.06	0	812534..813970	+	478	163843088	-	BSUIS_A0854	-	NADH dehydrogenase subunit N
812	 58.52	0	813996..814793	+	265	163843089	-	BSUIS_A0855	-	biotin--acetyl-CoA-carboxylase ligase
813	 59.69	0	814987..816663	+	558	163843090	-	BSUIS_A0856	-	hypothetical protein
814	 57.28	0	816703..817107	+	134	163843091	-	BSUIS_A0857	-	methylmalonyl-CoA epimerase
815	 53.70	0	817110..817379	+	89	163843092	-	BSUIS_A0858	-	hypothetical protein
816	 53.90	0	817737..817877	+	46	163843093	-	BSUIS_A0859	-	hypothetical protein
817	 38.71	-2	817908..818000	+	30	163843094	-	BSUIS_A0860	-	hypothetical protein
818	 57.19	0	818227..819555	+	442	163843095	proS	BSUIS_A0861	-	prolyl-tRNA synthetase
819	 57.29	0	819597..820865	+	422	163843096	-	BSUIS_A0862	-	LolC/E family lipoprotein releasing system, transmembrane protein
820	 61.26	0	820865..821548	+	227	163843097	lolD	BSUIS_A0863	-	lipoprotein-releasing system ATP-binding protein lolD
821	 57.99	0	822207..825698	+	1163	163843098	dnaE	BSUIS_A0864	-	DNA polymerase III subunit alpha
822	 55.56	0	825739..825936	+	65	163843099	-	BSUIS_A0865	-	hypothetical protein
823	 51.69	-1	825981..826394	-	137	163843100	-	BSUIS_A0866	-	hypothetical protein
824	 52.98	0	826666..827688	-	340	163843101	-	BSUIS_A0867	-	extensin family protein
825	 57.44	0	827972..828589	+	205	163843102	rpsD	BSUIS_A0868	-	30S ribosomal protein S4
826	 45.37	-2	829044..829151	-	35	163843103	-	BSUIS_A0869	-	hypothetical protein
827	 55.10	0	829098..829979	+	293	163843104	-	BSUIS_A0870	-	PP-loop domain-containing protein
828	 57.85	0	829966..830793	+	275	163843105	-	BSUIS_A0871	-	hypothetical protein
829	 58.06	0	831008..832273	-	421	163843106	-	BSUIS_A0872	-	Bcr/CflA subfamily drug resistance transporter
830	 55.91	0	832272..832457	+	61	163843107	-	BSUIS_A0873	-	hypothetical protein
831	 50.45	-1	832544..832876	-	110	163843108	-	BSUIS_A0874	-	glutaredoxin-like protein
832	 58.55	0	833061..833294	-	77	163843109	-	BSUIS_A0875	-	hypothetical protein
833	 59.15	0	833564..835786	-	740	163843110	purL	BSUIS_A0876	-	phosphoribosylformylglycinamidine synthase II
834	 62.44	+1	835973..836374	-	133	163843111	-	BSUIS_A0877	-	hypothetical protein
835	 57.41	0	836434..837081	-	215	163843112	-	BSUIS_A0878	-	glutathione S-transferase domain-containing protein
836	 60.57	0	837333..838004	-	223	163843113	purQ	BSUIS_A0879	-	phosphoribosylformylglycinamidine synthase subunit I
837	 58.85	0	838027..838269	-	80	163843114	purS	BSUIS_A0880	-	phosphoribosylformylglycinamidine synthase subunit PurS
838	 55.95	0	838385..839149	-	254	163843115	purC	BSUIS_A0881	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
839	 56.17	0	839405..839728	+	107	163843116	-	BSUIS_A0882	-	hypothetical protein
840	 58.73	0	840610..841176	-	188	163843117	-	BSUIS_A0884	-	hypothetical protein
841	 53.92	0	841375..841476	-	33	163843118	-	BSUIS_A0885	-	hypothetical protein
842	 61.53	+1	841445..842320	+	291	163843119	-	BSUIS_A0886	-	biphenyl-2,3-diol 1,2-dioxygenase 3
843	 59.60	0	842541..843842	-	433	163843120	purB	BSUIS_A0887	-	adenylosuccinate lyase
844	 60.18	0	843869..844546	-	225	163843121	rpe	BSUIS_A0888	-	ribulose-phosphate 3-epimerase
845	 57.39	0	844704..845630	-	308	163843122	-	BSUIS_A0889	-	lipid A biosynthesis lauroyl acyltransferase
846	 61.42	+1	845644..846672	-	342	163843123	-	BSUIS_A0890	-	hypothetical protein
847	 60.64	0	846754..848031	-	425	163843124	tcmK	BSUIS_A0891	-	3-oxoacyl-(acyl carrier protein) synthase II
848	 60.91	0	848033..849214	-	393	163843125	-	BSUIS_A0892	-	3-oxoacyl-(acyl carrier protein) synthase II
849	 51.42	-1	849362..849643	-	93	163843126	acpXL	BSUIS_A0893	-	acyl carrier protein
850	 59.97	0	849844..850605	-	253	163843127	-	BSUIS_A0894	-	hypothetical protein
851	 56.79	0	850821..851843	+	340	163843128	-	BSUIS_A0895	-	aldose 1-epimerase
852	 60.02	0	851840..852757	-	305	163843129	kdgK	BSUIS_A0896	-	2-dehydro-3-deoxygluconokinase
853	 58.06	0	852958..853689	+	243	163843130	-	BSUIS_A0897	-	hypothetical protein
854	 59.21	0	853693..854832	+	379	163843131	phnM	BSUIS_A0898	-	phosphonate metabolism protein PhnM
855	 58.48	0	854829..855512	-	227	163843132	-	BSUIS_A0899	-	HAD family hydrolase
856	 54.76	0	855675..856556	+	293	163843133	-	BSUIS_A0900	-	extracellular solute-binding protein
857	 59.43	0	856748..857770	+	340	163843134	-	BSUIS_A0901	-	tRNA-dihydrouridine synthase A
858	 57.59	0	857767..858471	-	234	163843135	-	BSUIS_A0902	-	hypothetical protein
859	 54.67	0	858471..858620	-	49	163843136	-	BSUIS_A0903	-	hypothetical protein
860	 62.20	+1	858685..859467	-	260	163843137	cobV	BSUIS_A0904	-	cobalamin synthase
861	 62.25	+1	859621..860640	+	339	163843138	cobU	BSUIS_A0905	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
862	 54.58	0	860749..861228	-	159	163843139	-	BSUIS_A0906	-	hypothetical protein
863	 59.81	0	861357..861998	-	213	163843140	-	BSUIS_A0907	-	hypothetical protein
864	 57.37	0	862095..862664	-	189	163843141	-	BSUIS_A0908	-	nuclease
865	 47.31	-2	862635..862913	+	92	163843142	-	BSUIS_A0909	-	hypothetical protein
866	 57.09	0	863285..864088	+	267	163843143	exoR	BSUIS_A0910	-	exopolysaccharide production negative regulator precursor
867	 54.66	0	864147..864929	-	260	163843144	-	BSUIS_A0911	-	exodeoxyribonuclease III (xth)
868	 57.63	0	865098..865805	+	235	163843145	-	BSUIS_A0912	-	hypothetical protein
869	 54.43	0	865886..866212	-	108	163843146	-	BSUIS_A0913	-	iron-sulfur cluster assembly accessory protein
870	 58.64	0	866379..867587	+	402	163843147	dgt	BSUIS_A0914	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
871	 56.83	0	867809..869566	+	585	163843148	argS	BSUIS_A0915	-	arginyl-tRNA synthetase
872	 59.26	0	869778..872732	+	984	163843149	-	BSUIS_A0916	-	Oleosin B6
873	 59.31	0	872933..873952	+	339	163843150	nagZ	BSUIS_A0917	-	Beta-hexosaminidase
874	 60.80	0	874025..874876	+	283	163843151	scpA	BSUIS_A0918	-	segregation and condensation protein A
875	 60.74	0	874869..875594	+	241	163843152	scpB	BSUIS_A0919	-	segregation and condensation protein B
876	 56.16	0	875740..875958	+	72	163843153	tatA	BSUIS_A0920	-	twin argininte translocase protein A
877	 56.21	0	876039..876650	+	203	163843154	tatB	BSUIS_A0921	-	sec-independent translocase
57.01	MEAN

4.26	STD DEV
