IslandPathversion 1.0

IslandPath Analysis: Brucella suis ATCC 23445

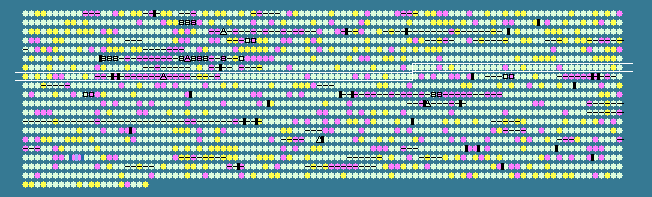

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
666	 58.33	0	677630..678073	-	147	163842943	-	BSUIS_A0700	-	NUDIX hydrolase
667	 60.13	0	678159..678938	+	259	163842944	-	BSUIS_A0701	-	hypothetical protein
668	 60.00	0	678993..679607	+	204	163842945	-	BSUIS_A0702	-	amino acid transporter LysE
669	 57.74	0	679584..679751	-	55	163842946	-	BSUIS_A0703	-	hypothetical protein
670	 48.15	-2	679756..679971	-	71	163842947	-	BSUIS_A0704	-	hypothetical protein
671	 59.17	0	680118..681638	+	506	163842948	cysS	BSUIS_A0705	-	cysteinyl-tRNA synthetase
672	 62.96	+1	681657..681791	+	44	163842949	-	BSUIS_A0706	-	hypothetical protein
673	 59.23	0	681791..683404	+	537	163842950	-	BSUIS_A0707	-	putative alpha-isopropylmalate/homocitrate synthase family transferase
674	 58.02	0	684702..686435	+	577	163842951	-	BSUIS_A0709	-	peptidase M23B
675	 59.45	0	686503..687333	-	276	163842952	ksgA	BSUIS_A0710	-	dimethyladenosine transferase
676	 59.97	0	687330..688598	-	422	163842953	pdxA	BSUIS_A0711	-	4-hydroxythreonine-4-phosphate dehydrogenase
677	 56.74	0	688426..689382	-	318	163842954	surA	BSUIS_A0712	-	chaperone surA precursor
678	 55.61	0	689710..692088	-	792	163842955	imp	BSUIS_A0713	-	organic solvent tolerance protein precursor
679	 54.45	0	692109..693197	-	362	163842956	-	BSUIS_A0714	-	permease YjgP/YjgQ family protein
680	 56.00	0	693194..694402	-	402	163842957	-	BSUIS_A0715	-	permease YjgP/YjgQ family protein
681	 46.06	-2	694575..694739	-	54	163842958	-	BSUIS_A0716	-	hypothetical protein
682	 58.57	0	694812..696305	+	497	163842959	pepA	BSUIS_A0717	-	leucyl aminopeptidase
683	 56.44	0	696377..696826	+	149	163842960	-	BSUIS_A0718	-	DNA polymerase III subunit chi
684	 62.06	+1	696826..697389	+	187	163842961	-	BSUIS_A0719	-	hypothetical protein
685	 58.65	0	697466..699349	-	627	163842962	-	BSUIS_A0720	-	ATP-binding sub-family F member 3 protein
686	 57.12	0	699392..699904	-	170	163842963	-	BSUIS_A0721	-	DinB family protein
687	 57.68	0	700133..700555	+	140	163842964	ndk	BSUIS_A0722	-	nucleoside diphosphate kinase
688	 57.21	0	700663..701466	-	267	163842965	-	BSUIS_A0723	-	protein of unknown function DUF306 Meta and HslJ
689	 56.71	0	701702..702193	-	163	163842966	-	BSUIS_A0724	-	molybdopterin biosynthesis MoaE protein
690	 53.49	0	702195..702452	-	85	163842967	moaD	BSUIS_A0725	-	molybdopterin converting factor, subunit 1
691	 55.38	0	702457..703041	-	194	163842968	pgsA	BSUIS_A0726	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
692	 59.58	0	703160..705232	-	690	163842969	uvrC	BSUIS_A0727	-	excinuclease ABC subunit C
693	 59.13	0	705232..705987	-	251	163842970	-	BSUIS_A0728	-	short chain dehydrogenase
694	 55.97	0	706192..706350	+	52	163842971	-	BSUIS_A0729	-	hypothetical protein
695	 58.10	0	706389..707030	+	213	163842972	-	BSUIS_A0730	-	25 kDa outer-membrane immunogenic protein precursor
696	 57.50	0	707127..707726	-	199	163842973	-	BSUIS_A0731	-	glutathione S-transferase domain-containing protein
697	 55.37	0	707644..707820	-	58	163842974	-	BSUIS_A0732	-	hypothetical protein
698	 58.55	0	707781..708470	-	229	163842975	-	BSUIS_A0733	-	ribonuclease precursor
699	 61.78	+1	708483..708953	-	156	163842976	-	BSUIS_A0734	-	hypothetical protein
700	 58.08	0	709036..709908	-	290	163842977	-	BSUIS_A0735	-	hypothetical protein
701	 62.17	+1	710065..710910	+	281	163842978	-	BSUIS_A0736	-	hypothetical protein
702	 59.33	0	710988..713114	+	708	163842979	-	BSUIS_A0737	-	nitrate reductase
703	 63.05	+1	714185..714709	-	174	163842980	-	BSUIS_A0739	-	hypothetical protein
704	 59.71	0	714884..715501	-	205	163842981	purN	BSUIS_A0740	-	phosphoribosylglycinamide formyltransferase
705	 60.65	0	715498..716577	-	359	163842982	purM	BSUIS_A0741	-	phosphoribosylaminoimidazole synthetase
706	 51.67	-1	716619..716798	-	59	163842983	-	BSUIS_A0742	-	hypothetical protein
707	 49.63	-1	716926..717060	-	44	163842984	-	BSUIS_A0743	-	hypothetical protein
708	 56.31	0	717067..718215	+	382	163842985	-	BSUIS_A0744	-	hypothetical protein
709	 60.06	0	718255..718950	+	231	163842986	-	BSUIS_A0745	-	hypothetical protein
710	 58.97	0	718947..719816	+	289	163842987	galE	BSUIS_A0746	-	UDP-glucose 4-epimerase
711	 62.47	+1	719813..720598	-	261	163842988	-	BSUIS_A0747	-	vegetative cell wall protein gp1 precursor
712	 58.58	0	720671..721375	-	234	163842989	-	BSUIS_A0748	-	short chain dehydrogenase/reductase family oxidoreductase
713	 50.00	-1	721537..721752	-	71	163842990	-	BSUIS_A0749	-	hypothetical protein
714	 39.74	-2	721766..721921	+	51	163842991	-	BSUIS_A0750	-	hypothetical protein
715	 58.36	0	722074..723747	-	557	163842992	-	BSUIS_A0751	-	L-lactate transport
716	 53.27	0	724281..724586	+	101	163842993	-	BSUIS_A0753	-	NADH-ubiquinone oxidoreductase 18 kDa subunit
717	 55.84	0	725152..725742	+	196	163842994	-	BSUIS_A0755	-	hypothetical protein
718	 52.94	0	725963..726574	-	203	163842995	-	BSUIS_A0756	-	hypothetical protein
719	 53.48	0	726899..727444	-	181	163842996	-	BSUIS_A0757	-	adenylate kinase
720	 52.34	-1	727441..728976	-	511	163842997	-	BSUIS_A0758	-	GCN5-related N-acetyltransferase
721	 51.70	-1	728951..729745	-	264	163842998	-	BSUIS_A0759	-	helix-turn-helix domain-containing protein
722	 43.33	-2	729770..730189	-	139	163842999	-	BSUIS_A0760	-	hypothetical protein
723	 53.40	0	730569..731465	+	298	163843000	-	BSUIS_A0761	-	hypothetical protein
724	 52.39	-1	731465..733579	+	704	163843001	-	BSUIS_A0762	-	integrase catalytic subunit
725	 52.16	-1	733572..734522	+	316	163843002	-	BSUIS_A0763	-	transposition protein
726	 46.90	-2	735340..736356	+	338	163843003	-	BSUIS_A0764	-	hypothetical protein
727	 47.98	-2	736394..736591	-	65	163843004	-	BSUIS_A0765	-	hypothetical protein
728	 46.64	-2	736832..738139	+	435	163843005	-	BSUIS_A0766	-	hypothetical protein
729	 57.00	0	740055..740933	+	292	163843006	-	BSUIS_A0769	-	hypothetical protein
730	 63.56	+1	741271..741495	-	74	163843007	-	BSUIS_A0770	-	hypothetical protein
731	 62.57	+1	741317..741829	-	170	163843008	-	BSUIS_A0771	-	SH3 type 3 domain-containing protein
732	 59.44	0	741989..742237	-	82	163843009	-	BSUIS_A0772	-	lipoprotein
733	 48.72	-1	742340..742495	-	51	163843010	-	BSUIS_A0773	-	hypothetical protein
734	 56.24	0	742482..743651	-	389	163843011	metC	BSUIS_A0774	-	cystathionine beta-lyase
735	 56.64	0	743862..744629	+	255	163843012	bcrC	BSUIS_A0775	-	bacitracin transport permease protein BCRC
736	 55.43	0	745085..746116	+	343	163843013	-	BSUIS_A0776	-	lysine-arginine-ornithine-binding periplasmic protein
737	 54.82	0	746150..746377	+	75	163843014	-	BSUIS_A0777	-	hypothetical protein
738	 56.78	0	746413..747606	+	397	163843015	-	BSUIS_A0778	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
739	 58.20	0	747609..748766	+	385	163843016	-	BSUIS_A0779	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
740	 54.90	0	748781..749596	+	271	163843017	bztD	BSUIS_A0780	-	glutamate/glutamine/aspartate/asparagine transport ATP-binding protein bztD
741	 59.20	0	749644..750849	-	401	163843018	-	BSUIS_A0781	-	salicylate hydroxylase
742	 54.51	0	750879..751133	-	84	163843019	-	BSUIS_A0782	-	hypothetical protein
743	 57.03	0	751419..753659	+	746	163843020	ppk	BSUIS_A0783	-	polyphosphate kinase
744	 59.13	0	753656..755194	+	512	163843021	-	BSUIS_A0784	-	Ppx/GppA phosphatase
745	 60.28	0	755444..756601	-	385	163843022	rnd	BSUIS_A0785	-	ribonuclease D
746	 58.45	0	756828..758615	+	595	163843023	aspS	BSUIS_A0786	-	aspartyl-tRNA synthetase
747	 55.64	0	758699..759895	-	398	163843024	-	BSUIS_A0787	-	hypothetical protein
748	 46.25	-2	759950..760189	+	79	163843025	-	BSUIS_A0788	-	hypothetical protein
749	 58.11	0	760295..762607	+	770	163843026	parC	BSUIS_A0789	-	DNA topoisomerase IV subunit A
750	 58.53	0	762786..763535	-	249	163843027	ate	BSUIS_A0790	-	arginyl-tRNA-protein transferase
751	 54.14	0	763656..764126	-	156	163843028	-	BSUIS_A0791	-	RDD domain-containing protein
752	 59.34	0	764273..765310	-	345	163843029	hemB	BSUIS_A0792	-	delta-aminolevulinic acid dehydratase
753	 58.38	0	765478..766527	+	349	163843030	-	BSUIS_A0793	-	enoyl-CoA hydratase
754	 58.39	0	766541..766975	+	144	163843031	-	BSUIS_A0794	-	hypothetical protein
755	 54.83	0	767206..767805	+	199	163843032	-	BSUIS_A0795	-	MarR family transcriptional regulator
756	 53.19	0	767892..768032	-	46	163843033	-	BSUIS_A0796	-	hypothetical protein
757	 58.22	0	768167..769468	+	433	163843034	-	BSUIS_A0797	-	peptidoglycan binding domain-containing protein
758	 52.59	-1	769561..769695	+	44	163843035	-	BSUIS_A0798	-	hypothetical protein
759	 58.54	0	769699..771015	+	438	163843036	glyA	BSUIS_A0799	-	serine hydroxymethyltransferase
760	 58.07	0	771257..771733	+	158	163843037	-	BSUIS_A0800	-	transcriptional regulator NrdR
761	 61.85	+1	771735..772856	+	373	163843038	ribD	BSUIS_A0801	-	riboflavin biosynthesis protein RibD
762	 57.31	0	772856..773464	+	202	163843039	ribE	BSUIS_A0802	-	riboflavin synthase subunit alpha
763	 58.23	0	773559..774020	+	153	163843040	ribH	BSUIS_A0803	-	riboflavin synthase subunit beta
764	 59.30	0	774026..774541	+	171	163843041	nusB	BSUIS_A0804	-	transcription antitermination protein NusB
765	 59.62	0	774992..777148	+	718	163843042	-	BSUIS_A0805	-	membrane-bound proton-translocating pyrophosphatase
57.01	MEAN

4.26	STD DEV
