IslandPath Analysis: Brucella suis ATCC 23445

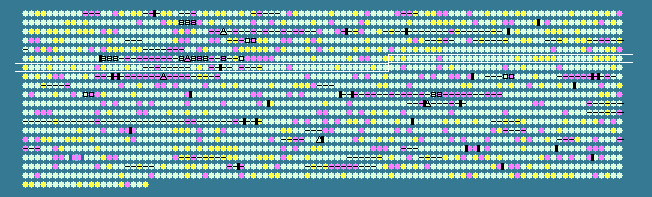

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
562	 60.88	0	574721..575083	-	120	163842839	-	BSUIS_A0590	-	hypothetical protein
563	 59.52	0	575419..576930	+	503	163842840	-	BSUIS_A0591	-	hypothetical protein
564	 60.81	0	577128..577844	-	238	163842841	-	BSUIS_A0592	-	ErfK/YbiS/YcfS/YnhG family protein
565	 58.26	0	578147..578800	-	217	163842842	dehII	BSUIS_A0593	-	haloacid dehalogenase, type II
566	 54.33	0	579023..579622	+	199	163842843	sodB	BSUIS_A0594	-	superoxide dismutase (Fe)
567	 56.42	0	579668..580243	+	191	163842844	-	BSUIS_A0595	-	hypothetical protein
568	 58.14	0	579794..580180	-	128	163842845	-	BSUIS_A0596	-	hypothetical protein
569	 57.75	0	580247..582355	-	702	163842846	ptrB	BSUIS_A0597	-	protease 2
570	 44.62	-2	582779..582973	+	64	163842847	-	BSUIS_A0598	-	hypothetical protein
571	 53.85	0	582928..583356	+	142	163842848	rosAR	BSUIS_A0599	-	transcriptional regulatory protein rosAr
572	 54.81	0	583564..583875	-	103	163842849	-	BSUIS_A0600	-	hypothetical protein
573	 57.02	0	584057..584512	+	151	163842850	-	BSUIS_A0601	-	hypothetical protein
574	 59.37	0	584509..585303	+	264	163842851	-	BSUIS_A0602	-	hypothetical protein
575	 60.16	0	585394..586731	+	445	163842852	iaaH	BSUIS_A0603	-	amidase
576	 59.62	0	586772..587197	-	141	163842853	-	BSUIS_A0604	-	hypothetical protein
577	 56.34	0	587277..587741	-	154	163842854	-	BSUIS_A0605	-	hypothetical protein
578	 59.23	0	588032..589861	+	609	163842855	-	BSUIS_A0606	-	integral membrane sensor signal transduction histidine kinase
579	 60.18	0	589788..590804	+	338	163842856	-	BSUIS_A0607	-	peptidoglycan binding domain-containing protein
580	 57.18	0	590818..591165	+	115	163842857	-	BSUIS_A0608	-	hypothetical protein
581	 58.50	0	591176..592252	-	358	163842858	-	BSUIS_A0609	-	hypothetical protein
582	 54.88	0	592450..592992	-	180	163842859	-	BSUIS_A0610	-	hypothetical protein
583	 62.91	+1	592985..593596	-	203	163842860	-	BSUIS_A0611	-	hypothetical protein
584	 59.20	0	593603..595759	-	718	163842861	-	BSUIS_A0612	-	1A family penicillin-binding protein
585	 60.04	0	596117..596629	+	170	163842862	-	BSUIS_A0613	-	hypothetical protein
586	 64.81	+1	596592..597827	+	411	163842863	-	BSUIS_A0614	-	hypothetical protein
587	 61.98	+1	597859..599052	+	397	163842864	-	BSUIS_A0615	-	HK97 family phage portal protein
588	 61.38	+1	599049..599426	+	125	163842865	-	BSUIS_A0616	-	hypothetical protein
589	 62.63	+1	599413..600081	+	222	163842866	-	BSUIS_A0617	-	HK97 family phage prohead protease
590	 60.08	0	600103..601377	+	424	163842867	-	BSUIS_A0618	-	HK97 family phage major capsid protein
591	 58.91	0	601542..602108	+	188	163842868	-	BSUIS_A0619	-	hypothetical protein
592	 58.11	0	602105..602443	+	112	163842869	-	BSUIS_A0620	-	phage head-tail adaptor
593	 55.95	0	602440..602607	+	55	163842870	-	BSUIS_A0621	-	hypothetical protein
594	 58.33	0	602567..602974	+	135	163842871	-	BSUIS_A0622	-	hypothetical protein
595	 58.70	0	603015..603428	+	137	163842872	-	BSUIS_A0623	-	TP901-1 family phage major tail protein
596	 62.28	+1	603425..603766	+	113	163842873	-	BSUIS_A0624	-	hypothetical protein
597	 63.37	+1	603985..604530	+	181	163842874	-	BSUIS_A0625	-	phage tail protein
598	 60.73	0	605134..606009	+	291	163842875	-	BSUIS_A0628	-	phage protein
599	 64.37	+1	606006..606440	+	144	163842876	-	BSUIS_A0629	-	cell wall endopeptidase
600	 56.04	0	610364..610570	+	68	163842877	-	BSUIS_A0632	-	hypothetical protein
601	 62.63	+1	610732..611028	+	98	163842878	-	BSUIS_A0633	-	hypothetical protein
602	 57.97	0	611107..611796	+	229	163842879	-	BSUIS_A0634	-	two component transcriptional regulator
603	 58.66	0	611946..613181	+	411	163842880	phoQ	BSUIS_A0635	-	sensor protein phoQ
604	 58.85	0	613242..613727	+	161	163842881	omp	BSUIS_A0636	-	17 kDa surface antigen precursor
605	 61.75	+1	613828..614967	+	379	163842882	-	BSUIS_A0637	-	cytochrome c-type biogenesis protein
606	 59.44	0	614964..615461	+	165	163842883	ccmE	BSUIS_A0638	-	cytochrome c-type biogenesis protein CcmE
607	 59.94	0	615481..617472	+	663	163842884	ccmF	BSUIS_A0639	-	cytochrome c-type biogenesis protein CcmF
608	 56.18	0	617469..617945	+	158	163842885	-	BSUIS_A0640	-	cytochrome c-type biogenesis protein ccl2 precursor
609	 60.51	0	618087..619628	+	513	163842886	degP	BSUIS_A0641	-	protease Do
610	 60.17	0	619722..620429	+	235	163842887	copR	BSUIS_A0642	-	transcriptional activator protein copR
611	 59.12	0	620429..621832	+	467	163842888	-	BSUIS_A0643	-	integral membrane sensor signal transduction histidine kinase
612	 58.20	0	621955..624906	+	983	163842889	glnE	BSUIS_A0644	-	glutamate-ammonia-ligase adenylyltransferase
613	 50.52	-1	624951..627062	-	703	163842890	lgtB	BSUIS_A0645	-	lacto-N-neotetraose biosynthesis glycosyl transferase lgtB
614	 60.67	0	627333..629684	-	783	163842891	-	BSUIS_A0646	-	PAS domain-containing protein
615	 59.31	0	630075..632726	-	883	163842892	pepN	BSUIS_A0647	-	aminopeptidase N
616	 58.60	0	632895..633911	+	338	163842893	-	BSUIS_A0648	-	hypothetical protein
617	 58.95	0	633916..635172	-	418	163842894	-	BSUIS_A0649	-	major facilitator transporter
618	 61.63	+1	635334..636206	-	290	163842895	-	BSUIS_A0650	-	uracil-DNA glycosylase
619	 59.34	0	636595..638286	+	563	163842896	-	BSUIS_A0651	-	electron transfer flavoprotein-ubiquinone oxidoreductase
620	 59.24	0	638398..639474	-	358	163842897	-	BSUIS_A0652	-	hypothetical protein
621	 58.42	0	639527..641029	-	500	163842898	amn	BSUIS_A0653	-	AMP nucleosidase
622	 55.35	0	641082..641240	+	52	163842899	-	BSUIS_A0654	-	hypothetical protein
623	 51.77	-1	641237..641518	+	93	163842900	-	BSUIS_A0655	-	hypothetical protein
624	 54.85	0	641596..642306	+	236	163842901	-	BSUIS_A0656	-	glutathione S-transferase domain-containing protein
625	 58.05	0	642365..642712	-	115	163842902	-	BSUIS_A0657	-	hypothetical protein
626	 53.68	0	642709..642993	-	94	163842903	-	BSUIS_A0658	-	hypothetical protein
627	 57.36	0	643212..643469	+	85	163842904	-	BSUIS_A0659	-	hypothetical protein
628	 54.91	0	643529..644302	-	257	163842905	-	BSUIS_A0660	-	hypothetical protein
629	 57.60	0	644954..645604	+	216	163842906	-	BSUIS_A0661	-	hypothetical protein
630	 62.13	+1	645649..646023	-	124	163842907	-	BSUIS_A0662	-	hypothetical protein
631	 55.47	0	646041..647174	-	377	163842908	hisC	BSUIS_A0663	-	histidinol-phosphate aminotransferase
632	 52.21	-1	647537..648463	-	308	163842909	xerC	BSUIS_A0664	-	tyrosine recombinase xerC
633	 56.44	0	649088..649840	-	250	163842910	ropA	BSUIS_A0665	-	Outer membrane protein IIIA precursor
634	 56.56	0	650641..651768	+	375	163842911	ropA	BSUIS_A0667	-	Outer membrane protein IIIA precursor
635	 56.50	0	650674..651834	-	386	163842912	-	BSUIS_A0668	-	hypothetical protein
636	 53.74	0	651912..652553	+	213	163842913	-	BSUIS_A0669	-	hypothetical protein
637	 49.18	-1	652609..652791	+	60	163842914	-	BSUIS_A0670	-	hypothetical protein
638	 57.78	0	652852..653526	+	224	163842915	-	BSUIS_A0671	-	hypothetical protein
639	 59.67	0	653589..655646	-	685	163842916	-	BSUIS_A0672	-	lytic transglycosylase catalytic
640	 61.21	0	655570..655734	+	54	163842917	-	BSUIS_A0673	-	hypothetical protein
641	 56.80	0	656122..657003	+	293	163842918	dapA	BSUIS_A0674	-	dihydrodipicolinate synthase
642	 55.77	0	657094..657570	+	158	163842919	smpB	BSUIS_A0675	-	SsrA-binding protein
643	 58.18	0	657806..658477	-	223	163842920	-	BSUIS_A0676	-	uracil-DNA glycosylase superfamily protein
644	 53.99	0	658508..659083	-	191	163842921	-	BSUIS_A0677	-	hypothetical protein
645	 35.26	-2	659283..659438	-	51	163842922	-	BSUIS_A0678	-	hypothetical protein
646	 56.22	0	659480..659881	+	133	163842923	rpoZ	BSUIS_A0679	-	DNA-directed RNA polymerase subunit omega
647	 57.79	0	660123..662375	+	750	163842924	-	BSUIS_A0680	-	RelA/SpoT family protein
648	 60.45	0	662383..662961	+	192	163842925	pyrE	BSUIS_A0681	-	orotate phosphoribosyltransferase
649	 56.61	0	663121..663876	+	251	163842926	fnrA	BSUIS_A0682	-	transcriptional activator protein fnrA
650	 57.30	0	664257..665591	+	444	163842927	hemN	BSUIS_A0683	-	coproporphyrinogen III oxidase
651	 59.24	0	665775..666986	-	403	163842928	-	BSUIS_A0684	-	major facilitator transporter
652	 58.49	0	667238..668020	+	260	163842929	-	BSUIS_A0685	-	AraC family transcriptional regulator
653	 61.11	0	668070..668645	+	191	163842930	-	BSUIS_A0686	-	hypothetical protein
654	 54.81	0	668642..669046	+	134	163842931	acpS	BSUIS_A0687	-	4'-phosphopantetheinyl transferase
655	 56.70	0	669157..669939	+	260	163842932	lepB	BSUIS_A0688	-	signal peptidase I
656	 58.81	0	669908..670645	+	245	163842933	rnc	BSUIS_A0689	-	ribonuclease III
657	 55.56	0	670688..670786	+	32	163842934	-	BSUIS_A0690	-	hypothetical protein
658	 59.01	0	671752..672495	+	247	163842935	recO	BSUIS_A0692	-	DNA repair protein RecO
659	 62.16	+1	672473..672982	-	169	163842936	-	BSUIS_A0693	-	hypothetical protein
660	 59.90	0	672979..673599	-	206	163842937	-	BSUIS_A0694	-	hypothetical protein
661	 57.52	0	673599..674462	-	287	163842938	-	BSUIS_A0695	-	glycine cleavage T-protein barrel
57.01	MEAN

4.26	STD DEV
