IslandPathversion 1.0

IslandPath Analysis: Brucella suis ATCC 23445

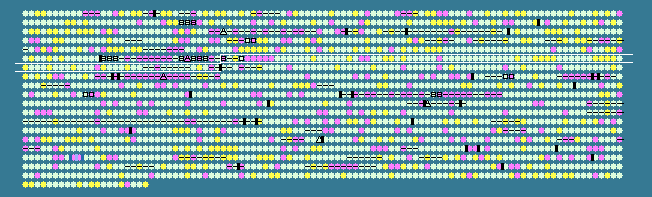

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
534	 47.66	-2	544885..545226	+	113	163842811	-	BSUIS_A0562	-	transposase
535	 54.42	0	545316..545903	-	195	163842812	-	BSUIS_A0563	-	hypothetical protein
536	 60.84	0	546035..546463	+	142	163842813	-	BSUIS_A0564	-	hypothetical protein
537	 57.79	0	546382..546798	+	138	163842814	-	BSUIS_A0565	-	transposase for insertion sequence element IS6501
538	 50.15	-1	547688..549025	+	445	163842815	manB	BSUIS_A0566	-	phosphomannomutase
539	 51.23	-1	549050..550474	+	474	163842816	-	BSUIS_A0567	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
540	 51.32	-1	550507..551679	+	390	163842817	-	BSUIS_A0568	-	hypothetical protein
541	 51.26	-1	551762..552871	+	369	163842818	-	BSUIS_A0569	-	glycosyltransferase
542	 46.67	-2	553352..553531	-	59	163842819	-	BSUIS_A0570	-	hypothetical protein
543	 57.16	0	553563..555098	+	511	163842820	rbsA	BSUIS_A0571	-	ribose import ATP-binding protein rbsA
544	 56.89	0	555119..556120	+	333	163842821	-	BSUIS_A0572	-	monosaccharide-transporting ATPase
545	 57.01	0	556199..557161	+	320	163842822	-	BSUIS_A0573	-	hypothetical protein
546	 58.02	0	557219..558271	+	350	163842823	-	BSUIS_A0574	-	hypothetical protein
547	 59.76	0	558279..559451	+	390	163842824	-	BSUIS_A0575	-	oxidoreductase domain-containing protein
548	 56.12	0	559493..560800	-	435	163842825	xylA	BSUIS_A0576	-	xylose isomerase
549	 61.85	+1	560847..562298	-	483	163842826	xylB	BSUIS_A0577	-	xylulokinase
550	 59.30	0	562331..563362	-	343	163842827	degA	BSUIS_A0578	-	HTH-type transcriptional regulator degA
551	 57.70	0	563624..564694	-	356	163842828	-	BSUIS_A0579	-	helix-turn-helix domain-containing protein
552	 58.81	0	565233..566696	-	487	163842829	betB	BSUIS_A0580	-	betaine aldehyde dehydrogenase
553	 59.58	0	566882..568531	-	549	163842830	betA	BSUIS_A0581	-	choline dehydrogenase
554	 58.63	0	568534..569130	-	198	163842831	betI	BSUIS_A0582	-	transcriptional regulator BetI
555	 60.70	0	569321..570343	+	340	163842832	-	BSUIS_A0583	-	L-asparaginase II protein
556	 59.02	0	570388..570858	+	156	163842833	greA	BSUIS_A0584	-	transcription elongation factor GreA
557	 50.51	-1	570855..571244	-	129	163842834	-	BSUIS_A0585	-	death-on-curing family protein
558	 51.52	-1	571241..571471	-	76	163842835	-	BSUIS_A0586	-	addiction module antidote
559	 55.69	0	571532..572524	-	330	163842836	-	BSUIS_A0587	-	Mg2 transporter protein CorA family protein
560	 60.47	0	572680..573357	+	225	163842837	-	BSUIS_A0588	-	GntR domain-containing protein
561	 61.63	+1	573354..574664	+	436	163842838	-	BSUIS_A0589	-	major facilitator transporter
562	 60.88	0	574721..575083	-	120	163842839	-	BSUIS_A0590	-	hypothetical protein
563	 59.52	0	575419..576930	+	503	163842840	-	BSUIS_A0591	-	hypothetical protein
564	 60.81	0	577128..577844	-	238	163842841	-	BSUIS_A0592	-	ErfK/YbiS/YcfS/YnhG family protein
565	 58.26	0	578147..578800	-	217	163842842	dehII	BSUIS_A0593	-	haloacid dehalogenase, type II
566	 54.33	0	579023..579622	+	199	163842843	sodB	BSUIS_A0594	-	superoxide dismutase (Fe)
567	 56.42	0	579668..580243	+	191	163842844	-	BSUIS_A0595	-	hypothetical protein
568	 58.14	0	579794..580180	-	128	163842845	-	BSUIS_A0596	-	hypothetical protein
569	 57.75	0	580247..582355	-	702	163842846	ptrB	BSUIS_A0597	-	protease 2
570	 44.62	-2	582779..582973	+	64	163842847	-	BSUIS_A0598	-	hypothetical protein
571	 53.85	0	582928..583356	+	142	163842848	rosAR	BSUIS_A0599	-	transcriptional regulatory protein rosAr
572	 54.81	0	583564..583875	-	103	163842849	-	BSUIS_A0600	-	hypothetical protein
573	 57.02	0	584057..584512	+	151	163842850	-	BSUIS_A0601	-	hypothetical protein
574	 59.37	0	584509..585303	+	264	163842851	-	BSUIS_A0602	-	hypothetical protein
575	 60.16	0	585394..586731	+	445	163842852	iaaH	BSUIS_A0603	-	amidase
576	 59.62	0	586772..587197	-	141	163842853	-	BSUIS_A0604	-	hypothetical protein
577	 56.34	0	587277..587741	-	154	163842854	-	BSUIS_A0605	-	hypothetical protein
578	 59.23	0	588032..589861	+	609	163842855	-	BSUIS_A0606	-	integral membrane sensor signal transduction histidine kinase
579	 60.18	0	589788..590804	+	338	163842856	-	BSUIS_A0607	-	peptidoglycan binding domain-containing protein
580	 57.18	0	590818..591165	+	115	163842857	-	BSUIS_A0608	-	hypothetical protein
581	 58.50	0	591176..592252	-	358	163842858	-	BSUIS_A0609	-	hypothetical protein
582	 54.88	0	592450..592992	-	180	163842859	-	BSUIS_A0610	-	hypothetical protein
583	 62.91	+1	592985..593596	-	203	163842860	-	BSUIS_A0611	-	hypothetical protein
584	 59.20	0	593603..595759	-	718	163842861	-	BSUIS_A0612	-	1A family penicillin-binding protein
585	 60.04	0	596117..596629	+	170	163842862	-	BSUIS_A0613	-	hypothetical protein
586	 64.81	+1	596592..597827	+	411	163842863	-	BSUIS_A0614	-	hypothetical protein
587	 61.98	+1	597859..599052	+	397	163842864	-	BSUIS_A0615	-	HK97 family phage portal protein
588	 61.38	+1	599049..599426	+	125	163842865	-	BSUIS_A0616	-	hypothetical protein
589	 62.63	+1	599413..600081	+	222	163842866	-	BSUIS_A0617	-	HK97 family phage prohead protease
590	 60.08	0	600103..601377	+	424	163842867	-	BSUIS_A0618	-	HK97 family phage major capsid protein
591	 58.91	0	601542..602108	+	188	163842868	-	BSUIS_A0619	-	hypothetical protein
592	 58.11	0	602105..602443	+	112	163842869	-	BSUIS_A0620	-	phage head-tail adaptor
593	 55.95	0	602440..602607	+	55	163842870	-	BSUIS_A0621	-	hypothetical protein
594	 58.33	0	602567..602974	+	135	163842871	-	BSUIS_A0622	-	hypothetical protein
595	 58.70	0	603015..603428	+	137	163842872	-	BSUIS_A0623	-	TP901-1 family phage major tail protein
596	 62.28	+1	603425..603766	+	113	163842873	-	BSUIS_A0624	-	hypothetical protein
597	 63.37	+1	603985..604530	+	181	163842874	-	BSUIS_A0625	-	phage tail protein
598	 60.73	0	605134..606009	+	291	163842875	-	BSUIS_A0628	-	phage protein
599	 64.37	+1	606006..606440	+	144	163842876	-	BSUIS_A0629	-	cell wall endopeptidase
600	 56.04	0	610364..610570	+	68	163842877	-	BSUIS_A0632	-	hypothetical protein
601	 62.63	+1	610732..611028	+	98	163842878	-	BSUIS_A0633	-	hypothetical protein
602	 57.97	0	611107..611796	+	229	163842879	-	BSUIS_A0634	-	two component transcriptional regulator
603	 58.66	0	611946..613181	+	411	163842880	phoQ	BSUIS_A0635	-	sensor protein phoQ
604	 58.85	0	613242..613727	+	161	163842881	omp	BSUIS_A0636	-	17 kDa surface antigen precursor
605	 61.75	+1	613828..614967	+	379	163842882	-	BSUIS_A0637	-	cytochrome c-type biogenesis protein
606	 59.44	0	614964..615461	+	165	163842883	ccmE	BSUIS_A0638	-	cytochrome c-type biogenesis protein CcmE
607	 59.94	0	615481..617472	+	663	163842884	ccmF	BSUIS_A0639	-	cytochrome c-type biogenesis protein CcmF
608	 56.18	0	617469..617945	+	158	163842885	-	BSUIS_A0640	-	cytochrome c-type biogenesis protein ccl2 precursor
609	 60.51	0	618087..619628	+	513	163842886	degP	BSUIS_A0641	-	protease Do
610	 60.17	0	619722..620429	+	235	163842887	copR	BSUIS_A0642	-	transcriptional activator protein copR
611	 59.12	0	620429..621832	+	467	163842888	-	BSUIS_A0643	-	integral membrane sensor signal transduction histidine kinase
612	 58.20	0	621955..624906	+	983	163842889	glnE	BSUIS_A0644	-	glutamate-ammonia-ligase adenylyltransferase
613	 50.52	-1	624951..627062	-	703	163842890	lgtB	BSUIS_A0645	-	lacto-N-neotetraose biosynthesis glycosyl transferase lgtB
614	 60.67	0	627333..629684	-	783	163842891	-	BSUIS_A0646	-	PAS domain-containing protein
615	 59.31	0	630075..632726	-	883	163842892	pepN	BSUIS_A0647	-	aminopeptidase N
616	 58.60	0	632895..633911	+	338	163842893	-	BSUIS_A0648	-	hypothetical protein
617	 58.95	0	633916..635172	-	418	163842894	-	BSUIS_A0649	-	major facilitator transporter
618	 61.63	+1	635334..636206	-	290	163842895	-	BSUIS_A0650	-	uracil-DNA glycosylase
619	 59.34	0	636595..638286	+	563	163842896	-	BSUIS_A0651	-	electron transfer flavoprotein-ubiquinone oxidoreductase
620	 59.24	0	638398..639474	-	358	163842897	-	BSUIS_A0652	-	hypothetical protein
621	 58.42	0	639527..641029	-	500	163842898	amn	BSUIS_A0653	-	AMP nucleosidase
622	 55.35	0	641082..641240	+	52	163842899	-	BSUIS_A0654	-	hypothetical protein
623	 51.77	-1	641237..641518	+	93	163842900	-	BSUIS_A0655	-	hypothetical protein
624	 54.85	0	641596..642306	+	236	163842901	-	BSUIS_A0656	-	glutathione S-transferase domain-containing protein
625	 58.05	0	642365..642712	-	115	163842902	-	BSUIS_A0657	-	hypothetical protein
626	 53.68	0	642709..642993	-	94	163842903	-	BSUIS_A0658	-	hypothetical protein
627	 57.36	0	643212..643469	+	85	163842904	-	BSUIS_A0659	-	hypothetical protein
628	 54.91	0	643529..644302	-	257	163842905	-	BSUIS_A0660	-	hypothetical protein
629	 57.60	0	644954..645604	+	216	163842906	-	BSUIS_A0661	-	hypothetical protein
630	 62.13	+1	645649..646023	-	124	163842907	-	BSUIS_A0662	-	hypothetical protein
631	 55.47	0	646041..647174	-	377	163842908	hisC	BSUIS_A0663	-	histidinol-phosphate aminotransferase
632	 52.21	-1	647537..648463	-	308	163842909	xerC	BSUIS_A0664	-	tyrosine recombinase xerC
633	 56.44	0	649088..649840	-	250	163842910	ropA	BSUIS_A0665	-	Outer membrane protein IIIA precursor
57.01	MEAN

4.26	STD DEV
