IslandPath Analysis: Brucella suis ATCC 23445

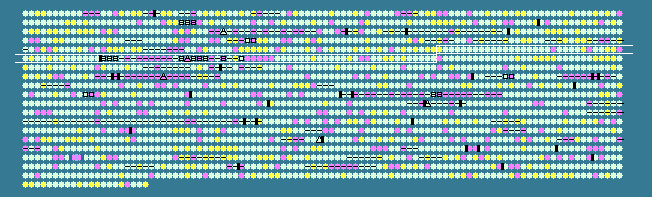

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
470	 62.37	+1	483597..483689	-	30	163842747	-	BSUIS_A0493	-	hypothetical protein
471	 58.71	0	483833..484687	+	284	163842748	coxB	BSUIS_A0494	-	cytochrome c oxidase, subunit II
472	 59.73	0	484825..486483	+	552	163842749	ctaD	BSUIS_A0495	-	cytochrome c oxidase, subunit I
473	 58.86	0	486711..487658	+	315	163842750	cyoE	BSUIS_A0496	-	protoheme IX farnesyltransferase
474	 60.22	0	487658..487843	+	61	163842751	-	BSUIS_A0497	-	hypothetical protein
475	 56.93	0	487863..488468	+	201	163842752	ctaG	BSUIS_A0498	-	cytochrome C oxidase assembly protein
476	 57.91	0	488677..489555	+	292	163842753	-	BSUIS_A0499	-	cytochrome c oxidase subunit 3
477	 57.29	0	489669..490052	+	127	163842754	-	BSUIS_A0500	-	hypothetical protein
478	 60.13	0	490049..490798	+	249	163842755	-	BSUIS_A0501	-	Surfeit locus protein 1
479	 58.00	0	490829..491947	+	372	163842756	ispH	BSUIS_A0502	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
480	 58.82	0	491953..492933	+	326	163842757	thrB	BSUIS_A0503	-	homoserine kinase
481	 59.78	0	492930..493394	+	154	163842758	-	BSUIS_A0504	-	ribonuclease H
482	 58.44	0	493424..493909	-	161	163842759	-	BSUIS_A0505	-	thiol peroxidase
483	 59.43	0	494089..494889	-	266	163842760	-	BSUIS_A0506	-	hypothetical protein
484	 59.32	0	495096..495626	+	176	163842761	-	BSUIS_A0507	-	hypothetical protein
485	 60.17	0	495732..498626	-	964	163842762	-	BSUIS_A0508	-	diguanylate cyclase
486	 55.88	0	498623..499243	-	206	163842763	-	BSUIS_A0509	-	GCN5-related N-acetyltransferase
487	 59.24	0	499414..500706	-	430	163842764	-	BSUIS_A0510	-	hypothetical protein
488	 58.62	0	500760..502151	-	463	163842765	thrC	BSUIS_A0511	-	threonine synthase
489	 46.88	-2	502231..502422	-	63	163842766	-	BSUIS_A0512	-	hypothetical protein
490	 55.44	0	502573..503151	+	192	163842767	-	BSUIS_A0513	-	lipoprotein
491	 56.27	0	503465..505099	+	544	163842768	-	BSUIS_A0514	-	hypothetical protein
492	 56.99	0	505228..505413	+	61	163842769	-	BSUIS_A0515	-	hypothetical protein
493	 59.83	0	505455..506141	-	228	163842770	-	BSUIS_A0516	-	HAD family hydrolase
494	 61.86	+1	506289..508079	-	596	163842771	-	BSUIS_A0517	-	chloride channel protein clcB-like protein
495	 50.35	-1	508082..508222	-	46	163842772	-	BSUIS_A0518	-	hypothetical protein
496	 60.05	0	508416..509549	+	377	163842773	-	BSUIS_A0519	-	modification methylase HinfI
497	 57.77	0	509632..510249	-	205	163842774	-	BSUIS_A0520	-	HAD family hydrolase
498	 61.28	+1	510246..511322	-	358	163842775	mutY	BSUIS_A0521	-	A/G-specific adenine glycosylase
499	 61.17	0	511596..512123	+	175	163842776	-	BSUIS_A0522	-	hypothetical protein
500	 52.87	0	512141..512314	+	57	163842777	-	BSUIS_A0523	-	hypothetical protein
501	 54.13	0	512361..513014	+	217	163842778	-	BSUIS_A0524	-	DSBA oxidoreductase
502	 63.57	+1	513093..516551	+	1152	163842779	smc	BSUIS_A0525	-	chromosome segregation protein SMC
503	 58.17	0	516574..517467	+	297	163842780	-	BSUIS_A0526	-	cation diffusion facilitator family transporter
504	 56.83	0	517577..517942	-	121	163842781	-	BSUIS_A0527	-	hypothetical protein
505	 60.85	0	518182..520845	+	887	163842782	ppdK	BSUIS_A0528	-	pyruvate phosphate dikinase
506	 59.70	0	522877..523665	+	262	163842783	-	BSUIS_A0532	-	hypothetical protein
507	 61.26	0	523666..524571	-	301	163842784	-	BSUIS_A0533	-	beta-lactamase domain-containing protein
508	 58.83	0	524772..525371	+	199	163842785	bioY	BSUIS_A0534	-	protein bioY
509	 56.08	0	525525..526034	+	169	163842786	allA	BSUIS_A0535	-	ureidoglycolate hydrolase
510	 57.98	0	526046..526402	+	118	163842787	pucM	BSUIS_A0536	-	hydroxyisourate hydrolase
511	 57.83	0	526473..527309	+	278	163842788	-	BSUIS_A0537	-	hypothetical protein
512	 56.61	0	527846..529714	+	622	163842789	capD	BSUIS_A0538	-	capsular polysaccharide biosynthesis protein capD
513	 56.05	0	529701..530708	-	335	163842790	mraY	BSUIS_A0539	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
514	 58.36	0	531367..532185	+	272	163842791	-	BSUIS_A0541	-	transposase for insertion sequence element IS6501
515	 57.52	0	531917..532860	+	313	163842792	-	BSUIS_A0542	-	transposase for insertion sequence element IS6501
516	 54.55	0	532917..533147	+	76	163842793	-	BSUIS_A0544	-	transposase IS4
517	 56.06	0	533272..533535	-	87	163842794	-	BSUIS_A0545	-	hypothetical protein
518	 53.17	0	533398..533523	+	41	163842795	-	BSUIS_A0546	-	hypothetical protein
519	 56.53	0	533520..534239	+	239	163842796	-	BSUIS_A0547	-	hypothetical protein
520	 45.13	-2	534575..535354	-	259	163842797	arnA	BSUIS_A0548	-	bifunctional polymyxin resistance arnA protein
521	 44.21	-2	535381..536235	-	284	163842798	-	BSUIS_A0549	-	WbcT protein
522	 48.75	-1	536232..536990	-	252	163842799	rfbB	BSUIS_A0550	-	O-antigen export system ATP-binding protein rfbB
523	 45.98	-2	536987..537769	-	260	163842800	rfbD	BSUIS_A0551	-	O-antigen export system permease protein rfbD
524	 47.19	-2	537784..538887	-	367	163842801	rbmB	BSUIS_A0552	-	L-glutamine:2-deoxy-scyllo-inosose aminotransferase
525	 48.03	-2	538895..539983	-	362	163842802	gmd	BSUIS_A0553	-	GDP-mannose 4,6-dehydratase
526	 60.37	0	540502..540930	+	142	163842803	-	BSUIS_A0554	-	hypothetical protein
527	 59.47	0	540849..541223	+	124	163842804	-	BSUIS_A0555	-	transposase for insertion sequence element IS6501
528	 53.08	0	541253..542047	+	264	163842805	-	BSUIS_A0556	-	integrase catalytic subunit
529	 58.54	0	542117..542485	+	122	163842806	-	BSUIS_A0557	-	transposase
530	 50.89	-1	542482..542874	+	130	163842807	-	BSUIS_A0558	-	transposase for insertion sequence element IS6501
531	 54.17	0	542875..543114	+	79	163842808	-	BSUIS_A0559	-	transposase
532	 43.88	-2	543245..544363	+	372	163842809	-	BSUIS_A0560	-	mannosyltransferase
533	 57.18	0	544421..544789	+	122	163842810	-	BSUIS_A0561	-	hypothetical protein
534	 47.66	-2	544885..545226	+	113	163842811	-	BSUIS_A0562	-	transposase
535	 54.42	0	545316..545903	-	195	163842812	-	BSUIS_A0563	-	hypothetical protein
536	 60.84	0	546035..546463	+	142	163842813	-	BSUIS_A0564	-	hypothetical protein
537	 57.79	0	546382..546798	+	138	163842814	-	BSUIS_A0565	-	transposase for insertion sequence element IS6501
538	 50.15	-1	547688..549025	+	445	163842815	manB	BSUIS_A0566	-	phosphomannomutase
539	 51.23	-1	549050..550474	+	474	163842816	-	BSUIS_A0567	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
540	 51.32	-1	550507..551679	+	390	163842817	-	BSUIS_A0568	-	hypothetical protein
541	 51.26	-1	551762..552871	+	369	163842818	-	BSUIS_A0569	-	glycosyltransferase
542	 46.67	-2	553352..553531	-	59	163842819	-	BSUIS_A0570	-	hypothetical protein
543	 57.16	0	553563..555098	+	511	163842820	rbsA	BSUIS_A0571	-	ribose import ATP-binding protein rbsA
544	 56.89	0	555119..556120	+	333	163842821	-	BSUIS_A0572	-	monosaccharide-transporting ATPase
545	 57.01	0	556199..557161	+	320	163842822	-	BSUIS_A0573	-	hypothetical protein
546	 58.02	0	557219..558271	+	350	163842823	-	BSUIS_A0574	-	hypothetical protein
547	 59.76	0	558279..559451	+	390	163842824	-	BSUIS_A0575	-	oxidoreductase domain-containing protein
548	 56.12	0	559493..560800	-	435	163842825	xylA	BSUIS_A0576	-	xylose isomerase
549	 61.85	+1	560847..562298	-	483	163842826	xylB	BSUIS_A0577	-	xylulokinase
550	 59.30	0	562331..563362	-	343	163842827	degA	BSUIS_A0578	-	HTH-type transcriptional regulator degA
551	 57.70	0	563624..564694	-	356	163842828	-	BSUIS_A0579	-	helix-turn-helix domain-containing protein
552	 58.81	0	565233..566696	-	487	163842829	betB	BSUIS_A0580	-	betaine aldehyde dehydrogenase
553	 59.58	0	566882..568531	-	549	163842830	betA	BSUIS_A0581	-	choline dehydrogenase
554	 58.63	0	568534..569130	-	198	163842831	betI	BSUIS_A0582	-	transcriptional regulator BetI
555	 60.70	0	569321..570343	+	340	163842832	-	BSUIS_A0583	-	L-asparaginase II protein
556	 59.02	0	570388..570858	+	156	163842833	greA	BSUIS_A0584	-	transcription elongation factor GreA
557	 50.51	-1	570855..571244	-	129	163842834	-	BSUIS_A0585	-	death-on-curing family protein
558	 51.52	-1	571241..571471	-	76	163842835	-	BSUIS_A0586	-	addiction module antidote
559	 55.69	0	571532..572524	-	330	163842836	-	BSUIS_A0587	-	Mg2 transporter protein CorA family protein
560	 60.47	0	572680..573357	+	225	163842837	-	BSUIS_A0588	-	GntR domain-containing protein
561	 61.63	+1	573354..574664	+	436	163842838	-	BSUIS_A0589	-	major facilitator transporter
562	 60.88	0	574721..575083	-	120	163842839	-	BSUIS_A0590	-	hypothetical protein
563	 59.52	0	575419..576930	+	503	163842840	-	BSUIS_A0591	-	hypothetical protein
564	 60.81	0	577128..577844	-	238	163842841	-	BSUIS_A0592	-	ErfK/YbiS/YcfS/YnhG family protein
565	 58.26	0	578147..578800	-	217	163842842	dehII	BSUIS_A0593	-	haloacid dehalogenase, type II
566	 54.33	0	579023..579622	+	199	163842843	sodB	BSUIS_A0594	-	superoxide dismutase (Fe)
567	 56.42	0	579668..580243	+	191	163842844	-	BSUIS_A0595	-	hypothetical protein
568	 58.14	0	579794..580180	-	128	163842845	-	BSUIS_A0596	-	hypothetical protein
569	 57.75	0	580247..582355	-	702	163842846	ptrB	BSUIS_A0597	-	protease 2
57.01	MEAN

4.26	STD DEV
