IslandPathversion 1.0

IslandPath Analysis: Brucella suis ATCC 23445

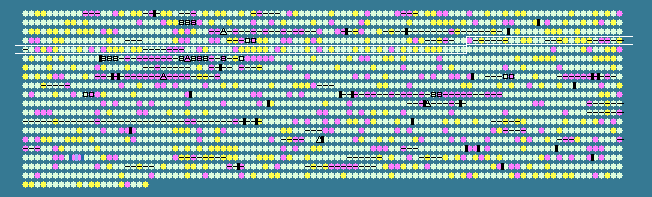

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
375	 51.99	-1	395020..395346	+	108	163842652	-	BSUIS_A0396	-	hypothetical protein
376	 57.40	0	395463..396077	+	204	163842653	-	BSUIS_A0397	-	DSBA oxidoreductase
377	 60.79	0	396126..397571	-	481	163842654	-	BSUIS_A0398	-	succinate semialdehyde dehydrogenase
378	 59.48	0	397770..398855	+	361	163842655	-	BSUIS_A0399	-	methylated-DNA-[protein]-cysteine S-methyltransferase
379	 53.56	0	399037..399387	+	116	163842656	-	BSUIS_A0400	-	hypothetical protein
380	 60.06	0	399724..400767	+	347	163842657	-	BSUIS_A0401	-	hypothetical protein
381	 62.00	+1	400989..401996	+	335	163842658	-	BSUIS_A0402	-	hypothetical protein
382	 56.01	0	402218..403465	+	415	163842659	-	BSUIS_A0403	-	transport protein
383	 60.06	0	403504..404502	-	332	163842660	-	BSUIS_A0404	-	polysaccharide deacetylase
384	 62.20	+1	404748..405419	+	223	163842661	-	BSUIS_A0405	-	hypothetical protein
385	 61.78	+1	405441..406892	+	483	163842662	-	BSUIS_A0406	-	GTP-binding protein EngA
386	 56.87	0	407051..408367	+	438	163842663	dnaK	BSUIS_A0407	-	chaperone protein dnaK
387	 60.44	0	408804..410087	+	427	163842664	-	BSUIS_A0408	-	cell wall hydrolase SleB
388	 56.14	0	410364..410762	+	132	163842665	-	BSUIS_A0409	-	hypothetical protein
389	 55.87	0	410870..411619	+	249	163842666	atpB	BSUIS_A0410	-	F0F1 ATP synthase subunit A
390	 61.84	+1	411687..411914	+	75	163842667	atpE	BSUIS_A0411	-	F0F1 ATP synthase subunit C
391	 63.00	+1	412086..412712	+	208	163842668	-	BSUIS_A0412	-	F0F1 ATP synthase subunit B'
392	 56.25	0	412723..413202	+	159	163842669	atpF	BSUIS_A0413	-	F0F1 ATP synthase subunit B
393	 62.29	+1	413325..413987	-	220	163842670	rnhB	BSUIS_A0414	-	ribonuclease HII
394	 61.04	0	414164..415336	-	390	163842671	-	BSUIS_A0415	-	radical SAM domain-containing protein
395	 62.13	+1	415472..415978	+	168	163842672	-	BSUIS_A0416	-	hypothetical protein
396	 56.18	0	416058..416324	-	88	163842673	-	BSUIS_A0417	-	hypothetical protein
397	 33.33	-2	416396..416608	-	70	163842674	-	BSUIS_A0418	-	hypothetical protein
398	 48.98	-1	416592..416738	-	48	163842675	-	BSUIS_A0419	-	hypothetical protein
399	 60.22	0	416683..417582	-	299	163842676	ispE	BSUIS_A0420	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
400	 61.26	0	417611..417832	-	73	163842677	-	BSUIS_A0421	-	hypothetical protein
401	 59.98	0	418262..419368	-	368	163842678	-	BSUIS_A0422	-	peptidase S49
402	 59.48	0	419289..420470	-	393	163842679	nhaA	BSUIS_A0423	-	Na+/H+ antiporter NhaA
403	 46.85	-2	420490..420711	-	73	163842680	-	BSUIS_A0424	-	hypothetical protein
404	 65.39	+1	420760..421542	-	260	163842681	-	BSUIS_A0425	-	methyltransferase small
405	 53.07	0	421539..421766	-	75	163842682	-	BSUIS_A0426	-	hypothetical protein
406	 61.78	+1	422029..423051	+	340	163842683	-	BSUIS_A0427	-	hypothetical protein
407	 59.06	0	423355..425220	+	621	163842684	-	BSUIS_A0428	-	TPR repeat-containing protein
408	 57.07	0	425372..426298	+	308	163842685	glyQ	BSUIS_A0429	-	glycyl-tRNA synthetase subunit alpha
409	 59.94	0	426417..428750	+	777	163842686	glyS	BSUIS_A0430	-	glycyl-tRNA synthetase subunit beta
410	 64.92	+1	428889..429860	+	323	163842687	-	BSUIS_A0431	-	Sua5/YciO/YrdC/YwlC family protein
411	 59.02	0	429886..431298	+	470	163842688	-	BSUIS_A0432	-	hypothetical protein
412	 52.52	-1	431336..431653	-	105	163842689	-	BSUIS_A0433	-	plasmid stabilization system protein
413	 54.41	0	431650..431910	-	86	163842690	-	BSUIS_A0434	-	CopG-like DNA-binding
414	 46.01	-2	432019..432231	-	70	163842691	-	BSUIS_A0435	-	hypothetical protein
415	 63.41	+1	432221..432742	+	173	163842692	-	BSUIS_A0436	-	hypothetical protein
416	 60.56	0	432917..433669	-	250	163842693	-	BSUIS_A0437	-	enoyl-CoA hydratase
417	 61.05	0	433672..435450	-	592	163842694	-	BSUIS_A0438	-	acyl-CoA dehydrogenase domain-containing protein
418	 57.77	0	435768..436913	+	381	163842695	-	BSUIS_A0439	-	diguanylate cyclase
419	 61.14	0	436931..438214	-	427	163842696	purD	BSUIS_A0440	-	phosphoribosylamine--glycine ligase
420	 61.48	+1	438359..439360	+	333	163842697	ubiA	BSUIS_A0441	-	prenyltransferase
421	 60.13	0	439400..440011	-	203	163842698	pdxH	BSUIS_A0442	-	pyridoxamine 5'-phosphate oxidase
422	 56.26	0	440285..440755	+	156	163842699	-	BSUIS_A0443	-	hypothetical protein
423	 60.19	0	440900..441841	+	313	163842700	dnaJ	BSUIS_A0444	-	chaperone protein dnaJ
424	 56.78	0	441985..442803	+	272	163842701	fabI	BSUIS_A0445	-	enoyl-(acyl carrier protein) reductase
425	 43.03	-2	443633..443797	-	54	163842702	-	BSUIS_A0448	-	hypothetical protein
426	 53.33	0	443760..443969	+	69	163842703	-	BSUIS_A0449	-	ATP/GTP-binding motif-containing protein
427	 49.33	-1	444067..444216	-	49	163842704	-	BSUIS_A0450	-	hypothetical protein
428	 55.87	0	444439..444651	+	70	163842705	-	BSUIS_A0451	-	hypothetical protein
429	 60.21	0	444728..445408	+	226	163842706	-	BSUIS_A0452	-	hypothetical protein
430	 50.00	-1	445553..445804	-	83	163842707	-	BSUIS_A0453	-	hypothetical protein
431	 61.00	0	446080..447174	+	364	163842708	aroC	BSUIS_A0454	-	chorismate synthase
432	 60.30	0	447310..448425	+	371	163842709	ribB	BSUIS_A0455	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
433	 58.15	0	448641..449591	+	316	163842710	-	BSUIS_A0456	-	histone deacetylase superfamily protein
434	 56.86	0	449596..449850	+	84	163842711	xseB	BSUIS_A0457	-	exodeoxyribonuclease VII small subunit
435	 57.61	0	449857..450375	-	172	163842712	-	BSUIS_A0458	-	SNARE associated Golgi protein
436	 53.26	0	450617..450877	-	86	163842713	ymgE	BSUIS_A0459	-	transglycosylase-associated protein
437	 64.13	+1	451040..451591	+	183	163842714	-	BSUIS_A0460	-	hypothetical protein
438	 61.17	0	451796..452668	+	290	163842715	-	BSUIS_A0461	-	pirin domain-containing protein
439	 62.11	+1	452811..454742	+	643	163842716	dxs	BSUIS_A0462	-	1-deoxy-D-xylulose-5-phosphate synthase
440	 61.92	+1	454793..455509	+	238	163842717	-	BSUIS_A0463	-	hemolysin A
441	 63.70	+1	455506..456753	+	415	163842718	rumA	BSUIS_A0464	-	23S rRNA (uracil-5-)-methyltransferase rumA
442	 58.21	0	456913..457515	-	200	163842719	-	BSUIS_A0465	-	hypothetical protein
443	 51.64	-1	457645..458010	+	121	163842720	-	BSUIS_A0466	-	hypothetical protein
444	 61.73	+1	458197..459411	+	404	163842721	-	BSUIS_A0467	-	peptidoglycan-binding LysM
445	 58.29	0	459614..461500	+	628	163842722	-	BSUIS_A0468	-	heavy metal tolerance protein precursor
446	 59.80	0	461605..462303	+	232	163842723	-	BSUIS_A0469	-	phosphatidylserine decarboxylase
447	 59.38	0	462308..463144	+	278	163842724	pssA	BSUIS_A0470	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
448	 61.00	0	463229..463969	-	246	163842725	-	BSUIS_A0471	-	short-chain dehydrogenase/reductase SDR
449	 59.12	0	464038..465495	-	485	163842726	purF	BSUIS_A0472	-	amidophosphoribosyltransferase
450	 48.99	-1	465517..465714	+	65	163842727	-	BSUIS_A0473	-	hypothetical protein
451	 58.20	0	465810..466388	-	192	163842728	-	BSUIS_A0474	-	colicin V production protein
452	 62.25	+1	466514..467917	-	467	163842729	radA	BSUIS_A0475	-	DNA repair protein RadA
453	 58.70	0	467945..469450	-	501	163842730	dnaB	BSUIS_A0476	-	replicative DNA helicase
454	 55.89	0	469649..470929	-	426	163842731	-	BSUIS_A0477	-	hypothetical protein
455	 58.42	0	471303..471872	-	189	163842732	rplI	BSUIS_A0478	-	50S ribosomal protein L9
456	 61.93	+1	471902..472873	-	323	163842733	-	BSUIS_A0479	-	hypothetical protein
457	 58.23	0	473024..473272	-	82	163842734	rpsR	BSUIS_A0480	-	30S ribosomal protein S18
458	 61.30	+1	473275..473721	-	148	163842735	rpsF	BSUIS_A0481	-	30S ribosomal protein S6
459	 54.72	0	473746..474105	-	119	163842736	-	BSUIS_A0482	-	hypothetical protein
460	 61.69	+1	474127..475071	+	314	163842737	fabD	BSUIS_A0483	-	malonyl CoA-acyl carrier protein transacylase
461	 59.08	0	475141..475878	+	245	163842738	nodG	BSUIS_A0484	-	3-ketoacyl-(acyl-carrier-protein) reductase NodG
462	 53.16	0	476152..476388	+	78	163842739	acpP	BSUIS_A0485	-	acyl carrier protein
463	 57.58	0	476392..476655	+	87	163842740	-	BSUIS_A0486	-	hypothetical protein
464	 62.00	+1	476712..477974	+	420	163842741	-	BSUIS_A0487	-	3-oxoacyl-(acyl carrier protein) synthase II
465	 58.92	0	478199..479437	+	412	163842742	-	BSUIS_A0488	-	hypothetical protein
466	 61.33	+1	479622..480521	+	299	163842743	-	BSUIS_A0489	-	hypothetical protein
467	 57.62	0	480530..481192	+	220	163842744	gmk	BSUIS_A0490	-	guanylate kinase
468	 61.00	0	481219..482631	-	470	163842745	-	BSUIS_A0491	-	peptidase U62 modulator of DNA gyrase
469	 63.80	+1	482773..483399	-	208	163842746	-	BSUIS_A0492	-	invasion associated locus B family protein
470	 62.37	+1	483597..483689	-	30	163842747	-	BSUIS_A0493	-	hypothetical protein
471	 58.71	0	483833..484687	+	284	163842748	coxB	BSUIS_A0494	-	cytochrome c oxidase, subunit II
472	 59.73	0	484825..486483	+	552	163842749	ctaD	BSUIS_A0495	-	cytochrome c oxidase, subunit I
473	 58.86	0	486711..487658	+	315	163842750	cyoE	BSUIS_A0496	-	protoheme IX farnesyltransferase
474	 60.22	0	487658..487843	+	61	163842751	-	BSUIS_A0497	-	hypothetical protein
57.01	MEAN

4.26	STD DEV
