IslandPath Analysis: Brucella suis ATCC 23445

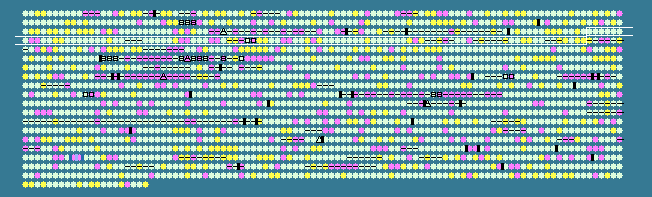

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
295	 60.27	0	314153..314902	+	249	163842572	-	BSUIS_A0312	-	HAD family hydrolase
296	 59.22	0	314875..315747	-	290	163842573	-	BSUIS_A0313	-	hypothetical protein
297	 59.22	0	315773..317518	-	581	163842574	-	BSUIS_A0314	-	acyl-CoA synthetase
298	 56.35	0	317869..318498	-	209	163842575	ttgR	BSUIS_A0315	-	HTH-type transcriptional regulator ttgR
299	 60.11	0	318629..318811	-	60	163842576	-	BSUIS_A0316	-	hypothetical protein
300	 59.88	0	318671..319864	+	397	163842577	-	BSUIS_A0317	-	RND family efflux transporter MFP subunit
301	 60.08	0	319861..323019	+	1052	163842578	-	BSUIS_A0318	-	hydrophobe/amphiphile efflux-1 (HAE1) family protein
302	 52.98	0	323130..323297	-	55	163842579	-	BSUIS_A0319	-	hypothetical protein
303	 48.23	-2	323518..323658	-	46	163842580	-	BSUIS_A0320	-	hypothetical protein
304	 58.13	0	323727..324569	-	280	163842581	-	BSUIS_A0321	-	extracellular solute-binding protein
305	 58.32	0	324835..326727	+	630	163842582	bcsA	BSUIS_A0322	-	cellulose synthase catalytic subunit (UDP-forming)
306	 60.97	0	327748..329064	+	438	163842583	phoR	BSUIS_A0324	-	phosphate regulon sensor protein phoR
307	 61.33	+1	329194..329736	-	180	163842584	-	BSUIS_A0325	-	GcrA cell cycle regulator
308	 55.26	0	329908..330249	-	113	163842585	-	BSUIS_A0326	-	hypothetical protein
309	 59.82	0	330339..331550	+	403	163842586	argD	BSUIS_A0327	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
310	 57.83	0	331555..332493	+	312	163842587	argF	BSUIS_A0328	-	ornithine carbamoyltransferase
311	 58.46	0	332495..333517	+	340	163842588	hslO	BSUIS_A0329	-	Hsp33-like chaperonin
312	 56.74	0	333558..333950	-	130	163842589	apaG	BSUIS_A0330	-	ApaG
313	 59.48	0	334319..335515	-	398	163842590	metZ	BSUIS_A0331	-	O-succinylhomoserine sulfhydrylase
314	 54.17	0	335505..335600	-	31	163842591	-	BSUIS_A0332	-	hypothetical protein
315	 61.17	0	335942..337033	+	363	163842592	-	BSUIS_A0334	-	2'-deoxycytidine 5'-triphosphate deaminase
316	 60.08	0	337124..338140	+	338	163842593	-	BSUIS_A0335	-	AraC family transcriptional regulator
317	 53.56	0	338227..338493	+	88	163842594	-	BSUIS_A0336	-	hypothetical protein
318	 59.83	0	338530..339012	+	160	163842595	-	BSUIS_A0337	-	SCP-like extracellular
319	 59.94	0	339187..340554	+	455	163842596	-	BSUIS_A0338	-	MATE efflux family protein
320	 60.37	0	340556..341650	-	364	163842597	pyrD	BSUIS_A0339	-	dihydroorotate dehydrogenase 2
321	 58.47	0	341647..342000	-	117	163842598	-	BSUIS_A0340	-	hypothetical protein
322	 54.89	0	342101..342601	-	166	163842599	-	BSUIS_A0341	-	hypothetical protein
323	 58.77	0	342254..342709	+	151	163842600	-	BSUIS_A0342	-	hypothetical protein
324	 58.99	0	342800..343750	-	316	163842601	pip	BSUIS_A0343	-	proline iminopeptidase
325	 58.57	0	343980..344621	+	213	163842602	-	BSUIS_A0344	-	two component LuxR family transcriptional regulator
326	 60.74	0	344658..348182	-	1174	163842603	-	BSUIS_A0345	-	integral membrane sensor hybrid histidine kinase
327	 52.38	-1	348467..348613	-	48	163842604	-	BSUIS_A0346	-	hypothetical protein
328	 52.76	0	348695..349111	+	138	163842605	mscL	BSUIS_A0347	-	large conductance mechanosensitive channel protein
329	 58.69	0	349187..350464	-	425	163842606	hemA	BSUIS_A0348	-	5-aminolevulinate synthase
330	 57.41	0	350610..351311	-	233	163842607	-	BSUIS_A0349	-	polysaccharide deacetylase
331	 56.67	0	351320..352039	-	239	163842608	-	BSUIS_A0350	-	glycosyl transferase family protein
332	 52.15	-1	352169..352843	-	224	163842609	-	BSUIS_A0351	-	hypothetical protein
333	 49.15	-1	352935..353168	-	77	163842610	-	BSUIS_A0352	-	hypothetical protein
334	 59.82	0	353211..354101	-	296	163842611	oxyR	BSUIS_A0353	-	hydrogen peroxide-inducible genes activator
335	 61.67	+1	354223..354642	+	139	163842612	-	BSUIS_A0354	-	LrgA family protein
336	 62.85	+1	354629..355336	+	235	163842613	-	BSUIS_A0355	-	LrgB family protein
337	 51.19	-1	355510..355845	+	111	163842614	-	BSUIS_A0356	-	hypothetical protein
338	 58.54	0	357194..357562	+	122	163842615	-	BSUIS_A0358	-	transposase for insertion sequence element IS6501
339	 50.13	-1	357559..357951	+	130	163842616	-	BSUIS_A0359	-	transposase for insertion sequence element IS6501
340	 61.22	0	358055..358936	+	293	163842617	panC	BSUIS_A0360	-	pantoate--beta-alanine ligase
341	 62.20	+1	358938..359765	+	275	163842618	panB	BSUIS_A0361	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
342	 54.83	0	359962..360738	-	258	163842619	-	BSUIS_A0362	-	oxidoreductase FAD-binding subunit
343	 53.76	0	360916..361101	-	61	163842620	sodB	BSUIS_A0363	-	superoxide dismutase (Fe)
344	 51.85	-1	361141..361491	+	116	163842621	-	BSUIS_A0364	-	hypothetical protein
345	 52.91	0	361530..362627	+	365	163842622	nspC	BSUIS_A0365	-	carboxynorspermidine decarboxylase
346	 55.23	0	362808..364049	+	413	163842623	-	BSUIS_A0366	-	hypothetical protein
347	 59.26	0	364065..364280	-	71	163842624	-	BSUIS_A0367	-	hypothetical protein
348	 61.13	0	364305..365333	-	342	163842625	-	BSUIS_A0368	-	proline racemase A precursor
349	 43.52	-2	365388..365495	-	35	163842626	-	BSUIS_A0369	-	hypothetical protein
350	 62.50	+1	365785..367200	+	471	163842627	-	BSUIS_A0370	-	MATE efflux family protein
351	 59.20	0	367246..367767	-	173	163842628	-	BSUIS_A0371	-	invasion associated locus B family protein
352	 58.30	0	368009..369394	+	461	163842629	degS	BSUIS_A0372	-	sensor protein degS
353	 56.23	0	369391..370032	+	213	163842630	-	BSUIS_A0373	-	two component LuxR family transcriptional regulator
354	 55.37	0	370320..370868	+	182	163842631	-	BSUIS_A0374	-	hypothetical protein
355	 59.46	0	370880..372448	+	522	163842632	-	BSUIS_A0375	-	TRAP transporter, DctM subunit
356	 58.62	0	372510..373628	+	372	163842633	-	BSUIS_A0376	-	TRAP dicarboxylate transporter- DctP subunit
357	 59.83	0	373711..374529	-	272	163842634	-	BSUIS_A0377	-	hypothetical protein
358	 61.13	0	374542..375969	-	475	163842635	-	BSUIS_A0378	-	chitin deacetylase
359	 56.88	0	376236..376511	+	91	163842636	-	BSUIS_A0379	-	hypothetical protein
360	 60.00	0	378013..380367	+	784	163842637	xdhB	BSUIS_A0381	-	xanthine dehydrogenase, molybdopterin binding subunit
361	 58.88	0	380372..381244	+	290	163842638	xdhC	BSUIS_A0382	-	xanthine dehydrogenase accessory protein XdhC
362	 58.25	0	381325..382239	-	304	163842639	-	BSUIS_A0383	-	LysR family transcriptional regulator
363	 58.37	0	382420..383673	+	417	163842640	-	BSUIS_A0384	-	hypothetical protein
364	 58.70	0	383670..384974	+	434	163842641	guaD	BSUIS_A0385	-	guanine deaminase
365	 61.85	+1	385054..386340	+	428	163842642	ttuD	BSUIS_A0386	-	hydroxypyruvate reductase
366	 53.46	0	386321..386479	-	52	163842643	ccoS	BSUIS_A0387	-	cytochrome oxidase maturation protein, cbb3-type
367	 60.87	0	386476..388734	-	752	163842644	-	BSUIS_A0388	-	heavy metal translocating P-type ATPase
368	 57.03	0	388731..389228	-	165	163842645	-	BSUIS_A0389	-	FixH family protein
369	 58.22	0	389228..390778	-	516	163842646	ccoG	BSUIS_A0390	-	cytochrome c oxidase accessory protein CcoG
370	 60.88	0	390946..391809	-	287	163842647	ccoP	BSUIS_A0391	-	cytochrome c oxidase, cbb3-type, subunit III
371	 49.69	-1	391802..391960	-	52	163842648	-	BSUIS_A0392	-	Cbb3-type cytochrome oxidase component
372	 59.58	0	391975..392637	-	220	163842649	ccoO	BSUIS_A0393	-	cytochrome c oxidase, cbb3-type, subunit II
373	 57.87	0	392720..394345	-	541	163842650	ccoN	BSUIS_A0394	-	cytochrome c oxidase, cbb3-type, subunit I
374	 58.82	0	394563..395021	-	152	163842651	fur	BSUIS_A0395	-	ferric uptake regulation protein
375	 51.99	-1	395020..395346	+	108	163842652	-	BSUIS_A0396	-	hypothetical protein
376	 57.40	0	395463..396077	+	204	163842653	-	BSUIS_A0397	-	DSBA oxidoreductase
377	 60.79	0	396126..397571	-	481	163842654	-	BSUIS_A0398	-	succinate semialdehyde dehydrogenase
378	 59.48	0	397770..398855	+	361	163842655	-	BSUIS_A0399	-	methylated-DNA-[protein]-cysteine S-methyltransferase
379	 53.56	0	399037..399387	+	116	163842656	-	BSUIS_A0400	-	hypothetical protein
380	 60.06	0	399724..400767	+	347	163842657	-	BSUIS_A0401	-	hypothetical protein
381	 62.00	+1	400989..401996	+	335	163842658	-	BSUIS_A0402	-	hypothetical protein
382	 56.01	0	402218..403465	+	415	163842659	-	BSUIS_A0403	-	transport protein
383	 60.06	0	403504..404502	-	332	163842660	-	BSUIS_A0404	-	polysaccharide deacetylase
384	 62.20	+1	404748..405419	+	223	163842661	-	BSUIS_A0405	-	hypothetical protein
385	 61.78	+1	405441..406892	+	483	163842662	-	BSUIS_A0406	-	GTP-binding protein EngA
386	 56.87	0	407051..408367	+	438	163842663	dnaK	BSUIS_A0407	-	chaperone protein dnaK
387	 60.44	0	408804..410087	+	427	163842664	-	BSUIS_A0408	-	cell wall hydrolase SleB
388	 56.14	0	410364..410762	+	132	163842665	-	BSUIS_A0409	-	hypothetical protein
389	 55.87	0	410870..411619	+	249	163842666	atpB	BSUIS_A0410	-	F0F1 ATP synthase subunit A
390	 61.84	+1	411687..411914	+	75	163842667	atpE	BSUIS_A0411	-	F0F1 ATP synthase subunit C
391	 63.00	+1	412086..412712	+	208	163842668	-	BSUIS_A0412	-	F0F1 ATP synthase subunit B'
392	 56.25	0	412723..413202	+	159	163842669	atpF	BSUIS_A0413	-	F0F1 ATP synthase subunit B
393	 62.29	+1	413325..413987	-	220	163842670	rnhB	BSUIS_A0414	-	ribonuclease HII
394	 61.04	0	414164..415336	-	390	163842671	-	BSUIS_A0415	-	radical SAM domain-containing protein
57.01	MEAN

4.26	STD DEV
