IslandPathversion 1.0

IslandPath Analysis: Brucella suis ATCC 23445

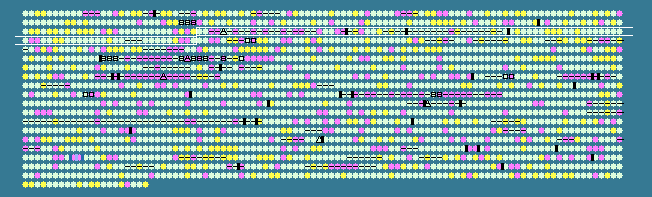

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
230	 59.10	0	251595..252440	+	281	163842507	-	BSUIS_A0244	-	fumarylacetoacetate hydrolase domain-containing protein
231	 58.53	0	252454..253731	+	425	163842508	-	BSUIS_A0245	-	mandelate racemase/muconate lactonizing protein
232	 47.83	-2	254130..254681	-	183	163842509	-	BSUIS_A0246	-	hypothetical protein
233	 46.38	-2	255510..255647	-	45	163842510	-	BSUIS_A0247	-	hypothetical protein
234	 55.78	0	255884..256627	+	247	163842511	-	BSUIS_A0248	-	integrase DNA protein
235	 55.71	0	257589..257807	+	72	163842512	-	BSUIS_A0249	-	hypothetical protein
236	 52.70	-1	258014..258328	+	104	163842513	-	BSUIS_A0250	-	hypothetical protein
237	 59.75	0	258325..259206	+	293	163842514	-	BSUIS_A0251	-	virulence-associated protein E
238	 55.16	0	259203..260732	+	509	163842515	-	BSUIS_A0252	-	hypothetical protein
239	 50.16	-1	260702..261319	+	205	163842516	-	BSUIS_A0253	-	hypothetical protein
240	 53.69	0	261473..262489	+	338	163842517	-	BSUIS_A0254	-	hypothetical protein
241	 49.52	-1	262591..262800	+	69	163842518	-	BSUIS_A0255	-	hypothetical protein
242	 55.90	0	262791..264917	+	708	163842519	flgJ	BSUIS_A0256	-	peptidoglycan hydrolase flgJ
243	 56.89	0	264914..266959	+	681	163842520	-	BSUIS_A0257	-	elastin precursor
244	 52.61	-1	267160..267465	+	101	163842521	-	BSUIS_A0258	-	hypothetical protein
245	 55.56	0	268564..268770	+	68	163842522	-	BSUIS_A0259	-	hypothetical protein
246	 48.82	-1	270034..270582	+	182	163842523	-	BSUIS_A0260	-	hypothetical protein
247	 40.53	-2	270967..271452	-	161	163842524	-	BSUIS_A0261	-	hypothetical protein
248	 53.66	0	271990..272235	-	81	163842525	-	BSUIS_A0262	-	helix-turn-helix domain-containing protein
249	 54.07	0	272313..272558	+	81	163842526	-	BSUIS_A0263	-	hypothetical protein
250	 51.89	-1	272624..272914	+	96	163842527	-	BSUIS_A0264	-	hypothetical protein
251	 56.81	0	272911..273549	+	212	163842528	-	BSUIS_A0265	-	hypothetical protein
252	 56.32	0	273551..273724	+	57	163842529	-	BSUIS_A0266	-	hypothetical protein
253	 52.64	-1	273721..274725	+	334	163842530	-	BSUIS_A0267	-	hypothetical protein
254	 46.86	-2	275030..275857	-	275	163842531	-	BSUIS_A0268	-	hypothetical protein
255	 59.72	0	276836..277051	-	71	163842532	-	BSUIS_A0270	-	zinc-binding protein
256	 61.24	0	277061..277687	-	208	163842533	maf	BSUIS_A0271	-	Maf-like protein
257	 52.05	-1	277721..277939	-	72	163842534	infA	BSUIS_A0272	-	translation initiation factor IF-1
258	 58.65	0	278051..278524	-	157	163842535	-	BSUIS_A0273	-	protein tyrosine phosphatase
259	 58.80	0	278531..279013	-	160	163842536	-	BSUIS_A0274	-	hypothetical protein
260	 61.87	+1	279020..280312	-	430	163842537	hisD	BSUIS_A0275	-	histidinol dehydrogenase
261	 55.33	0	280387..280827	-	146	163842538	-	BSUIS_A0276	-	hypothetical protein
262	 61.01	0	281098..282387	-	429	163842539	murA	BSUIS_A0277	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
263	 53.56	0	282553..282903	+	116	163842540	-	BSUIS_A0278	-	hypothetical protein
264	 59.44	0	282610..282789	-	59	163842541	-	BSUIS_A0279	-	hypothetical protein
265	 55.69	0	283079..284845	+	588	163842542	-	BSUIS_A0281	-	hypothetical protein
266	 56.26	0	284940..285362	+	140	163842543	-	BSUIS_A0282	-	hypothetical protein
267	 56.41	0	285375..285569	+	64	163842544	-	BSUIS_A0283	-	hypothetical protein
268	 54.62	0	286012..286758	+	248	163842545	tnpR	BSUIS_A0284	-	transposon Tn2501 resolvase
269	 54.80	0	287133..288497	+	454	163842546	-	BSUIS_A0285	-	hypothetical protein
270	 56.49	0	289810..290094	-	94	163842547	-	BSUIS_A0286	-	hypothetical protein
271	 55.94	0	290208..290468	-	86	163842548	-	BSUIS_A0287	-	hypothetical protein
272	 52.56	-1	290552..290941	+	129	163842549	-	BSUIS_A0288	-	hypothetical protein
273	 62.81	+1	291574..292377	+	267	163842550	ureD	BSUIS_A0289	-	urease accessory protein ureD
274	 60.40	0	292530..292832	+	100	163842551	ureA	BSUIS_A0290	-	urease subunit gamma
275	 58.33	0	292891..292986	+	31	163842552	-	BSUIS_A0291	-	hypothetical protein
276	 57.84	0	292999..293304	+	101	163842553	ureB	BSUIS_A0292	-	urease subunit beta
277	 60.36	0	293323..295035	+	570	163842554	ureC	BSUIS_A0293	-	urease subunit alpha
278	 59.10	0	295051..295539	+	162	163842555	ureE	BSUIS_A0294	-	urease accessory protein UreE
279	 63.17	+1	295511..296197	+	228	163842556	ureF	BSUIS_A0295	-	urease accessory protein ureF
280	 57.26	0	296194..296820	+	208	163842557	ureG	BSUIS_A0296	-	urease accessory protein UreG
281	 57.93	0	296995..298803	-	602	163842558	luxN	BSUIS_A0298	-	autoinducer 1 sensor kinase/phosphatase luxN
282	 54.25	0	298820..299125	-	101	163842559	-	BSUIS_A0299	-	hypothetical protein
283	 60.68	0	299088..300239	+	383	163842560	-	BSUIS_A0300	-	RND family efflux transporter MFP subunit
284	 60.31	0	300254..303385	+	1043	163842561	-	BSUIS_A0301	-	acriflavin resistance protein
285	 60.00	0	303508..304977	-	489	163842562	hydA	BSUIS_A0302	-	dihydropyrimidinase
286	 59.94	0	305029..306276	-	415	163842563	-	BSUIS_A0303	-	allantoate amidohydrolase
287	 55.12	0	306495..307178	+	227	163842564	-	BSUIS_A0304	-	TetR family transcriptional regulator
288	 61.28	+1	307175..307564	+	129	163842565	-	BSUIS_A0305	-	NUDIX hydrolase
289	 60.79	0	307609..308919	-	436	163842566	-	BSUIS_A0306	-	dihydropyrimidine dehydrogenase
290	 60.92	0	308923..310419	-	498	163842567	-	BSUIS_A0307	-	putative oxidoreductase
291	 54.62	0	310296..310544	+	82	163842568	-	BSUIS_A0308	-	hypothetical protein
292	 56.29	0	310607..311059	-	150	163842569	-	BSUIS_A0309	-	carbon monoxide dehydrogenase subunit G
293	 60.61	0	311210..312859	+	549	163842570	pgi	BSUIS_A0310	-	glucose-6-phosphate isomerase
294	 58.57	0	313095..314156	+	353	163842571	-	BSUIS_A0311	-	succinylglutamate desuccinylase/aspartoacylase
295	 60.27	0	314153..314902	+	249	163842572	-	BSUIS_A0312	-	HAD family hydrolase
296	 59.22	0	314875..315747	-	290	163842573	-	BSUIS_A0313	-	hypothetical protein
297	 59.22	0	315773..317518	-	581	163842574	-	BSUIS_A0314	-	acyl-CoA synthetase
298	 56.35	0	317869..318498	-	209	163842575	ttgR	BSUIS_A0315	-	HTH-type transcriptional regulator ttgR
299	 60.11	0	318629..318811	-	60	163842576	-	BSUIS_A0316	-	hypothetical protein
300	 59.88	0	318671..319864	+	397	163842577	-	BSUIS_A0317	-	RND family efflux transporter MFP subunit
301	 60.08	0	319861..323019	+	1052	163842578	-	BSUIS_A0318	-	hydrophobe/amphiphile efflux-1 (HAE1) family protein
302	 52.98	0	323130..323297	-	55	163842579	-	BSUIS_A0319	-	hypothetical protein
303	 48.23	-2	323518..323658	-	46	163842580	-	BSUIS_A0320	-	hypothetical protein
304	 58.13	0	323727..324569	-	280	163842581	-	BSUIS_A0321	-	extracellular solute-binding protein
305	 58.32	0	324835..326727	+	630	163842582	bcsA	BSUIS_A0322	-	cellulose synthase catalytic subunit (UDP-forming)
306	 60.97	0	327748..329064	+	438	163842583	phoR	BSUIS_A0324	-	phosphate regulon sensor protein phoR
307	 61.33	+1	329194..329736	-	180	163842584	-	BSUIS_A0325	-	GcrA cell cycle regulator
308	 55.26	0	329908..330249	-	113	163842585	-	BSUIS_A0326	-	hypothetical protein
309	 59.82	0	330339..331550	+	403	163842586	argD	BSUIS_A0327	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
310	 57.83	0	331555..332493	+	312	163842587	argF	BSUIS_A0328	-	ornithine carbamoyltransferase
311	 58.46	0	332495..333517	+	340	163842588	hslO	BSUIS_A0329	-	Hsp33-like chaperonin
312	 56.74	0	333558..333950	-	130	163842589	apaG	BSUIS_A0330	-	ApaG
313	 59.48	0	334319..335515	-	398	163842590	metZ	BSUIS_A0331	-	O-succinylhomoserine sulfhydrylase
314	 54.17	0	335505..335600	-	31	163842591	-	BSUIS_A0332	-	hypothetical protein
315	 61.17	0	335942..337033	+	363	163842592	-	BSUIS_A0334	-	2'-deoxycytidine 5'-triphosphate deaminase
316	 60.08	0	337124..338140	+	338	163842593	-	BSUIS_A0335	-	AraC family transcriptional regulator
317	 53.56	0	338227..338493	+	88	163842594	-	BSUIS_A0336	-	hypothetical protein
318	 59.83	0	338530..339012	+	160	163842595	-	BSUIS_A0337	-	SCP-like extracellular
319	 59.94	0	339187..340554	+	455	163842596	-	BSUIS_A0338	-	MATE efflux family protein
320	 60.37	0	340556..341650	-	364	163842597	pyrD	BSUIS_A0339	-	dihydroorotate dehydrogenase 2
321	 58.47	0	341647..342000	-	117	163842598	-	BSUIS_A0340	-	hypothetical protein
322	 54.89	0	342101..342601	-	166	163842599	-	BSUIS_A0341	-	hypothetical protein
323	 58.77	0	342254..342709	+	151	163842600	-	BSUIS_A0342	-	hypothetical protein
324	 58.99	0	342800..343750	-	316	163842601	pip	BSUIS_A0343	-	proline iminopeptidase
325	 58.57	0	343980..344621	+	213	163842602	-	BSUIS_A0344	-	two component LuxR family transcriptional regulator
326	 60.74	0	344658..348182	-	1174	163842603	-	BSUIS_A0345	-	integral membrane sensor hybrid histidine kinase
327	 52.38	-1	348467..348613	-	48	163842604	-	BSUIS_A0346	-	hypothetical protein
328	 52.76	0	348695..349111	+	138	163842605	mscL	BSUIS_A0347	-	large conductance mechanosensitive channel protein
329	 58.69	0	349187..350464	-	425	163842606	hemA	BSUIS_A0348	-	5-aminolevulinate synthase
57.01	MEAN

4.26	STD DEV
