IslandPathversion 1.0

IslandPath Analysis: Brucella suis ATCC 23445

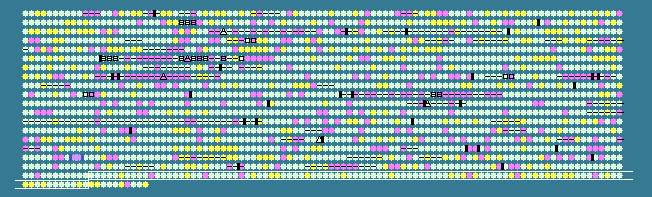

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1812	 58.30	0	1813229..1813933	+	234	163844089	dnaQ	BSUIS_A1912	-	DNA polymerase III subunit epsilon
1813	 56.91	0	1813992..1814483	-	163	163844090	secB	BSUIS_A1913	-	preprotein translocase subunit SecB
1814	 59.64	0	1814603..1815100	-	165	163844091	fxsA	BSUIS_A1914	-	FxsA
1815	 55.46	0	1815317..1816012	+	231	163844092	-	BSUIS_A1915	-	import inner membrane translocase subunit Tim44
1816	 60.18	0	1816076..1817185	+	369	163844093	-	BSUIS_A1916	-	MltA domain-containing protein
1817	 63.02	+1	1817191..1817793	+	200	163844094	-	BSUIS_A1917	-	Smr protein/MutS2
1818	 57.78	0	1817790..1818104	+	104	163844095	-	BSUIS_A1918	-	XRE family transcriptional regulator
1819	 56.37	0	1818180..1819199	-	339	163844096	-	BSUIS_A1919	-	hypothetical protein
1820	 59.77	0	1819346..1820650	-	434	163844097	hslU	BSUIS_A1920	-	ATP-dependent protease ATP-binding subunit
1821	 59.64	0	1820724..1821278	-	184	163844098	hslV	BSUIS_A1921	-	ATP-dependent protease peptidase subunit
1822	 51.77	-1	1821310..1821591	-	93	163844099	-	BSUIS_A1922	-	hypothetical protein
1823	 59.77	0	1821575..1822183	+	202	163844100	hisB	BSUIS_A1923	-	imidazoleglycerol-phosphate dehydratase
1824	 59.80	0	1822295..1822804	+	169	163844101	-	BSUIS_A1924	-	hypothetical protein
1825	 57.76	0	1822807..1823457	+	216	163844102	hisH	BSUIS_A1925	-	imidazole glycerol phosphate synthase subunit HisH
1826	 59.84	0	1823462..1824193	+	243	163844103	hisA	BSUIS_A1926	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1827	 60.18	0	1824190..1824975	+	261	163844104	hisF	BSUIS_A1927	-	imidazole glycerol phosphate synthase subunit HisF
1828	 62.04	+1	1825111..1825434	+	107	163844105	hisE	BSUIS_A1928	-	phosphoribosyl-ATP pyrophosphatase
1829	 57.59	0	1825449..1826417	+	322	163844106	coaA	BSUIS_A1929	-	pantothenate kinase
1830	 59.36	0	1826480..1826917	-	145	163844107	-	BSUIS_A1930	-	hypothetical protein
1831	 50.57	-1	1828923..1829096	-	57	163844108	-	BSUIS_A1932	-	hypothetical protein
1832	 58.33	0	1829041..1829760	+	239	163844109	chvI	BSUIS_A1933	-	transcriptional regulatory protein chvI
1833	 59.36	0	1829871..1831676	+	601	163844110	chvG	BSUIS_A1934	-	sensor protein chvG
1834	 60.21	0	1831702..1832181	+	159	163844111	hprK	BSUIS_A1935	-	HPr kinase/phosphorylase
1835	 55.22	0	1832433..1832834	+	133	163844112	-	BSUIS_A1936	-	PTS system fructose subfamily IIA component
1836	 59.37	0	1832838..1833152	+	104	163844113	-	BSUIS_A1937	-	HPr family phosphocarrier protein
1837	 50.63	-1	1833216..1833533	+	105	163844114	-	BSUIS_A1938	-	hypothetical protein
1838	 58.24	0	1833530..1834930	+	466	163844115	ahcY	BSUIS_A1939	-	S-adenosyl-L-homocysteine hydrolase
1839	 60.58	0	1835315..1837894	+	859	163844116	-	BSUIS_A1940	-	histidine kinase
1840	 59.14	0	1837903..1839444	+	513	163844117	-	BSUIS_A1941	-	hypothetical protein
1841	 59.44	0	1839431..1840150	+	239	163844118	-	BSUIS_A1942	-	nucleotidyl transferase
1842	 62.80	+1	1840165..1843323	+	1052	163844119	addB	BSUIS_A1943	-	double-strand break repair protein AddB
1843	 61.47	+1	1843320..1846862	+	1180	163844120	addA	BSUIS_A1944	-	double-strand break repair helicase AddA
1844	 58.33	0	1847044..1847367	+	107	163844121	trx	BSUIS_A1945	-	thioredoxin
1845	 59.89	0	1847581..1848909	-	442	163844122	folC	BSUIS_A1946	-	FolC bifunctional protein
1846	 57.40	0	1848912..1849817	-	301	163844123	accD	BSUIS_A1947	-	acetyl-CoA carboxylase subunit beta
1847	 58.69	0	1849878..1850717	-	279	163844124	trpA	BSUIS_A1948	-	tryptophan synthase subunit alpha
1848	 62.61	+1	1850714..1851181	-	155	163844125	-	BSUIS_A1949	-	hypothetical protein
1849	 59.87	0	1851184..1852404	-	406	163844126	trpB	BSUIS_A1950	-	tryptophan synthase subunit beta
1850	 58.59	0	1852424..1853092	-	222	163844127	trpF	BSUIS_A1951	-	N-(5'-phosphoribosyl)anthranilate isomerase
1851	 58.02	0	1853131..1853766	-	211	163844128	-	BSUIS_A1952	-	hypothetical protein
1852	 60.37	0	1853763..1854524	-	253	163844129	-	BSUIS_A1953	-	hypothetical protein
1853	 59.73	0	1854633..1855079	-	148	163844130	-	BSUIS_A1954	-	hypothetical protein
1854	 61.98	+1	1855261..1856412	-	383	163844131	-	BSUIS_A1955	-	benzoate transporter
1855	 60.23	0	1856426..1857217	-	263	163844132	-	BSUIS_A1956	-	hypothetical protein
1856	 54.57	0	1857649..1858053	+	134	163844133	infC	BSUIS_A1957	-	translation initiation factor IF-3
1857	 54.80	0	1858182..1858796	+	204	163844134	nccN	BSUIS_A1958	-	nickel-cobalt-cadmium resistance protein nccN
1858	 57.71	0	1859063..1859263	+	66	163844135	rpmI	BSUIS_A1959	-	50S ribosomal protein L35
1859	 57.78	0	1859291..1859695	+	134	163844136	rplT	BSUIS_A1960	-	50S ribosomal protein L20
1860	 57.76	0	1859640..1860650	+	336	163844137	-	BSUIS_A1961	-	hypothetical protein
1861	 59.19	0	1860711..1861820	+	369	163844138	pheS	BSUIS_A1962	-	phenylalanyl-tRNA synthetase subunit alpha
1862	 60.50	0	1861842..1864256	+	804	163844139	pheT	BSUIS_A1963	-	phenylalanyl-tRNA synthetase subunit beta
1863	 57.84	0	1864197..1867595	-	1132	163844198	-	BSUIS_A2024	-	NAD-specific glutamate dehydrogenase
1864	 58.05	0	1864326..1865312	+	328	163844140	-	BSUIS_A1964	-	hypothetical protein
1865	 58.41	0	1865538..1867451	+	637	163844141	dnaK	BSUIS_A1965	-	molecular chaperone DnaK
1866	 59.61	0	1867696..1868829	+	377	163844142	dnaJ	BSUIS_A1966	-	chaperone protein DnaJ
1867	 56.33	0	1868950..1869549	+	199	163844143	-	BSUIS_A1967	-	phosphatidylethanolamine N-methyltransferase / phosphatidyl-N-methylethanolamine N-methyltransferase
1868	 60.25	0	1869759..1870475	+	238	163844144	pyrF	BSUIS_A1968	-	orotidine 5'-phosphate decarboxylase
1869	 58.33	0	1870524..1870811	+	95	163844145	-	BSUIS_A1969	-	hypothetical protein
1870	 58.08	0	1870849..1872036	-	395	163844146	-	BSUIS_A1970	-	regucalcin
1871	 58.89	0	1871972..1872910	+	312	163844147	gshB	BSUIS_A1971	-	glutathione synthetase
1872	 62.26	+1	1872987..1874552	+	521	163844148	-	BSUIS_A1972	-	Mg chelatase-related protein
1873	 57.81	0	1874601..1875221	-	206	163844149	-	BSUIS_A1973	-	transglutaminase family protein cysteine peptidase BTLCP
1874	 60.78	0	1875669..1876025	-	118	163844150	rlpA	BSUIS_A1974	-	rare lipoprotein A
1875	 42.92	-2	1876184..1876402	+	72	163844151	-	BSUIS_A1975	-	hypothetical protein
1876	 61.54	+1	1876635..1876985	+	116	163844152	-	BSUIS_A1976	-	hypothetical protein
1877	 56.73	0	1877140..1878186	+	348	163844153	-	BSUIS_A1977	-	hypothetical protein
1878	 60.23	0	1878328..1879818	+	496	163844154	pstC	BSUIS_A1978	-	phosphate ABC transporter, permease protein PstC
1879	 59.88	0	1879818..1881128	+	436	163844155	pstA	BSUIS_A1979	-	phosphate ABC transporter, permease protein PstA
1880	 59.12	0	1881145..1881966	+	273	163844156	pstB	BSUIS_A1980	-	phosphate ABC transporter, ATP-binding protein
1881	 57.54	0	1882032..1882754	+	240	163844157	phoU	BSUIS_A1981	-	phosphate transport system regulatory protein PhoU
1882	 61.86	+1	1882872..1883558	+	228	163844158	phoB	BSUIS_A1982	-	phosphate regulon transcriptional regulatory protein PhoB
1883	 48.43	-2	1883914..1884072	-	52	163844159	-	BSUIS_A1983	-	hypothetical protein
1884	 61.98	+1	1884144..1885124	+	326	163844160	-	BSUIS_A1984	-	cell wall hydrolase SleB
1885	 54.32	0	1885234..1885557	-	107	163844161	-	BSUIS_A1985	-	lipoprotein
1886	 60.77	0	1885634..1886887	+	417	163844162	-	BSUIS_A1986	-	aminopeptidase T
1887	 55.62	0	1887048..1887545	-	165	163844163	dps	BSUIS_A1987	-	DNA starvation/stationary phase protection protein Dps
1888	 60.58	0	1887828..1888517	+	229	163844164	-	BSUIS_A1988	-	peptidase M22 glycoprotease
1889	 61.08	0	1888522..1889022	+	166	163844165	rimI	BSUIS_A1989	-	ribosomal-protein-alanine acetyltransferase
1890	 59.95	0	1889019..1889822	+	267	163844166	plsC	BSUIS_A1990	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
1891	 61.04	0	1889880..1891283	+	467	163844167	-	BSUIS_A1991	-	RNA modification protein
1892	 61.08	0	1891520..1892503	+	327	163844168	-	BSUIS_A1992	-	hypothetical protein
1893	 55.03	0	1892639..1893145	+	168	163844169	-	BSUIS_A1993	-	hypothetical protein
1894	 59.96	0	1893148..1894266	+	372	163844170	tlyC	BSUIS_A1994	-	hemolysin C
1895	 60.23	0	1894263..1895861	+	532	163844171	lnt	BSUIS_A1995	-	apolipoprotein N-acyltransferase
1896	 53.14	0	1896008..1896421	+	137	163844172	-	BSUIS_A1996	-	hypothetical protein
1897	 60.43	0	1896648..1897913	+	421	163844173	metK	BSUIS_A1997	-	S-adenosylmethionine synthetase
1898	 61.54	+1	1897922..1898623	+	233	163844174	trmB	BSUIS_A1998	-	tRNA (guanine-N(7))-methyltransferase
1899	 59.09	0	1898803..1899462	+	219	163844175	-	BSUIS_A1999	-	hypothetical protein
1900	 59.23	0	1899515..1901128	+	537	163844176	nusA	BSUIS_A2000	-	transcription elongation factor NusA
1901	 60.70	0	1901510..1902112	+	200	163844177	-	BSUIS_A2001	-	hypothetical protein
1902	 62.92	+1	1902250..1905129	+	959	163844178	infB	BSUIS_A2002	-	translation initiation factor IF-2
1903	 58.72	0	1905395..1905847	+	150	163844179	rbfA	BSUIS_A2003	-	ribosome-binding factor A
1904	 60.51	0	1905851..1906825	+	324	163844180	truB	BSUIS_A2004	-	tRNA pseudouridine synthase B
1905	 56.30	0	1906996..1907265	+	89	163844181	rpsO	BSUIS_A2005	-	30S ribosomal protein S15
1906	 57.48	0	1907549..1909693	+	714	163844182	pnp	BSUIS_A2006	-	polynucleotide phosphorylase/polyadenylase
1907	 57.48	0	1909804..1910826	+	340	163844183	-	BSUIS_A2007	-	methyltransferase small
1908	 58.49	0	1910874..1911692	-	272	163844184	fabI	BSUIS_A2008	-	enoyl-(acyl carrier protein) reductase
1909	 58.91	0	1911707..1912930	-	407	163844185	-	BSUIS_A2009	-	3-oxoacyl-(acyl carrier protein) synthase I
1910	 62.04	+1	1913096..1913614	-	172	163844186	fabA	BSUIS_A2010	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
1911	 58.33	0	1913861..1914304	+	147	163844187	fur	BSUIS_A2011	-	ferric uptake regulation protein
57.01	MEAN

4.26	STD DEV
