IslandPathversion 1.0

IslandPath Analysis: Brucella suis ATCC 23445

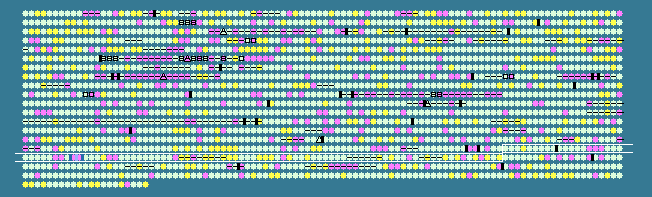

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1581	 56.25	0	1577310..1578221	-	303	163843858	-	BSUIS_A1666	-	binding-protein-dependent transport systems inner membrane component
1582	 57.55	0	1578237..1579388	-	383	163843859	-	BSUIS_A1667	-	polyamine ABC transporter, ATP-binding protein
1583	 55.34	0	1579630..1580733	-	367	163843860	-	BSUIS_A1668	-	hypothetical protein
1584	 62.63	+1	1580955..1582367	-	470	163843861	-	BSUIS_A1669	-	hypothetical protein
1585	 60.23	0	1582616..1583905	+	429	163843862	aceA	BSUIS_A1670	-	isocitrate lyase
1586	 55.70	0	1583940..1584176	+	78	163843863	-	BSUIS_A1671	-	hypothetical protein
1587	 55.04	0	1584173..1584301	+	42	163843864	-	BSUIS_A1672	-	hypothetical protein
1588	 55.04	0	1584298..1584426	+	42	163843865	-	BSUIS_A1673	-	hypothetical protein
1589	 54.49	0	1584410..1584565	-	51	163843866	-	BSUIS_A1674	-	hypothetical protein
1590	 59.64	0	1585388..1586155	+	255	163843867	-	BSUIS_A1676	-	7-alpha-hydroxysteroid dehydrogenase
1591	 56.98	0	1586221..1587015	+	264	163843868	-	BSUIS_A1677	-	hypothetical protein
1592	 56.10	0	1587022..1588782	+	586	163843869	-	BSUIS_A1678	-	hypothetical protein
1593	 57.72	0	1588798..1589412	+	204	163843870	-	BSUIS_A1679	-	hypothetical protein
1594	 54.20	0	1589692..1590477	+	261	163843871	ropB	BSUIS_A1680	-	22 kDa outer membrane protein precursor
1595	 53.51	0	1590614..1592164	-	516	163843872	-	BSUIS_A1681	-	patatin-like phospholipase domain-containing protein
1596	 47.06	-2	1592465..1592566	-	33	163843873	-	BSUIS_A1682	-	hypothetical protein
1597	 49.29	-1	1592717..1592998	+	93	163843874	-	BSUIS_A1683	-	hypothetical protein
1598	 55.11	0	1593275..1594018	-	247	163843875	-	BSUIS_A1684	-	dihydroxyacetone kinase, L subunit
1599	 56.12	0	1593988..1596072	-	694	163843876	-	BSUIS_A1685	-	3,4-dihydroxy-2-butanone kinase
1600	 57.53	0	1596231..1596887	-	218	163843877	-	BSUIS_A1686	-	dihydroxyacetone kinase, L subunit
1601	 56.66	0	1596884..1597912	-	342	163843878	-	BSUIS_A1687	-	3,4-dihydroxy-2-butanone kinase
1602	 55.81	0	1597909..1598682	-	257	163843879	polS	BSUIS_A1688	-	short chain dehydrogenase
1603	 55.35	0	1598771..1599760	-	329	163843880	mocB	BSUIS_A1689	-	rhizopine-binding protein precursor
1604	 57.21	0	1599936..1600940	-	334	163843881	-	BSUIS_A1690	-	hypothetical protein
1605	 55.85	0	1601036..1602514	-	492	163843882	-	BSUIS_A1691	-	ribose/galactose/methyl galactoside import ATP-binding protein 2
1606	 53.46	0	1602810..1603127	+	105	163843883	-	BSUIS_A1692	-	hypothetical protein
1607	 52.71	-1	1603257..1603385	-	42	163843884	-	BSUIS_A1693	-	hypothetical protein
1608	 56.56	0	1603484..1605145	+	553	163843885	betA	BSUIS_A1694	-	choline dehydrogenase
1609	 45.10	-2	1605795..1605947	+	50	163843886	-	BSUIS_A1697	-	hypothetical protein
1610	 42.80	-2	1608902..1609144	+	80	163843887	-	BSUIS_A1699	-	hypothetical protein
1611	 58.95	0	1612059..1614014	+	651	163843888	-	BSUIS_A1703	-	peptidase M23B
1612	 59.09	0	1614082..1615308	-	408	163843889	-	BSUIS_A1704	-	ATP synthase subunits region ORF 5
1613	 58.74	0	1615981..1618605	-	874	163843890	clpB	BSUIS_A1705	-	chaperone clpB
1614	 62.85	+1	1618804..1619562	-	252	163843891	-	BSUIS_A1706	-	hypothetical protein
1615	 50.55	-1	1619543..1619815	-	90	163843892	-	BSUIS_A1707	-	hypothetical protein
1616	 49.66	-1	1619877..1620023	+	48	163843893	-	BSUIS_A1708	-	hypothetical protein
1617	 58.00	0	1620007..1620894	-	295	163843894	-	BSUIS_A1709	-	HemK family methyltransferase
1618	 60.00	0	1620891..1621970	-	359	163843895	prfA	BSUIS_A1710	-	peptide chain release factor 1
1619	 60.46	0	1622167..1624437	-	756	163843896	ptsI	BSUIS_A1711	-	phosphoenolpyruvate-protein phosphotransferase
1620	 59.12	0	1624765..1626036	-	423	163843897	-	BSUIS_A1712	-	aspartate kinase
1621	 59.71	0	1626254..1627000	+	248	163843898	ubiG	BSUIS_A1713	-	3-demethylubiquinone-9 3-methyltransferase
1622	 59.17	0	1627006..1627899	-	297	163843899	-	BSUIS_A1714	-	hypothetical protein
1623	 56.57	0	1627927..1628352	-	141	163843900	-	BSUIS_A1715	-	hypothetical protein
1624	 60.00	0	1628358..1629212	-	284	163843901	-	BSUIS_A1716	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
1625	 56.55	0	1629223..1629489	-	88	163843902	grxC	BSUIS_A1717	-	glutaredoxin 3
1626	 44.72	-2	1629473..1629595	+	40	163843903	-	BSUIS_A1718	-	hypothetical protein
1627	 61.98	+1	1629573..1630361	-	262	163843904	gntX	BSUIS_A1719	-	protein gntX
1628	 62.30	+1	1630544..1631437	+	297	163843905	bioC	BSUIS_A1720	-	biotin synthesis protein BioC
1629	 51.11	-1	1631503..1631637	-	44	163843906	-	BSUIS_A1721	-	hypothetical protein
1630	 55.42	0	1632850..1633329	-	159	163843907	-	BSUIS_A1723	-	hypothetical protein
1631	 61.96	+1	1633745..1635316	-	523	163843908	-	BSUIS_A1724	-	HemY domain-containing protein
1632	 62.09	+1	1635329..1636705	-	458	163843909	-	BSUIS_A1725	-	hypothetical protein
1633	 58.76	0	1636788..1637495	-	235	163843910	-	BSUIS_A1726	-	uroporphyrinogen-III synthase
1634	 62.43	+1	1637519..1638463	-	314	163843911	hemC	BSUIS_A1727	-	porphobilinogen deaminase
1635	 63.52	+1	1638582..1639661	+	359	163843912	-	BSUIS_A1728	-	O-sialoglycoprotein endopeptidase
1636	 62.49	+1	1639658..1640638	+	326	163843913	gpsA	BSUIS_A1729	-	glycerol-3-phosphate dehydrogenase (NAD(P)+)
1637	 60.48	0	1640640..1640930	+	96	163843914	-	BSUIS_A1730	-	YciI-like protein
1638	 58.04	0	1640943..1641371	+	142	163843915	-	BSUIS_A1731	-	hypothetical protein
1639	 58.87	0	1641323..1642027	+	234	163843916	prmA	BSUIS_A1732	-	ribosomal protein L11 methyltransferase
1640	 61.42	+1	1642073..1642930	-	285	163843917	-	BSUIS_A1733	-	hypothetical protein
1641	 62.12	+1	1643046..1644539	+	497	163843918	-	BSUIS_A1734	-	GntR family transcriptional regulator
1642	 61.25	0	1644601..1647165	-	854	163843919	ftsK	BSUIS_A1735	-	DNA translocase ftsK
1643	 59.06	0	1647375..1648676	-	433	163843920	amt	BSUIS_A1736	-	ammonium transporter
1644	 53.46	0	1648650..1648808	+	52	163843921	-	BSUIS_A1737	-	hypothetical protein
1645	 62.57	+1	1650020..1651264	+	414	163843922	-	BSUIS_A1739	-	2-octaprenyl-6-methoxyphenyl hydroxylase
1646	 55.91	0	1651350..1651721	-	123	163843923	-	BSUIS_A1740	-	glyoxalase/bleomycin resistance protein/dioxygenase
1647	 56.92	0	1651968..1652747	-	259	163843924	-	BSUIS_A1741	-	succinate dehydrogenase iron-sulfur subunit
1648	 61.78	+1	1652763..1654604	-	613	163843925	sdhA	BSUIS_A1742	-	succinate dehydrogenase flavoprotein subunit
1649	 54.29	0	1654612..1655007	-	131	163843926	sdhD	BSUIS_A1743	-	succinate dehydrogenase, hydrophobic membrane anchor protein
1650	 59.40	0	1655021..1655419	-	132	163843927	sdhC	BSUIS_A1744	-	succinate dehydrogenase, cytochrome b556 subunit
1651	 56.64	0	1655764..1656222	-	152	163843928	-	BSUIS_A1745	-	hypothetical protein
1652	 60.28	0	1656479..1657888	-	469	163843929	leuC	BSUIS_A1746	-	isopropylmalate isomerase large subunit
1653	 58.45	0	1658099..1658536	-	145	163843930	rplS	BSUIS_A1747	-	50S ribosomal protein L19
1654	 56.28	0	1658828..1660291	+	487	163843931	-	BSUIS_A1748	-	hypothetical protein
1655	 59.92	0	1660444..1660695	-	83	163843932	-	BSUIS_A1749	-	hypothetical protein
1656	 59.12	0	1660692..1661102	-	136	163843933	-	BSUIS_A1750	-	hypothetical protein
1657	 59.23	0	1661095..1661457	-	120	163843934	-	BSUIS_A1751	-	hypothetical protein
1658	 55.56	0	1661454..1661777	-	107	163843935	-	BSUIS_A1752	-	NIPSNAP family protein
1659	 59.01	0	1661848..1662513	+	221	163843936	-	BSUIS_A1753	-	ArsR family transcriptional regulator
1660	 61.50	+1	1662648..1663382	-	244	163843937	trmD	BSUIS_A1754	-	tRNA (guanine-N(1)-)-methyltransferase
1661	 57.89	0	1663379..1663948	-	189	163843938	rimM	BSUIS_A1755	-	16S rRNA-processing protein
1662	 62.76	+1	1664172..1665119	+	315	163843939	xerC	BSUIS_A1756	-	site-specific tyrosine recombinase XerC
1663	 56.59	0	1665173..1666174	+	333	163843940	-	BSUIS_A1757	-	GumN family protein
1664	 58.33	0	1666378..1667781	-	467	163843941	lpdA	BSUIS_A1758	-	dihydrolipoamide dehydrogenase
1665	 53.22	0	1667950..1668492	-	180	163843942	-	BSUIS_A1759	-	hypothetical protein
1666	 55.56	0	1668563..1669201	-	212	163843943	-	BSUIS_A1760	-	lysine exporter protein LysE/YggA
1667	 59.90	0	1669243..1669656	-	137	163843944	-	BSUIS_A1761	-	hypothetical protein
1668	 61.45	+1	1669666..1670892	-	408	163843945	sucB	BSUIS_A1762	-	dihydrolipoamide acetyltransferase
1669	 59.30	0	1670954..1673968	-	1004	163843946	sucA	BSUIS_A1763	-	alpha-ketoglutarate decarboxylase
1670	 56.67	0	1674105..1674254	+	49	163843947	-	BSUIS_A1764	-	hypothetical protein
1671	 60.69	0	1674244..1675146	-	300	163843948	-	BSUIS_A1765	-	succinyl-CoA synthetase subunit alpha
1672	 57.64	0	1675150..1676346	-	398	163843949	-	BSUIS_A1766	-	succinyl-CoA synthetase subunit beta
1673	 61.37	+1	1676453..1677415	-	320	163843950	mdh	BSUIS_A1767	-	malate dehydrogenase
1674	 52.26	-1	1677535..1677777	-	80	163843951	-	BSUIS_A1768	-	hypothetical protein
1675	 57.65	0	1677883..1679046	-	387	163843952	-	BSUIS_A1769	-	AFG1 family ATPase
1676	 63.48	+1	1679166..1679699	-	177	163843953	-	BSUIS_A1770	-	hypothetical protein
1677	 50.00	-1	1679829..1680032	-	67	163843954	-	BSUIS_A1771	-	hypothetical protein
1678	 63.16	+1	1680063..1680974	+	303	163843955	dapF	BSUIS_A1772	-	diaminopimelate epimerase
1679	 60.05	0	1680974..1682257	+	427	163843956	-	BSUIS_A1773	-	MiaB-like tRNA modifying enzyme
1680	 60.73	0	1682279..1683676	+	465	163843957	ftsY	BSUIS_A1774	-	signal recognition particle-docking protein FtsY
57.01	MEAN

4.26	STD DEV
