IslandPath Analysis: Brucella suis ATCC 23445

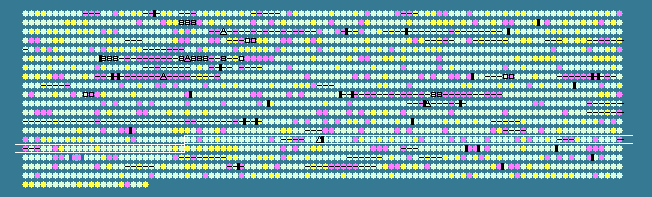

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1428	 60.04	0	1430544..1431569	-	341	163843705	-	BSUIS_A1504	-	methyltransferase type 11
1429	 58.64	0	1431689..1432012	+	107	163843706	-	BSUIS_A1505	-	hypothetical protein
1430	 50.20	-1	1433401..1433655	+	84	163843707	-	BSUIS_A1507	-	hypothetical protein
1431	 56.25	0	1433829..1434596	-	255	163843708	tam	BSUIS_A1508	-	trans-aconitate 2-methyltransferase
1432	 56.12	0	1434669..1436318	-	549	163843709	-	BSUIS_A1509	-	putative ABC transporter ATP-binding protein
1433	 61.11	0	1436398..1436577	-	59	163843710	-	BSUIS_A1510	-	hypothetical protein
1434	 57.14	0	1436814..1437758	+	314	163843711	-	BSUIS_A1511	-	lysophospholipase L2
1435	 56.48	0	1438557..1439243	-	228	163843712	-	BSUIS_A1513	-	hypothetical protein
1436	 57.29	0	1439594..1440841	+	415	163843713	-	BSUIS_A1514	-	biphenyl dioxygenase subunit alpha
1437	 59.25	0	1440875..1441993	+	372	163843714	-	BSUIS_A1515	-	ferredoxin, leaf L-A
1438	 55.86	0	1441996..1442217	-	73	163843715	-	BSUIS_A1516	-	hypothetical protein
1439	 56.67	0	1442355..1442984	+	209	163843716	-	BSUIS_A1517	-	nicotinamidase
1440	 54.52	0	1442981..1444042	-	353	163843717	-	BSUIS_A1518	-	hypothetical protein
1441	 53.93	0	1444389..1444655	+	88	163843718	-	BSUIS_A1519	-	hypothetical protein
1442	 51.11	-1	1444611..1444790	-	59	163843719	-	BSUIS_A1520	-	hypothetical protein
1443	 54.44	0	1444853..1445956	-	367	163843720	-	BSUIS_A1521	-	penicillin acylase precursor
1444	 54.48	0	1446232..1447035	+	267	163843721	-	BSUIS_A1522	-	hypothetical protein
1445	 60.83	0	1447239..1447358	-	39	163843722	-	BSUIS_A1523	-	hypothetical protein
1446	 48.28	-2	1447642..1447815	+	57	163843723	-	BSUIS_A1524	-	hypothetical protein
1447	 43.86	-2	1447869..1448096	-	75	163843724	-	BSUIS_A1525	-	hypothetical protein
1448	 59.89	0	1448222..1448575	+	117	163843725	-	BSUIS_A1526	-	hypothetical protein
1449	 57.07	0	1448736..1449308	-	190	163843726	-	BSUIS_A1527	-	hypothetical protein
1450	 55.15	0	1449544..1450038	+	164	163843727	-	BSUIS_A1528	-	integrase/recombinase
1451	 55.64	0	1450456..1451208	+	250	163843728	-	BSUIS_A1530	-	26 kDa periplasmic immunogenic protein precursor
1452	 58.84	0	1451382..1451726	-	114	163843729	-	BSUIS_A1531	-	hypothetical protein
1453	 54.68	0	1451970..1452428	-	152	163843730	-	BSUIS_A1532	-	hypothetical protein
1454	 54.98	0	1452620..1452910	-	96	163843731	-	BSUIS_A1533	-	hypothetical protein
1455	 56.72	0	1452934..1454934	-	666	163843732	rpoD	BSUIS_A1534	-	RNA polymerase sigma factor RpoD
1456	 48.08	-2	1454965..1455120	-	51	163843733	-	BSUIS_A1535	-	hypothetical protein
1457	 61.53	+1	1455402..1457369	-	655	163843734	dnaG	BSUIS_A1536	-	DNA primase
1458	 59.21	0	1457739..1459415	+	558	163843735	-	BSUIS_A1537	-	Na+ cotransporter
1459	 57.84	0	1459482..1459934	-	150	163843736	-	BSUIS_A1538	-	GatB/Yqey domain-containing protein
1460	 60.62	0	1460314..1461537	+	407	163843737	carA	BSUIS_A1539	-	carbamoyl phosphate synthase small subunit
1461	 54.32	0	1461350..1461673	+	107	163843738	-	BSUIS_A1540	-	hypothetical protein
1462	 61.27	+1	1461709..1462635	-	308	163843739	-	BSUIS_A1541	-	protein of unknown function zinc metallopeptidase
1463	 54.34	0	1462752..1463270	-	172	163843740	-	BSUIS_A1542	-	transmembrane protein
1464	 56.93	0	1463356..1464156	+	266	163843741	-	BSUIS_A1543	-	hypothetical protein
1465	 55.77	0	1464224..1464379	+	51	163843742	-	BSUIS_A1544	-	hypothetical protein
1466	 60.50	0	1464391..1467879	+	1162	163843743	carB	BSUIS_A1545	-	carbamoyl phosphate synthase large subunit
1467	 50.41	-1	1468476..1468598	-	40	163843744	-	BSUIS_A1546	-	hypothetical protein
1468	 58.57	0	1468595..1470460	-	621	163843745	-	BSUIS_A1547	-	ABC transporter
1469	 55.19	0	1470650..1471111	+	153	163843746	-	BSUIS_A1548	-	NUDIX hydrolase
1470	 58.10	0	1471304..1471513	+	69	163843747	-	BSUIS_A1549	-	hypothetical protein
1471	 57.03	0	1471643..1472254	-	203	163843748	gstA	BSUIS_A1550	-	protein gstA
1472	 49.61	-1	1472377..1472505	-	42	163843749	-	BSUIS_A1551	-	hypothetical protein
1473	 58.35	0	1472504..1473706	+	400	163843750	aspC	BSUIS_A1552	-	aspartate aminotransferase
1474	 39.35	-2	1473908..1474123	+	71	163843751	-	BSUIS_A1553	-	hypothetical protein
1475	 57.06	0	1474175..1475080	-	301	163843752	-	BSUIS_A1554	-	hypothetical protein
1476	 59.79	0	1475151..1476125	-	324	163843753	trxB	BSUIS_A1555	-	thioredoxin-disulfide reductase
1477	 57.67	0	1476447..1477847	+	466	163843754	-	BSUIS_A1556	-	cation transporter
1478	 51.52	-1	1477854..1478018	+	54	163843755	-	BSUIS_A1557	-	hypothetical protein
1479	 59.02	0	1478105..1478575	+	156	163843756	lrp	BSUIS_A1558	-	leucine-responsive regulatory protein
1480	 57.75	0	1478582..1479646	-	354	163843757	lpcC	BSUIS_A1559	-	lipopolysaccharide core biosynthesis mannosyltransferase lpcC
1481	 55.06	0	1479653..1480126	-	157	163843758	greA	BSUIS_A1560	-	transcription elongation factor GreA
1482	 54.73	0	1480395..1481450	-	351	163843759	-	BSUIS_A1561	-	hypothetical protein
1483	 48.68	-1	1481440..1481628	-	62	163843760	-	BSUIS_A1562	-	hypothetical protein
1484	 60.75	0	1481606..1482517	+	303	163843761	-	BSUIS_A1563	-	hypothetical protein
1485	 52.99	0	1482522..1482872	-	116	163843762	-	BSUIS_A1564	-	hypothetical protein
1486	 59.76	0	1483150..1484061	+	303	163843763	-	BSUIS_A1565	-	extensin family protein
1487	 57.95	0	1484194..1484583	-	129	163843764	-	BSUIS_A1566	-	thioesterase superfamily protein
1488	 60.65	0	1484805..1485386	+	193	163843765	-	BSUIS_A1567	-	SH3 type 3 domain-containing protein
1489	 60.33	0	1485512..1488334	+	940	163843766	uvrB	BSUIS_A1568	-	excinuclease ABC subunit B
1490	 60.45	0	1488466..1489269	+	267	163843767	-	BSUIS_A1569	-	lytic transglycosylase catalytic
1491	 52.31	-1	1489764..1489979	+	71	163843768	-	BSUIS_A1571	-	hypothetical protein
1492	 50.00	-1	1490217..1490336	-	39	163843769	-	BSUIS_A1572	-	hypothetical protein
1493	 61.79	+1	1490396..1490908	+	170	163843770	-	BSUIS_A1573	-	hypothetical protein
1494	 58.30	0	1490967..1491623	-	218	163843771	-	BSUIS_A1574	-	beta-lactamase domain-containing protein
1495	 58.51	0	1491837..1492118	-	93	163843772	-	BSUIS_A1575	-	hypothetical protein
1496	 46.80	-2	1492293..1492589	+	98	163843773	-	BSUIS_A1576	-	hypothetical protein
1497	 53.54	0	1492586..1493179	+	197	163843774	petP	BSUIS_A1577	-	HTH-type transcriptional regulator petP
1498	 59.23	0	1493261..1493986	+	241	163843775	petR	BSUIS_A1578	-	protein petR
1499	 59.52	0	1494130..1495473	+	447	163843776	-	BSUIS_A1579	-	integral membrane sensor signal transduction histidine kinase
1500	 50.39	-1	1495477..1495605	+	42	163843777	-	BSUIS_A1580	-	hypothetical protein
1501	 45.58	-2	1495805..1495951	-	48	163843778	-	BSUIS_A1581	-	hypothetical protein
1502	 54.60	0	1495905..1496252	-	115	163843779	csaA	BSUIS_A1582	-	export-related chaperone CsaA
1503	 50.91	-1	1496230..1496394	-	54	163843780	-	BSUIS_A1583	-	hypothetical protein
1504	 56.89	0	1496391..1496891	-	166	163843781	-	BSUIS_A1584	-	hypothetical protein
1505	 56.39	0	1497320..1497640	-	106	163843782	-	BSUIS_A1585	-	hypothetical protein
1506	 51.77	-1	1497658..1497798	-	46	163843783	-	BSUIS_A1586	-	hypothetical protein
1507	 61.70	+1	1497825..1498670	+	281	163843784	lgt	BSUIS_A1587	-	prolipoprotein diacylglyceryl transferase
1508	 59.20	0	1498663..1499760	+	365	163843785	-	BSUIS_A1588	-	hypothetical protein
1509	 58.57	0	1499940..1500791	+	283	163843786	-	BSUIS_A1589	-	hypothetical protein
1510	 57.81	0	1500904..1502055	+	383	163843787	pepQ	BSUIS_A1590	-	Xaa-Pro dipeptidase
1511	 58.92	0	1502109..1502663	+	184	163843788	-	BSUIS_A1591	-	hypothetical protein
1512	 59.70	0	1503002..1503934	+	310	163843789	prs	BSUIS_A1592	-	ribose-phosphate pyrophosphokinase
1513	 62.84	+1	1504082..1505623	-	513	163843790	-	BSUIS_A1593	-	hypothetical protein
1514	 58.17	0	1506315..1506938	+	207	163843791	-	BSUIS_A1594	-	50S ribosomal protein L25/general stress protein Ctc
1515	 57.10	0	1506967..1507719	+	250	163843792	pth	BSUIS_A1595	-	peptidyl-tRNA hydrolase
1516	 59.33	0	1507807..1508910	+	367	163843793	ychF	BSUIS_A1596	-	translation-associated GTPase
1517	 57.49	0	1508972..1509472	+	166	163843794	-	BSUIS_A1597	-	dehydratase
1518	 57.76	0	1509469..1509951	+	160	163843795	-	BSUIS_A1598	-	dehydratase
1519	 56.33	0	1509993..1510553	-	186	163843796	apt	BSUIS_A1599	-	adenine phosphoribosyltransferase
1520	 57.43	0	1510861..1511748	-	295	163843797	petC	BSUIS_A1600	-	cytochrome c1 precursor
1521	 57.04	0	1511762..1513060	-	432	163843798	petB	BSUIS_A1601	-	cytochrome b
1522	 58.16	0	1513082..1513645	-	187	163843799	petA	BSUIS_A1602	-	ubiquinol-cytochrome c reductase, iron-sulfur subunit
1523	 58.41	0	1513897..1515762	-	621	163843800	-	BSUIS_A1603	-	ABC transporter related
1524	 57.62	0	1515919..1517775	-	618	163843801	-	BSUIS_A1604	-	ABC transporter related
1525	 58.54	0	1517932..1518411	+	159	163843802	-	BSUIS_A1605	-	tRNA/rRNA methyltransferase (SpoU)
1526	 62.07	+1	1519669..1519929	-	86	163843803	-	BSUIS_A1607	-	hypothetical protein
1527	 57.57	0	1520223..1521134	+	303	163843804	-	BSUIS_A1608	-	coproporphyrinogen III oxidase
57.01	MEAN

4.26	STD DEV
