IslandPath Analysis: Brucella suis ATCC 23445

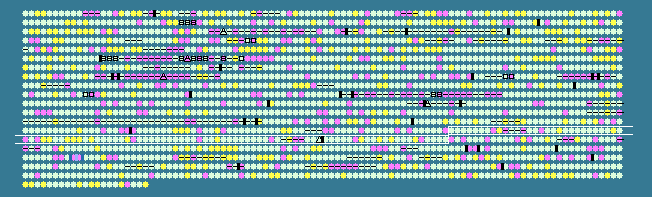

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1372	 58.67	0	1368979..1370553	-	524	163843649	degP	BSUIS_A1445	-	protease Do
1373	 60.22	0	1370777..1370962	-	61	163843650	-	BSUIS_A1446	-	hypothetical protein
1374	 60.13	0	1370982..1371884	-	300	163843651	hflC	BSUIS_A1447	-	HflC protein
1375	 59.17	0	1371884..1373083	-	399	163843652	hflK	BSUIS_A1448	-	HflK protein
1376	 57.80	0	1373160..1373678	-	172	163843653	-	BSUIS_A1449	-	dihydrofolate reductase type 3
1377	 55.60	0	1373681..1374475	-	264	163843654	thyA	BSUIS_A1450	-	thymidylate synthase
1378	 57.69	0	1374576..1374887	-	103	163843655	-	BSUIS_A1451	-	hypothetical protein
1379	 47.62	-2	1375315..1375356	+	13	163843656	-	BSUIS_A1452	-	tmRNA tag peptide
1380	 60.56	0	1375460..1376671	-	403	163843657	-	BSUIS_A1453	-	Bcr/CflA subfamily drug resistance transporter
1381	 51.70	-1	1376688..1376834	-	48	163843658	-	BSUIS_A1454	-	hypothetical protein
1382	 56.94	0	1377065..1377691	+	208	163843659	-	BSUIS_A1455	-	TetR family transcriptional regulator
1383	 54.04	0	1377772..1378341	+	189	163843660	-	BSUIS_A1456	-	hypothetical protein
1384	 52.24	-1	1378721..1378921	+	66	163843661	-	BSUIS_A1457	-	hypothetical protein
1385	 57.54	0	1378918..1379169	+	83	163843662	-	BSUIS_A1458	-	hypothetical protein
1386	 60.20	0	1379197..1382940	-	1247	163843663	-	BSUIS_A1459	-	AsmA family protein
1387	 48.23	-2	1382995..1383135	-	46	163843664	-	BSUIS_A1460	-	hypothetical protein
1388	 59.42	0	1383132..1384538	-	468	163843665	-	BSUIS_A1461	-	hypothetical protein
1389	 60.39	0	1384563..1385072	-	169	163843666	-	BSUIS_A1462	-	hypothetical protein
1390	 60.54	0	1385192..1386268	+	358	163843667	-	BSUIS_A1463	-	serine/threonine protein kinase
1391	 59.45	0	1386327..1388903	+	858	163843668	pcrA	BSUIS_A1464	-	ATP-dependent DNA helicase pcrA
1392	 54.22	0	1388977..1389474	-	165	163843669	-	BSUIS_A1465	-	CreA family protein
1393	 56.96	0	1389539..1390228	-	229	163843670	-	BSUIS_A1466	-	chloramphenicol acetyltransferase
1394	 55.33	0	1390337..1390927	+	196	163843671	-	BSUIS_A1467	-	electron transport protein SCO1/SenC
1395	 58.16	0	1390965..1391822	+	285	163843672	prmA	BSUIS_A1468	-	ribosomal protein L11 methyltransferase
1396	 59.50	0	1391905..1393731	+	608	163843673	-	BSUIS_A1469	-	peptidase M24
1397	 56.88	0	1393732..1394436	-	234	163843674	-	BSUIS_A1470	-	hypothetical protein
1398	 59.95	0	1394436..1396595	-	719	163843675	ligA	BSUIS_A1471	-	NAD-dependent DNA ligase LigA
1399	 62.32	+1	1396781..1398460	-	559	163843676	recN	BSUIS_A1472	-	DNA repair protein RecN
1400	 56.60	0	1398473..1399336	-	287	163843677	-	BSUIS_A1473	-	hypothetical protein
1401	 49.19	-1	1399438..1399683	+	81	163843678	-	BSUIS_A1474	-	hypothetical protein
1402	 56.45	0	1399743..1400603	-	286	163843679	lpxC	BSUIS_A1475	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1403	 46.83	-2	1400706..1400831	+	41	163843680	-	BSUIS_A1476	-	hypothetical protein
1404	 63.79	+1	1401143..1402843	-	566	163843681	ftsZ	BSUIS_A1477	-	cell division protein FtsZ
1405	 60.70	0	1402940..1404262	-	440	163843682	ftsA	BSUIS_A1478	-	cell division protein FtsA
1406	 58.13	0	1404259..1405125	-	288	163843683	ftsQ	BSUIS_A1479	-	cell division protein FtsQ
1407	 55.34	0	1405182..1406108	-	308	163843684	-	BSUIS_A1480	-	D-alanine--D-alanine ligase
1408	 61.30	+1	1406351..1407319	-	322	163843685	murB	BSUIS_A1481	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1409	 61.09	0	1407319..1408734	-	471	163843686	murC	BSUIS_A1482	-	UDP-N-acetylmuramate--L-alanine ligase
1410	 62.02	+1	1408731..1409870	-	379	163843687	murG	BSUIS_A1483	-	N-acetylglucosaminyl transferase
1411	 59.15	0	1410097..1411254	-	385	163843688	ftsW	BSUIS_A1484	-	cell division protein FtsW
1412	 60.61	0	1411254..1412657	-	467	163843689	murD	BSUIS_A1485	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1413	 57.25	0	1412670..1413752	-	360	163843690	mraY	BSUIS_A1486	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1414	 58.99	0	1413779..1415224	-	481	163843691	murF	BSUIS_A1487	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
1415	 59.99	0	1415221..1416687	-	488	163843692	murE	BSUIS_A1488	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1416	 59.38	0	1416748..1418571	-	607	163843693	penA	BSUIS_A1489	-	penicillin-binding protein 2
1417	 55.72	0	1418574..1418975	-	133	163843694	-	BSUIS_A1490	-	hypothetical protein
1418	 61.58	+1	1418980..1420020	-	346	163843695	mraW	BSUIS_A1491	-	S-adenosyl-methyltransferase MraW
1419	 51.48	-1	1419998..1420267	+	89	163843696	-	BSUIS_A1492	-	hypothetical protein
1420	 58.79	0	1420582..1421952	+	456	163843697	-	BSUIS_A1493	-	manganese transport protein MntH
1421	 55.51	0	1423638..1424444	-	268	163843698	ampD	BSUIS_A1497	-	protein ampD
1422	 54.43	0	1424441..1425151	-	236	163843699	djlA	BSUIS_A1498	-	DnaJ-like protein djlA
1423	 58.77	0	1425271..1425675	-	134	163843700	-	BSUIS_A1499	-	hypothetical protein
1424	 59.47	0	1425979..1426812	+	277	163843701	-	BSUIS_A1500	-	glycosy hydrolase family protein
1425	 58.65	0	1428226..1429161	+	311	163843702	-	BSUIS_A1501	-	auxin efflux carrier
1426	 55.10	0	1429501..1429647	+	48	163843703	-	BSUIS_A1502	-	hypothetical protein
1427	 57.59	0	1429596..1430498	-	300	163843704	metF	BSUIS_A1503	-	5,10-methylenetetrahydrofolate reductase
1428	 60.04	0	1430544..1431569	-	341	163843705	-	BSUIS_A1504	-	methyltransferase type 11
1429	 58.64	0	1431689..1432012	+	107	163843706	-	BSUIS_A1505	-	hypothetical protein
1430	 50.20	-1	1433401..1433655	+	84	163843707	-	BSUIS_A1507	-	hypothetical protein
1431	 56.25	0	1433829..1434596	-	255	163843708	tam	BSUIS_A1508	-	trans-aconitate 2-methyltransferase
1432	 56.12	0	1434669..1436318	-	549	163843709	-	BSUIS_A1509	-	putative ABC transporter ATP-binding protein
1433	 61.11	0	1436398..1436577	-	59	163843710	-	BSUIS_A1510	-	hypothetical protein
1434	 57.14	0	1436814..1437758	+	314	163843711	-	BSUIS_A1511	-	lysophospholipase L2
1435	 56.48	0	1438557..1439243	-	228	163843712	-	BSUIS_A1513	-	hypothetical protein
1436	 57.29	0	1439594..1440841	+	415	163843713	-	BSUIS_A1514	-	biphenyl dioxygenase subunit alpha
1437	 59.25	0	1440875..1441993	+	372	163843714	-	BSUIS_A1515	-	ferredoxin, leaf L-A
1438	 55.86	0	1441996..1442217	-	73	163843715	-	BSUIS_A1516	-	hypothetical protein
1439	 56.67	0	1442355..1442984	+	209	163843716	-	BSUIS_A1517	-	nicotinamidase
1440	 54.52	0	1442981..1444042	-	353	163843717	-	BSUIS_A1518	-	hypothetical protein
1441	 53.93	0	1444389..1444655	+	88	163843718	-	BSUIS_A1519	-	hypothetical protein
1442	 51.11	-1	1444611..1444790	-	59	163843719	-	BSUIS_A1520	-	hypothetical protein
1443	 54.44	0	1444853..1445956	-	367	163843720	-	BSUIS_A1521	-	penicillin acylase precursor
1444	 54.48	0	1446232..1447035	+	267	163843721	-	BSUIS_A1522	-	hypothetical protein
1445	 60.83	0	1447239..1447358	-	39	163843722	-	BSUIS_A1523	-	hypothetical protein
1446	 48.28	-2	1447642..1447815	+	57	163843723	-	BSUIS_A1524	-	hypothetical protein
1447	 43.86	-2	1447869..1448096	-	75	163843724	-	BSUIS_A1525	-	hypothetical protein
1448	 59.89	0	1448222..1448575	+	117	163843725	-	BSUIS_A1526	-	hypothetical protein
1449	 57.07	0	1448736..1449308	-	190	163843726	-	BSUIS_A1527	-	hypothetical protein
1450	 55.15	0	1449544..1450038	+	164	163843727	-	BSUIS_A1528	-	integrase/recombinase
1451	 55.64	0	1450456..1451208	+	250	163843728	-	BSUIS_A1530	-	26 kDa periplasmic immunogenic protein precursor
1452	 58.84	0	1451382..1451726	-	114	163843729	-	BSUIS_A1531	-	hypothetical protein
1453	 54.68	0	1451970..1452428	-	152	163843730	-	BSUIS_A1532	-	hypothetical protein
1454	 54.98	0	1452620..1452910	-	96	163843731	-	BSUIS_A1533	-	hypothetical protein
1455	 56.72	0	1452934..1454934	-	666	163843732	rpoD	BSUIS_A1534	-	RNA polymerase sigma factor RpoD
1456	 48.08	-2	1454965..1455120	-	51	163843733	-	BSUIS_A1535	-	hypothetical protein
1457	 61.53	+1	1455402..1457369	-	655	163843734	dnaG	BSUIS_A1536	-	DNA primase
1458	 59.21	0	1457739..1459415	+	558	163843735	-	BSUIS_A1537	-	Na+ cotransporter
1459	 57.84	0	1459482..1459934	-	150	163843736	-	BSUIS_A1538	-	GatB/Yqey domain-containing protein
1460	 60.62	0	1460314..1461537	+	407	163843737	carA	BSUIS_A1539	-	carbamoyl phosphate synthase small subunit
1461	 54.32	0	1461350..1461673	+	107	163843738	-	BSUIS_A1540	-	hypothetical protein
1462	 61.27	+1	1461709..1462635	-	308	163843739	-	BSUIS_A1541	-	protein of unknown function zinc metallopeptidase
1463	 54.34	0	1462752..1463270	-	172	163843740	-	BSUIS_A1542	-	transmembrane protein
1464	 56.93	0	1463356..1464156	+	266	163843741	-	BSUIS_A1543	-	hypothetical protein
1465	 55.77	0	1464224..1464379	+	51	163843742	-	BSUIS_A1544	-	hypothetical protein
1466	 60.50	0	1464391..1467879	+	1162	163843743	carB	BSUIS_A1545	-	carbamoyl phosphate synthase large subunit
1467	 50.41	-1	1468476..1468598	-	40	163843744	-	BSUIS_A1546	-	hypothetical protein
1468	 58.57	0	1468595..1470460	-	621	163843745	-	BSUIS_A1547	-	ABC transporter
1469	 55.19	0	1470650..1471111	+	153	163843746	-	BSUIS_A1548	-	NUDIX hydrolase
1470	 58.10	0	1471304..1471513	+	69	163843747	-	BSUIS_A1549	-	hypothetical protein
1471	 57.03	0	1471643..1472254	-	203	163843748	gstA	BSUIS_A1550	-	protein gstA
57.01	MEAN

4.26	STD DEV
