IslandPathversion 1.0

IslandPath Analysis: Brucella suis ATCC 23445

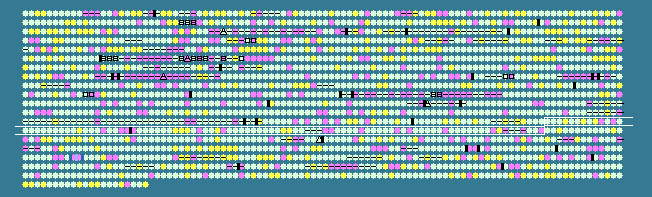

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1288	 59.54	0	1282898..1283683	+	261	163843565	-	BSUIS_A1353	-	hypothetical protein
1289	 59.91	0	1283680..1284108	-	142	163843566	-	BSUIS_A1354	-	hypothetical protein
1290	 55.87	0	1284108..1284746	-	212	163843567	cobO	BSUIS_A1355	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
1291	 62.47	+1	1284739..1288530	-	1263	163843568	cobN	BSUIS_A1356	-	cobaltochelatase
1292	 57.62	0	1288530..1289579	-	349	163843569	cobW	BSUIS_A1357	-	cobalamin biosynthesis protein CobW
1293	 60.15	0	1289583..1290104	-	173	163843570	cobP	BSUIS_A1358	-	adenosylcobinamide kinase/adenosylcobinamide-phosphate guanylyltransferase
1294	 61.23	0	1290110..1290826	-	238	163843571	cbtA	BSUIS_A1359	-	cobalt transporter subunit CbtA (proposed)
1295	 57.14	0	1290915..1291103	-	62	163843572	cbtB	BSUIS_A1360	-	cobalt transporter subunit CbtB (proposed)
1296	 60.54	0	1291417..1292868	-	483	163843573	cobQ	BSUIS_A1362	-	cobyric acid synthase
1297	 50.54	-1	1292879..1293064	-	61	163843574	-	BSUIS_A1363	-	hypothetical protein
1298	 60.49	0	1294333..1295223	+	296	163843575	mmsB	BSUIS_A1365	-	3-hydroxyisobutyrate dehydrogenase
1299	 45.83	-2	1295459..1295626	-	55	163843576	-	BSUIS_A1366	-	hypothetical protein
1300	 58.85	0	1295933..1296853	-	306	163843577	pecT	BSUIS_A1367	-	HTH-type transcriptional regulator pecT
1301	 57.56	0	1297299..1298297	+	332	163843578	-	BSUIS_A1368	-	hypothetical protein
1302	 58.67	0	1298563..1301124	+	853	163843579	-	BSUIS_A1369	-	dimethylglycine dehydrogenase
1303	 55.67	0	1301210..1301500	-	96	163843580	-	BSUIS_A1370	-	hypothetical protein
1304	 57.14	0	1301607..1304189	-	860	163843581	-	BSUIS_A1371	-	MscS mechanosensitive ion channel
1305	 56.41	0	1304313..1304897	-	194	163843582	-	BSUIS_A1372	-	hypothetical protein
1306	 59.62	0	1304373..1304840	+	155	163843583	-	BSUIS_A1373	-	hypothetical protein
1307	 59.34	0	1304949..1307486	+	845	163843584	secD	BSUIS_A1374	-	bifunctional preprotein translocase subunit SecD/SecF
1308	 59.41	0	1307564..1309423	+	619	163843585	-	BSUIS_A1375	-	potassium efflux system protein
1309	 55.56	0	1309423..1310394	+	323	163843586	-	BSUIS_A1376	-	hypothetical protein
1310	 60.89	0	1310621..1311226	+	201	163843587	-	BSUIS_A1377	-	hypothetical protein
1311	 56.44	0	1311272..1312102	-	276	163843588	cysW	BSUIS_A1378	-	sulfate ABC transporter, permease protein CysW
1312	 58.56	0	1312089..1312952	-	287	163843589	cysT	BSUIS_A1379	-	sulfate ABC transporter, permease protein CysT
1313	 55.52	0	1313079..1314083	-	334	163843590	-	BSUIS_A1380	-	sulfate ABC transporter, sulfate-binding protein
1314	 52.69	-1	1314349..1314534	-	61	163843591	-	BSUIS_A1381	-	hypothetical protein
1315	 58.95	0	1314714..1316282	-	522	163843592	-	BSUIS_A1382	-	integral membrane protein TerC
1316	 59.73	0	1316700..1317362	-	220	163843593	-	BSUIS_A1383	-	SNARE associated Golgi protein
1317	 53.12	0	1317438..1317533	+	31	163843594	-	BSUIS_A1384	-	hypothetical protein
1318	 45.83	-2	1317665..1317832	-	55	163843595	-	BSUIS_A1385	-	hypothetical protein
1319	 53.52	0	1318260..1318799	+	179	163843596	-	BSUIS_A1388	-	hypothetical protein
1320	 54.61	0	1318933..1319355	-	140	163843597	-	BSUIS_A1389	-	RbsD or FucU transport
1321	 59.38	0	1319448..1320257	-	269	163843598	-	BSUIS_A1390	-	short chain dehydrogenase
1322	 58.46	0	1320272..1321051	-	259	163843599	-	BSUIS_A1391	-	hypothetical protein
1323	 59.93	0	1321065..1322192	-	375	163843600	-	BSUIS_A1392	-	monosaccharide-transporting ATPase
1324	 59.68	0	1322479..1323408	-	309	163843601	-	BSUIS_A1393	-	periplasmic binding protein/LacI transcriptional regulator
1325	 57.53	0	1323788..1324903	+	371	163843602	cbaC	BSUIS_A1394	-	1-carboxy-3-chloro-3,4-dihydroxycyclo hexa-1,5-diene dehydrogenase
1326	 62.16	+1	1324900..1325676	-	258	163843603	cbrD	BSUIS_A1395	-	achromobactin transport ATP-binding protein CbrD
1327	 62.08	+1	1325673..1326674	-	333	163843604	-	BSUIS_A1396	-	transport system permease protein
1328	 60.60	0	1326667..1327506	-	279	163843605	-	BSUIS_A1397	-	periplasmic binding protein
1329	 56.36	0	1327520..1329382	-	620	163843606	-	BSUIS_A1398	-	TonB-dependent receptor
1330	 53.21	0	1329671..1329826	-	51	163843607	-	BSUIS_A1400	-	hypothetical protein
1331	 57.50	0	1329876..1330988	-	370	163843608	-	BSUIS_A1401	-	ABC-2 type transporter
1332	 58.11	0	1330990..1333758	-	922	163843609	-	BSUIS_A1402	-	ABC transporter related
1333	 61.05	0	1333755..1334822	-	355	163843610	-	BSUIS_A1403	-	HlyD family secretion protein
1334	 52.22	-1	1334802..1334981	+	59	163843611	-	BSUIS_A1404	-	hypothetical protein
1335	 54.63	0	1335368..1336663	-	431	163843612	-	BSUIS_A1405	-	hypothetical protein
1336	 54.80	0	1337242..1337418	-	58	163843613	-	BSUIS_A1406	-	hypothetical protein
1337	 56.77	0	1337478..1337780	+	100	163843614	ureA	BSUIS_A1407	-	urease subunit gamma
1338	 57.71	0	1337829..1338308	+	159	163843615	ureB	BSUIS_A1408	-	urease subunit beta
1339	 59.23	0	1338348..1340069	+	573	163843616	ureC	BSUIS_A1409	-	urease subunit alpha
1340	 58.91	0	1340117..1340722	+	201	163843617	ureE	BSUIS_A1410	-	urease accessory protein UreE
1341	 58.74	0	1340694..1341425	+	243	163843618	ureF	BSUIS_A1411	-	urease accessory protein ureF
1342	 60.19	0	1342998..1344047	+	349	163843619	-	BSUIS_A1414	-	Urea transporter, kidney
1343	 57.44	0	1344074..1344832	+	252	163843620	-	BSUIS_A1415	-	ABC cobalt transporter, periplasmic binding protein CbiN
1344	 61.64	+1	1344852..1345487	+	211	163843621	-	BSUIS_A1416	-	cobalt transport protein CbiM
1345	 62.52	+1	1345484..1346110	+	208	163843622	-	BSUIS_A1417	-	CbiL protein
1346	 60.00	0	1346107..1346871	+	254	163843623	cbiQ	BSUIS_A1418	-	cobalt ABC transporter, permease protein CbiQ
1347	 57.36	0	1346868..1347587	+	239	163843624	-	BSUIS_A1419	-	hypothetical protein
1348	 57.69	0	1347608..1348420	-	270	163843625	crcB	BSUIS_A1420	-	camphor resistance protein CrcB
1349	 56.92	0	1348433..1348822	-	129	163843626	crcB	BSUIS_A1421	-	camphor resistance protein CrcB
1350	 56.43	0	1349091..1350116	+	341	163843627	-	BSUIS_A1422	-	hypothetical protein
1351	 51.95	-1	1350249..1350683	-	144	163843628	-	BSUIS_A1423	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
1352	 47.83	-2	1350685..1350822	+	45	163843629	-	BSUIS_A1424	-	hypothetical protein
1353	 57.93	0	1350835..1351761	-	308	163843630	-	BSUIS_A1425	-	PhzF family phenazine biosynthesis protein
1354	 58.47	0	1351866..1352597	-	243	163843631	-	BSUIS_A1426	-	NUDIX hydrolase
1355	 54.84	0	1353803..1354318	+	171	163843632	-	BSUIS_A1428	-	BA14K family protein
1356	 57.34	0	1354364..1355596	-	410	163843633	-	BSUIS_A1429	-	GntR family transcriptional regulator
1357	 49.65	-1	1355729..1356010	-	93	163843634	-	BSUIS_A1430	-	hypothetical protein
1358	 57.75	0	1356120..1357139	-	339	163843635	ilvC	BSUIS_A1431	-	ketol-acid reductoisomerase
1359	 60.12	0	1357195..1357836	-	213	163843636	-	BSUIS_A1432	-	TetR family transcriptional regulator
1360	 58.18	0	1358047..1360002	-	651	163843637	kup	BSUIS_A1433	-	potassium transport system protein kup
1361	 57.23	0	1360145..1360303	-	52	163843638	-	BSUIS_A1434	-	hypothetical protein
1362	 59.51	0	1360372..1361112	-	246	163843639	pdxJ	BSUIS_A1435	-	pyridoxal phosphate biosynthetic protein PdxJ
1363	 53.48	0	1361409..1361810	+	133	163843640	-	BSUIS_A1436	-	hypothetical protein
1364	 57.84	0	1361811..1362977	-	388	163843641	-	BSUIS_A1437	-	hypothetical protein
1365	 52.38	-1	1362931..1363077	+	48	163843642	-	BSUIS_A1438	-	hypothetical protein
1366	 58.46	0	1363116..1363688	-	190	163843643	ilvN	BSUIS_A1439	-	acetolactate synthase 3 regulatory subunit
1367	 58.44	0	1363707..1365530	-	607	163843644	ilvB	BSUIS_A1440	-	acetolactate synthase 3 catalytic subunit
1368	 59.38	0	1365778..1366710	-	310	163843645	miaA	BSUIS_A1441	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1369	 60.22	0	1366728..1367627	+	299	163843646	serB	BSUIS_A1442	-	phosphoserine phosphatase SerB
1370	 59.22	0	1367668..1368849	-	393	163843647	-	BSUIS_A1443	-	hypothetical protein
1371	 53.47	0	1368825..1368968	-	47	163843648	-	BSUIS_A1444	-	hypothetical protein
1372	 58.67	0	1368979..1370553	-	524	163843649	degP	BSUIS_A1445	-	protease Do
1373	 60.22	0	1370777..1370962	-	61	163843650	-	BSUIS_A1446	-	hypothetical protein
1374	 60.13	0	1370982..1371884	-	300	163843651	hflC	BSUIS_A1447	-	HflC protein
1375	 59.17	0	1371884..1373083	-	399	163843652	hflK	BSUIS_A1448	-	HflK protein
1376	 57.80	0	1373160..1373678	-	172	163843653	-	BSUIS_A1449	-	dihydrofolate reductase type 3
1377	 55.60	0	1373681..1374475	-	264	163843654	thyA	BSUIS_A1450	-	thymidylate synthase
1378	 57.69	0	1374576..1374887	-	103	163843655	-	BSUIS_A1451	-	hypothetical protein
1379	 47.62	-2	1375315..1375356	+	13	163843656	-	BSUIS_A1452	-	tmRNA tag peptide
1380	 60.56	0	1375460..1376671	-	403	163843657	-	BSUIS_A1453	-	Bcr/CflA subfamily drug resistance transporter
1381	 51.70	-1	1376688..1376834	-	48	163843658	-	BSUIS_A1454	-	hypothetical protein
1382	 56.94	0	1377065..1377691	+	208	163843659	-	BSUIS_A1455	-	TetR family transcriptional regulator
1383	 54.04	0	1377772..1378341	+	189	163843660	-	BSUIS_A1456	-	hypothetical protein
1384	 52.24	-1	1378721..1378921	+	66	163843661	-	BSUIS_A1457	-	hypothetical protein
1385	 57.54	0	1378918..1379169	+	83	163843662	-	BSUIS_A1458	-	hypothetical protein
1386	 60.20	0	1379197..1382940	-	1247	163843663	-	BSUIS_A1459	-	AsmA family protein
1387	 48.23	-2	1382995..1383135	-	46	163843664	-	BSUIS_A1460	-	hypothetical protein
57.01	MEAN

4.26	STD DEV
