IslandPath Analysis: Brucella suis ATCC 23445

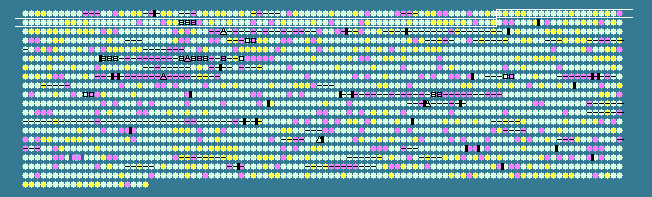

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
80	 55.61	0	88376..88981	+	201	163842357	-	BSUIS_A0086	-	protein tyrosine phosphatase
81	 61.25	0	88891..89481	-	196	163842358	-	BSUIS_A0087	-	2'-5' RNA ligase
82	 55.92	0	89662..90387	-	241	163842359	-	BSUIS_A0088	-	arylesterase precursor
83	 61.73	+1	90534..91262	+	242	163842360	-	BSUIS_A0089	-	ABC transporter related
84	 61.65	+1	91259..93808	+	849	163842361	-	BSUIS_A0090	-	hypothetical protein
85	 57.99	0	94044..94781	+	245	163842362	-	BSUIS_A0092	-	hypothetical protein
86	 59.44	0	94896..95435	+	179	163842363	pat	BSUIS_A0093	-	phosphinothricin N-acetyltransferase
87	 54.73	0	95455..95856	-	133	163842364	-	BSUIS_A0094	-	hypothetical protein
88	 57.01	0	96406..97140	-	244	163842365	-	BSUIS_A0095	-	hypothetical protein
89	 56.74	0	97293..97433	-	46	163842366	-	BSUIS_A0096	-	hypothetical protein
90	 60.27	0	97417..100104	-	895	163842367	acnA	BSUIS_A0097	-	aconitate hydratase
91	 58.33	0	100448..101095	+	215	163842368	ccmA	BSUIS_A0098	-	cytochrome c biogenesis protein CcmA
92	 62.01	+1	101095..101760	+	221	163842369	ccmB	BSUIS_A0099	-	heme exporter protein CcmB
93	 58.52	0	101818..102603	+	261	163842370	ccmC	BSUIS_A0100	-	heme exporter protein CcmC
94	 56.90	0	102600..102773	+	57	163842371	-	BSUIS_A0101	-	Heme exporter protein D (CcmD)
95	 59.31	0	102770..103381	+	203	163842372	dsbE	BSUIS_A0102	-	DsbE subfamily periplasmic protein thiol:disulfide oxidoreductase
96	 61.00	0	103630..105465	-	611	163842373	ilvD	BSUIS_A0103	-	dihydroxy-acid dehydratase
97	 54.35	0	105647..105784	+	45	163842374	-	BSUIS_A0104	-	hypothetical protein
98	 61.57	+1	105865..106296	-	143	163842375	-	BSUIS_A0105	-	hypothetical protein
99	 59.79	0	106323..106700	-	125	163842376	-	BSUIS_A0106	-	response regulator receiver protein
100	 49.37	-1	106875..107111	-	78	163842377	-	BSUIS_A0107	-	AsnC family transcriptional regulator
101	 57.04	0	107764..108168	+	134	163842378	-	BSUIS_A0108	-	hypothetical protein
102	 57.02	0	108254..108958	-	234	163842379	-	BSUIS_A0109	-	hypothetical protein
103	 53.97	0	109031..109849	+	272	163842380	-	BSUIS_A0110	-	hypothetical protein
104	 57.63	0	110127..111155	+	342	163842381	-	BSUIS_A0111	-	sulfate ABC transporter, sulfate-binding protein
105	 59.25	0	111199..112128	-	309	163842382	-	BSUIS_A0112	-	hypothetical protein
106	 59.40	0	111250..112116	+	288	163842383	cysT	BSUIS_A0113	-	sulfate ABC transporter, permease protein CysT
107	 58.94	0	112106..112972	+	288	163842384	cysW	BSUIS_A0114	-	sulfate ABC transporter, permease protein CysW
108	 61.39	+1	113070..114149	+	359	163842385	cysA	BSUIS_A0115	-	sulfate ABC transporter, ATP-binding protein
109	 60.52	0	114535..123138	+	2867	163842386	-	BSUIS_A0116	-	glycosyltransferase 36
110	 58.31	0	123228..124532	+	434	163842387	pncB	BSUIS_A0117	-	nicotinate phosphoribosyltransferase
111	 60.65	0	124574..125404	-	276	163842388	-	BSUIS_A0118	-	PhzF family phenazine biosynthesis protein
112	 55.77	0	125514..126302	-	262	163842389	-	BSUIS_A0119	-	methyltransferase type 11
113	 59.55	0	126325..127251	-	308	163842390	frk	BSUIS_A0120	-	fructokinase
114	 59.60	0	127342..128148	-	268	163842391	-	BSUIS_A0121	-	short-chain dehydrogenase/reductase SDR
115	 60.03	0	128269..130560	-	763	163842392	-	BSUIS_A0122	-	1A family penicillin-binding protein
116	 56.13	0	130765..131457	-	230	163842393	ropB	BSUIS_A0123	-	22 kDa outer membrane protein precursor
117	 56.19	0	131725..132411	-	228	163842394	ropB	BSUIS_A0124	-	22 kDa outer membrane protein precursor
118	 56.47	0	132643..133260	-	205	163842395	-	BSUIS_A0125	-	hypothetical protein
119	 59.53	0	133299..134714	-	471	163842396	-	BSUIS_A0126	-	hypothetical protein
120	 52.61	-1	134945..135193	+	82	163842397	-	BSUIS_A0127	-	hypothetical protein
121	 59.45	0	135275..138211	+	978	163842398	polA	BSUIS_A0128	-	DNA polymerase I
122	 60.07	0	138353..140233	+	626	163842399	ydbR	BSUIS_A0129	-	DEAD-box ATP-dependent RNA helicase ydbR
123	 59.79	0	140329..142770	-	813	163842400	gyrB	BSUIS_A0130	-	DNA gyrase subunit B
124	 50.00	-1	142821..142988	-	55	163842401	-	BSUIS_A0131	-	hypothetical protein
125	 64.54	+1	143410..145431	+	673	163842402	hrpB	BSUIS_A0132	-	ATP-dependent helicase HrpB
126	 60.94	0	145526..146818	+	430	163842403	regB	BSUIS_A0133	-	sensor histidine kinase regB
127	 58.54	0	146888..147256	+	122	163842404	-	BSUIS_A0134	-	transposase for insertion sequence element IS6501
128	 58.01	0	146910..147221	+	103	163842405	-	BSUIS_A0135	-	IS711, transposase orfA
129	 50.13	-1	147253..147645	+	130	163842406	-	BSUIS_A0136	-	transposase for insertion sequence element IS6501
130	 51.03	-1	147711..148049	+	112	163842407	-	BSUIS_A0137	-	hypothetical protein
131	 60.46	0	148245..148808	+	187	163842408	regA	BSUIS_A0138	-	photosynthetic apparatus regulatory protein regA
132	 63.70	+1	148814..149116	-	100	163842409	-	BSUIS_A0139	-	hypothetical protein
133	 57.33	0	149578..150198	+	206	163842410	-	BSUIS_A0140	-	ErfK/YbiS/YcfS/YnhG family protein
134	 59.69	0	150288..150860	-	190	163842411	-	BSUIS_A0141	-	HIRA-interacting protein 5
135	 60.93	0	150969..151508	-	179	163842412	-	BSUIS_A0142	-	UspA domain-containing protein
136	 59.41	0	151515..152672	-	385	163842413	trpS	BSUIS_A0143	-	tryptophanyl-tRNA synthetase
137	 59.87	0	152679..154268	-	529	163842414	mviN	BSUIS_A0144	-	integral membrane protein MviN
138	 58.54	0	154282..157086	-	934	163842415	glnD	BSUIS_A0145	-	PII uridylyl-transferase
139	 45.83	-2	157152..157247	+	31	163842416	-	BSUIS_A0146	-	hypothetical protein
140	 60.48	0	159679..162411	+	910	163842417	mutS	BSUIS_A0148	-	DNA mismatch repair protein
141	 58.39	0	162717..163610	-	297	163842418	-	BSUIS_A0149	-	hypothetical protein
142	 52.80	0	163885..164367	-	160	163842419	lspA	BSUIS_A0150	-	signal peptidase II
143	 60.18	0	164369..165262	-	297	163842420	-	BSUIS_A0151	-	tRNA/rRNA methyltransferase (SpoU)
144	 61.08	0	165259..166404	-	381	163842421	-	BSUIS_A0152	-	hypothetical protein
145	 58.95	0	166517..166840	-	107	163842422	-	BSUIS_A0153	-	hypothetical protein
146	 57.19	0	166850..167134	-	94	163842423	ihfB	BSUIS_A0154	-	integration host factor subunit beta
147	 60.16	0	167181..168164	-	327	163842424	sppA	BSUIS_A0155	-	signal peptide peptidase SppA, 36K type
148	 56.29	0	168626..169348	+	240	163842425	-	BSUIS_A0156	-	hypothetical protein
149	 61.14	0	169671..170285	+	204	163842426	-	BSUIS_A0157	-	hypothetical protein
150	 59.83	0	170297..171130	+	277	163842427	-	BSUIS_A0158	-	ABC transporter ATP-binding protein
151	 57.75	0	171426..172928	+	500	163842428	rpoN	BSUIS_A0159	-	RNA polymerase factor sigma-54
152	 46.99	-2	173077..173442	-	121	163842429	-	BSUIS_A0160	-	hypothetical protein
153	 58.92	0	173678..174271	+	197	163842430	yfiA	BSUIS_A0161	-	ribosomal subunit interface protein
154	 58.49	0	174374..174838	+	154	163842431	ptsN	BSUIS_A0162	-	PTS IIA-like nitrogen-regulatory protein PtsN
155	 58.54	0	174919..175164	-	81	163842432	-	BSUIS_A0163	-	hypothetical protein
156	 56.50	0	175270..175692	-	140	163842433	hspD	BSUIS_A0164	-	small heat shock protein hspD
157	 49.25	-1	175783..175983	-	66	163842434	-	BSUIS_A0165	-	hypothetical protein
158	 60.51	0	176567..177313	+	248	163842435	nth	BSUIS_A0167	-	endonuclease III
159	 58.40	0	177354..178067	-	237	163842436	-	BSUIS_A0168	-	CysZ-like protein
160	 59.00	0	178064..178324	-	86	163842437	-	BSUIS_A0169	-	hypothetical protein
161	 59.82	0	178327..179319	+	330	163842438	-	BSUIS_A0170	-	fructokinase-2
162	 59.97	0	179338..179994	-	218	163842439	-	BSUIS_A0171	-	hypothetical protein
163	 59.31	0	180127..180819	-	230	163842440	grpE	BSUIS_A0172	-	protein grpE
164	 59.85	0	180925..181995	-	356	163842441	hrcA	BSUIS_A0173	-	heat-inducible transcription repressor
165	 62.76	+1	182217..182933	+	238	163842442	rph	BSUIS_A0174	-	ribonuclease PH
166	 57.78	0	183107..183511	+	134	163842443	-	BSUIS_A0175	-	glyoxalase/bleomycin resistance protein/dioxygenase
167	 59.58	0	183514..184176	+	220	163842444	rdgB	BSUIS_A0176	-	putative deoxyribonucleotide triphosphate pyrophosphatase
168	 60.49	0	184173..185387	+	404	163842445	-	BSUIS_A0177	-	coproporphyrinogen III oxidase
169	 62.06	+1	185399..186310	+	303	163842446	-	BSUIS_A0178	-	hypothetical protein
170	 61.68	+1	186307..186687	+	126	163842447	-	BSUIS_A0179	-	hypothetical protein
171	 64.01	+1	186913..188340	+	475	163842448	cobA	BSUIS_A0180	-	uroporphyrin-III C-methyltransferase
172	 62.38	+1	188358..188660	+	100	163842449	-	BSUIS_A0181	-	hypothetical protein
173	 57.51	0	188681..190351	+	556	163842450	-	BSUIS_A0182	-	sulfite reductase (ferredoxin)
174	 63.37	+1	190341..191099	+	252	163842451	cysH	BSUIS_A0183	-	phosphoadenosine phosphosulfate reductase
175	 59.05	0	191152..191676	+	174	163842452	-	BSUIS_A0184	-	hypothetical protein
176	 53.40	0	191744..192037	+	97	163842453	-	BSUIS_A0185	-	stress responsive alpha-beta barrel domain-containing protein
177	 59.24	0	192038..192616	-	192	163842454	-	BSUIS_A0186	-	methylated-DNA-[protein]-cysteine S-methyltransferase
178	 56.91	0	192874..193119	+	81	163842455	-	BSUIS_A0187	-	hypothetical protein
179	 61.28	+1	193172..193561	-	129	163842456	-	BSUIS_A0188	-	BA14K family protein
57.01	MEAN

4.26	STD DEV
