IslandPath Analysis: Brucella suis ATCC 23445

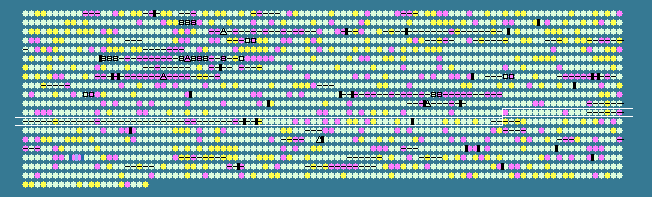

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1181	 51.70	-1	1190454..1190600	-	48	163843458	-	BSUIS_A1241	-	hypothetical protein
1182	 57.88	0	1190650..1191639	-	329	163843459	-	BSUIS_A1242	-	TRAP transporter solute receptor TAXI family protein
1183	 57.43	0	1191785..1192618	-	277	163843460	murI	BSUIS_A1243	-	glutamate racemase
1184	 57.52	0	1192615..1193445	-	276	163843461	-	BSUIS_A1244	-	RNA methyltransferase
1185	 58.29	0	1193625..1194209	+	194	163843462	-	BSUIS_A1245	-	PfpI family intracellular peptidase
1186	 57.91	0	1194298..1194708	+	136	163843463	-	BSUIS_A1246	-	hypothetical protein
1187	 57.28	0	1194836..1196050	+	404	163843464	-	BSUIS_A1247	-	isocitrate dehydrogenase
1188	 58.09	0	1196272..1197717	+	481	163843465	phoA	BSUIS_A1248	-	bacterial alkaline phosphatase
1189	 58.77	0	1197869..1200526	-	885	163843466	alaS	BSUIS_A1249	-	alanyl-tRNA synthetase
1190	 56.91	0	1200919..1202004	-	361	163843467	recA	BSUIS_A1250	-	recombinase A
1191	 48.41	-2	1202174..1202299	-	41	163843468	-	BSUIS_A1251	-	hypothetical protein
1192	 59.58	0	1202335..1202997	-	220	163843469	-	BSUIS_A1252	-	OmpA/MotB domain-containing protein
1193	 56.07	0	1203084..1203668	-	194	163843470	-	BSUIS_A1253	-	lytic transglycosylase catalytic
1194	 59.97	0	1203792..1205105	-	437	163843471	-	BSUIS_A1254	-	recombination factor protein RarA
1195	 58.95	0	1205252..1206676	-	474	163843472	degP	BSUIS_A1255	-	protease Do
1196	 58.04	0	1206956..1207384	-	142	163843473	rplQ	BSUIS_A1256	-	50S ribosomal protein L17
1197	 57.20	0	1207546..1208559	-	337	163843474	rpoA	BSUIS_A1257	-	DNA-directed RNA polymerase subunit alpha
1198	 61.79	+1	1208675..1209064	-	129	163843475	rpsK	BSUIS_A1258	-	30S ribosomal protein S11
1199	 56.91	0	1209192..1209560	-	122	163843476	rpsM	BSUIS_A1259	-	30S ribosomal protein S13
1200	 49.43	-1	1209554..1209727	+	57	163843477	-	BSUIS_A1260	-	hypothetical protein
1201	 59.15	0	1209870..1210454	-	194	163843478	-	BSUIS_A1261	-	adenylate kinase
1202	 55.18	0	1210451..1211791	-	446	163843479	secY	BSUIS_A1262	-	preprotein translocase subunit SecY
1203	 59.66	0	1211952..1212422	-	156	163843480	rplO	BSUIS_A1263	-	50S ribosomal protein L15
1204	 58.59	0	1212443..1212640	-	65	163843481	rpmD	BSUIS_A1264	-	50S ribosomal protein L30
1205	 60.25	0	1212758..1213318	-	186	163843482	rpsE	BSUIS_A1265	-	30S ribosomal protein S5
1206	 61.98	+1	1213360..1213722	-	120	163843483	rplR	BSUIS_A1266	-	50S ribosomal protein L18
1207	 57.49	0	1213735..1214268	-	177	163843484	rplF	BSUIS_A1267	-	50S ribosomal protein L6
1208	 57.89	0	1214307..1214705	-	132	163843485	rpsH	BSUIS_A1268	-	30S ribosomal protein S8
1209	 57.84	0	1214716..1215021	-	101	163843486	-	BSUIS_A1269	-	30S ribosomal protein S14
1210	 54.84	0	1215049..1215606	-	185	163843487	rplE	BSUIS_A1270	-	50S ribosomal protein L5
1211	 57.05	0	1215599..1215910	-	103	163843488	rplX	BSUIS_A1271	-	50S ribosomal protein L24
1212	 54.74	0	1215923..1216291	-	122	163843489	rplN	BSUIS_A1272	-	50S ribosomal protein L14
1213	 53.50	0	1216360..1216602	-	80	163843490	rpsQ	BSUIS_A1273	-	30S ribosomal protein S17
1214	 58.21	0	1216615..1216815	-	66	163843491	rpmC	BSUIS_A1274	-	50S ribosomal protein L29
1215	 58.21	0	1216828..1217241	-	137	163843492	rplP	BSUIS_A1275	-	50S ribosomal protein L16
1216	 57.24	0	1217280..1217990	-	236	163843493	rpsC	BSUIS_A1276	-	30S ribosomal protein S3
1217	 58.85	0	1217990..1218373	-	127	163843494	rplV	BSUIS_A1277	-	50S ribosomal protein L22
1218	 54.48	0	1218376..1218654	-	92	163843495	rpsS	BSUIS_A1278	-	30S ribosomal protein S19
1219	 59.95	0	1218670..1219503	-	277	163843496	rplB	BSUIS_A1279	-	50S ribosomal protein L2
1220	 57.14	0	1219525..1219818	-	97	163843497	rplW	BSUIS_A1280	-	50S ribosomal protein L23
1221	 60.39	0	1219815..1220435	-	206	163843498	rplD	BSUIS_A1281	-	50S ribosomal protein L4
1222	 58.54	0	1220435..1221148	-	237	163843499	rplC	BSUIS_A1282	-	50S ribosomal protein L3
1223	 57.61	0	1221178..1221486	-	102	163843500	rpsJ	BSUIS_A1283	-	30S ribosomal protein S10
1224	 58.84	0	1221547..1222722	-	391	163843501	tuf	BSUIS_A1284	-	elongation factor Tu
1225	 56.98	0	1222786..1224870	-	694	163843502	fusA	BSUIS_A1285	-	elongation factor G
1226	 57.32	0	1224901..1225371	-	156	163843503	rpsG	BSUIS_A1286	-	30S ribosomal protein S7
1227	 57.53	0	1225438..1225809	-	123	163843504	rpsL	BSUIS_A1287	-	30S ribosomal protein S12
1228	 51.85	-1	1225899..1226033	-	44	163843505	-	BSUIS_A1288	-	hypothetical protein
1229	 52.42	-1	1226241..1226612	+	123	163843506	-	BSUIS_A1289	-	hypothetical protein
1230	 58.01	0	1226719..1230921	-	1400	163843507	rpoC	BSUIS_A1290	-	DNA-directed RNA polymerase subunit beta'
1231	 57.74	0	1231070..1235203	-	1377	163843508	rpoB	BSUIS_A1291	-	DNA-directed RNA polymerase subunit beta
1232	 59.20	0	1235411..1235785	-	124	163843509	rplL	BSUIS_A1292	-	50S ribosomal protein L7/L12
1233	 58.57	0	1235837..1236355	-	172	163843510	rplJ	BSUIS_A1293	-	50S ribosomal protein L10
1234	 56.70	0	1236746..1237447	-	233	163843511	rplA	BSUIS_A1294	-	50S ribosomal protein L1
1235	 58.04	0	1237452..1237880	-	142	163843512	rplK	BSUIS_A1295	-	50S ribosomal protein L11
1236	 52.08	-1	1238083..1238610	-	175	163843513	nusG	BSUIS_A1296	-	transcription antitermination protein NusG
1237	 53.73	0	1238634..1238834	-	66	163843514	secE	BSUIS_A1297	-	preprotein translocase subunit SecE
1238	 58.93	0	1239508..1240683	-	391	163843515	tuf	BSUIS_A1299	-	elongation factor Tu
1239	 54.73	0	1240634..1240834	+	66	163843516	-	BSUIS_A1300	-	hypothetical protein
1240	 61.09	0	1241314..1242174	+	286	163843517	-	BSUIS_A1303	-	RNA methyltransferase
1241	 54.43	0	1242235..1242708	-	157	163843518	-	BSUIS_A1304	-	CBS domain-containing protein
1242	 57.48	0	1242837..1243598	-	253	163843519	-	BSUIS_A1305	-	rhomboid family protein
1243	 58.72	0	1243957..1244598	+	213	163843520	-	BSUIS_A1306	-	hypothetical protein
1244	 59.74	0	1244842..1245447	+	201	163843521	-	BSUIS_A1307	-	transglutaminase family protein cysteine peptidase BTLCP
1245	 57.58	0	1245526..1246053	-	175	163843522	-	BSUIS_A1308	-	hypothetical protein
1246	 48.63	-1	1246324..1246578	-	84	163843523	-	BSUIS_A1309	-	hypothetical protein
1247	 57.82	0	1246826..1247650	-	274	163843524	cysE	BSUIS_A1310	-	serine O-acetyltransferase
1248	 50.41	-1	1247666..1247788	+	40	163843525	-	BSUIS_A1311	-	hypothetical protein
1249	 58.37	0	1247825..1248595	-	256	163843526	-	BSUIS_A1312	-	alpha/beta hydrolase fold
1250	 54.37	0	1248629..1249108	-	159	163843527	-	BSUIS_A1313	-	hypothetical protein
1251	 51.22	-1	1249315..1249437	-	40	163843528	-	BSUIS_A1314	-	hypothetical protein
1252	 59.62	0	1249482..1250063	-	193	163843529	cspG	BSUIS_A1315	-	cold shock-like protein cspG
1253	 44.20	-2	1250187..1250324	-	45	163843530	-	BSUIS_A1316	-	hypothetical protein
1254	 58.50	0	1250426..1250866	+	146	163843531	-	BSUIS_A1317	-	glyoxalase/bleomycin resistance protein/dioxygenase
1255	 61.81	+1	1250918..1251946	-	342	163843532	-	BSUIS_A1318	-	import inner membrane translocase subunit Tim44
1256	 61.62	+1	1252108..1253892	-	594	163843533	recJ	BSUIS_A1319	-	single-stranded-DNA-specific exonuclease RecJ
1257	 53.86	0	1253942..1255003	-	353	163843534	-	BSUIS_A1320	-	D-alanine--D-alanine ligase
1258	 45.39	-2	1255032..1255172	+	46	163843535	-	BSUIS_A1321	-	hypothetical protein
1259	 61.20	0	1255306..1256292	-	328	163843536	glpX	BSUIS_A1322	-	fructose 1,6-bisphosphatase II
1260	 58.79	0	1256676..1257995	-	439	163843537	-	BSUIS_A1323	-	homoserine dehydrogenase
1261	 55.26	0	1257988..1258101	-	37	163843538	-	BSUIS_A1324	-	hypothetical protein
1262	 58.64	0	1258131..1259351	-	406	163843539	-	BSUIS_A1325	-	aminotransferase
1263	 62.07	+1	1259482..1259829	-	115	163843540	-	BSUIS_A1326	-	hypothetical protein
1264	 54.41	0	1260257..1260460	-	67	163843541	-	BSUIS_A1327	-	hypothetical protein
1265	 59.38	0	1261214..1261597	+	127	163843542	-	BSUIS_A1328	-	peptidase M15A
1266	 55.79	0	1261986..1262270	+	94	163843543	-	BSUIS_A1330	-	hypothetical protein
1267	 58.02	0	1262593..1263309	+	238	163843544	sfsA	BSUIS_A1331	-	sugar fermentation stimulation protein A
1268	 57.37	0	1263309..1264136	+	275	163843545	map	BSUIS_A1332	-	methionine aminopeptidase
1269	 60.27	0	1264192..1264941	+	249	163843546	-	BSUIS_A1333	-	DNA repair protein RadC
1270	 58.53	0	1265143..1265781	+	212	163843547	ropB	BSUIS_A1334	-	22 kDa outer membrane protein precursor
1271	 61.03	0	1266070..1267275	-	401	163843548	cbiE	BSUIS_A1335	-	precorrin-6y C5,15-methyltransferase (decarboxylating), CbiE subunit
1272	 58.87	0	1267349..1268644	+	431	163843549	cobG	BSUIS_A1336	-	precorrin-3B synthase
1273	 62.36	+1	1268654..1269280	+	208	163843550	cobH	BSUIS_A1337	-	precorrin-8X methylmutase
1274	 59.05	0	1269280..1270014	+	244	163843551	cobI	BSUIS_A1338	-	precorrin-2 C(20)-methyltransferase
1275	 60.48	0	1269960..1271705	+	581	163843552	cobJ	BSUIS_A1339	-	precorrin-3B C17-methyltransferase
1276	 61.75	+1	1271761..1272228	-	155	163843553	-	BSUIS_A1340	-	hypothetical protein
1277	 55.74	0	1272353..1273249	-	298	163843554	-	BSUIS_A1341	-	phospholipase/carboxylesterase
1278	 56.70	0	1273253..1273774	-	173	163843555	hpaC	BSUIS_A1342	-	4-hydroxyphenylacetate 3-monooxygenase reductase component
1279	 58.84	0	1273823..1275010	+	395	163843556	-	BSUIS_A1343	-	extracellular ligand-binding receptor
1280	 58.94	0	1274996..1275979	-	327	163843557	cobD	BSUIS_A1344	-	cobalamin biosynthesis protein
57.01	MEAN

4.26	STD DEV
