IslandPathversion 1.0

IslandPath Analysis: Brucella suis ATCC 23445

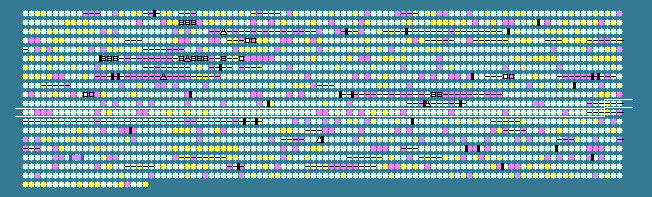

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1098	 60.51	0	1100753..1101028	-	91	163843375	-	BSUIS_A1155	-	DNA-binding protein HRL18
1099	 56.87	0	1101209..1103647	-	812	163843376	lon	BSUIS_A1156	-	ATP-dependent protease La
1100	 56.39	0	1104078..1105352	-	424	163843377	clpX	BSUIS_A1157	-	ATP-dependent protease ATP-binding subunit
1101	 56.51	0	1105734..1106363	-	209	163843378	clpP	BSUIS_A1158	-	ATP-dependent Clp protease proteolytic subunit
1102	 59.62	0	1106468..1107886	-	472	163843379	-	BSUIS_A1159	-	GTP-binding protein HSR1-related
1103	 45.57	-2	1108077..1108313	-	78	163843380	hfq	BSUIS_A1160	-	RNA-binding protein Hfq
1104	 48.33	-2	1108319..1108558	-	79	163843381	-	BSUIS_A1161	-	hypothetical protein
1105	 51.62	-1	1108542..1109372	-	276	163843382	-	BSUIS_A1162	-	hypothetical protein
1106	 60.21	0	1110822..1112183	-	453	163843383	ntrX	BSUIS_A1164	-	nitrogen assimilation regulatory protein ntrX
1107	 57.08	0	1112185..1114509	-	774	163843384	-	BSUIS_A1165	-	PAS domain-containing protein
1108	 58.88	0	1114600..1115922	-	440	163843385	ntrC	BSUIS_A1166	-	nitrogen regulation protein NR(I)
1109	 58.98	0	1117107..1118108	-	333	163843386	-	BSUIS_A1168	-	NifR3 family TIM-barrel protein
1110	 57.82	0	1118120..1119475	+	451	163843387	ispF	BSUIS_A1169	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
1111	 59.44	0	1119472..1119969	+	165	163843388	-	BSUIS_A1170	-	competence/damage inducible protein CinA
1112	 57.76	0	1120046..1120786	+	246	163843389	-	BSUIS_A1171	-	oxidoreductase, short-chain dehydrogenase/reductase family protein
1113	 53.16	0	1120844..1121302	-	152	163843390	-	BSUIS_A1172	-	cyclase/dehydrase
1114	 56.45	0	1121308..1122276	-	322	163843391	lipA	BSUIS_A1173	-	lipoyl synthase
1115	 64.81	+1	1122386..1122547	-	53	163843392	-	BSUIS_A1174	-	hypothetical protein
1116	 58.88	0	1122666..1124129	-	487	163843393	lpdA	BSUIS_A1175	-	dihydrolipoamide dehydrogenase
1117	 59.45	0	1124212..1125555	-	447	163843394	-	BSUIS_A1176	-	branched-chain alpha-keto acid dehydrogenase subunit E2
1118	 57.58	0	1125573..1126958	-	461	163843395	-	BSUIS_A1177	-	pyruvate dehydrogenase subunit beta
1119	 55.81	0	1126977..1128017	-	346	163843396	-	BSUIS_A1178	-	pyruvate dehydrogenase complex, E1 component, alpha subunit
1120	 49.70	-1	1128156..1128485	-	109	163843397	-	BSUIS_A1179	-	septum formation initiator
1121	 49.31	-1	1128757..1129338	-	193	163843398	-	BSUIS_A1180	-	hypothetical protein
1122	 57.43	0	1129675..1130952	-	425	163843399	eno	BSUIS_A1181	-	phosphopyruvate hydratase
1123	 56.95	0	1131139..1131972	-	277	163843400	kdsA	BSUIS_A1182	-	2-dehydro-3-deoxyphosphooctonate aldolase
1124	 55.80	0	1132078..1133706	-	542	163843401	pyrG	BSUIS_A1183	-	CTP synthetase
1125	 63.53	+1	1134921..1135367	-	148	163843402	secG	BSUIS_A1185	-	preprotein translocase subunit SecG
1126	 59.61	0	1135467..1136231	-	254	163843403	tpiA	BSUIS_A1186	-	triosephosphate isomerase
1127	 59.30	0	1136450..1138336	+	628	163843404	-	BSUIS_A1187	-	rotamase family protein
1128	 61.37	+1	1138351..1139370	+	339	163843405	trpD	BSUIS_A1188	-	anthranilate phosphoribosyltransferase
1129	 58.36	0	1139387..1140193	+	268	163843406	trpC	BSUIS_A1189	-	indole-3-glycerol-phosphate synthase
1130	 60.24	0	1140190..1140687	+	165	163843407	moaC	BSUIS_A1190	-	molybdenum cofactor biosynthesis protein C
1131	 60.91	0	1140783..1141997	+	404	163843408	-	BSUIS_A1191	-	molybdenum cofactor synthesis domain-containing protein
1132	 57.81	0	1142245..1142967	+	240	163843409	lexA	BSUIS_A1192	-	LexA repressor
1133	 57.50	0	1142961..1145492	-	843	163843410	-	BSUIS_A1193	-	ComEC/Rec2-related protein
1134	 53.67	0	1145524..1145700	-	58	163843411	-	BSUIS_A1194	-	hypothetical protein
1135	 59.99	0	1145713..1147134	+	473	163843412	gltX	BSUIS_A1195	-	glutamyl-tRNA synthetase
1136	 57.23	0	1147363..1148655	+	430	163843413	gltA	BSUIS_A1196	-	type II citrate synthase
1137	 58.00	0	1148828..1150015	-	395	163843414	lpxB	BSUIS_A1197	-	lipid-A-disaccharide synthase
1138	 58.58	0	1150012..1150914	-	300	163843415	-	BSUIS_A1198	-	hypothetical protein
1139	 57.47	0	1150895..1151731	-	278	163843416	lpxA	BSUIS_A1199	-	UDP-N-acetylglucosamine acyltransferase
1140	 54.01	0	1151740..1152213	-	157	163843417	fabZ	BSUIS_A1200	-	(3R)-hydroxymyristoyl-ACP dehydratase
1141	 58.43	0	1152206..1153261	-	351	163843418	lpxD	BSUIS_A1201	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1142	 54.39	0	1153315..1155660	-	781	163843419	yaeT	BSUIS_A1202	-	Outer membrane protein assembly factor yaeT precursor
1143	 57.11	0	1155996..1157135	-	379	163843420	-	BSUIS_A1203	-	membrane-associated zinc metalloprotease
1144	 58.92	0	1157202..1158014	-	270	163843421	cdsA	BSUIS_A1204	-	phosphatidate cytidylyltransferase
1145	 60.00	0	1158119..1158883	-	254	163843422	uppS	BSUIS_A1205	-	undecaprenyl diphosphate synthase
1146	 57.93	0	1158928..1159488	-	186	163843423	frr	BSUIS_A1206	-	ribosome recycling factor
1147	 57.61	0	1159524..1160495	-	323	163843424	pyrH	BSUIS_A1207	-	uridylate kinase
1148	 59.69	0	1160413..1161330	-	305	163843425	tsf	BSUIS_A1208	-	elongation factor Ts
1149	 59.40	0	1161520..1162290	-	256	163843426	rpsB	BSUIS_A1209	-	30S ribosomal protein S2
1150	 51.92	-1	1162513..1163007	-	164	163843427	-	BSUIS_A1210	-	hypothetical protein
1151	 53.50	0	1163119..1163961	-	280	163843428	-	BSUIS_A1211	-	hypothetical protein
1152	 58.06	0	1164105..1164569	+	154	163843429	-	BSUIS_A1212	-	endoribonuclease L-PSP
1153	 57.22	0	1164571..1165311	+	246	163843430	-	BSUIS_A1213	-	glycerophosphoryl diester phosphodiesterase
1154	 54.97	0	1165366..1166553	+	395	163843431	-	BSUIS_A1214	-	hypothetical protein
1155	 53.43	0	1166625..1167047	+	140	163843432	-	BSUIS_A1215	-	hypothetical protein
1156	 57.54	0	1167154..1169628	-	824	163843433	clpA	BSUIS_A1216	-	ATP-dependent Clp protease ATP-binding subunit clpA
1157	 52.42	-1	1169635..1169985	-	116	163843434	clpS	BSUIS_A1217	-	ATP-dependent Clp protease adaptor protein ClpS
1158	 56.25	0	1170046..1170237	+	63	163843435	-	BSUIS_A1218	-	hypothetical protein
1159	 61.31	+1	1170471..1171889	+	472	163843436	-	BSUIS_A1219	-	Serine-type D-Ala-D-Ala carboxypeptidase
1160	 59.36	0	1171921..1172262	+	113	163843437	-	BSUIS_A1220	-	hypothetical protein
1161	 61.05	0	1172014..1172298	-	94	163843438	-	BSUIS_A1221	-	hypothetical protein
1162	 58.68	0	1172376..1172813	-	145	163843439	-	BSUIS_A1222	-	hypothetical protein
1163	 59.33	0	1172902..1174305	-	467	163843440	sdaA	BSUIS_A1223	-	L-serine ammonia-lyase
1164	 50.79	-1	1174503..1174628	-	41	163843441	-	BSUIS_A1224	-	hypothetical protein
1165	 56.10	0	1174827..1175621	-	264	163843442	-	BSUIS_A1225	-	hypothetical protein
1166	 58.36	0	1175796..1176782	+	328	163843443	-	BSUIS_A1226	-	hypothetical protein
1167	 55.81	0	1176793..1177179	-	128	163843444	-	BSUIS_A1227	-	MerR family transcriptional regulator
1168	 54.64	0	1177417..1177782	+	121	163843445	-	BSUIS_A1228	-	hypothetical protein
1169	 59.77	0	1177797..1178144	+	115	163843446	-	BSUIS_A1229	-	hypothetical protein
1170	 55.56	0	1178215..1178529	+	104	163843447	-	BSUIS_A1230	-	protein of unknown function DUF883 ElaB
1171	 57.69	0	1178976..1179443	+	155	163843448	queF	BSUIS_A1231	-	7-cyano-7-deazaguanine reductase
1172	 47.33	-2	1179447..1179596	-	49	163843449	-	BSUIS_A1232	-	hypothetical protein
1173	 59.32	0	1179574..1179750	+	58	163843450	-	BSUIS_A1233	-	hypothetical protein
1174	 53.96	0	1179782..1180324	+	180	163843451	-	BSUIS_A1234	-	hypothetical protein
1175	 57.89	0	1180327..1181739	-	470	163843452	-	BSUIS_A1235	-	hypothetical protein
1176	 58.43	0	1181869..1183422	+	517	163843453	-	BSUIS_A1236	-	propionyl-CoA carboxylase
1177	 59.63	0	1183507..1185510	+	667	163843454	-	BSUIS_A1237	-	propionyl-CoA carboxylase, alpha subunit
1178	 58.86	0	1185571..1187709	+	712	163843455	-	BSUIS_A1238	-	methylmalonyl-CoA mutase
1179	 56.20	0	1187816..1188178	-	120	163843456	-	BSUIS_A1239	-	hypothetical protein
1180	 57.15	0	1188365..1190413	-	682	163843457	-	BSUIS_A1240	-	TRAP transporter, 4TM/12TM fusion protein
1181	 51.70	-1	1190454..1190600	-	48	163843458	-	BSUIS_A1241	-	hypothetical protein
1182	 57.88	0	1190650..1191639	-	329	163843459	-	BSUIS_A1242	-	TRAP transporter solute receptor TAXI family protein
1183	 57.43	0	1191785..1192618	-	277	163843460	murI	BSUIS_A1243	-	glutamate racemase
1184	 57.52	0	1192615..1193445	-	276	163843461	-	BSUIS_A1244	-	RNA methyltransferase
1185	 58.29	0	1193625..1194209	+	194	163843462	-	BSUIS_A1245	-	PfpI family intracellular peptidase
1186	 57.91	0	1194298..1194708	+	136	163843463	-	BSUIS_A1246	-	hypothetical protein
1187	 57.28	0	1194836..1196050	+	404	163843464	-	BSUIS_A1247	-	isocitrate dehydrogenase
1188	 58.09	0	1196272..1197717	+	481	163843465	phoA	BSUIS_A1248	-	bacterial alkaline phosphatase
1189	 58.77	0	1197869..1200526	-	885	163843466	alaS	BSUIS_A1249	-	alanyl-tRNA synthetase
1190	 56.91	0	1200919..1202004	-	361	163843467	recA	BSUIS_A1250	-	recombinase A
1191	 48.41	-2	1202174..1202299	-	41	163843468	-	BSUIS_A1251	-	hypothetical protein
1192	 59.58	0	1202335..1202997	-	220	163843469	-	BSUIS_A1252	-	OmpA/MotB domain-containing protein
1193	 56.07	0	1203084..1203668	-	194	163843470	-	BSUIS_A1253	-	lytic transglycosylase catalytic
1194	 59.97	0	1203792..1205105	-	437	163843471	-	BSUIS_A1254	-	recombination factor protein RarA
1195	 58.95	0	1205252..1206676	-	474	163843472	degP	BSUIS_A1255	-	protease Do
1196	 58.04	0	1206956..1207384	-	142	163843473	rplQ	BSUIS_A1256	-	50S ribosomal protein L17
1197	 57.20	0	1207546..1208559	-	337	163843474	rpoA	BSUIS_A1257	-	DNA-directed RNA polymerase subunit alpha
57.01	MEAN

4.26	STD DEV
