IslandPath Analysis: Brucella suis ATCC 23445

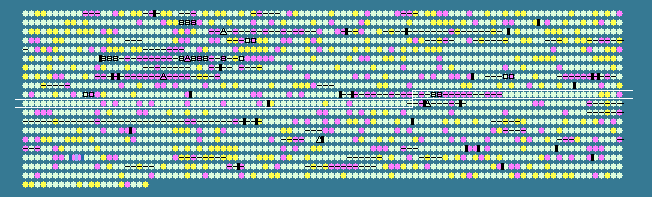

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
966	 55.56	0	962887..963201	-	104	163843243	-	BSUIS_A1018	-	hypothetical protein
967	 48.29	-2	963201..963521	-	106	163843244	-	BSUIS_A1019	-	hypothetical protein
968	 59.11	0	963609..964217	+	202	163843245	-	BSUIS_A1020	-	tRNA-guanine transglycosylase
969	 57.72	0	964287..964655	+	122	163843246	-	BSUIS_A1021	-	transposase for insertion sequence element IS6501
970	 49.29	-1	964763..965044	+	93	163843247	-	BSUIS_A1022	-	transposase for insertion sequence element IS6501
971	 52.64	-1	965099..965818	+	239	163843248	-	BSUIS_A1023	-	hypothetical protein
972	 48.63	-1	965953..967599	+	548	163843249	-	BSUIS_A1024	-	hypothetical protein
973	 46.96	-2	967925..969157	+	410	163843250	-	BSUIS_A1025	-	hypothetical protein
974	 45.19	-2	969154..970713	+	519	163843251	-	BSUIS_A1026	-	hypothetical protein
975	 43.24	-2	970694..970915	-	73	163843252	-	BSUIS_A1027	-	hypothetical protein
976	 59.68	0	971060..971818	+	252	163843253	-	BSUIS_A1028	-	hypothetical protein
977	 53.70	0	971782..972051	-	89	163843254	-	BSUIS_A1029	-	hypothetical protein
978	 50.62	-1	972196..972438	+	80	163843255	-	BSUIS_A1030	-	hypothetical protein
979	 46.08	-2	972540..972641	+	33	163843256	-	BSUIS_A1031	-	hypothetical protein
980	 43.48	-2	972650..972787	+	45	163843257	-	BSUIS_A1032	-	hypothetical protein
981	 55.46	0	972778..973125	+	115	163843258	arsC	BSUIS_A1033	-	arsenate reductase
982	 57.74	0	973496..974761	+	421	163843259	rlpA	BSUIS_A1034	-	rare lipoprotein A
983	 58.27	0	974872..976062	+	396	163843260	-	BSUIS_A1035	-	Serine-type D-Ala-D-Ala carboxypeptidase
984	 57.83	0	976144..976788	+	214	163843261	tmk	BSUIS_A1036	-	thymidylate kinase
985	 59.83	0	976785..977867	+	360	163843262	holB	BSUIS_A1037	-	DNA polymerase III subunit delta'
986	 56.67	0	977887..978036	+	49	163843263	-	BSUIS_A1038	-	hypothetical protein
987	 57.69	0	978036..979583	+	515	163843264	metG	BSUIS_A1039	-	methionyl-tRNA synthetase
988	 55.81	0	979592..980383	+	263	163843265	-	BSUIS_A1040	-	TatD family hydrolase
989	 56.53	0	980386..981204	+	272	163843266	-	BSUIS_A1041	-	beta-lactamase domain-containing protein
990	 59.56	0	981254..983053	-	599	163843267	-	BSUIS_A1042	-	cyclic beta-1,2-glucan ABC transporter
991	 59.43	0	983366..984346	+	326	163843268	-	BSUIS_A1043	-	RluA family pseudouridine synthase
992	 54.33	0	984349..985272	+	307	163843269	-	BSUIS_A1044	-	hypothetical protein
993	 57.51	0	985269..985934	+	221	163843270	-	BSUIS_A1045	-	HAD family hydrolase
994	 58.49	0	985976..986758	+	260	163843271	-	BSUIS_A1046	-	ATP12 ATPase
995	 55.53	0	986884..988293	-	469	163843272	glnA	BSUIS_A1047	-	glutamine synthetase, type I
996	 53.69	0	988441..988779	-	112	163843273	glnB	BSUIS_A1048	-	nitrogen regulatory protein P-II
997	 60.56	0	989086..990591	+	501	163843274	-	BSUIS_A1049	-	YjeF family protein
998	 61.46	+1	990622..990813	-	63	163843275	-	BSUIS_A1050	-	hypothetical protein
999	 57.45	0	990891..991595	-	234	163843276	gph	BSUIS_A1051	-	phosphoglycolate phosphatase
1000	 50.00	-1	991650..991763	+	37	163843277	-	BSUIS_A1052	-	hypothetical protein
1001	 57.51	0	991942..992640	+	232	163843278	rpiA	BSUIS_A1053	-	ribose-5-phosphate isomerase A
1002	 59.96	0	992666..993202	+	178	163843279	-	BSUIS_A1054	-	hypothetical protein
1003	 55.84	0	993356..994750	+	464	163843280	gor	BSUIS_A1055	-	glutathione reductase
1004	 59.11	0	994959..996347	+	462	163843281	-	BSUIS_A1056	-	3-deoxy-7-phosphoheptulonate synthase
1005	 53.56	0	996451..996801	+	116	163843282	dgkA	BSUIS_A1057	-	diacylglycerol kinase
1006	 57.02	0	996866..998545	+	559	163843283	nadE	BSUIS_A1058	-	NAD synthetase
1007	 57.28	0	998557..999930	+	457	163843284	gltX	BSUIS_A1059	-	glutamyl-tRNA synthetase
1008	 59.66	0	1000744..1003068	-	774	163843285	-	BSUIS_A1060	-	malic enzyme
1009	 57.49	0	1003286..1004266	-	326	163843286	-	BSUIS_A1061	-	mandelate racemase/muconate lactonizing protein
1010	 55.70	0	1004327..1005502	+	391	163843287	-	BSUIS_A1062	-	hypothetical protein
1011	 56.29	0	1005720..1006577	+	285	163843288	-	BSUIS_A1063	-	ABC transporter related
1012	 55.72	0	1006581..1007576	+	331	163843289	-	BSUIS_A1064	-	hypothetical protein
1013	 55.56	0	1007600..1008202	+	200	163843290	-	BSUIS_A1065	-	hypothetical protein
1014	 44.76	-2	1008314..1008418	-	34	163843291	-	BSUIS_A1066	-	hypothetical protein
1015	 59.69	0	1008443..1013101	-	1552	163843292	-	BSUIS_A1067	-	hypothetical protein
1016	 44.24	-2	1013316..1013480	+	54	163843293	-	BSUIS_A1068	-	hypothetical protein
1017	 60.49	0	1013716..1014039	+	107	163843294	-	BSUIS_A1069	-	ferredoxin-6
1018	 55.07	0	1014265..1014678	+	137	163843295	-	BSUIS_A1070	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1019	 56.68	0	1014683..1015303	-	206	163843296	-	BSUIS_A1071	-	hypothetical protein
1020	 49.61	-1	1015239..1015367	-	42	163843297	-	BSUIS_A1072	-	hypothetical protein
1021	 58.03	0	1015461..1016282	+	273	163843298	folP	BSUIS_A1073	-	dihydropteroate synthase
1022	 53.06	0	1016319..1016678	+	119	163843299	folB	BSUIS_A1074	-	dihydroneopterin aldolase
1023	 59.36	0	1016675..1017208	+	177	163843300	folK	BSUIS_A1075	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
1024	 56.81	0	1017323..1017880	-	185	163843301	-	BSUIS_A1076	-	hypothetical protein
1025	 59.40	0	1018132..1019205	-	357	163843302	-	BSUIS_A1077	-	hypothetical protein
1026	 58.66	0	1019202..1020662	-	486	163843303	-	BSUIS_A1078	-	protein of unknown function DUF463 YcjX family protein
1027	 53.89	0	1020755..1021255	-	166	163843304	-	BSUIS_A1079	-	phosphohistidine phosphatase, SixA
1028	 51.80	-1	1021651..1022067	+	138	163843305	dksA	BSUIS_A1080	-	RNA polymerase-binding protein DksA
1029	 60.30	0	1022213..1023469	-	418	163843306	-	BSUIS_A1081	-	basic proline-rich protein precursor
1030	 58.58	0	1023836..1026532	+	898	163843307	-	BSUIS_A1082	-	PAS domain-containing protein
1031	 57.49	0	1026557..1027765	+	402	163843308	-	BSUIS_A1083	-	hypothetical protein
1032	 55.56	0	1027796..1029118	+	440	163843309	-	BSUIS_A1084	-	beta-lactamase
1033	 57.49	0	1030426..1034229	-	1267	163843310	-	BSUIS_A1086	-	ribonucleotide-diphosphate reductase subunit alpha
1034	 47.50	-2	1034282..1034521	+	79	163843311	-	BSUIS_A1087	-	hypothetical protein
1035	 59.51	0	1034931..1035419	-	162	163843312	-	BSUIS_A1088	-	diphosphoinositol polyphosphate phosphohydrolase 3 beta
1036	 57.83	0	1035660..1036157	-	165	163843313	gpt	BSUIS_A1089	-	xanthine-guanine phosphoribosyltransferase
1037	 59.22	0	1036607..1037452	-	281	163843314	-	BSUIS_A1090	-	UspA domain-containing protein
1038	 57.58	0	1037530..1038288	-	252	163843315	-	BSUIS_A1091	-	molybdopterin binding domain-containing protein
1039	 59.00	0	1038449..1039048	+	199	163843316	wrbA	BSUIS_A1092	-	TrpR binding protein WrbA
1040	 50.67	-1	1039026..1039175	-	49	163843317	-	BSUIS_A1093	-	hypothetical protein
1041	 54.24	0	1039253..1040443	+	396	163843318	ilvA	BSUIS_A1095	-	threonine dehydratase biosynthetic
1042	 62.13	+1	1040510..1042117	+	535	163843319	-	BSUIS_A1096	-	DEAD/DEAH box helicase domain-containing protein
1043	 57.82	0	1042288..1043316	+	342	163843320	-	BSUIS_A1097	-	cysteine synthase A
1044	 55.91	0	1043319..1044062	+	247	163843321	alaS	BSUIS_A1098	-	alanyl-tRNA synthetase
1045	 58.25	0	1044089..1044943	+	284	163843322	-	BSUIS_A1099	-	3-mercaptopyruvate sulfurtransferase
1046	 54.50	0	1045049..1045459	+	136	163843323	-	BSUIS_A1100	-	GCN5-related N-acetyltransferase
1047	 56.60	0	1045498..1046292	-	264	163843324	-	BSUIS_A1101	-	diguanylate cyclase
1048	 55.26	0	1046857..1048347	-	496	163843325	-	BSUIS_A1102	-	Acetyl-CoA hydrolase
1049	 56.55	0	1048612..1050153	-	513	163843326	-	BSUIS_A1103	-	EmrB/QacA family drug resistance transporter
1050	 57.58	0	1050153..1051253	-	366	163843327	-	BSUIS_A1104	-	HlyD family protein secretion protein
1051	 62.20	+1	1051647..1052630	+	327	163843328	-	BSUIS_A1105	-	zinc-binding alcohol dehydrogenase family protein
1052	 58.44	0	1052674..1053816	-	380	163843329	pepQ	BSUIS_A1106	-	Xaa-Pro dipeptidase
1053	 55.84	0	1054075..1054905	-	276	163843330	-	BSUIS_A1107	-	methyltransferase type 12
1054	 55.38	0	1055014..1055979	-	321	163843331	-	BSUIS_A1108	-	Sodium/bile acid cotransporter 7
1055	 50.98	-1	1056007..1056159	-	50	163843332	-	BSUIS_A1109	-	hypothetical protein
1056	 53.97	0	1056108..1057115	-	335	163843333	galE	BSUIS_A1110	-	UDP-glucose 4-epimerase
1057	 56.37	0	1058093..1058704	-	203	163843334	-	BSUIS_A1112	-	hypothetical protein
1058	 58.12	0	1058747..1059331	-	194	163843335	-	BSUIS_A1113	-	nitroreductase
1059	 57.37	0	1059551..1060561	+	336	163843336	-	BSUIS_A1114	-	hypothetical protein
1060	 56.50	0	1060616..1062592	-	658	163843337	thrS	BSUIS_A1115	-	threonyl-tRNA synthetase
1061	 58.07	0	1062807..1064039	-	410	163843338	-	BSUIS_A1116	-	Serine-type D-Ala-D-Ala carboxypeptidase
1062	 60.00	0	1064146..1064625	-	159	163843339	-	BSUIS_A1117	-	hypothetical protein
1063	 57.37	0	1064519..1064959	-	146	163843340	-	BSUIS_A1118	-	NifU domain-containing protein
1064	 57.01	0	1065223..1065864	+	213	163843341	folE	BSUIS_A1119	-	GTP cyclohydrolase I
1065	 57.14	0	1065887..1066306	+	139	163843342	hisI	BSUIS_A1120	-	phosphoribosyl-AMP cyclohydrolase
57.01	MEAN

4.26	STD DEV
