IslandPath Analysis: Bradyrhizobium sp. ORS278

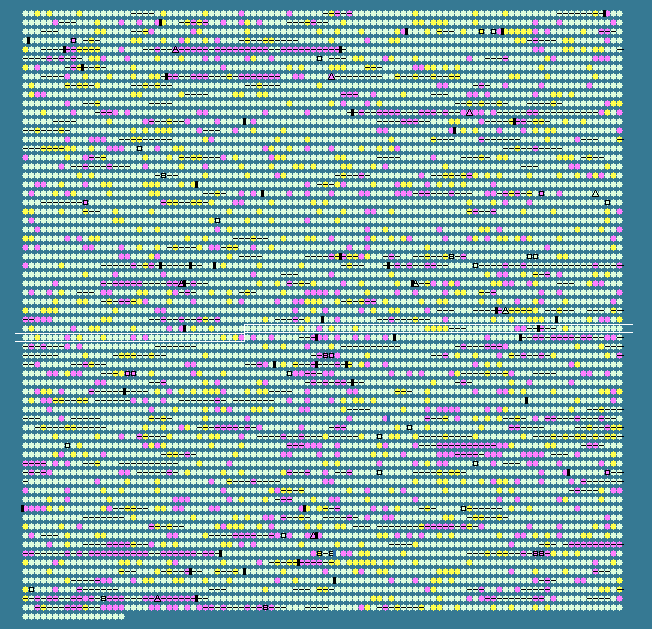

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.78 STD DEV: 3.31
Bradyrhizobium sp. ORS278, complete genome - 1..7456587
6717 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3538	 66.67	0	3931397..3932194	+	265	146340713	-	BRADO3765	-	hypothetical protein
3539	 66.40	0	3932221..3932595	-	124	146340714	-	BRADO3766	-	hypothetical protein
3540	 65.12	0	3933024..3934901	+	625	146340715	-	BRADO3767	-	putative esterase/lipase/outer membrane autotransporter
3541	 69.24	+1	3935122..3935937	+	271	146340716	-	BRADO3768	-	hypothetical protein
3542	 68.24	0	3936133..3938235	-	700	146340717	recG	BRADO3769	-	DNA helicase, ATP-dependent resolution of Holliday junctions, branch migration
3543	 67.52	0	3938487..3938720	+	77	146340718	-	BRADO3770	-	hypothetical protein
3544	 67.21	0	3938717..3942235	+	1172	146340719	Mfd	BRADO3771	-	transcription repair coupling factor
3545	 64.17	0	3942445..3943845	-	466	146340720	-	BRADO3773	-	hypothetical protein
3546	 69.26	+1	3944255..3945487	-	410	146340721	-	BRADO3774	-	putative signal peptide
3547	 69.45	+1	3945601..3947145	-	514	146340722	-	BRADO3775	-	putative acid-CoA ligase
3548	 65.65	0	3947159..3949024	-	621	146340723	-	BRADO3776	-	binding protein component of ABC transporter precursor
3549	 67.58	0	3949261..3950028	+	255	146340724	-	BRADO3777	-	putative signal peptide
3550	 58.56	-2	3950192..3950524	-	110	146340725	-	BRADO3778	-	hypothetical protein
3551	 66.46	0	3950644..3951597	+	317	146340726	-	BRADO3779	-	putative malonate transporter
3552	 69.63	+1	3951605..3952819	-	404	146340727	-	BRADO3780	-	2-octaprenyl-6-methoxyphenyl hydroxylase
3553	 65.58	0	3952938..3953672	+	244	146340728	-	BRADO3781	-	putative phosphatidylcholine synthase
3554	 64.46	0	3953669..3954394	+	241	146340729	-	BRADO3782	-	hypothetical protein
3555	 66.14	0	3954624..3955571	+	315	146340730	qor	BRADO3783	-	quinone oxidoreductase, NADPH-dependent
3556	 70.40	+1	3955588..3956337	-	249	146340731	-	BRADO3784	-	putative signal peptide
3557	 65.96	0	3956458..3956739	-	93	146340732	-	BRADO3785	-	hypothetical protein
3558	 68.52	0	3956993..3957964	+	323	146340733	-	BRADO3786	-	putative luciferase-alpha subunit
3559	 67.17	0	3957994..3959190	-	398	146340734	argD	BRADO3787	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
3560	 67.29	0	3959616..3960743	+	375	146340735	-	BRADO3789	-	hypothetical protein
3561	 66.37	0	3960751..3962088	-	445	146340736	-	BRADO3790	-	hypothetical protein
3562	 62.44	-1	3962200..3962790	+	196	146340737	-	BRADO3791	-	putative two-component response regulator:antitermination factor NasT
3563	 67.53	0	3962787..3963941	+	384	146340738	-	BRADO3792	-	putative nitrate transporter component, nrtA
3564	 65.24	0	3964259..3966076	+	605	146340739	nirA	BRADO3793	-	ferredoxin-nitrite reductase
3565	 66.98	0	3966073..3967680	+	535	146340740	-	BRADO3794	-	sulfite reductase
3566	 65.76	0	3968020..3968793	-	257	146340741	-	BRADO3796	-	hypothetical protein
3567	 67.93	0	3968845..3969873	-	342	146340742	-	BRADO3797	-	putative carboxylase, like RuBisCO, small subunit
3568	 69.40	+1	3969876..3970607	-	243	146340743	-	BRADO3798	-	putative carboxylase
3569	 69.38	+1	3970854..3971552	+	232	146340744	-	BRADO3799	-	hypothetical protein
3570	 69.32	+1	3971595..3972008	+	137	146340745	-	BRADO3800	-	hypothetical protein
3571	 70.43	+1	3972077..3973033	-	318	146340746	-	BRADO3801	-	putative signal peptide
3572	 62.37	-1	3973059..3973547	-	162	146340747	-	BRADO3802	-	AsnC/Lrp family transcriptional regulator
3573	 65.88	0	3973681..3974700	+	339	146340748	-	BRADO3803	-	1-aminocyclopropane-1-carboxylate deaminase
3574	 69.24	+1	3976161..3978182	+	673	146340749	fusA	BRADO3806	-	protein chain elongation factor EF-G, GTP-binding
3575	 64.26	0	3978230..3978727	-	165	146340750	-	BRADO3807	-	putative acetyltransferase
3576	 67.98	0	3978753..3979817	-	354	146340751	-	BRADO3808	-	putative high-affinity nickel-transporter (yohM-like protein)
3577	 65.23	0	3979825..3980103	-	92	146340752	-	BRADO3809	-	putative yohL-like protein
3578	 63.87	0	3980235..3981056	-	273	146340753	-	BRADO3810	-	cyclohexadienyl dehydratase precursor
3579	 64.92	0	3981129..3981644	+	171	146340754	-	BRADO3811	-	hypothetical protein
3580	 67.53	0	3981718..3982065	-	115	146340755	-	BRADO3812	-	hypothetical protein
3581	 67.37	0	3982302..3983300	-	332	146340756	-	BRADO3813	-	putative phosphoglycerate dehydrogenase
3582	 64.58	0	3983329..3984429	-	366	146340757	ugpC	BRADO3814	-	sn-glycerol 3-phosphate ABC transporter ATP-binding protein
3583	 61.84	-1	3984449..3985360	-	303	146340758	-	BRADO3815	-	ABC transporter permease protein
3584	 61.02	-1	3985360..3986298	-	312	146340759	-	BRADO3816	-	putative permease protein of sugar ABC transporter
3585	 63.44	0	3986412..3987776	-	454	146340760	-	BRADO3817	-	ABC transporter substrate-binding protein, periplasmic component
3586	 68.27	0	3988243..3988926	+	227	146340761	-	BRADO3818	-	hypothetical protein
3587	 57.84	-2	3989612..3989815	+	67	146340762	-	BRADO3819	-	hypothetical protein
3588	 65.19	0	3990059..3990328	+	89	146340763	-	BRADO3821	-	hypothetical protein
3589	 67.37	0	3990328..3991179	+	283	146340764	-	BRADO3822	-	rare lipoprotein A family protein (rlpA)
3590	 68.19	0	3991267..3994551	-	1094	146340765	-	BRADO3823	-	hypothetical protein
3591	 69.87	+1	3994877..3995251	+	124	146340766	-	BRADO3824	-	hypothetical protein
3592	 67.55	0	3995248..3996156	-	302	146340767	-	BRADO3825	-	epoxide hydrolase
3593	 64.16	0	3996470..3997624	+	384	146340768	-	BRADO3826	-	putative Serine-type D-Ala-D-Ala carboxypeptidase
3594	 67.40	0	3997629..3998309	+	226	146340769	tmk	BRADO3827	-	thymidylate kinase
3595	 68.78	0	3998306..3999346	+	346	146340770	-	BRADO3828	-	DNA polymerase III subunit delta'
3596	 66.57	0	3999416..4001533	+	705	146340771	-	BRADO3829	-	methionyl-tRNA synthetase
3597	 64.90	0	4001533..4002324	+	263	146340772	-	BRADO3830	-	putative deoxyribonuclease (ycfH)
3598	 66.67	0	4002321..4003121	+	266	146340773	-	BRADO3831	-	hypothetical protein
3599	 66.03	0	4003296..4003925	+	209	146340774	-	BRADO3832	-	hypothetical protein
3600	 65.51	0	4004125..4005768	-	547	146340775	-	BRADO3833	-	acyl-CoA synthetase
3601	 66.67	0	4005797..4007683	-	628	146340776	-	BRADO3834	-	TRAP-type C4-dicarboxylate transporter small and large permease
3602	 63.76	0	4007719..4008714	-	331	146340777	-	BRADO3835	-	putative TRAP-type C4-dicarboxylate transport system, periplasmic component (dctP-like)
3603	 70.36	+1	4009214..4010080	+	288	146340778	-	BRADO3836	-	hypothetical protein
3604	 66.87	0	4010171..4011640	-	489	146340779	-	BRADO3837	-	putative ABC transporter ATP-binding protein
3605	 66.99	0	4011637..4012566	-	309	146340780	-	BRADO3838	-	putative branched-chain amino acid ABC transporter, permease protein
3606	 64.73	0	4012569..4013444	-	291	146340781	-	BRADO3839	-	branched chain amino acid ABC transporter permease
3607	 63.01	0	4013517..4014803	-	428	146340782	-	BRADO3840	-	putative branched-chain amino acid ABC transporter (substrate-binding protein)
3608	 57.08	-2	4014822..4015040	-	72	146340783	-	BRADO3841	-	hypothetical protein
3609	 68.20	0	4015362..4016207	+	281	146340784	-	BRADO3842	-	hypothetical protein
3610	 69.93	+1	4016280..4017167	-	295	146340785	-	BRADO3843	-	hypothetical protein
3611	 64.89	0	4017428..4018888	-	486	146340786	-	BRADO3844	-	putative Beta-glucosidase
3612	 66.51	0	4019083..4019718	+	211	146340787	nthA	BRADO3845	-	nitrile hydratase subunit alpha (Nitrilase) (NHase)
3613	 68.79	0	4019718..4020377	+	219	146340788	nthB	BRADO3846	-	nitrile hydratase subunit beta (Nitrilase) (NHase)
3614	 70.00	+1	4020374..4020763	+	129	146340789	-	BRADO3847	-	hypothetical protein
3615	 66.55	0	4020931..4021764	+	277	146340790	-	BRADO3848	-	hypothetical protein
3616	 67.20	0	4021826..4022572	-	248	146340791	-	BRADO3849	-	putative ExsB
3617	 65.81	0	4022669..4023487	+	272	146340792	mazG	BRADO3851	-	nucleoside triphosphate pyrophosphohydrolase
3618	 66.12	0	4023488..4023856	-	122	146340793	-	BRADO3852	-	hypothetical protein
3619	 55.76	-2	4024097..4026343	+	748	146340794	-	BRADO3853	-	hypothetical protein
3620	 67.25	0	4026610..4027989	-	459	146340795	-	BRADO3854	-	putative GTP-binding protein (hflX)
3621	 59.44	-1	4028001..4028249	-	82	146340796	hfq	BRADO3855	-	RNA-binding protein Hfq
3622	 65.65	0	4028520..4029890	-	456	146340797	ntrX	BRADO3856	-	nitrogen assimilation regulatory protein
3623	 65.98	0	4029908..4032253	-	781	146340798	ntrY	BRADO3857	-	nitrogen regulation protein
3624	 66.94	0	4032456..4033190	-	244	146340799	-	BRADO3858	-	IclR family transcriptional regulator
3625	 65.35	0	4033283..4033963	-	226	146340800	-	BRADO3859	-	hypothetical protein
3626	 66.27	0	4034170..4035177	+	335	146340801	-	BRADO3860	-	putative D-3-phosphoglycerate dehydrogenase (PGDH)
3627	 65.92	0	4035210..4036547	+	445	146340802	-	BRADO3861	-	MFS family tartrate transporter
3628	 68.58	0	4036549..4037490	+	313	146340803	-	BRADO3862	-	putative exported protein; putative hydrolase
3629	 66.02	0	4037487..4038407	+	306	146340804	-	BRADO3863	-	putative gluconolactonase
3630	 68.60	0	4038419..4039348	-	309	146340805	-	BRADO3864	-	putative amidohydrolase; putative exported protein
3631	 66.97	0	4039345..4040664	-	439	146340806	-	BRADO3865	-	major facilitator superfamily permease
3632	 67.91	0	4040947..4042389	-	480	146340807	ntrC	BRADO3866	-	nitrogen assimilation regulatory protein
3633	 65.73	0	4042399..4043574	-	391	146340808	ntrB	BRADO3867	-	nitrogen regulation protein
3634	 70.75	+1	4043571..4044524	-	317	146340809	-	BRADO3868	-	putative tRNA-dihydrouridine synthase (nitrogen regulation protein nifR3)
3635	 68.27	0	4044983..4046164	+	393	146340810	ispDF	BRADO3869	-	IspD/ispF bifunctional enzyme
3636	 72.20	+1	4046471..4047085	+	204	146340811	-	BRADO3870	-	putative competence-damage induced protein (CinA)
3637	 55.89	-2	4047153..4047950	+	265	146340812	-	BRADO3871	-	hypothetical protein
65.78	MEAN

3.31	STD DEV
