IslandPathversion 1.0

IslandPath Analysis: Bradyrhizobium sp. ORS278

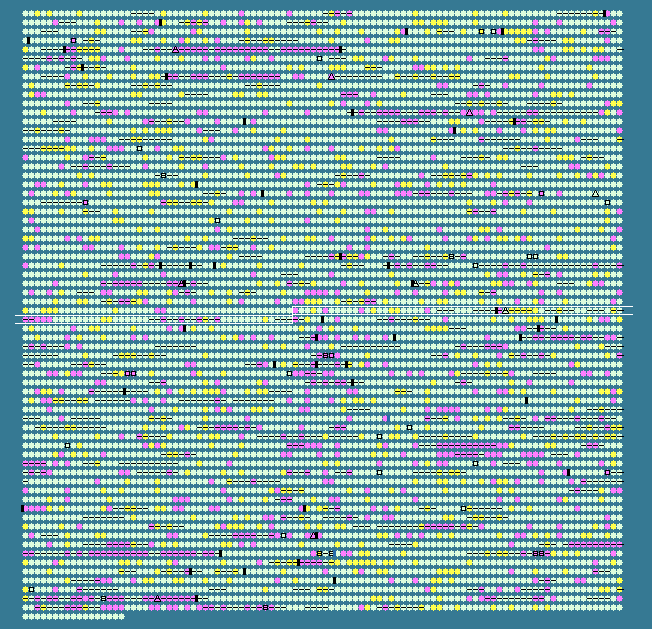

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.78 STD DEV: 3.31
Bradyrhizobium sp. ORS278, complete genome - 1..7456587
6717 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3346	 61.72	-1	3756834..3757682	+	282	146340521	-	BRADO3563	-	putative sugar ABC transporter (permease protein); putative exported protein
3347	 66.12	0	3757705..3758802	+	365	146340522	-	BRADO3564	-	putative dehydrogenase/oxidoreductase
3348	 62.79	0	3758813..3759457	+	214	146340523	-	BRADO3565	-	hypothetical protein
3349	 70.48	+1	3759454..3760503	+	349	146340524	-	BRADO3566	-	LacI family transcriptional regulator
3350	 64.66	0	3760507..3760905	-	132	146340525	-	BRADO3567	-	hypothetical protein
3351	 62.13	-1	3760978..3762783	-	601	146340526	phbC	BRADO3568	-	Poly-beta-hydroxybutyrate polymerase
3352	 67.72	0	3763134..3763322	+	62	146340527	-	BRADO3570	-	hypothetical protein
3353	 65.68	0	3763541..3764761	+	406	146340528	-	BRADO3571	-	aminotransferase
3354	 67.50	0	3764798..3766114	+	438	146340529	hom	BRADO3572	-	homoserine dehydrogenase
3355	 68.26	0	3766319..3767320	+	333	146340530	glpX	BRADO3573	-	fructose 1,6-bisphosphatase II
3356	 64.58	0	3767336..3768055	+	239	146340531	-	BRADO3574	-	putative (S)-2-haloacid dehalogenase IVA (2-haloalkanoic acid dehalogenase IVA) (L-2-haloacid dehalogenase IVA) (halocarboxylic acid halidohydrolase IVA)
3357	 58.43	-2	3768065..3768331	+	88	146340532	-	BRADO3575	-	hypothetical protein
3358	 67.03	0	3768328..3769419	-	363	146340533	-	BRADO3576	-	putative methyl-accepting chemotaxis protein
3359	 69.60	+1	3769716..3771557	+	613	146340534	-	BRADO3577	-	putative single-stranded-DNA-specific exonuclease recJ
3360	 66.92	0	3772305..3772703	-	132	146340535	-	BRADO3578	-	hypothetical protein
3361	 66.67	0	3772934..3773725	+	263	146340536	-	BRADO3579	-	hypothetical protein
3362	 69.53	+1	3773829..3775049	-	406	146340537	-	BRADO3580	-	putative membrane-bound lytic transglycosylase precursor protein, putative signal peptide
3363	 73.26	+2	3775101..3775631	-	176	146340538	-	BRADO3581	-	MarR family transcriptional regulator
3364	 66.24	0	3775680..3776150	+	156	146340539	-	BRADO3582	-	putative carboxymuconolactone decarboxylase (CMD) family protein
3365	 67.76	0	3776210..3776392	+	60	146340540	-	BRADO3583	-	hypothetical protein
3366	 68.56	0	3776620..3776883	-	87	146340541	-	BRADO3584	-	hypothetical protein
3367	 68.56	0	3776956..3778596	-	546	146340542	-	BRADO3585	-	putative peptidase M23 family protein; putative signal peptide
3368	 62.08	-1	3778648..3779214	-	188	146340543	efp	BRADO3586	-	elongation factor P
3369	 69.22	+1	3779338..3780393	+	351	146340544	-	BRADO3587	-	putative lysyl-tRNA synthetase (lysine--tRNA ligase)
3370	 68.58	0	3780390..3781484	+	364	146340545	-	BRADO3588	-	putative lysine 2,3-aminomutase
3371	 65.23	0	3781521..3781799	+	92	146340546	-	BRADO3589	-	putative signal peptide
3372	 66.76	0	3781852..3782937	-	361	146340547	aroG	BRADO3590	-	phospho-2-dehydro-3-deoxyheptonate aldolase
3373	 66.84	0	3783168..3783755	-	195	146340548	-	BRADO3591	-	hypothetical protein
3374	 67.35	0	3783881..3784909	-	342	146340549	-	BRADO3592	-	hypothetical protein
3375	 65.94	0	3785771..3787003	+	410	146340550	hemA	BRADO3594	-	5-aminolevulinate synthase
3376	 64.59	0	3787142..3787720	+	192	146340551	-	BRADO3595	-	hypothetical protein
3377	 66.20	0	3787823..3788035	+	70	146340552	-	BRADO3596	-	hypothetical protein
3378	 66.00	0	3788336..3789088	-	250	146340553	-	BRADO3597	-	hypothetical protein
3379	 65.47	0	3789295..3789627	+	110	146340554	-	BRADO3598	-	hypothetical protein
3380	 53.78	-2	3790131..3791108	+	325	146340555	-	BRADO3599	-	hypothetical protein
3381	 66.76	0	3791179..3792255	-	358	146340556	-	BRADO3600	-	putative phage integrase
3382	 70.33	+1	3792252..3792524	-	90	146340557	-	BRADO3601	-	hypothetical protein
3383	 69.51	+1	3792521..3792766	-	81	146340558	-	BRADO3602	-	hypothetical protein
3384	 69.52	+1	3792859..3793068	-	69	146340559	-	BRADO3603	-	hypothetical protein
3385	 70.69	+1	3793071..3793244	-	57	146340560	-	BRADO3604	-	hypothetical protein
3386	 72.67	+2	3793369..3793518	-	49	146340561	-	BRADO3605	-	hypothetical protein
3387	 63.03	0	3793800..3794459	-	219	146340562	-	BRADO3606	-	hypothetical protein
3388	 65.10	0	3794556..3794810	+	84	146340563	-	BRADO3607	-	hypothetical protein
3389	 63.60	0	3794963..3795190	+	75	146340564	-	BRADO3608	-	hypothetical protein
3390	 71.88	+1	3795187..3795474	+	95	146340565	-	BRADO3609	-	hypothetical protein
3391	 63.53	0	3795471..3795725	+	84	146340566	-	BRADO3610	-	hypothetical protein
3392	 64.97	0	3795722..3796192	+	156	146340567	-	BRADO3611	-	hypothetical protein
3393	 66.46	0	3796205..3796693	+	162	146340568	-	BRADO3612	-	hypothetical protein
3394	 67.38	0	3796693..3798525	+	610	146340569	-	BRADO3613	-	hypothetical protein
3395	 64.06	0	3798522..3798713	+	63	146340570	-	BRADO3614	-	hypothetical protein
3396	 65.19	0	3798706..3799110	+	134	146340571	-	BRADO3615	-	hypothetical protein
3397	 66.00	0	3799107..3799406	+	99	146340572	-	BRADO3616	-	hypothetical protein
3398	 66.67	0	3799627..3799911	+	94	146340573	-	BRADO3618	-	hypothetical protein
3399	 72.03	+1	3799908..3800168	+	86	146340574	-	BRADO3619	-	hypothetical protein
3400	 66.59	0	3800229..3801491	+	420	146340575	-	BRADO3620	-	hypothetical protein
3401	 61.06	-1	3801488..3802093	+	201	146340576	-	BRADO3621	-	putative transcription antitermination protein NusG
3402	 55.87	-2	3802249..3802785	-	178	146340577	-	BRADO3622	-	hypothetical protein
3403	 59.72	-1	3803177..3803464	+	95	146340578	-	BRADO3623	-	hypothetical protein
3404	 60.12	-1	3803555..3804043	+	162	146340579	-	BRADO3624	-	hypothetical protein
3405	 50.95	-2	3804073..3805173	-	366	146340580	-	BRADO3625	-	hypothetical protein
3406	 65.29	0	3805283..3807022	+	579	146340581	-	BRADO3626	-	hypothetical protein
3407	 65.31	0	3807022..3808347	+	441	146340582	-	BRADO3627	-	hypothetical protein
3408	 65.98	0	3808344..3809213	+	289	146340583	-	BRADO3628	-	hypothetical protein
3409	 66.44	0	3810241..3811551	+	436	146340584	-	BRADO3629	-	hypothetical protein
3410	 65.34	0	3811621..3812073	+	150	146340585	-	BRADO3630	-	hypothetical protein
3411	 63.73	0	3812089..3813414	+	441	146340586	-	BRADO3631	-	hypothetical protein
3412	 66.20	0	3813427..3813642	+	71	146340587	-	BRADO3632	-	hypothetical protein
3413	 66.99	0	3813645..3814259	+	204	146340588	-	BRADO3633	-	hypothetical protein
3414	 69.29	+1	3814265..3814645	+	126	146340589	-	BRADO3634	-	hypothetical protein
3415	 69.31	+1	3814649..3814951	+	100	146340590	-	BRADO3635	-	hypothetical protein
3416	 66.67	0	3814953..3815423	+	156	146340591	-	BRADO3636	-	hypothetical protein
3417	 67.34	0	3815435..3815881	+	148	146340592	-	BRADO3637	-	hypothetical protein
3418	 65.37	0	3815910..3817142	+	410	146340593	-	BRADO3638	-	hypothetical protein
3419	 67.79	0	3817152..3817598	+	148	146340594	-	BRADO3639	-	hypothetical protein
3420	 66.30	0	3817661..3817933	+	90	146340595	-	BRADO3640	-	hypothetical protein
3421	 67.42	0	3817935..3820058	+	707	146340596	-	BRADO3641	-	hypothetical protein
3422	 65.06	0	3820073..3820321	+	82	146340597	-	BRADO3642	-	hypothetical protein
3423	 69.17	+1	3820323..3820682	+	119	146340598	-	BRADO3643	-	hypothetical protein
3424	 61.11	-1	3820679..3821182	+	167	146340599	-	BRADO3644	-	hypothetical protein
3425	 65.93	0	3821198..3821602	+	134	146340600	-	BRADO3645	-	tail assembly protein homolog
3426	 66.11	0	3821599..3825399	+	1266	146340601	-	BRADO3646	-	tail fiber protein
3427	 55.17	-2	3825414..3825500	-	28	146340602	-	BRADO3647	-	hypothetical protein
3428	 67.09	0	3825659..3827059	+	466	146340603	-	BRADO3648	-	hypothetical protein
3429	 65.99	0	3827035..3829266	+	743	146340604	-	BRADO3649	-	hypothetical protein
3430	 57.53	-2	3829317..3830465	+	382	146340605	-	BRADO3650	-	hypothetical protein
3431	 70.04	+1	3830835..3831812	+	325	146340606	-	BRADO3651	-	hypothetical protein
3432	 66.67	0	3831814..3832116	+	100	146340607	-	BRADO3652	-	hypothetical protein
3433	 60.23	-1	3832128..3832298	+	56	146340608	-	BRADO3653	-	hypothetical protein
3434	 63.52	0	3832435..3832752	+	105	146340609	-	BRADO3654	-	hypothetical protein
3435	 64.63	0	3832779..3832925	+	48	146340610	-	BRADO3655	-	vacuolar ATP synthase proteolipid subunit
3436	 67.14	0	3832927..3833136	+	69	146340611	-	BRADO3656	-	hypothetical protein
3437	 64.33	0	3833133..3833432	+	99	146340612	-	BRADO3657	-	hypothetical protein
3438	 66.21	0	3833608..3833826	-	72	146340613	-	BRADO3658	-	hypothetical protein
3439	 68.80	0	3833826..3834059	-	77	146340614	-	BRADO3659	-	hypothetical protein
3440	 63.33	0	3834059..3834328	-	89	146340615	-	BRADO3660	-	hypothetical protein
3441	 69.35	+1	3834556..3834816	+	86	146340616	-	BRADO3661	-	hypothetical protein
3442	 67.84	0	3834861..3835115	+	84	146340617	-	BRADO3662	-	hypothetical protein
3443	 66.36	0	3835119..3835760	-	213	146340618	-	BRADO3663	-	putative glutathione S-transferase
3444	 64.35	0	3836062..3836277	-	71	146340619	-	BRADO3664	-	hypothetical protein
3445	 62.91	0	3836283..3836735	-	150	146340620	gloA	BRADO3665	-	lactoylglutathione lyase (methylglyoxalase) (aldoketomutase) (glyoxalase I) (Glx I) (Ketone-aldehyde mutase) (S-D-lactoylglutathione methylglyoxal lyase)
65.78	MEAN

3.31	STD DEV
