IslandPath Analysis: Bradyrhizobium sp. ORS278

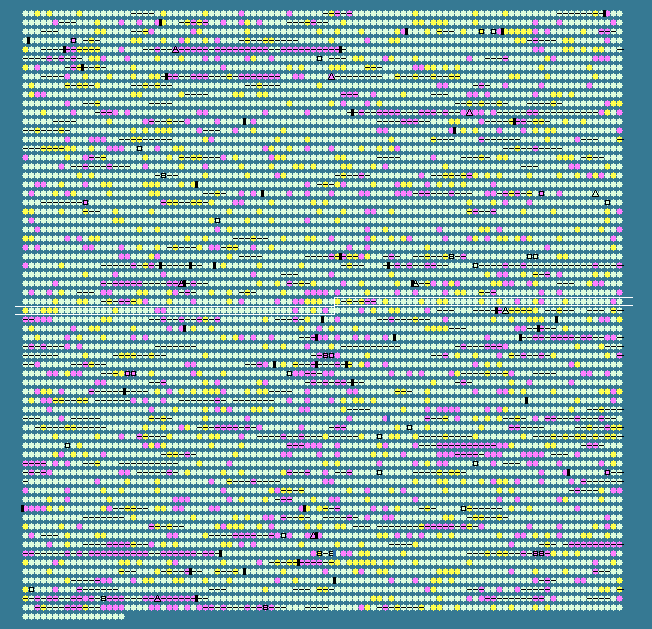

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.78 STD DEV: 3.31
Bradyrhizobium sp. ORS278, complete genome - 1..7456587
6717 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3253	 71.75	+1	3646113..3647273	-	386	146340428	-	BRADO3466	-	putative cytochrome P450
3254	 62.60	0	3647756..3648001	-	81	146340429	-	BRADO3468	-	hypothetical protein
3255	 73.25	+2	3648085..3648570	+	161	146340430	-	BRADO3469	-	hypothetical protein
3256	 66.40	0	3648599..3648967	-	122	146340431	-	BRADO3470	-	hypothetical protein
3257	 70.37	+1	3649109..3649432	-	107	146340432	-	BRADO3471	-	hypothetical protein
3258	 54.57	-2	3649524..3650168	-	214	146340433	-	BRADO3472	-	hypothetical protein
3259	 51.08	-2	3650751..3651167	+	138	146340434	-	BRADO3474	-	hypothetical protein
3260	 65.26	0	3651292..3655062	-	1256	146340435	nrd	BRADO3475	-	ribonucleotide-diphosphate reductase subunit alpha
3261	 70.49	+1	3655687..3656655	+	322	146340436	-	BRADO3476	-	DMT family permease
3262	 68.31	0	3656660..3658909	-	749	146340437	-	BRADO3477	-	sensor histidine kinase
3263	 66.14	0	3659182..3661467	-	761	146340438	-	BRADO3478	-	sensor histidine kinase
3264	 68.00	0	3661950..3662474	-	174	146340439	-	BRADO3479	-	hypothetical protein
3265	 65.94	0	3662857..3663267	+	136	146340440	-	BRADO3480	-	NADH dehydrogenase
3266	 69.11	+1	3663354..3664049	-	231	146340441	-	BRADO3481	-	putative DJ-1/PfpI family protein
3267	 70.36	+1	3664162..3665109	+	315	146340442	-	BRADO3482	-	bifunctional transcriptional regulator/glutamine amidotransferase-like domain-containing protein
3268	 65.92	0	3665182..3666258	+	358	146340443	-	BRADO3483	-	hypothetical protein
3269	 67.18	0	3666265..3667824	+	519	146340444	-	BRADO3484	-	hypothetical protein
3270	 71.67	+1	3667955..3668713	+	252	146340445	-	BRADO3485	-	putative dehdyrogenase
3271	 70.18	+1	3668735..3669985	+	416	146340446	-	BRADO3486	-	putative D-amino-acid dehydrogenase, FAD dependent
3272	 62.33	-1	3670017..3670685	+	222	146340447	-	BRADO3487	-	amino acid ABC transporter membrane protein
3273	 65.95	0	3670806..3671639	-	277	146340448	-	BRADO3488	-	putative signal peptide
3274	 68.15	0	3671806..3672819	-	337	146340449	-	BRADO3489	-	hypothetical protein
3275	 65.16	0	3672945..3674009	-	354	146340450	-	BRADO3490	-	hypothetical protein
3276	 63.07	0	3674243..3674854	-	203	146340451	-	BRADO3491	-	hypothetical protein
3277	 69.32	+1	3674875..3676041	-	388	146340452	-	BRADO3492	-	aromatic amino acid aminotransferase
3278	 67.16	0	3676216..3677223	-	335	146340453	-	BRADO3493	-	putative lipase/esterase
3279	 67.70	0	3677223..3677996	-	257	146340454	-	BRADO3494	-	levodione reductase
3280	 72.36	+1	3678277..3679242	+	321	146340455	-	BRADO3495	-	putative signal peptide
3281	 68.72	0	3679250..3679930	-	226	146340456	aat	BRADO3496	-	leucyl/phenylalanyl-tRNA--protein transferase
3282	 67.77	0	3679989..3681077	-	362	146340457	-	BRADO3497	-	signal transduction histidine kinase
3283	 60.50	-1	3681074..3681511	-	145	146340458	-	BRADO3498	-	putative two-component response regulator/receiver (CheY-like protein)
3284	 66.54	0	3681508..3683028	-	506	146340459	-	BRADO3499	-	putative two-component sensor histidine kinase
3285	 66.15	0	3683147..3684496	-	449	146340460	accC	BRADO3500	-	acetyl-CoA carboxylase biotin carboxylase subunit
3286	 70.00	+1	3684581..3685060	-	159	146340461	accB	BRADO3501	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein subunit
3287	 60.63	-1	3685104..3685484	-	126	146340462	-	BRADO3502	-	putative 3-dehydroquinate dehydratase type 2
3288	 64.57	0	3685725..3686345	-	206	146340463	-	BRADO3503	-	hypothetical protein
3289	 63.68	0	3686654..3687757	-	367	146340464	-	BRADO3504	-	putative citrate utilization protein B (citB); putative membrane protein
3290	 64.90	0	3687744..3689159	-	471	146340465	-	BRADO3505	-	tricarballylate dehydrogenase
3291	 69.27	+1	3689309..3689962	+	217	146340466	-	BRADO3506	-	GntR family transcriptional regulator
3292	 64.50	0	3690053..3690838	-	261	146340467	-	BRADO3507	-	putative outer membrane protein
3293	 66.74	0	3690914..3692311	-	465	146340468	-	BRADO3508	-	hypothetical protein
3294	 66.75	0	3692490..3693689	+	399	146340469	-	BRADO3509	-	putative aminotransferase
3295	 63.38	0	3693807..3695144	+	445	146340470	dctA	BRADO3510	-	C4-dicarboxylate transport protein
3296	 67.20	0	3695236..3698451	-	1071	146340471	-	BRADO3511	-	putative ribonuclease E
3297	 68.42	0	3699344..3700600	+	418	146340472	-	BRADO3513	-	putative N-acetylmuramoyl-L-alanine amidase
3298	 65.31	0	3700824..3703337	+	837	146340473	-	BRADO3514	-	putative membrane carboxypeptidase/penicillin-binding protein; putative exported protein
3299	 61.97	-1	3703334..3703567	-	77	146340474	-	BRADO3515	-	hypothetical protein
3300	 65.33	0	3703620..3704591	+	323	146340475	prfB	BRADO3516	-	peptide chain release factor 2
3301	 69.52	+1	3704595..3705470	+	291	146340476	-	BRADO3517	-	dehydrogenase NAD(P)-binding domain-containing protein
3302	 64.47	0	3705532..3706167	-	211	146340477	upp	BRADO3518	-	uracil phosphoribosyltransferase
3303	 65.74	0	3706220..3707950	-	576	146340478	-	BRADO3519	-	putative glutathione-regulated potassium-efflux system protein
3304	 70.13	+1	3708006..3708524	+	172	146340479	-	BRADO3520	-	hypothetical protein
3305	 71.42	+1	3709263..3710525	+	420	146340480	-	BRADO3522	-	hypothetical protein
3306	 69.80	+1	3710542..3711978	-	478	146340481	-	BRADO3523	-	transcriptional regulator
3307	 66.84	0	3712086..3713228	+	380	146340482	-	BRADO3524	-	putative aminotransferase
3308	 68.19	0	3713379..3714560	+	393	146340483	-	BRADO3525	-	putative cystathionine beta-lyase (CBL; Beta-cystathionase; cysteine lyase)
3309	 68.07	0	3714662..3715945	+	427	146340484	-	BRADO3526	-	hypothetical protein
3310	 63.87	0	3716005..3716754	-	249	146340485	-	BRADO3527	-	hypothetical protein
3311	 68.46	0	3716865..3718091	-	408	146340486	-	BRADO3528	-	putative metalloendopeptidase
3312	 65.29	0	3718338..3719066	-	242	146340487	-	BRADO3529	-	hypothetical protein
3313	 67.21	0	3719568..3723266	+	1232	146340488	-	BRADO3530	-	hypothetical protein
3314	 67.54	0	3723279..3724535	-	418	146340489	-	BRADO3531	-	hypothetical protein
3315	 65.79	0	3724592..3725845	-	417	146340490	tyrS	BRADO3532	-	tyrosyl-tRNA synthetase
3316	 69.75	+1	3726043..3727146	+	367	146340491	anmK	BRADO3533	-	anhydro-N-acetylmuramic acid kinase
3317	 66.81	0	3727228..3727905	+	225	146340492	-	BRADO3534	-	putative glutathione S-transferase
3318	 64.66	0	3728276..3728923	-	215	146340493	-	BRADO3535	-	hypothetical protein
3319	 64.27	0	3729171..3730088	-	305	146340494	-	BRADO3536	-	hypothetical protein
3320	 68.93	0	3730140..3730316	+	58	146340495	-	BRADO3537	-	hypothetical protein
3321	 65.58	0	3730488..3731687	+	399	146340496	-	BRADO3538	-	hypothetical protein
3322	 68.13	0	3731738..3732901	+	387	146340497	nifS	BRADO3539	-	cysteine desulfurase
3323	 62.06	-1	3732986..3734482	+	498	146340498	sufB	BRADO3540	-	cysteine desulfurase activator complex subunit SufB
3324	 54.98	-2	3734482..3734712	+	76	146340499	-	BRADO3541	-	hypothetical protein
3325	 63.35	0	3734716..3735468	+	250	146340500	sufC	BRADO3542	-	SufC, related to ABC transporter associated with Fe-S cluster assembly ATP-binding protein
3326	 67.95	0	3735488..3736810	+	440	146340501	sufD	BRADO3543	-	sufD, needed for fhuF Fe-S center production/stability
3327	 64.02	0	3736807..3738054	+	415	146340502	sufS	BRADO3544	-	cysteine desulfurase
3328	 62.63	0	3738051..3738422	+	123	146340503	-	BRADO3545	-	hypothetical protein
3329	 64.10	0	3738484..3738873	+	129	146340504	-	BRADO3546	-	Iron-sulfur cluster assembly protein
3330	 65.36	0	3738994..3739530	+	178	146340505	-	BRADO3547	-	hypothetical protein
3331	 64.61	0	3739565..3740632	-	355	146340506	-	BRADO3548	-	hypothetical protein
3332	 67.02	0	3740993..3742423	-	476	146340507	-	BRADO3549	-	putative ATP-dependent RNA helicase
3333	 63.61	0	3742742..3743329	+	195	146340508	-	BRADO3550	-	hypothetical protein
3334	 66.27	0	3743419..3744918	+	499	146340509	-	BRADO3551	-	hypothetical protein
3335	 66.80	0	3744928..3745695	-	255	146340510	-	BRADO3552	-	putative 2-deoxy-D-gluconate 3-dehydrogenase (2-keto-3-deoxygluconate oxidoreductase)
3336	 64.52	0	3745726..3745911	-	61	146340511	-	BRADO3553	-	hypothetical protein
3337	 65.00	0	3746134..3746913	-	259	146340512	-	BRADO3554	-	putative outer-membrane immunogenic protein precursor; putative exported protein
3338	 67.05	0	3747154..3749229	-	691	146340513	parE	BRADO3555	-	DNA topoisomerase IV subunit B
3339	 68.17	0	3749501..3750031	+	176	146340514	-	BRADO3556	-	hypothetical protein
3340	 68.97	0	3750265..3750915	+	216	146340515	-	BRADO3557	-	hypothetical protein
3341	 66.26	0	3750927..3751916	+	329	146340516	argC	BRADO3558	-	N-acetyl-gamma-glutamyl-phosphate reductase
3342	 66.02	0	3751981..3753219	+	412	146340517	-	BRADO3559	-	threonine dehydratase
3343	 62.32	-1	3753258..3754385	+	375	146340518	-	BRADO3560	-	putative RNA ligase
3344	 63.97	0	3754639..3755898	+	419	146340519	-	BRADO3561	-	putative ABC sugar transporter (substrate binding protein); putative exported protein
3345	 64.54	0	3755900..3756841	+	313	146340520	-	BRADO3562	-	putative ABC transporter (permease protein); putative membrane protein
3346	 61.72	-1	3756834..3757682	+	282	146340521	-	BRADO3563	-	putative sugar ABC transporter (permease protein); putative exported protein
3347	 66.12	0	3757705..3758802	+	365	146340522	-	BRADO3564	-	putative dehydrogenase/oxidoreductase
3348	 62.79	0	3758813..3759457	+	214	146340523	-	BRADO3565	-	hypothetical protein
3349	 70.48	+1	3759454..3760503	+	349	146340524	-	BRADO3566	-	LacI family transcriptional regulator
3350	 64.66	0	3760507..3760905	-	132	146340525	-	BRADO3567	-	hypothetical protein
3351	 62.13	-1	3760978..3762783	-	601	146340526	phbC	BRADO3568	-	Poly-beta-hydroxybutyrate polymerase
3352	 67.72	0	3763134..3763322	+	62	146340527	-	BRADO3570	-	hypothetical protein
65.78	MEAN

3.31	STD DEV
