IslandPathversion 1.0

IslandPath Analysis: Bradyrhizobium sp. ORS278

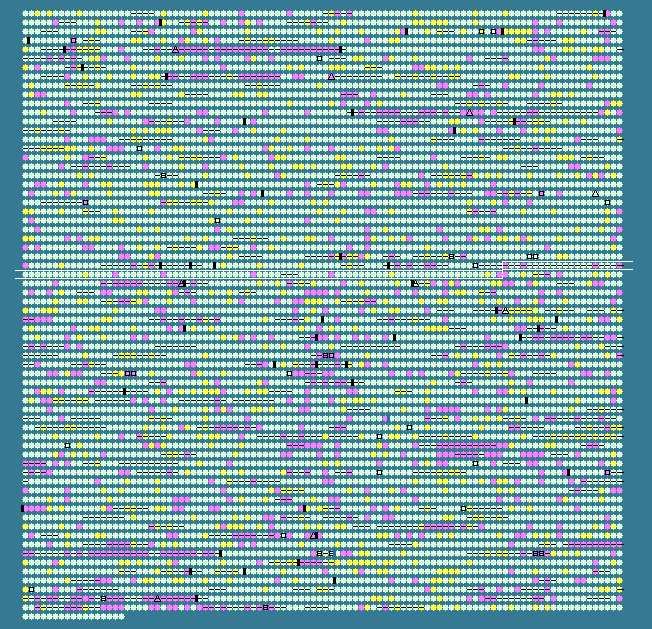

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.78 STD DEV: 3.31
Bradyrhizobium sp. ORS278, complete genome - 1..7456587
6717 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2881	 61.81	-1	3272985..3273293	+	102	146340056	rpsJ	BRADO3065	-	30S ribosomal protein S10
2882	 66.25	0	3273351..3274070	+	239	146340057	rplC	BRADO3066	-	50S ribosomal protein L3
2883	 66.34	0	3274071..3274691	+	206	146340058	rplD	BRADO3067	-	50S ribosomal protein L4
2884	 59.67	-1	3274688..3274987	+	99	146340059	rplW	BRADO3068	-	50S ribosomal protein L23
2885	 65.59	0	3275000..3275833	+	277	146340060	rplB	BRADO3069	-	50S ribosomal protein L2
2886	 62.72	0	3275846..3276124	+	92	146340061	rpsS	BRADO3070	-	30S ribosomal protein S19
2887	 63.64	0	3276186..3276515	+	109	146340062	rplV	BRADO3071	-	50S ribosomal subunit protein L22
2888	 65.54	0	3276538..3277248	+	236	146340063	rpsC	BRADO3072	-	30S ribosomal protein S3
2889	 66.43	0	3277289..3277702	+	137	146340064	rplP	BRADO3073	-	50S ribosomal protein L16
2890	 63.22	0	3277741..3277914	+	57	146340065	rpmC	BRADO3074	-	50S ribosomal protein L29
2891	 62.65	0	3277925..3278173	+	82	146340066	rpsQ	BRADO3075	-	30S ribosomal protein S17
2892	 64.62	0	3278301..3278642	+	113	146340067	rplN	BRADO3076	-	50S ribosomal subunit protein L14
2893	 62.86	0	3278642..3278956	+	104	146340068	rplX	BRADO3077	-	50S ribosomal protein L24
2894	 63.62	0	3278949..3279506	+	185	146340069	rplE	BRADO3078	-	50S ribosomal protein L5
2895	 65.90	0	3279600..3279860	+	86	146340070	rpsN	BRADO3079	-	30S ribosomal protein S14
2896	 61.40	-1	3279873..3280271	+	132	146340071	rpsH	BRADO3080	-	30S ribosomal protein S8
2897	 64.61	0	3280285..3280818	+	177	146340072	rplF	BRADO3081	-	50S ribosomal protein L6
2898	 66.39	0	3280830..3281192	+	120	146340073	rplR	BRADO3082	-	50S ribosomal protein L18
2899	 67.69	0	3281229..3281813	+	194	146340074	rpsE	BRADO3083	-	30S ribosomal protein S5
2900	 60.94	-1	3281859..3282050	+	63	146340075	rpmD	BRADO3084	-	50S ribosomal protein L30
2901	 66.46	0	3282062..3282547	+	161	146340076	rplO	BRADO3085	-	50S ribosomal protein L15
2902	 62.31	-1	3282706..3284037	+	443	146340077	secY	BRADO3086	-	preprotein translocase subunit SecY
2903	 66.10	0	3284126..3285007	+	293	146340078	adk	BRADO3087	-	adenylate kinase
2904	 63.96	0	3285203..3285571	+	122	146340079	rpsM	BRADO3088	-	30S ribosomal protein S13
2905	 66.67	0	3285700..3286089	+	129	146340080	rpsK	BRADO3089	-	30S ribosomal protein S11
2906	 63.47	0	3286205..3287236	+	343	146340081	rpoA	BRADO3090	-	DNA-directed RNA polymerase subunit alpha
2907	 64.73	0	3287410..3287823	+	137	146340082	rplQ	BRADO3091	-	50S ribosomal protein L17
2908	 63.27	0	3288007..3288447	+	146	146340083	-	BRADO3092	-	hypothetical protein
2909	 65.69	0	3288659..3289480	+	273	146340084	-	BRADO3093	-	putative short-chain dehydrogenase
2910	 66.67	0	3289617..3289883	+	88	146340085	-	BRADO3094	-	hypothetical protein
2911	 69.57	+1	3289905..3291215	+	436	146340086	-	BRADO3095	-	putative H(+)/Cl(-) exchange transporter
2912	 63.73	0	3291600..3292655	+	351	146340087	-	BRADO3096	-	putative ABC transporter periplasmic substrate-binding protein
2913	 66.08	0	3292902..3293759	+	285	146340088	-	BRADO3097	-	putative ABC transporter permease
2914	 67.93	0	3293759..3294547	+	262	146340089	-	BRADO3098	-	ABC transporter ATP-binding protein (tauB-like)
2915	 65.11	0	3294563..3296101	+	512	146340090	-	BRADO3099	-	putative amidohydrolase family protein
2916	 61.48	-1	3296273..3296542	+	89	146340091	-	BRADO3100	-	hypothetical protein
2917	 63.32	0	3296671..3297417	-	248	146340092	-	BRADO3101	-	3-oxoacyl-acyl carrier protein reductase
2918	 67.62	0	3297531..3298265	-	244	146340093	-	BRADO3102	-	putative 3-oxoacyl-[acyl-carrier-protein] reductase
2919	 66.39	0	3298403..3300226	-	607	161353766	ilvD1	BRADO3103	-	dihydroxy-acid dehydratase
2920	 64.11	0	3300385..3301479	-	364	146340095	-	BRADO3104	-	LacI family transcriptional regulator
2921	 64.74	0	3301752..3302789	+	345	146340096	-	BRADO3105	-	ABC transporter ATP-binding protein
2922	 64.85	0	3302888..3304210	+	440	146340097	-	BRADO3106	-	putative ABC transporter periplasmic-binding protein
2923	 62.39	-1	3304618..3305505	+	295	146340098	-	BRADO3107	-	putative ABC transporter permease protein
2924	 61.98	-1	3305520..3306437	+	305	146340099	-	BRADO3108	-	putative ABC transporter permease protein
2925	 68.90	0	3306568..3307551	+	327	146340100	-	BRADO3109	-	putative UDP-glucose 4-epimerase
2926	 67.41	0	3307594..3308796	+	400	146340101	-	BRADO3110	-	acetyl-CoA acetyltransferase
2927	 68.78	0	3309010..3310239	-	409	146340102	-	BRADO3111	-	putative ATP-dependent protease La
2928	 67.00	0	3310456..3311055	+	199	146340103	-	BRADO3112	-	putative acetyltransferase
2929	 66.46	0	3311185..3311679	-	164	146340104	-	BRADO3113	-	hypothetical protein
2930	 64.52	0	3312597..3313715	+	372	146340105	-	BRADO3116	-	putative catalase
2931	 64.47	0	3313721..3316768	-	1015	146340106	-	BRADO3117	-	putative transcriptional regulatory protein
2932	 65.08	0	3317328..3317642	+	104	146340107	-	BRADO3121	-	putative signal peptide
2933	 66.07	0	3317865..3318875	+	336	146340108	-	BRADO3122	-	hypothetical protein
2934	 63.85	0	3319631..3320056	-	141	146340109	-	BRADO3123	-	putative glutathione-dependent formaldehyde-activating, GFA
2935	 67.25	0	3320516..3321721	+	401	146340110	-	BRADO3125	-	putative Formyl-CoA transferase
2936	 64.52	0	3321726..3322892	+	388	146340111	-	BRADO3126	-	putative acyl-CoA dehydrogenase
2937	 67.72	0	3323460..3324596	+	378	146340112	-	BRADO3127	-	putative thiolase
2938	 65.27	0	3324593..3324949	+	118	146340113	-	BRADO3128	-	hypothetical protein
2939	 58.82	-2	3325179..3325280	-	33	146340114	-	BRADO3129	-	hypothetical protein
2940	 67.85	0	3325604..3327466	-	620	146340115	-	BRADO3130	-	putative glutaminase
2941	 65.75	0	3327841..3328824	+	327	146340116	-	BRADO3131	-	IclR family transcriptional regulator
2942	 68.33	0	3328754..3330313	+	519	146340117	-	BRADO3132	-	putative methylmalonyl-CoA decarboxylase alpha chain
2943	 68.22	0	3330320..3331603	-	427	146340118	-	BRADO3133	-	MFS family transporter
2944	 68.69	0	3331689..3332876	-	395	146340119	atoB	BRADO3134	-	acetyl-CoA acetyltransferase
2945	 66.02	0	3333018..3333788	-	256	146340120	-	BRADO3135	-	enoyl-CoA hydratase
2946	 68.34	0	3333937..3334593	+	218	146340121	-	BRADO3136	-	TetR family transcriptional regulator
2947	 65.13	0	3334747..3336243	+	498	146340122	-	BRADO3137	-	methylmalonate-semialdehyde dehydrogenase
2948	 66.58	0	3336402..3337547	+	381	146340123	-	BRADO3138	-	acyl-CoA dehydrogenase
2949	 64.86	0	3337568..3338620	+	350	146340124	-	BRADO3139	-	enoyl-CoA hydratase
2950	 67.79	0	3338649..3339539	+	296	146340125	-	BRADO3140	-	putative 3-hydroxyisobutyrate dehydrogenase
2951	 66.67	0	3339539..3341266	+	575	146340126	-	BRADO3141	-	putative acetyl-CoA synthetase
2952	 61.22	-1	3341274..3341750	+	158	146340127	-	BRADO3142	-	nodN-like protein
2953	 66.45	0	3341876..3342793	+	305	146340128	-	BRADO3143	-	putative 3-oxo-(acyl) acyl carrier protein reductase
2954	 67.48	0	3342989..3344215	+	408	146340129	-	BRADO3144	-	putative signal peptide
2955	 67.59	0	3344422..3345501	-	359	146340130	-	BRADO3145	-	putative amino acid processing enzyme-related protein (aldolase or racemase)
2956	 66.89	0	3345703..3347511	-	602	146340131	-	BRADO3146	-	ABC transporter ATPase
2957	 68.08	0	3347519..3348013	-	164	146340132	-	BRADO3147	-	hypothetical protein
2958	 69.03	0	3348138..3348941	+	267	146340133	-	BRADO3148	-	hypothetical protein
2959	 66.84	0	3349340..3351715	-	791	146340134	-	BRADO3149	-	putative carbon-monoxide dehydrogenase large subunit
2960	 68.44	0	3352030..3352989	+	319	146340135	-	BRADO3150	-	putative exopolyphosphatase
2961	 66.52	0	3353138..3353833	+	231	146340136	ftsJ	BRADO3151	-	ribosomal RNA large subunit (23S) methyltransferase
2962	 69.55	+1	3353977..3354219	+	80	146340137	-	BRADO3152	-	hypothetical protein
2963	 66.97	0	3354329..3354661	+	110	146340138	-	BRADO3153	-	putative signal peptide
2964	 65.70	0	3354896..3355822	+	308	146340139	-	BRADO3154	-	hypothetical protein
2965	 66.05	0	3355819..3356307	+	162	146340140	-	BRADO3155	-	hypothetical protein
2966	 67.01	0	3356337..3357806	+	489	146340141	-	BRADO3156	-	hypothetical protein
2967	 67.98	0	3357860..3359077	+	405	146340142	-	BRADO3157	-	putative signal peptide
2968	 64.23	0	3359189..3359722	-	177	146340143	-	BRADO3158	-	hypothetical protein
2969	 65.28	0	3359899..3361194	+	431	146340144	-	BRADO3159	-	putative signal peptide
2970	 67.16	0	3361255..3363477	-	740	146340145	-	BRADO3160	-	putative oxidoreductase subunit protein
2971	 67.08	0	3363474..3363962	-	162	146340146	-	BRADO3161	-	putative oxidoreductase subunit protein
2972	 67.94	0	3363962..3365371	-	469	146340147	-	BRADO3162	-	putative alcohol dehydrogenase cytochrome c subunit protein
2973	 66.47	0	3365624..3367111	-	495	146340148	-	BRADO3163	-	putative multidrug efflux protein
2974	 69.08	0	3367244..3367492	+	82	146340149	-	BRADO3164	-	putative signal peptide
2975	 67.61	0	3367744..3369231	+	495	146340150	guaB	BRADO3165	-	inositol-5-monophosphate dehydrogenase
2976	 67.64	0	3369479..3370501	+	340	146340151	-	BRADO3166	-	putative NADP-dependent oxidoreductase
2977	 62.76	0	3370641..3370973	+	110	146340152	-	BRADO3167	-	hypothetical protein
2978	 71.13	+1	3370989..3372287	+	432	146340153	-	BRADO3168	-	putative SUN-family protein, RNA methyltransferase
2979	 66.54	0	3373161..3374768	+	535	146340154	guaA	BRADO3169	-	bifunctional GMP synthase/glutamine amidotransferase protein
2980	 56.76	-2	3375140..3375361	+	73	146340155	-	BRADO3170	-	hypothetical protein
65.78	MEAN

3.31	STD DEV
