IslandPath Analysis: Bradyrhizobium sp. ORS278

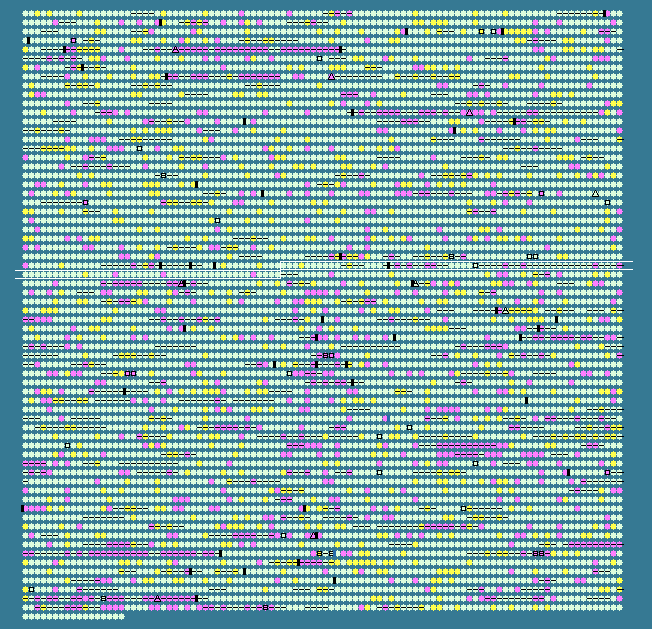

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.78 STD DEV: 3.31
Bradyrhizobium sp. ORS278, complete genome - 1..7456587
6717 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2844	 65.65	0	3223598..3225559	+	653	146340019	-	BRADO3025	-	putative 1,4-alpha-glucan branching enzyme
2845	 67.85	0	3225876..3226805	-	309	146340020	-	BRADO3026	-	hypothetical protein
2846	 67.92	0	3226792..3227829	-	345	146340021	-	BRADO3027	-	hypothetical protein
2847	 69.54	+1	3228034..3228765	+	243	146340022	-	BRADO3028	-	putative MutT/nudix family protein
2848	 63.86	0	3228898..3229467	-	189	146340023	-	BRADO3030	-	hypothetical protein
2849	 68.14	0	3229727..3231826	+	699	146340024	-	BRADO3031	-	putative methyl-accepting chemotaxis receptor/sensory transducer
2850	 65.36	0	3232048..3233274	+	408	146340025	-	BRADO3032	-	putative L-carnitine dehydrogenase
2851	 65.52	0	3233437..3233697	-	86	146340026	-	BRADO3033	-	putative signal peptide
2852	 66.67	0	3233810..3234478	-	222	146340027	-	BRADO3034	-	TetR family transcriptional regulator
2853	 64.97	0	3234715..3235950	+	411	146340028	-	BRADO3035	-	putative acyl-CoA dehydrogenase
2854	 65.06	0	3236250..3237308	+	352	146340029	-	BRADO3036	-	putative aminoglycoside phosphotransferase
2855	 71.93	+1	3237477..3237647	-	56	146340030	-	BRADO3037	-	hypothetical protein
2856	 64.74	0	3237995..3238825	-	276	146340031	-	BRADO3038	-	hypothetical protein
2857	 67.64	0	3239341..3239649	+	102	146340032	-	BRADO3040	-	hypothetical protein
2858	 67.56	0	3240086..3240871	-	261	146340033	-	BRADO3041	-	putative short-chain dehydrogenase/reductase SDR family protein
2859	 68.79	0	3241016..3241723	+	235	146340034	-	BRADO3042	-	putative phosphoglycerate mutase family protein
2860	 64.45	0	3242095..3242862	+	255	146340035	-	BRADO3043	-	putative short-chain dehydrogenase/reductase SDR
2861	 67.96	0	3243184..3244419	-	411	146340036	-	BRADO3044	-	beta-lactamase family penicillin binding protein
2862	 64.47	0	3244750..3245979	-	409	146340037	-	BRADO3045	-	putative branched-chain amino acid ABC transporter, substrate-binding protein
2863	 61.01	-1	3246435..3246593	+	52	146340038	-	BRADO3046	-	putative preprotein translocase secE subunit
2864	 62.37	-1	3246593..3247150	+	185	146340039	nusG	BRADO3047	-	transcription antitermination protein NusG
2865	 61.31	-1	3247454..3247882	+	142	146340040	rplK	BRADO3048	-	50S ribosomal protein L11
2866	 66.38	0	3247889..3248581	+	230	146340041	rplA	BRADO3049	-	50S ribosomal protein L1
2867	 66.97	0	3248646..3249638	+	330	146340042	-	BRADO3050	-	putative glyoxylate reductase (glycolate reductase)
2868	 58.62	-2	3249707..3250054	-	115	146340043	-	BRADO3051	-	hypothetical protein
2869	 62.24	-1	3250203..3250721	+	172	146340044	rplJ	BRADO3052	-	50S ribosomal protein L10
2870	 64.81	0	3250782..3251159	+	125	146340045	rplL	BRADO3053	-	50S ribosomal protein L7/L12
2871	 64.34	0	3251705..3255823	+	1372	146340046	rpoB	BRADO3054	-	DNA-directed RNA polymerase subunit beta
2872	 63.64	0	3255959..3260158	+	1399	146340047	rpoC	BRADO3055	-	DNA-directed RNA polymerase subunit beta'
2873	 63.90	0	3260497..3262557	+	686	146340048	-	BRADO3056	-	hypothetical protein
2874	 65.96	0	3262645..3265044	+	799	146340049	-	BRADO3057	-	putative ABC-type multidrug transport system, ATPase and permease components
2875	 67.24	0	3265081..3266292	-	403	146340050	-	BRADO3058	-	hypothetical protein
2876	 64.16	0	3266536..3267894	-	452	146340051	-	BRADO3059	-	putative transposase
2877	 63.71	0	3268676..3269047	+	123	161353768	rpsL	BRADO3061	-	30S ribosomal protein S12
2878	 63.27	0	3269091..3269561	+	156	161353767	rpsG	BRADO3062	-	30S ribosomal protein S7
2879	 63.29	0	3269595..3271667	+	690	146340054	fusA	BRADO3063	-	elongation factor G
2880	 63.81	0	3271707..3272897	+	396	146340055	tufB	BRADO3064	-	elongation factor Tu
2881	 61.81	-1	3272985..3273293	+	102	146340056	rpsJ	BRADO3065	-	30S ribosomal protein S10
2882	 66.25	0	3273351..3274070	+	239	146340057	rplC	BRADO3066	-	50S ribosomal protein L3
2883	 66.34	0	3274071..3274691	+	206	146340058	rplD	BRADO3067	-	50S ribosomal protein L4
2884	 59.67	-1	3274688..3274987	+	99	146340059	rplW	BRADO3068	-	50S ribosomal protein L23
2885	 65.59	0	3275000..3275833	+	277	146340060	rplB	BRADO3069	-	50S ribosomal protein L2
2886	 62.72	0	3275846..3276124	+	92	146340061	rpsS	BRADO3070	-	30S ribosomal protein S19
2887	 63.64	0	3276186..3276515	+	109	146340062	rplV	BRADO3071	-	50S ribosomal subunit protein L22
2888	 65.54	0	3276538..3277248	+	236	146340063	rpsC	BRADO3072	-	30S ribosomal protein S3
2889	 66.43	0	3277289..3277702	+	137	146340064	rplP	BRADO3073	-	50S ribosomal protein L16
2890	 63.22	0	3277741..3277914	+	57	146340065	rpmC	BRADO3074	-	50S ribosomal protein L29
2891	 62.65	0	3277925..3278173	+	82	146340066	rpsQ	BRADO3075	-	30S ribosomal protein S17
2892	 64.62	0	3278301..3278642	+	113	146340067	rplN	BRADO3076	-	50S ribosomal subunit protein L14
2893	 62.86	0	3278642..3278956	+	104	146340068	rplX	BRADO3077	-	50S ribosomal protein L24
2894	 63.62	0	3278949..3279506	+	185	146340069	rplE	BRADO3078	-	50S ribosomal protein L5
2895	 65.90	0	3279600..3279860	+	86	146340070	rpsN	BRADO3079	-	30S ribosomal protein S14
2896	 61.40	-1	3279873..3280271	+	132	146340071	rpsH	BRADO3080	-	30S ribosomal protein S8
2897	 64.61	0	3280285..3280818	+	177	146340072	rplF	BRADO3081	-	50S ribosomal protein L6
2898	 66.39	0	3280830..3281192	+	120	146340073	rplR	BRADO3082	-	50S ribosomal protein L18
2899	 67.69	0	3281229..3281813	+	194	146340074	rpsE	BRADO3083	-	30S ribosomal protein S5
2900	 60.94	-1	3281859..3282050	+	63	146340075	rpmD	BRADO3084	-	50S ribosomal protein L30
2901	 66.46	0	3282062..3282547	+	161	146340076	rplO	BRADO3085	-	50S ribosomal protein L15
2902	 62.31	-1	3282706..3284037	+	443	146340077	secY	BRADO3086	-	preprotein translocase subunit SecY
2903	 66.10	0	3284126..3285007	+	293	146340078	adk	BRADO3087	-	adenylate kinase
2904	 63.96	0	3285203..3285571	+	122	146340079	rpsM	BRADO3088	-	30S ribosomal protein S13
2905	 66.67	0	3285700..3286089	+	129	146340080	rpsK	BRADO3089	-	30S ribosomal protein S11
2906	 63.47	0	3286205..3287236	+	343	146340081	rpoA	BRADO3090	-	DNA-directed RNA polymerase subunit alpha
2907	 64.73	0	3287410..3287823	+	137	146340082	rplQ	BRADO3091	-	50S ribosomal protein L17
2908	 63.27	0	3288007..3288447	+	146	146340083	-	BRADO3092	-	hypothetical protein
2909	 65.69	0	3288659..3289480	+	273	146340084	-	BRADO3093	-	putative short-chain dehydrogenase
2910	 66.67	0	3289617..3289883	+	88	146340085	-	BRADO3094	-	hypothetical protein
2911	 69.57	+1	3289905..3291215	+	436	146340086	-	BRADO3095	-	putative H(+)/Cl(-) exchange transporter
2912	 63.73	0	3291600..3292655	+	351	146340087	-	BRADO3096	-	putative ABC transporter periplasmic substrate-binding protein
2913	 66.08	0	3292902..3293759	+	285	146340088	-	BRADO3097	-	putative ABC transporter permease
2914	 67.93	0	3293759..3294547	+	262	146340089	-	BRADO3098	-	ABC transporter ATP-binding protein (tauB-like)
2915	 65.11	0	3294563..3296101	+	512	146340090	-	BRADO3099	-	putative amidohydrolase family protein
2916	 61.48	-1	3296273..3296542	+	89	146340091	-	BRADO3100	-	hypothetical protein
2917	 63.32	0	3296671..3297417	-	248	146340092	-	BRADO3101	-	3-oxoacyl-acyl carrier protein reductase
2918	 67.62	0	3297531..3298265	-	244	146340093	-	BRADO3102	-	putative 3-oxoacyl-[acyl-carrier-protein] reductase
2919	 66.39	0	3298403..3300226	-	607	161353766	ilvD1	BRADO3103	-	dihydroxy-acid dehydratase
2920	 64.11	0	3300385..3301479	-	364	146340095	-	BRADO3104	-	LacI family transcriptional regulator
2921	 64.74	0	3301752..3302789	+	345	146340096	-	BRADO3105	-	ABC transporter ATP-binding protein
2922	 64.85	0	3302888..3304210	+	440	146340097	-	BRADO3106	-	putative ABC transporter periplasmic-binding protein
2923	 62.39	-1	3304618..3305505	+	295	146340098	-	BRADO3107	-	putative ABC transporter permease protein
2924	 61.98	-1	3305520..3306437	+	305	146340099	-	BRADO3108	-	putative ABC transporter permease protein
2925	 68.90	0	3306568..3307551	+	327	146340100	-	BRADO3109	-	putative UDP-glucose 4-epimerase
2926	 67.41	0	3307594..3308796	+	400	146340101	-	BRADO3110	-	acetyl-CoA acetyltransferase
2927	 68.78	0	3309010..3310239	-	409	146340102	-	BRADO3111	-	putative ATP-dependent protease La
2928	 67.00	0	3310456..3311055	+	199	146340103	-	BRADO3112	-	putative acetyltransferase
2929	 66.46	0	3311185..3311679	-	164	146340104	-	BRADO3113	-	hypothetical protein
2930	 64.52	0	3312597..3313715	+	372	146340105	-	BRADO3116	-	putative catalase
2931	 64.47	0	3313721..3316768	-	1015	146340106	-	BRADO3117	-	putative transcriptional regulatory protein
2932	 65.08	0	3317328..3317642	+	104	146340107	-	BRADO3121	-	putative signal peptide
2933	 66.07	0	3317865..3318875	+	336	146340108	-	BRADO3122	-	hypothetical protein
2934	 63.85	0	3319631..3320056	-	141	146340109	-	BRADO3123	-	putative glutathione-dependent formaldehyde-activating, GFA
2935	 67.25	0	3320516..3321721	+	401	146340110	-	BRADO3125	-	putative Formyl-CoA transferase
2936	 64.52	0	3321726..3322892	+	388	146340111	-	BRADO3126	-	putative acyl-CoA dehydrogenase
2937	 67.72	0	3323460..3324596	+	378	146340112	-	BRADO3127	-	putative thiolase
2938	 65.27	0	3324593..3324949	+	118	146340113	-	BRADO3128	-	hypothetical protein
2939	 58.82	-2	3325179..3325280	-	33	146340114	-	BRADO3129	-	hypothetical protein
2940	 67.85	0	3325604..3327466	-	620	146340115	-	BRADO3130	-	putative glutaminase
2941	 65.75	0	3327841..3328824	+	327	146340116	-	BRADO3131	-	IclR family transcriptional regulator
2942	 68.33	0	3328754..3330313	+	519	146340117	-	BRADO3132	-	putative methylmalonyl-CoA decarboxylase alpha chain
2943	 68.22	0	3330320..3331603	-	427	146340118	-	BRADO3133	-	MFS family transporter
65.78	MEAN

3.31	STD DEV
