IslandPath Analysis: Bradyrhizobium sp. ORS278

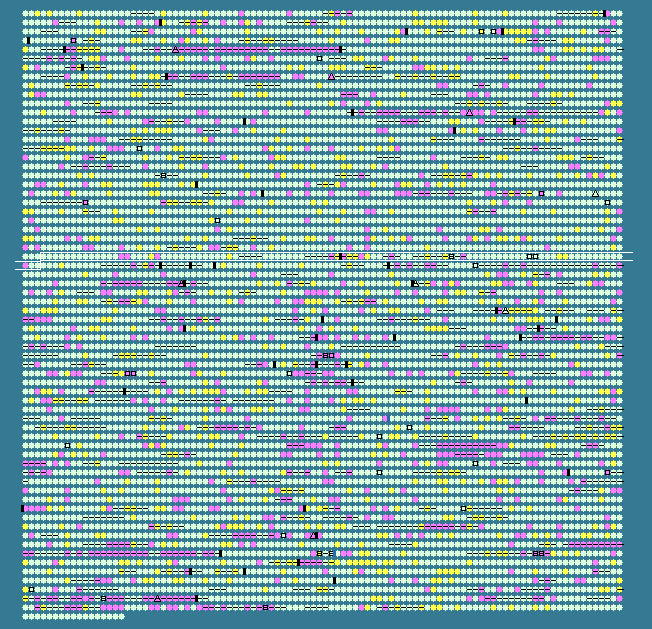

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 65.78   STD DEV: 3.31
Bradyrhizobium sp. ORS278, complete genome - 1..7456587
6717 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2704	 67.25	0	3081133..3082329	+	398	146339879	-	BRADO2881	-	hypothetical protein
2705	 65.74	0	3083207..3083854	+	215	146339880	-	BRADO2882	-	putative iron-sulfur-binding protein, subunit of an oxidoreductase like aldehyde oxidase or xanthine dehydrogenase
2706	 67.40	0	3083851..3084801	+	316	146339881	-	BRADO2883	-	putative xanthine dehydrogenase, FAD binding subunit
2707	 66.53	0	3084804..3087023	+	739	146339882	-	BRADO2884	-	putative xanthine dehydrogenase, molybdenum binding subunit
2708	 62.91	0	3087447..3087659	+	70	146339883	-	BRADO2885	-	hypothetical protein
2709	 65.74	0	3087690..3088226	+	178	146339884	-	BRADO2886	-	putative HNH endonuclease:HNH nuclease
2710	 67.19	0	3089035..3090375	+	446	146339885	-	BRADO2887	-	hypothetical protein
2711	 62.96	0	3090532..3090774	+	80	146339886	-	BRADO2888	-	hypothetical protein
2712	 64.99	0	3090771..3091544	+	257	146339887	lepB	BRADO2889	-	Signal peptidase I (SPase I) (leader peptidase I)
2713	 69.18	+1	3091546..3092142	-	198	146339888	-	BRADO2890	-	putative isochorismatase family protein
2714	 67.02	0	3092266..3093105	+	279	146339889	-	BRADO2891	-	LysR family transcriptional regulator
2715	 65.75	0	3093555..3095195	-	546	146339890	groEL	BRADO2892	-	chaperonin GroEL
2716	 64.76	0	3095347..3095661	-	104	146339891	groES	BRADO2893	-	co-chaperonin GroES
2717	 60.00	-1	3096043..3096327	+	94	146339892	-	BRADO2894	-	putative Usg protein
2718	 62.15	-1	3096431..3096607	-	58	146339893	-	BRADO2895	-	hypothetical protein
2719	 63.96	0	3096558..3097148	+	196	146339894	-	BRADO2896	-	hypothetical protein
2720	 68.99	0	3097460..3099394	+	644	146339895	-	BRADO2897	-	hypothetical protein
2721	 69.06	0	3099332..3100582	-	416	146339896	-	BRADO2898	-	hypothetical protein
2722	 69.52	+1	3100701..3101927	+	408	146339897	-	BRADO2899	-	hypothetical protein
2723	 60.15	-1	3102092..3102628	+	178	146339898	-	BRADO2900	-	hypothetical protein
2724	 67.86	0	3102716..3103468	-	250	146339899	-	BRADO2901	-	putative oxidoreductase
2725	 63.11	0	3103515..3104273	-	252	146339900	-	BRADO2902	-	hypothetical protein
2726	 68.08	0	3104464..3105312	-	282	146339901	-	BRADO2903	-	hypothetical protein
2727	 64.13	0	3105393..3106337	-	314	146339902	-	BRADO2904	-	hypothetical protein
2728	 64.69	0	3106639..3108057	-	472	146339903	-	BRADO2906	-	hypothetical protein
2729	 65.99	0	3108286..3109023	+	245	146339904	-	BRADO2908	-	hypothetical protein
2730	 67.62	0	3109058..3109579	+	173	146339905	gpt	BRADO2909	-	xanthine-guanine phosphoribosyltransferase
2731	 69.08	0	3109721..3110341	+	206	146339906	-	BRADO2910	-	hypothetical protein
2732	 64.81	0	3110424..3111446	-	340	146339907	-	BRADO2911	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
2733	 64.11	0	3111598..3112302	+	234	146339908	-	BRADO2912	-	putative glutathione transferase
2734	 64.84	0	3112570..3113172	+	200	146339909	-	BRADO2913	-	putative DSBA oxidoreductase
2735	 69.72	+1	3113172..3114152	+	326	146339910	-	BRADO2914	-	putative oxidoreductase
2736	 67.00	0	3114445..3115335	-	296	146339911	-	BRADO2915	-	enoyl-CoA hydratase
2737	 68.57	0	3115685..3117106	-	473	146339912	-	BRADO2916	-	amidase
2738	 66.75	0	3117173..3118336	-	387	146339913	-	BRADO2917	-	putative amidohydrolase family protein; putative hippurate hydrolase (benzoylglycine amidohydrolase)
2739	 67.86	0	3118573..3120078	-	501	146339914	-	BRADO2918	-	hypothetical protein
2740	 67.94	0	3120301..3121947	-	548	146339915	-	BRADO2919	-	ABC transporter ATP-binding protein
2741	 66.89	0	3122059..3122949	-	296	146339916	-	BRADO2920	-	putative ABC transporter (permease protein); putative membrane protein
2742	 63.48	0	3122961..3123902	-	313	146339917	-	BRADO2921	-	putative ABC transporter (permease protein); putative membrane protein
2743	 68.26	0	3124448..3125578	-	376	146339918	-	BRADO2922	-	carboxypeptidase
2744	 63.68	0	3125852..3127459	+	535	146339919	-	BRADO2923	-	putative ABC transporter (substrate-binding protein); putative exported protein
2745	 64.68	0	3127890..3129503	+	537	146339920	-	BRADO2924	-	putative ABC transporter (substrate-binding protein)
2746	 64.22	0	3130109..3131659	+	516	146339921	-	BRADO2925	-	putative ABC transporter substrate-binding protein
2747	 66.67	0	3131824..3133293	-	489	146339922	-	BRADO2926	-	putativ methyl-accepting chemotaxis protein
2748	 67.26	0	3133431..3133766	+	111	146339923	-	BRADO2927	-	Ars family transcriptional regulator
2749	 66.44	0	3133804..3134244	+	146	146339924	-	BRADO2928	-	hypothetical protein
2750	 69.18	+1	3134296..3134931	+	211	146339925	-	BRADO2929	-	putative glutathione S-transferase GSTF2 (GST-II)
2751	 63.54	0	3135092..3136690	+	532	146339926	-	BRADO2930	-	hypothetical protein
2752	 61.41	-1	3136811..3138427	+	538	146339927	-	BRADO2931	-	hypothetical protein
2753	 70.08	+1	3138545..3139276	-	243	146339928	-	BRADO2932	-	putative short chain oxidoreductase
2754	 59.90	-1	3139542..3139748	-	68	146339929	-	BRADO2933	-	hypothetical protein
2755	 70.32	+1	3139870..3140334	+	154	146339930	-	BRADO2934	-	putative signal peptide
2756	 71.25	+1	3140345..3141544	-	399	146339931	-	BRADO2935	-	putative salicylate hydroxylase (salicylate 1-monooxygenase)
2757	 62.14	-1	3141555..3141797	-	80	146339932	-	BRADO2936	-	hypothetical protein
2758	 72.97	+2	3142118..3143260	+	380	146339933	-	BRADO2937	-	putative signal peptide
2759	 69.18	+1	3143304..3144059	+	251	146339934	-	BRADO2938	-	putative hydrolase
2760	 65.89	0	3144162..3145577	-	471	146339935	-	BRADO2939	-	hypothetical protein
2761	 64.49	0	3145974..3146801	+	275	146339936	-	BRADO2940	-	serine acetyltransferase
2762	 57.75	-2	3147074..3147286	+	70	146339937	-	BRADO2941	-	hypothetical protein
2763	 68.10	0	3147615..3148313	-	232	146339938	-	BRADO2942	-	hypothetical protein
2764	 67.27	0	3148510..3148839	+	109	146339939	-	BRADO2943	-	putative exported protein
2765	 63.47	0	3148927..3149457	+	176	146339940	-	BRADO2944	-	hexapeptide repeat-containing protein
2766	 66.67	0	3149492..3149659	-	55	146339941	-	BRADO2945	-	hypothetical protein
2767	 65.26	0	3149656..3149940	-	94	146339942	-	BRADO2946	-	hypothetical protein
2768	 76.88	+2	3150104..3150289	+	61	146339943	-	BRADO2947	-	hypothetical protein
2769	 66.36	0	3150286..3150609	+	107	146339944	-	BRADO2948	-	hypothetical protein
2770	 62.33	-1	3150753..3151052	+	99	146339945	-	BRADO2949	-	hypothetical protein
2771	 69.57	+1	3151194..3151331	+	45	146339946	-	BRADO2950	-	hypothetical protein
2772	 64.39	0	3151548..3152906	+	452	146339947	-	BRADO2951	-	putative transposase
2773	 66.30	0	3153051..3153863	-	270	146339948	-	BRADO2952	-	putative carboxymethylenebutenolidase precursor (dienelactone hydrolase; DLH)
2774	 60.12	-1	3153841..3154161	+	106	146339949	-	BRADO2953	-	hypothetical protein
2775	 68.21	0	3154282..3154800	-	172	146339950	-	BRADO2954	-	hypothetical protein
2776	 65.28	0	3155053..3155340	-	95	146339951	-	BRADO2955	-	hypothetical protein
2777	 68.89	0	3155339..3155518	+	59	146339952	-	BRADO2956	-	hypothetical protein
2778	 64.49	0	3155732..3156328	-	198	146339953	-	BRADO2957	-	putative signal peptide
2779	 65.85	0	3156690..3157298	-	202	146339954	-	BRADO2958	-	hypothetical protein
2780	 68.64	0	3157581..3158138	-	185	146339955	-	BRADO2959	-	hypothetical protein
2781	 66.67	0	3158654..3159451	+	265	146339956	-	BRADO2960	-	hypothetical protein
2782	 65.27	0	3159736..3160164	+	142	146339957	-	BRADO2961	-	hypothetical protein
2783	 68.74	0	3160151..3161161	-	336	146339958	-	BRADO2962	-	hypothetical protein
2784	 66.93	0	3161757..3162506	+	249	146339959	-	BRADO2963	-	hypothetical protein
2785	 63.71	0	3162755..3164206	+	483	146339960	-	BRADO2964	-	putative transposase
2786	 64.16	0	3164481..3165839	-	452	146339961	-	BRADO2965	-	putative transposase
2787	 67.45	0	3166080..3166718	-	212	146339962	-	BRADO2966	-	TetR family transcriptional regulator
2788	 69.15	+1	3166817..3167662	+	281	146339963	-	BRADO2967	-	hypothetical protein
2789	 65.51	0	3168393..3170909	+	838	146339964	-	BRADO2968	-	hypothetical protein
2790	 69.61	+1	3171263..3171805	-	180	146339965	-	BRADO2969	-	putative NADH oxidase/flavin reductase family protein
2791	 70.38	+1	3172097..3173011	+	304	146339966	-	BRADO2970	-	hypothetical protein
2792	 64.88	0	3173141..3175207	-	688	146339967	thrS	BRADO2971	-	threonyl-tRNA synthetase
2793	 67.93	0	3175614..3176876	+	420	146339968	-	BRADO2973	-	hypothetical protein
2794	 68.18	0	3176952..3178142	+	396	146339969	-	BRADO2974	-	putative inner membrane transport protein
2795	 65.86	0	3178302..3178673	+	123	146339970	-	BRADO2975	-	putative signal peptide
2796	 67.20	0	3178701..3179831	-	376	146339971	-	BRADO2976	-	putative alpha/beta-hydrolase family protein
2797	 65.50	0	3180271..3181644	+	457	146339972	-	BRADO2977	-	putative amino acid transporter
2798	 64.88	0	3181648..3182880	+	410	146339973	-	BRADO2978	-	putative signal peptide
2799	 64.17	0	3182989..3183228	-	79	146339974	-	BRADO2979	-	hypothetical protein
2800	 66.29	0	3183376..3183639	-	87	146339975	-	BRADO2980	-	hypothetical protein
2801	 55.86	-2	3183710..3183820	-	36	146339976	-	BRADO2981	-	hypothetical protein
2802	 67.22	0	3183992..3184888	+	298	146339977	-	BRADO2982	-	putative signal peptide
2803	 66.23	0	3184967..3185425	-	152	146339978	-	BRADO2983	-	hypothetical protein
65.78	MEAN

3.31	STD DEV
