IslandPath Analysis: Bradyrhizobium sp. ORS278

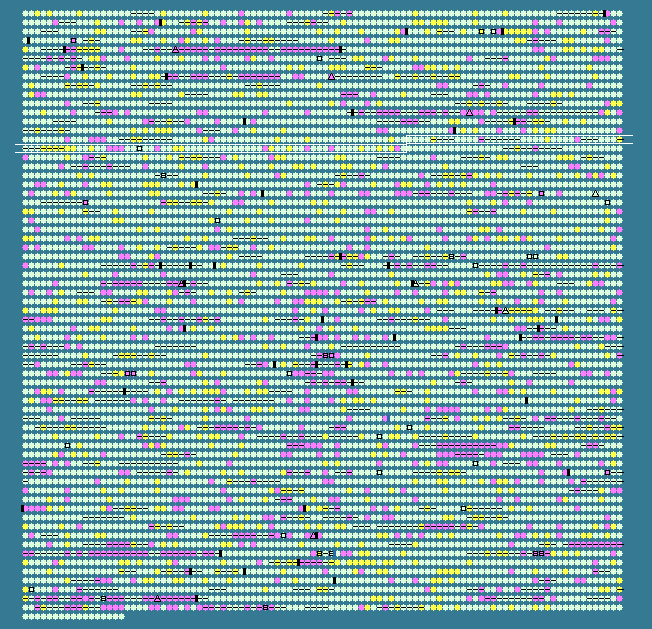

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.78 STD DEV: 3.31
Bradyrhizobium sp. ORS278, complete genome - 1..7456587
6717 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1465	 66.11	0	1682346..1684127	+	593	146338640	mcpa	BRADO1571	-	methyl-accepting chemotaxis protein
1466	 67.72	0	1684184..1684468	+	94	146338641	-	BRADO1572	-	hypothetical protein
1467	 67.24	0	1684465..1686900	-	811	146338642	pps	BRADO1573	-	phosphoenolpyruvate synthase
1468	 65.56	0	1687007..1688185	+	392	146338643	-	BRADO1574	-	putative ABC transporter-like
1469	 70.18	+1	1688145..1689083	-	312	146338644	-	BRADO1575	-	carbohydrate kinase pfkB family; 6-phosphofructokinase
1470	 68.60	0	1689087..1690067	-	326	146338645	glk	BRADO1576	-	glucokinase (glucose kinase)
1471	 67.39	0	1690064..1691455	-	463	146338646	-	BRADO1577	-	putative beta-glucosidase
1472	 66.46	0	1691800..1692750	+	316	146338647	-	BRADO1578	-	putative oligopeptide ABC transporter (permease protein)
1473	 68.74	0	1692759..1693625	+	288	146338648	-	BRADO1579	-	putative oligopeptide ABC transporter (permease protein)
1474	 68.45	0	1693622..1694632	+	336	146338649	-	BRADO1580	-	putative oligopeptide ABC transporter (ATP binding protein)
1475	 68.57	0	1694629..1695681	+	350	146338650	-	BRADO1581	-	putative oligopeptide ABC transporter (ATP binding protein)
1476	 64.34	0	1695715..1697220	+	501	146338651	-	BRADO1582	-	putative oligopeptide ABC transporter (substrate-binding protein)
1477	 61.73	-1	1697494..1697655	-	53	146338652	-	BRADO1583	-	hypothetical protein
1478	 65.26	0	1697886..1698809	+	307	146338653	-	BRADO1584	-	thioredoxin reductase
1479	 69.05	0	1698885..1699052	+	55	146338654	-	BRADO1585	-	hypothetical protein
1480	 66.79	0	1699060..1699902	-	280	146338655	-	BRADO1586	-	putative oligopeptide ABC transporter (permease protein)
1481	 67.10	0	1699914..1700846	-	310	146338656	-	BRADO1587	-	oligopeptide ABC transporter permease
1482	 68.68	0	1700843..1701835	-	330	146338657	-	BRADO1588	-	putative oligopeptide ABC transporter (ATP binding protein)
1483	 68.82	0	1701832..1702806	-	324	146338658	-	BRADO1589	-	putative oligopeptide ABC transporter (ATP binding protein)
1484	 65.38	0	1702811..1704448	-	545	146338659	-	BRADO1590	-	putative oligopeptide ABC transporter (substrate-binding protein)
1485	 65.94	0	1704490..1705311	-	273	146338660	-	BRADO1591	-	putative xylose isomerase
1486	 65.32	0	1705658..1706176	+	172	146338661	-	BRADO1593	-	hypothetical protein
1487	 66.36	0	1706203..1706847	-	214	146338662	-	BRADO1594	-	hypothetical protein
1488	 71.02	+1	1706880..1708097	-	405	146338663	-	BRADO1595	-	putative DNA-binding protein
1489	 67.78	0	1708407..1708943	+	178	146338664	-	BRADO1596	-	hypothetical protein
1490	 65.89	0	1708990..1709247	+	85	146338665	-	BRADO1597	-	putative signal peptide
1491	 66.54	0	1709544..1710329	-	261	146338666	-	BRADO1598	-	ABC transporter ATP-binding protein
1492	 64.22	0	1710326..1711102	-	258	146338667	-	BRADO1599	-	ABC transporter permease
1493	 62.01	-1	1711330..1712274	-	314	146338668	-	BRADO1600	-	ABC transporter substrate-binding protein
1494	 66.67	0	1712408..1713139	-	243	146338669	hutC	BRADO1601	-	histidine utilization repressor
1495	 67.62	0	1713136..1714494	-	452	146338670	-	BRADO1602	-	N-formimino-L-glutamate deiminase
1496	 67.41	0	1714583..1715797	+	404	146338671	hutI	BRADO1603	-	imidazolonepropionase
1497	 68.09	0	1715794..1717341	+	515	146338672	hutH	BRADO1604	-	histidine ammonia-lyase
1498	 65.59	0	1717351..1719021	+	556	146338673	hutU	BRADO1605	-	urocanate hydratase
1499	 68.39	0	1719052..1720152	+	366	146338674	bchI	BRADO1606	-	magnesium-chelatase 38 kDa subunit (Mg-protoporphyrin IX chelatase)
1500	 70.98	+1	1720149..1721888	+	579	146338675	bchD	BRADO1607	-	magnesium chelatase subunit D
1501	 65.53	0	1722026..1722991	+	321	146338676	-	BRADO1608	-	putative alpha/beta hydrolase fold
1502	 67.77	0	1723037..1723942	+	301	146338677	-	BRADO1609	-	putative Alpha/beta hydrolase, putative protoporphyrin IX magnesium chelatase bchO-like.
1503	 66.21	0	1723993..1725531	+	512	146338678	crtI	BRADO1610	-	phytoene dehydrogenase (phytoene desaturase)
1504	 70.89	+1	1725528..1726568	+	346	146338679	crtB	BRADO1611	-	phytoene synthase
1505	 69.44	+1	1726591..1726734	+	47	146338680	-	BRADO1612	-	hypothetical protein
1506	 69.50	+1	1727206..1727910	-	234	146338681	crtC	BRADO1613	-	neurosporene and anhydrorhodovibrin hydratase
1507	 69.85	+1	1728066..1729604	-	512	146338682	crtD	BRADO1614	-	hydroxyneurosporene and rhodopin dehydrogenase
1508	 71.03	+1	1729716..1730585	+	289	146338683	crtE	BRADO1615	-	geranylgeranyl pyrophosphate synthetase (GGPP synthetase) (farnesyltranstransferase)
1509	 70.24	+1	1730820..1731965	+	381	146338684	crtF	BRADO1616	-	demethylspheroidene and didehydrorhodopin O-methyltransferase
1510	 68.47	0	1732056..1732997	+	313	146338685	bchC	BRADO1617	-	2-desacetyl-2-hydroxyethyl bacteriochlorophyllide A dehydrogenase
1511	 65.38	0	1732994..1734004	+	336	146338686	bchX	BRADO1618	-	bacteriochlorophyllide reductase subunit
1512	 69.82	+1	1734008..1735594	+	528	146338687	bchY	BRADO1619	-	bacteriochlorophyllide reductase subunit
1513	 67.01	0	1735594..1737045	+	483	146338688	bchZ	BRADO1620	-	bacteriochlorophyllide reductase Z subunit
1514	 67.54	0	1737077..1737304	+	75	146338689	-	BRADO1621	-	hypothetical protein
1515	 61.84	-1	1737475..1737702	+	75	146338690	pufB	BRADO1622	-	light harvesting 1 beta subunit
1516	 60.32	-1	1737719..1737907	+	62	146338691	pufA	BRADO1623	-	light harvesting 1 alpha subunit
1517	 62.16	-1	1738088..1738930	+	280	146338692	pufL	BRADO1624	-	photosynthetic reaction center subunit L
1518	 63.43	0	1738949..1739875	+	308	146338693	pufM	BRADO1625	-	photosynthetic reaction center M protein
1519	 66.96	0	1739894..1740577	+	227	146338694	hmuO	BRADO1626	-	heme oxygenase
1520	 64.09	0	1740791..1742149	-	452	146338695	-	BRADO1627	-	putative transposase
1521	 68.00	0	1742399..1744573	-	724	146338696	BrbphP	BRADO1628	-	bacteriophytochrome
1522	 66.30	0	1744574..1745944	-	456	146338697	ppsR2	BRADO1629	-	transcriptional regulator PpsR2
1523	 61.15	-1	1746273..1746707	+	144	146338698	cycA	BRADO1630	-	cytochrome c2
1524	 67.42	0	1746962..1747228	-	88	146338699	-	BRADO1631	-	hypothetical protein
1525	 68.33	0	1747237..1748442	-	401	146338700	bchP	BRADO1632	-	geranylgeranyl reductase
1526	 69.59	+1	1748445..1749776	-	443	146338701	-	BRADO1633	-	light harvesting pigment major facilitator family (MFS) transporter, Bch2-like
1527	 69.58	+1	1749773..1750699	-	308	146338702	bchG	BRADO1634	-	bacteriochlorophyll/chlorophyll a synthase
1528	 65.62	0	1750716..1752143	-	475	146338703	ppsR1	BRADO1635	-	Fis family transcriptional regulator
1529	 63.66	0	1752223..1753119	-	298	146338704	-	BRADO1636	-	regulatory protein
1530	 62.44	-1	1753349..1753939	+	196	146338705	bchF	BRADO1638	-	2-vinyl bacteriochlorophyllide hydratase
1531	 68.69	0	1753936..1755219	+	427	146338706	bchN	BRADO1639	-	light-independent protochlorophyllide reductase subunit N
1532	 66.60	0	1755221..1756777	+	518	146338707	bchB	BRADO1640	-	light-independent protochlorophyllide reductase subunit B
1533	 68.78	0	1756752..1760342	+	1196	146338708	bchH	BRADO1641	-	magnesium chelatase subunit H
1534	 65.78	0	1760339..1761244	+	301	146338709	chlL	BRADO1642	-	protochlorophyllide reductase iron-sulfur ATP-binding protein
1535	 68.38	0	1761258..1761959	+	233	146338710	bchM	BRADO1643	-	Mg-protoporphyrin IX methyl transferase
1536	 68.13	0	1761956..1763386	+	476	146338711	lhaA	BRADO1644	-	photosynthetic complex (LH1) assembly protein LhaA
1537	 64.23	0	1763406..1764185	+	259	146338712	puhA	BRADO1645	-	reaction center protein H chain (photosynthetic reaction center H subunit)
1538	 69.12	+1	1764182..1764832	+	216	146338713	-	BRADO1646	-	hypothetical protein
1539	 68.50	0	1764846..1765337	+	163	146338714	-	BRADO1647	-	hypothetical protein
1540	 62.75	0	1765334..1765639	+	101	146338715	-	BRADO1648	-	hypothetical protein
1541	 61.77	-1	1765636..1766697	+	353	146338716	acsF	BRADO1649	-	magnesium-protoporphyrin IX monomethyl ester cyclase
1542	 69.79	+1	1766711..1767766	+	351	146338717	-	BRADO1650	-	hypothetical protein
1543	 67.00	0	1767763..1768974	+	403	146338718	hemA	BRADO1651	-	5-aminolevulinate synthase
1544	 63.93	0	1769071..1770675	+	534	146338719	bchE	BRADO1652	-	Mg-protoporphyrin IX monomethyl ester oxidative cyclase 66kD subunit
1545	 70.87	+1	1770677..1771318	+	213	146338720	bchJ	BRADO1653	-	4-vinyl protochlorophyllide reductase
1546	 67.32	0	1771367..1772287	-	306	146338721	cbbR	BRADO1654	-	RuBisCO operon transcriptional regulatory protein
1547	 67.51	0	1772435..1773505	+	356	146338722	cbbF	BRADO1655	-	D-fructose-1,6-bisphosphatase protein
1548	 60.84	-1	1773555..1774430	+	291	146338723	cbbP	BRADO1656	-	phosphoribulokinase (phosphopentokinase) (PRKase) (PRK)
1549	 67.66	0	1774442..1776454	+	670	146338724	cbbT	BRADO1657	-	transketolase
1550	 65.74	0	1776498..1777580	+	360	146338725	cbbA	BRADO1658	-	fructose-1,6-bisphosphate aldolase
1551	 64.41	0	1777615..1779075	+	486	146338726	rbcL	BRADO1659	-	ribulose bisophosphate carboxylase
1552	 62.14	-1	1779148..1779567	+	139	146338727	cbbS	BRADO1660	-	ribulose bisphosphate carboxylase small chain (RuBisCO small subunit)
1553	 62.95	0	1779730..1780671	+	313	146338728	-	BRADO1661	-	CbbX-like protein
1554	 66.80	0	1780668..1781393	+	241	146338729	-	BRADO1662	-	haloacid dehalogenase-like hydrolase
1555	 66.81	0	1781544..1782233	+	229	146338730	-	BRADO1663	-	TetR family transcriptional regulator
1556	 66.85	0	1782329..1782880	-	183	146338731	-	BRADO1664	-	hypothetical protein
1557	 69.67	+1	1783291..1784055	+	254	146338732	-	BRADO1665	-	putative lytic murein transglycosylase
1558	 66.80	0	1784144..1786324	-	726	146338733	katG	BRADO1666	-	catalase; hydroperoxidase HPI(I)
1559	 69.14	+1	1786553..1787482	+	309	146338734	oxyR	BRADO1667	-	oxidative stress transcriptional regulator
1560	 70.83	+1	1787972..1788427	+	151	146338735	-	BRADO1668	-	putative signal peptide
1561	 63.65	0	1788603..1789199	+	198	146338736	-	BRADO1669	-	hypothetical protein
1562	 70.68	+1	1789196..1789444	+	82	146338737	-	BRADO1670	-	hypothetical protein
1563	 58.20	-2	1789497..1789685	+	62	146338738	-	BRADO1671	-	hypothetical protein
1564	 67.28	0	1789869..1790192	+	107	146338739	-	BRADO1672	-	hypothetical protein
65.78	MEAN

3.31	STD DEV
