IslandPath Analysis: Bradyrhizobium sp. ORS278

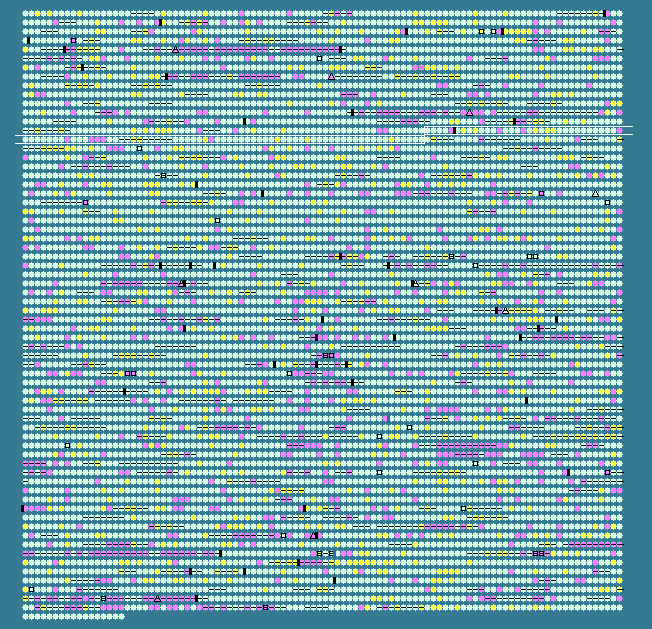

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 65.78   STD DEV: 3.31
Bradyrhizobium sp. ORS278, complete genome - 1..7456587
6717 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1368	 64.47	0	1568534..1569901	+	455	146338543	-	BRADO1463	-	protein prenyltransferase
1369	 65.13	0	1569961..1571067	-	368	146338544	dinB	BRADO1464	-	DNA polymerase IV
1370	 65.45	0	1571335..1572240	+	301	146338545	-	BRADO1465	-	ribonuclease Z
1371	 65.65	0	1572517..1574394	+	625	146338546	trkD	BRADO1466	-	KUP family potassium transport system low affinity
1372	 58.56	-2	1574506..1574937	+	143	146338547	-	BRADO1467	-	putative signal peptide
1373	 67.95	0	1575321..1576640	-	439	146338548	-	BRADO1468	-	hypothetical protein
1374	 70.19	+1	1576731..1577354	-	207	146338549	-	BRADO1469	-	hypothetical protein
1375	 68.75	0	1577604..1578035	+	143	146338550	-	BRADO1470	-	hypothetical protein
1376	 71.80	+1	1578039..1578875	-	278	146338551	cysQ	BRADO1471	-	CysQ protein
1377	 65.91	0	1579121..1579783	+	220	146338552	-	BRADO1472	-	putative Signal transduction histidine kinase
1378	 66.99	0	1580019..1582817	+	932	146338553	cheA	BRADO1473	-	chemotaxis protein cheA
1379	 66.67	0	1582844..1583314	+	156	146338554	cheW	BRADO1474	-	chemotaxis protein cheW
1380	 62.02	-1	1583384..1583749	+	121	146338555	cheY	BRADO1475	-	chemotaxis protein cheY
1381	 68.09	0	1583825..1585021	+	398	146338556	cheB	BRADO1476	-	chemotaxis-specific methylesterase
1382	 63.56	0	1585018..1585887	+	289	146338557	cheR	BRADO1477	-	chemotaxis protein methyltransferase
1383	 64.05	0	1586062..1587819	+	585	146338558	kaiC	BRADO1478	-	circadian clock protein KaiC
1384	 61.62	-1	1587816..1588112	+	98	146338559	kaiB	BRADO1479	-	circadian clock protein
1385	 68.35	0	1588124..1589611	+	495	146338560	-	BRADO1480	-	signal transduction histidine kinase
1386	 69.80	+1	1589612..1589962	-	116	146338561	-	BRADO1481	-	putative response regulator receiver (CheY-like protein)
1387	 65.39	0	1590105..1591280	-	391	146338562	-	BRADO1482	-	putative glutathionylspermidine synthase family protein
1388	 69.92	+1	1591287..1591532	-	81	146338563	-	BRADO1484	-	hypothetical protein
1389	 72.98	+2	1591651..1592046	-	131	146338564	-	BRADO1485	-	hypothetical protein
1390	 63.95	0	1592049..1592453	-	134	146338565	-	BRADO1486	-	hypothetical protein
1391	 69.23	+1	1592523..1593263	-	246	146338566	-	BRADO1487	-	GntR family transcriptional regulator
1392	 63.97	0	1593456..1594457	+	333	146338567	-	BRADO1488	-	ABC transporter substrate-binding protein
1393	 67.78	0	1594459..1595268	+	269	146338568	-	BRADO1489	-	ABC transporter permease
1394	 65.90	0	1595271..1596050	+	259	146338569	-	BRADO1490	-	ABC transporter ATP-binding protein
1395	 65.02	0	1596367..1597095	+	242	146338570	-	BRADO1491	-	putative Asp/Glu/Hydantoin racemase
1396	 65.53	0	1597121..1598524	+	467	146338571	-	BRADO1492	-	dihydropyrimidinase
1397	 64.21	0	1598817..1600934	+	705	146338572	-	BRADO1493	-	putative nuclease
1398	 62.76	0	1601236..1601721	-	161	146338573	-	BRADO1494	-	hypothetical protein
1399	 66.87	0	1602150..1602632	-	160	146338574	-	BRADO1495	-	putative cytochrome c
1400	 60.68	-1	1603833..1604534	-	233	146338575	ctrA	BRADO1497	-	two-component cell cycle transcriptional regulator ctrA
1401	 67.42	0	1604953..1606278	+	441	146338576	fliI	BRADO1498	-	flagellum-specific ATP synthase
1402	 65.00	0	1606388..1606807	+	139	146338577	-	BRADO1499	-	putative flagelar FliJ protein
1403	 65.21	0	1606958..1607506	+	182	146338578	-	BRADO1500	-	RNA polymerase ECF-type sigma factor
1404	 68.09	0	1607564..1608688	+	374	146338579	-	BRADO1501	-	hypothetical protein
1405	 63.68	0	1608822..1609022	-	66	146338580	-	BRADO1502	-	putative signal peptide
1406	 66.76	0	1609392..1611443	-	683	146338581	flhA	BRADO1503	-	flagellar biosynthesis protein FlhA
1407	 67.75	0	1612721..1613647	+	308	146338582	-	BRADO1504	-	putative para-nitrobenzyl esterase
1408	 59.31	-1	1613855..1614085	-	76	146338583	-	BRADO1505	-	hypothetical protein
1409	 65.07	0	1614528..1614902	+	124	146338584	-	BRADO1506	-	hypothetical protein
1410	 67.88	0	1615206..1617431	-	741	146338585	-	BRADO1509	-	O-linked N-acetylglucosamine transferase
1411	 62.85	0	1618372..1618869	+	165	146338586	-	BRADO1511	-	putative acetyltransferase protein
1412	 60.55	-1	1618951..1619277	-	108	146338587	-	BRADO1512	-	hypothetical protein
1413	 59.90	-1	1619600..1620190	+	196	146338588	-	BRADO1514	-	putative shikimate kinase
1414	 59.95	-1	1620337..1621155	+	272	146338589	-	BRADO1515	-	hypothetical protein
1415	 68.16	0	1621340..1622077	-	245	146338590	-	BRADO1517	-	hypothetical protein
1416	 69.03	0	1622222..1624297	+	691	146338591	-	BRADO1518	-	putative methyl-accepting chemotaxis protein
1417	 65.22	0	1624323..1624598	-	91	146338592	-	BRADO1519	-	putative periplasmic copper binding protein
1418	 66.82	0	1624664..1625965	-	433	146338593	-	BRADO1520	-	putative multicopper oxidase; putative copper resistance protein A
1419	 71.05	+1	1625993..1627405	-	470	146338594	-	BRADO1521	-	putative Outer membrane efflux protein; putative copper resistance protein B
1420	 74.91	+2	1627414..1627680	-	88	146338595	-	BRADO1522	-	hypothetical protein
1421	 68.35	0	1627750..1628223	-	157	146338596	-	BRADO1523	-	hypothetical protein
1422	 67.64	0	1628625..1629863	+	412	146338597	-	BRADO1524	-	major facilitator superfamily permease
1423	 63.94	0	1630414..1631514	+	366	146338598	-	BRADO1526	-	putative TRAP-type uncharacterized transport system
1424	 67.41	0	1631530..1631934	-	134	146338599	-	BRADO1527	-	hypothetical protein
1425	 68.09	0	1632063..1633256	+	397	146338600	-	BRADO1528	-	putative kynureninase
1426	 64.52	0	1633253..1634092	+	279	146338601	-	BRADO1529	-	tryptophan 2,3-dioxygenase
1427	 68.36	0	1634126..1634953	+	275	146338602	-	BRADO1530	-	putative hydrolase (Serine esterase)
1428	 66.14	0	1635162..1636667	+	501	146338603	amdA	BRADO1531	-	amidase
1429	 63.36	0	1636685..1637500	-	271	146338604	-	BRADO1532	-	2-haloacid dehalogenase
1430	 64.69	0	1637585..1638445	+	286	146338605	-	BRADO1533	-	LysR family transcriptional regulator
1431	 69.74	+1	1638467..1640062	-	531	146338606	-	BRADO1534	-	putative gamma-glutamyltranspeptidase
1432	 60.42	-1	1640202..1640585	-	127	146338607	-	BRADO1535	-	hypothetical protein
1433	 67.28	0	1640745..1643171	-	808	146338608	-	BRADO1536	-	hypothetical protein
1434	 65.14	0	1643353..1644594	-	413	146338609	-	BRADO1537	-	hypothetical protein
1435	 66.73	0	1644649..1646277	-	542	146338610	-	BRADO1538	-	ABC transporter permease/ATP-binding protein
1436	 63.08	0	1646592..1647482	-	296	146338611	-	BRADO1539	-	ABC transporter substrate-binding protein
1437	 65.01	0	1648098..1648943	+	281	146338612	-	BRADO1540	-	ABC transporter permease
1438	 68.45	0	1648940..1650007	+	355	146338613	-	BRADO1541	-	putative ABC transporter ATP-binding protein
1439	 64.92	0	1650038..1651069	+	343	146338614	-	BRADO1542	-	ABC transporter substrate-binding protein
1440	 63.90	0	1651151..1651981	+	276	146338615	-	BRADO1543	-	ABC transporter permease
1441	 64.74	0	1652198..1653805	+	535	146338616	-	BRADO1544	-	amidohydrolase
1442	 69.26	+1	1653811..1654812	+	333	146338617	-	BRADO1545	-	putative cobalamin synthesis protein cobW
1443	 70.40	+1	1655003..1655779	-	258	146338618	-	BRADO1546	-	IclR family transcriptional regulator
1444	 68.37	0	1656002..1657057	+	351	146338619	-	BRADO1547	-	ABC transporter ATP-binding protein
1445	 66.08	0	1657054..1657911	+	285	146338620	-	BRADO1548	-	ABC transporter permease
1446	 65.92	0	1657908..1658711	+	267	146338621	-	BRADO1549	-	ABC transporter permease
1447	 67.35	0	1658716..1659009	+	97	146338622	-	BRADO1550	-	oxydoreductase (2Fe-2S ferredoxin like subunit)
1448	 70.18	+1	1659002..1660396	+	464	146338623	-	BRADO1551	-	oxidoreductase (pyridine nucleotide-disulphide subunit)
1449	 69.19	+1	1660380..1661528	+	382	146338624	-	BRADO1552	-	oxidoreductase
1450	 63.51	0	1661541..1662587	+	348	146338625	-	BRADO1553	-	ABC transporter, perisplasmic binding protein
1451	 64.69	0	1662896..1663603	-	235	146338626	-	BRADO1554	-	hypothetical protein
1452	 68.95	0	1663786..1665141	+	451	146338627	-	BRADO1555	-	transcriptional regulator
1453	 66.21	0	1665129..1666433	-	434	146338628	-	BRADO1556	-	putative metallo-hydrolase
1454	 64.94	0	1666564..1668477	-	637	146338629	-	BRADO1557	-	hypothetical protein
1455	 65.92	0	1668499..1669698	-	399	146338630	-	BRADO1558	-	alpha-beta hydrolase family esterase
1456	 64.91	0	1669765..1670334	-	189	146338631	-	BRADO1559	-	putative signal peptide
1457	 65.32	0	1670445..1671113	-	222	146338632	-	BRADO1560	-	putative aldolase
1458	 66.86	0	1671424..1672962	-	512	146338633	garD	BRADO1562	-	(D)-galactarate dehydrogenase
1459	 66.40	0	1673187..1674674	-	495	146338634	-	BRADO1563	-	aldehyde dehydrogenase; NAD-linked
1460	 67.04	0	1674693..1676048	-	451	146338635	gudD	BRADO1564	-	(D)-glucarate dehydratase 1
1461	 65.19	0	1676340..1677284	-	314	146338636	kdgD	BRADO1565	-	5-dehydro-4-deoxyglucarate dehydratase
1462	 69.32	+1	1677420..1678322	-	300	146338637	-	BRADO1566	-	LysR family transcriptional regulator
1463	 65.34	0	1679439..1680794	-	451	146338638	gudP	BRADO1568	-	major facilitator superfamily D-glucarate permease
1464	 67.29	0	1681143..1682267	+	374	146338639	aphA	BRADO1570	-	acetylpolyamine aminohydrolase
1465	 66.11	0	1682346..1684127	+	593	146338640	mcpa	BRADO1571	-	methyl-accepting chemotaxis protein
1466	 67.72	0	1684184..1684468	+	94	146338641	-	BRADO1572	-	hypothetical protein
1467	 67.24	0	1684465..1686900	-	811	146338642	pps	BRADO1573	-	phosphoenolpyruvate synthase
65.78	MEAN

3.31	STD DEV
