IslandPath Analysis: Bradyrhizobium sp. ORS278

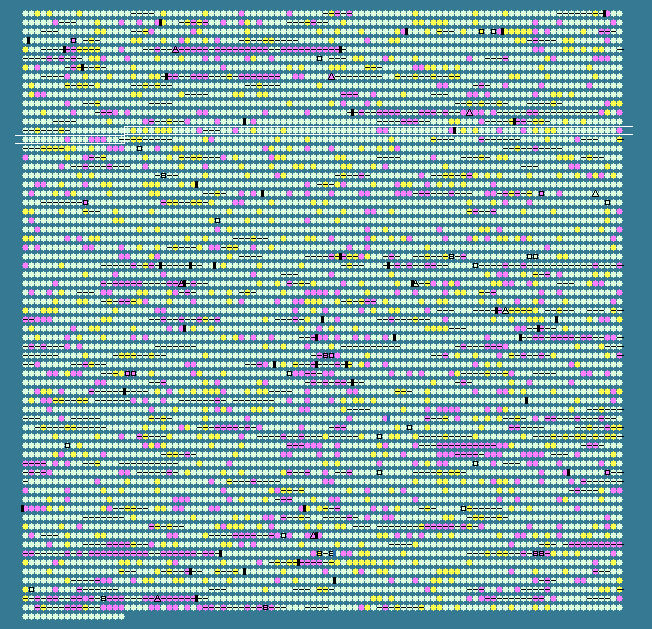

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 65.78   STD DEV: 3.31
Bradyrhizobium sp. ORS278, complete genome - 1..7456587
6717 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1318	 63.71	0	1510275..1511288	+	337	146338493	-	BRADO1411	-	putative periplasmic substrate-binding subunit (ABC transporter)
1319	 69.62	+1	1511295..1512647	-	450	146338494	-	BRADO1412	-	putative two-component sensor histidine kinase
1320	 67.23	0	1512651..1513358	-	235	146338495	ompR	BRADO1413	-	OmpR family two-component response regulator
1321	 75.56	+2	1513568..1513837	+	89	146338496	-	BRADO1414	-	hypothetical protein
1322	 63.02	0	1513958..1514587	+	209	146338497	-	BRADO1415	-	putative signal peptide
1323	 70.11	+1	1514603..1515502	+	299	146338498	-	BRADO1416	-	hypothetical protein
1324	 69.68	+1	1515519..1516016	+	165	146338499	-	BRADO1417	-	hypothetical protein
1325	 70.64	+1	1516266..1517246	-	326	146338500	-	BRADO1418	-	hypothetical protein
1326	 65.27	0	1517335..1517979	+	214	146338501	gst1	BRADO1419	-	glutathione S-transferase
1327	 67.99	0	1518049..1520007	-	652	146338502	-	BRADO1420	-	aminopeptidase
1328	 65.73	0	1520058..1520486	-	142	146338503	-	BRADO1421	-	AsnC/Lrp family transcriptional regulator
1329	 64.13	0	1520604..1520918	+	104	146338504	-	BRADO1422	-	hypothetical protein
1330	 61.32	-1	1520978..1521295	+	105	146338505	-	BRADO1423	-	hypothetical protein
1331	 65.67	0	1521314..1521613	-	99	146338506	-	BRADO1424	-	hypothetical protein
1332	 64.88	0	1521946..1522785	+	279	146338507	-	BRADO1425	-	putative signal peptide
1333	 68.53	0	1523145..1525127	+	660	146338508	-	BRADO1426	-	hypothetical protein
1334	 67.58	0	1525317..1526852	+	511	146338509	-	BRADO1427	-	putative signal peptide
1335	 66.27	0	1526857..1528131	-	424	146338510	-	BRADO1428	-	Acyl-coenzyme A transferase
1336	 57.71	-2	1528318..1528518	-	66	146338511	cspA	BRADO1429	-	cold shock protein, DNA binding
1337	 66.03	0	1528752..1530485	-	577	146338512	cyaA	BRADO1430	-	ferredoxin:adenylate/guanylate cyclase
1338	 66.34	0	1530683..1532215	+	510	146338513	-	BRADO1431	-	putative glycosyl transferase
1339	 69.96	+1	1532216..1533247	-	343	146338514	-	BRADO1432	-	hypothetical protein
1340	 68.48	0	1533244..1534728	-	494	146338515	-	BRADO1433	-	hypothetical protein
1341	 62.36	-1	1534899..1535594	+	231	146338516	-	BRADO1434	-	hemolysin III
1342	 66.54	0	1535631..1536425	+	264	146338517	-	BRADO1435	-	putative short-chain dehydrogenase/reductase
1343	 66.84	0	1537736..1539472	+	578	146338518	-	BRADO1437	-	hypothetical protein
1344	 72.59	+2	1539998..1541719	-	573	146338519	-	BRADO1438	-	putative signal peptide
1345	 68.39	0	1542049..1543731	-	560	146338520	mdlC	BRADO1439	-	benzoylformate decarboxylase
1346	 67.84	0	1543775..1544629	-	284	146338521	-	BRADO1440	-	hypothetical protein
1347	 67.65	0	1544626..1545738	-	370	146338522	-	BRADO1441	-	formyl-coenzyme A transferase NAD(P)-binding
1348	 64.35	0	1545963..1547129	-	388	146338523	-	BRADO1442	-	acyl-CoA dehydrogenase
1349	 69.00	0	1547288..1547887	-	199	146338524	-	BRADO1443	-	putative sulfopyruvate decarboxylase beta subunit
1350	 65.75	0	1547869..1548414	-	181	146338525	-	BRADO1444	-	putative sulfopyruvate decarboxylase alpha subunit
1351	 64.75	0	1548737..1550041	-	434	146338526	-	BRADO1445	-	cytochrome P-450
1352	 64.89	0	1550302..1551597	-	431	146338527	-	BRADO1446	-	cytochrome P-450
1353	 65.56	0	1551824..1552996	+	390	146338528	ivd2	BRADO1447	-	isovaleryl-CoA dehydrogenase
1354	 63.62	0	1553294..1554343	+	349	146338529	-	BRADO1448	-	hypothetical protein
1355	 68.17	0	1554318..1555451	+	377	146338530	-	BRADO1449	-	putative metalloendopeptidase
1356	 65.60	0	1555677..1556426	-	249	146338531	-	BRADO1450	-	hypothetical protein
1357	 67.60	0	1556548..1557081	-	177	146338532	-	BRADO1451	-	hypothetical protein
1358	 68.34	0	1557395..1558945	+	516	146338533	-	BRADO1452	-	hypothetical protein
1359	 63.29	0	1559093..1559596	+	167	146338534	-	BRADO1453	-	hypothetical protein
1360	 62.19	-1	1559837..1560037	-	66	146338535	-	BRADO1454	-	putative signal peptide
1361	 61.83	-1	1560408..1560779	-	123	146338536	-	BRADO1456	-	cytochrome c
1362	 65.04	0	1560973..1562139	+	388	146338537	-	BRADO1457	-	hypothetical protein
1363	 64.22	0	1562136..1563485	+	449	146338538	-	BRADO1458	-	two-component hybrid sensor and regulator
1364	 63.61	0	1563439..1564320	-	293	146338539	-	BRADO1459	-	two-component LuxR family transcriptional regulator (modular protein)
1365	 65.88	0	1564394..1565155	-	253	146338540	-	BRADO1460	-	two-component LuxR family transcriptional regulator
1366	 65.34	0	1565152..1566357	-	401	146338541	-	BRADO1461	-	Mox; cytochrome c like protein
1367	 64.13	0	1566444..1568135	-	563	146338542	-	BRADO1462	-	quinoprotein ethanol dehydrogenase
1368	 64.47	0	1568534..1569901	+	455	146338543	-	BRADO1463	-	protein prenyltransferase
1369	 65.13	0	1569961..1571067	-	368	146338544	dinB	BRADO1464	-	DNA polymerase IV
1370	 65.45	0	1571335..1572240	+	301	146338545	-	BRADO1465	-	ribonuclease Z
1371	 65.65	0	1572517..1574394	+	625	146338546	trkD	BRADO1466	-	KUP family potassium transport system low affinity
1372	 58.56	-2	1574506..1574937	+	143	146338547	-	BRADO1467	-	putative signal peptide
1373	 67.95	0	1575321..1576640	-	439	146338548	-	BRADO1468	-	hypothetical protein
1374	 70.19	+1	1576731..1577354	-	207	146338549	-	BRADO1469	-	hypothetical protein
1375	 68.75	0	1577604..1578035	+	143	146338550	-	BRADO1470	-	hypothetical protein
1376	 71.80	+1	1578039..1578875	-	278	146338551	cysQ	BRADO1471	-	CysQ protein
1377	 65.91	0	1579121..1579783	+	220	146338552	-	BRADO1472	-	putative Signal transduction histidine kinase
1378	 66.99	0	1580019..1582817	+	932	146338553	cheA	BRADO1473	-	chemotaxis protein cheA
1379	 66.67	0	1582844..1583314	+	156	146338554	cheW	BRADO1474	-	chemotaxis protein cheW
1380	 62.02	-1	1583384..1583749	+	121	146338555	cheY	BRADO1475	-	chemotaxis protein cheY
1381	 68.09	0	1583825..1585021	+	398	146338556	cheB	BRADO1476	-	chemotaxis-specific methylesterase
1382	 63.56	0	1585018..1585887	+	289	146338557	cheR	BRADO1477	-	chemotaxis protein methyltransferase
1383	 64.05	0	1586062..1587819	+	585	146338558	kaiC	BRADO1478	-	circadian clock protein KaiC
1384	 61.62	-1	1587816..1588112	+	98	146338559	kaiB	BRADO1479	-	circadian clock protein
1385	 68.35	0	1588124..1589611	+	495	146338560	-	BRADO1480	-	signal transduction histidine kinase
1386	 69.80	+1	1589612..1589962	-	116	146338561	-	BRADO1481	-	putative response regulator receiver (CheY-like protein)
1387	 65.39	0	1590105..1591280	-	391	146338562	-	BRADO1482	-	putative glutathionylspermidine synthase family protein
1388	 69.92	+1	1591287..1591532	-	81	146338563	-	BRADO1484	-	hypothetical protein
1389	 72.98	+2	1591651..1592046	-	131	146338564	-	BRADO1485	-	hypothetical protein
1390	 63.95	0	1592049..1592453	-	134	146338565	-	BRADO1486	-	hypothetical protein
1391	 69.23	+1	1592523..1593263	-	246	146338566	-	BRADO1487	-	GntR family transcriptional regulator
1392	 63.97	0	1593456..1594457	+	333	146338567	-	BRADO1488	-	ABC transporter substrate-binding protein
1393	 67.78	0	1594459..1595268	+	269	146338568	-	BRADO1489	-	ABC transporter permease
1394	 65.90	0	1595271..1596050	+	259	146338569	-	BRADO1490	-	ABC transporter ATP-binding protein
1395	 65.02	0	1596367..1597095	+	242	146338570	-	BRADO1491	-	putative Asp/Glu/Hydantoin racemase
1396	 65.53	0	1597121..1598524	+	467	146338571	-	BRADO1492	-	dihydropyrimidinase
1397	 64.21	0	1598817..1600934	+	705	146338572	-	BRADO1493	-	putative nuclease
1398	 62.76	0	1601236..1601721	-	161	146338573	-	BRADO1494	-	hypothetical protein
1399	 66.87	0	1602150..1602632	-	160	146338574	-	BRADO1495	-	putative cytochrome c
1400	 60.68	-1	1603833..1604534	-	233	146338575	ctrA	BRADO1497	-	two-component cell cycle transcriptional regulator ctrA
1401	 67.42	0	1604953..1606278	+	441	146338576	fliI	BRADO1498	-	flagellum-specific ATP synthase
1402	 65.00	0	1606388..1606807	+	139	146338577	-	BRADO1499	-	putative flagelar FliJ protein
1403	 65.21	0	1606958..1607506	+	182	146338578	-	BRADO1500	-	RNA polymerase ECF-type sigma factor
1404	 68.09	0	1607564..1608688	+	374	146338579	-	BRADO1501	-	hypothetical protein
1405	 63.68	0	1608822..1609022	-	66	146338580	-	BRADO1502	-	putative signal peptide
1406	 66.76	0	1609392..1611443	-	683	146338581	flhA	BRADO1503	-	flagellar biosynthesis protein FlhA
1407	 67.75	0	1612721..1613647	+	308	146338582	-	BRADO1504	-	putative para-nitrobenzyl esterase
1408	 59.31	-1	1613855..1614085	-	76	146338583	-	BRADO1505	-	hypothetical protein
1409	 65.07	0	1614528..1614902	+	124	146338584	-	BRADO1506	-	hypothetical protein
1410	 67.88	0	1615206..1617431	-	741	146338585	-	BRADO1509	-	O-linked N-acetylglucosamine transferase
1411	 62.85	0	1618372..1618869	+	165	146338586	-	BRADO1511	-	putative acetyltransferase protein
1412	 60.55	-1	1618951..1619277	-	108	146338587	-	BRADO1512	-	hypothetical protein
1413	 59.90	-1	1619600..1620190	+	196	146338588	-	BRADO1514	-	putative shikimate kinase
1414	 59.95	-1	1620337..1621155	+	272	146338589	-	BRADO1515	-	hypothetical protein
1415	 68.16	0	1621340..1622077	-	245	146338590	-	BRADO1517	-	hypothetical protein
1416	 69.03	0	1622222..1624297	+	691	146338591	-	BRADO1518	-	putative methyl-accepting chemotaxis protein
1417	 65.22	0	1624323..1624598	-	91	146338592	-	BRADO1519	-	putative periplasmic copper binding protein
65.78	MEAN

3.31	STD DEV
