IslandPathversion 1.0

IslandPath Analysis: Brucella canis ATCC 23365

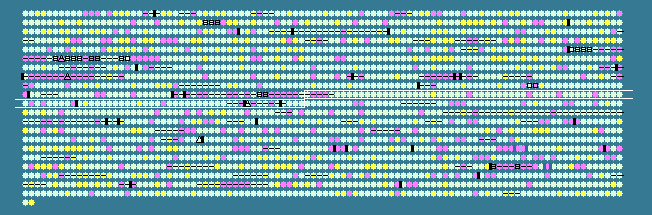

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.15 STD DEV: 4.17
Brucella canis ATCC 23365 chromosome I, complete sequence - 1..2105969
2102 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
948	 53.70	0	950468..950737	-	89	161618939	-	BCAN_A1002	-	hypothetical protein
949	 50.62	-1	950882..951124	+	80	161618940	-	BCAN_A1003	-	hypothetical protein
950	 46.08	-2	951226..951327	+	33	161618941	-	BCAN_A1004	-	hypothetical protein
951	 44.20	-2	951336..951473	+	45	161618942	-	BCAN_A1005	-	hypothetical protein
952	 55.17	0	951464..951811	+	115	161618943	arsC	BCAN_A1006	-	arsenate reductase
953	 57.82	0	952182..953447	+	421	161618944	rlpA	BCAN_A1007	-	rare lipoprotein A
954	 58.27	0	953558..954748	+	396	161618945	-	BCAN_A1008	-	Serine-type D-Ala-D-Ala carboxypeptidase
955	 57.67	0	954830..955474	+	214	161618946	tmk	BCAN_A1009	-	thymidylate kinase
956	 59.93	0	955471..956553	+	360	161618947	holB	BCAN_A1010	-	DNA polymerase III subunit delta'
957	 56.67	0	956573..956722	+	49	161618948	-	BCAN_A1011	-	hypothetical protein
958	 57.62	0	956722..958269	+	515	161618949	metG	BCAN_A1012	-	methionyl-tRNA synthetase
959	 55.81	0	958278..959069	+	263	161618950	-	BCAN_A1013	-	TatD family hydrolase
960	 56.53	0	959072..959890	+	272	161618951	-	BCAN_A1014	-	beta-lactamase domain-containing protein
961	 59.50	0	959940..961739	-	599	161618952	-	BCAN_A1015	-	cyclic beta-1,2-glucan ABC transporter
962	 59.23	0	962052..963032	+	326	161618953	-	BCAN_A1016	-	RluA family pseudouridine synthase
963	 54.44	0	963035..963958	+	307	161618954	-	BCAN_A1017	-	hypothetical protein
964	 57.66	0	963955..964620	+	221	161618955	-	BCAN_A1018	-	HAD family hydrolase
965	 58.24	0	964662..965444	+	260	161618956	-	BCAN_A1019	-	ATP12 ATPase
966	 55.39	0	965570..966979	-	469	161618957	glnA	BCAN_A1020	-	glutamine synthetase, type I
967	 53.69	0	967127..967465	-	112	161618958	glnB	BCAN_A1021	-	nitrogen regulatory protein P-II
968	 60.62	0	967772..969277	+	501	161618959	-	BCAN_A1022	-	YjeF family protein
969	 61.46	+1	969308..969499	-	63	161618960	-	BCAN_A1023	-	hypothetical protein
970	 57.59	0	969577..970281	-	234	161618961	gph	BCAN_A1024	-	phosphoglycolate phosphatase
971	 57.37	0	970628..971326	+	232	161618962	rpiA	BCAN_A1025	-	ribose-5-phosphate isomerase A
972	 60.15	0	971352..971888	+	178	161618963	-	BCAN_A1026	-	hypothetical protein
973	 55.84	0	972042..973436	+	464	161618964	gor	BCAN_A1027	-	glutathione reductase
974	 59.11	0	973645..975033	+	462	161618965	-	BCAN_A1028	-	3-deoxy-7-phosphoheptulonate synthase
975	 53.56	0	975137..975487	+	116	161618966	dgkA	BCAN_A1029	-	diacylglycerol kinase
976	 57.02	0	975552..977231	+	559	161618967	nadE	BCAN_A1030	-	NAD synthetase
977	 57.21	0	977243..978616	+	457	161618968	gltX	BCAN_A1031	-	glutamyl-tRNA synthetase
978	 59.53	0	979430..981754	-	774	161618969	-	BCAN_A1032	-	malic enzyme
979	 57.49	0	981972..982952	-	326	161618970	-	BCAN_A1033	-	mandelate racemase/muconate lactonizing protein
980	 55.70	0	983013..984188	+	391	161618971	-	BCAN_A1034	-	hypothetical protein
981	 56.41	0	984405..985262	+	285	161618972	-	BCAN_A1035	-	ABC transporter related
982	 55.62	0	985266..986261	+	331	161618973	-	BCAN_A1036	-	hypothetical protein
983	 55.72	0	986285..986887	+	200	161618974	-	BCAN_A1037	-	hypothetical protein
984	 59.63	0	987127..991800	-	1557	161618975	-	BCAN_A1038	-	hypothetical protein
985	 44.85	-2	992015..992179	+	54	161618976	-	BCAN_A1039	-	hypothetical protein
986	 60.49	0	992415..992738	+	107	161618977	-	BCAN_A1040	-	ferredoxin-6
987	 55.26	0	993036..993377	+	113	161618978	-	BCAN_A1041	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
988	 57.17	0	993382..994002	-	206	161618979	-	BCAN_A1042	-	hypothetical protein
989	 57.98	0	994160..994999	+	279	161618980	folP	BCAN_A1043	-	dihydropteroate synthase
990	 53.06	0	995018..995377	+	119	161618981	folB	BCAN_A1044	-	dihydroneopterin aldolase
991	 59.36	0	995374..995907	+	177	161618982	folK	BCAN_A1045	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
992	 56.81	0	996022..996579	-	185	161618983	-	BCAN_A1046	-	hypothetical protein
993	 59.40	0	996831..997904	-	357	161618984	-	BCAN_A1047	-	hypothetical protein
994	 58.73	0	997901..999361	-	486	161618985	-	BCAN_A1048	-	protein of unknown function DUF463 YcjX family protein
995	 54.09	0	999454..999954	-	166	161618986	-	BCAN_A1049	-	phosphohistidine phosphatase, SixA
996	 52.04	-1	1000351..1000767	+	138	161618987	dksA	BCAN_A1050	-	RNA polymerase-binding protein DksA
997	 60.50	0	1000936..1002168	-	410	161618988	-	BCAN_A1051	-	basic proline-rich protein precursor
998	 58.58	0	1002535..1005231	+	898	161618989	-	BCAN_A1052	-	PAS domain-containing protein
999	 57.40	0	1005256..1006464	+	402	161618990	-	BCAN_A1053	-	hypothetical protein
1000	 55.63	0	1006495..1007817	+	440	161618991	-	BCAN_A1054	-	beta-lactamase
1001	 57.47	0	1009124..1012918	-	1264	161618992	-	BCAN_A1056	-	ribonucleotide-diphosphate reductase subunit alpha
1002	 46.67	-2	1012971..1013210	+	79	161618993	-	BCAN_A1057	-	hypothetical protein
1003	 59.51	0	1013620..1014108	-	162	161618994	-	BCAN_A1058	-	diphosphoinositol polyphosphate phosphohydrolase 3 beta
1004	 43.70	-2	1014205..1014339	-	44	161618995	-	BCAN_A1059	-	hypothetical protein
1005	 58.03	0	1014350..1014847	-	165	161618996	gpt	BCAN_A1060	-	xanthine-guanine phosphoribosyltransferase
1006	 59.34	0	1015297..1016142	-	281	161618997	-	BCAN_A1061	-	UspA domain-containing protein
1007	 57.44	0	1016220..1016978	-	252	161618998	-	BCAN_A1062	-	molybdopterin binding domain-containing protein
1008	 59.17	0	1017139..1017738	+	199	161618999	wrbA	BCAN_A1063	-	TrpR binding protein WrbA
1009	 50.67	-1	1017716..1017865	-	49	161619000	-	BCAN_A1064	-	hypothetical protein
1010	 54.13	0	1018040..1019299	+	419	161619001	ilvA	BCAN_A1066	-	threonine dehydratase
1011	 62.19	+1	1019366..1020973	+	535	161619002	-	BCAN_A1067	-	DEAD/DEAH box helicase domain-containing protein
1012	 58.02	0	1021144..1022172	+	342	161619003	-	BCAN_A1068	-	cysteine synthase A
1013	 55.91	0	1022175..1022918	+	247	161619004	alaS	BCAN_A1069	-	alanyl-tRNA synthetase
1014	 58.13	0	1022945..1023799	+	284	161619005	-	BCAN_A1070	-	3-mercaptopyruvate sulfurtransferase
1015	 55.36	0	1023801..1024322	+	173	161619006	-	BCAN_A1071	-	GCN5-related N-acetyltransferase
1016	 56.35	0	1024361..1025155	-	264	161619007	-	BCAN_A1072	-	diguanylate cyclase
1017	 55.33	0	1025720..1027210	-	496	161619008	-	BCAN_A1073	-	Acetyl-CoA hydrolase
1018	 56.61	0	1027475..1029016	-	513	161619009	-	BCAN_A1074	-	EmrB/QacA family drug resistance transporter
1019	 57.67	0	1029016..1030116	-	366	161619010	-	BCAN_A1075	-	HlyD family protein secretion protein
1020	 62.20	+1	1030510..1031493	+	327	161619011	-	BCAN_A1076	-	zinc-binding alcohol dehydrogenase family protein
1021	 58.44	0	1031537..1032679	-	380	161619012	pepQ	BCAN_A1077	-	Xaa-Pro dipeptidase
1022	 55.84	0	1032938..1033768	-	276	161619013	-	BCAN_A1078	-	methyltransferase type 12
1023	 55.28	0	1033877..1034842	-	321	161619014	-	BCAN_A1079	-	Sodium/bile acid cotransporter 7-B
1024	 51.63	-1	1034870..1035022	-	50	161619015	-	BCAN_A1080	-	hypothetical protein
1025	 53.97	0	1034971..1035978	-	335	161619016	galE	BCAN_A1081	-	UDP-glucose 4-epimerase
1026	 53.94	0	1036123..1036947	+	274	161619017	-	BCAN_A1082	-	nucleoside triphosphate pyrophosphohydrolase
1027	 56.05	0	1036956..1037567	-	203	161619018	-	BCAN_A1083	-	hypothetical protein
1028	 58.29	0	1037610..1038194	-	194	161619019	-	BCAN_A1084	-	nitroreductase
1029	 57.47	0	1038414..1039424	+	336	161619020	-	BCAN_A1085	-	hypothetical protein
1030	 56.55	0	1039479..1041455	-	658	161619021	thrS	BCAN_A1086	-	threonyl-tRNA synthetase
1031	 57.91	0	1041670..1042902	-	410	161619022	-	BCAN_A1087	-	Serine-type D-Ala-D-Ala carboxypeptidase
1032	 59.79	0	1043009..1043488	-	159	161619023	-	BCAN_A1088	-	hypothetical protein
1033	 57.37	0	1043382..1043822	-	146	161619024	-	BCAN_A1089	-	NifU domain-containing protein
1034	 57.01	0	1044086..1044727	+	213	161619025	folE	BCAN_A1090	-	GTP cyclohydrolase I
1035	 57.14	0	1044750..1045169	+	139	161619026	hisI	BCAN_A1091	-	phosphoribosyl-AMP cyclohydrolase
1036	 59.28	0	1045386..1046333	+	315	161619027	-	BCAN_A1092	-	patatin
1037	 40.00	-2	1046420..1046599	+	59	161619028	-	BCAN_A1093	-	hypothetical protein
1038	 53.98	0	1046808..1048052	+	414	161619029	-	BCAN_A1095	-	site-specific recombinase, phage integrase family protein
1039	 53.33	0	1048191..1048595	+	134	161619030	-	BCAN_A1096	-	hypothetical protein
1040	 54.79	0	1050279..1051676	-	465	161619031	-	BCAN_A1097	-	hypothetical protein
1041	 58.25	0	1052201..1052830	-	209	161619032	cin	BCAN_A1098	-	DNA-invertase
1042	 52.63	-1	1053273..1053386	-	37	161619033	-	BCAN_A1099	-	hypothetical protein
1043	 55.03	0	1053945..1054520	-	191	161619034	-	BCAN_A1100	-	BRO domain-containing protein
1044	 56.81	0	1055047..1056192	-	381	161619035	-	BCAN_A1102	-	acyl-CoA transferase
1045	 56.88	0	1056271..1057455	-	394	161619036	acdA	BCAN_A1103	-	Acyl-CoA dehydrogenase
1046	 58.63	0	1057557..1058489	+	310	161619037	-	BCAN_A1104	-	LysR family transcriptional regulator
1047	 59.15	0	1058459..1059442	-	327	161619038	-	BCAN_A1105	-	luciferase family protein
57.15	MEAN

4.17	STD DEV
