IslandPathversion 1.0

IslandPath Analysis: Brucella canis ATCC 23365

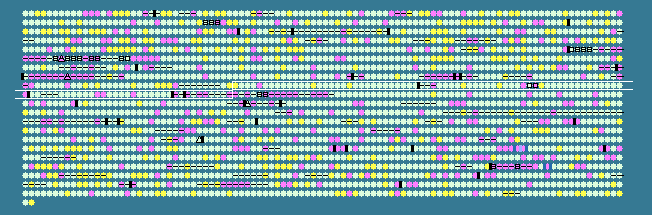

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.15 STD DEV: 4.17
Brucella canis ATCC 23365 chromosome I, complete sequence - 1..2105969
2102 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
836	 62.25	+1	838145..839164	+	339	161618827	cobU	BCAN_A0881	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
837	 54.58	0	839272..839751	-	159	161618828	-	BCAN_A0882	-	hypothetical protein
838	 59.97	0	839880..840521	-	213	161618829	-	BCAN_A0883	-	hypothetical protein
839	 57.72	0	840618..841187	-	189	161618830	-	BCAN_A0884	-	nuclease
840	 47.31	-2	841158..841436	+	92	161618831	-	BCAN_A0885	-	hypothetical protein
841	 56.97	0	841808..842611	+	267	161618832	exoR	BCAN_A0886	-	exopolysaccharide production negative regulator precursor
842	 54.92	0	842670..843452	-	260	161618833	-	BCAN_A0887	-	exodeoxyribonuclease III (xth)
843	 57.49	0	843621..844328	+	235	161618834	-	BCAN_A0888	-	hypothetical protein
844	 54.74	0	844409..844735	-	108	161618835	-	BCAN_A0889	-	iron-sulfur cluster assembly accessory protein
845	 58.64	0	844902..846110	+	402	161618836	dgt	BCAN_A0890	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
846	 56.94	0	846332..848089	+	585	161618837	argS	BCAN_A0891	-	arginyl-tRNA synthetase
847	 59.38	0	848301..851237	+	978	161618838	-	BCAN_A0892	-	Oleosin B6
848	 59.22	0	851438..852457	+	339	161618839	nagZ	BCAN_A0893	-	Beta-hexosaminidase
849	 60.92	0	852530..853381	+	283	161618840	scpA	BCAN_A0894	-	segregation and condensation protein A
850	 60.47	0	853374..854099	+	241	161618841	scpB	BCAN_A0895	-	segregation and condensation protein B
851	 55.71	0	854245..854463	+	72	161618842	tatA	BCAN_A0896	-	twin argininte translocase protein A
852	 56.21	0	854544..855155	+	203	161618843	tatB	BCAN_A0897	-	sec-independent translocase
853	 57.09	0	855152..855976	+	274	161618844	tatC	BCAN_A0898	-	Sec-independent protein translocase TatC
854	 59.27	0	856053..857336	+	427	161618845	serS	BCAN_A0899	-	seryl-tRNA synthetase
855	 60.94	0	857485..858252	+	255	161618846	surE	BCAN_A0900	-	stationary phase survival protein SurE
856	 58.59	0	858249..858917	+	222	161618847	pcm	BCAN_A0901	-	protein-L-isoaspartate O-methyltransferase
857	 60.43	0	859296..860594	+	432	161618848	lppB	BCAN_A0902	-	Outer membrane antigenic lipoprotein B precursor
858	 54.79	0	860643..861509	-	288	161618849	-	BCAN_A0903	-	hypothetical protein
859	 54.39	0	861669..862010	+	113	161618850	yajC	BCAN_A0904	-	preprotein translocase, YajC subunit
860	 56.66	0	862129..864456	+	775	161618851	secD	BCAN_A0905	-	bifunctional preprotein translocase subunit SecD/SecF
861	 60.51	0	864459..864848	+	129	161618852	-	BCAN_A0906	-	hypothetical protein
862	 58.15	0	864854..865687	+	277	161618853	crtB	BCAN_A0907	-	phytoene synthase
863	 59.74	0	865739..867139	-	466	161618854	gid	BCAN_A0908	-	tRNA (uracil-5-)-methyltransferase Gid
864	 59.86	0	867399..867545	-	48	161618855	-	BCAN_A0909	-	hypothetical protein
865	 56.55	0	867819..868955	+	378	161618856	-	BCAN_A0910	-	hypothetical protein
866	 55.96	0	868952..869521	+	189	161618857	-	BCAN_A0911	-	hypothetical protein
867	 56.18	0	869919..871358	+	479	161618858	tig	BCAN_A0913	-	trigger factor
868	 57.09	0	871508..873010	+	500	161618859	gatB	BCAN_A0914	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
869	 53.57	0	873010..873513	+	167	161618860	-	BCAN_A0915	-	GCN5-related N-acetyltransferase
870	 59.12	0	873673..874083	+	136	161618861	-	BCAN_A0916	-	NADH dehydrogenase
871	 57.96	0	874277..874747	+	156	161618862	-	BCAN_A0917	-	hypothetical protein
872	 58.80	0	874791..875324	-	177	161618863	aat	BCAN_A0918	-	leucyl/phenylalanyl-tRNA--protein transferase
873	 57.62	0	875412..876770	-	452	161618864	accC	BCAN_A0919	-	acetyl-CoA carboxylase biotin carboxylase subunit
874	 61.15	0	876820..877290	-	156	161618865	accB	BCAN_A0920	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
875	 55.06	0	877292..877765	-	157	161618866	aroQ	BCAN_A0921	-	3-dehydroquinate dehydratase
876	 55.89	0	878009..878806	-	265	161618867	-	BCAN_A0922	-	DSBA oxidoreductase
877	 58.47	0	878854..880269	-	471	161618868	-	BCAN_A0923	-	peptidase M48 Ste24p
878	 59.36	0	880461..881624	+	387	161618869	-	BCAN_A0924	-	aminotransferase class I and II
879	 58.94	0	881743..884511	-	922	161618870	-	BCAN_A0925	-	ribonuclease
880	 60.75	0	884514..884699	+	61	161618871	-	BCAN_A0926	-	hypothetical protein
881	 56.90	0	885190..886458	+	422	161618872	-	BCAN_A0927	-	N-acetylmuramoyl-L-alanine amidase
882	 58.33	0	886738..889197	+	819	161618873	-	BCAN_A0928	-	1A family penicillin-binding protein
883	 57.66	0	889501..890466	+	321	161618874	prfB	BCAN_A0929	-	peptide chain release factor 2
884	 44.24	-2	890525..890689	-	54	161618875	-	BCAN_A0930	-	hypothetical protein
885	 58.27	0	890660..891028	+	122	161618876	-	BCAN_A0931	-	transposase for insertion sequence element IS6501
886	 50.64	-1	891025..891417	+	130	161618877	-	BCAN_A0932	-	transposase for insertion sequence element IS6501
887	 61.71	+1	891569..891931	-	120	161618878	-	BCAN_A0933	-	peptidase M23B
888	 57.68	0	892102..892947	-	281	161618879	-	BCAN_A0934	-	hypothetical protein
889	 56.13	0	892969..893433	-	154	161618880	-	BCAN_A0935	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
890	 56.61	0	893678..897118	+	1146	161618881	-	BCAN_A0936	-	hypothetical protein
891	 58.29	0	897178..898431	-	417	161618882	tyrS	BCAN_A0937	-	tyrosyl-tRNA synthetase
892	 60.52	0	898547..899668	+	373	161618883	anmK	BCAN_A0938	-	anhydro-N-acetylmuramic acid kinase
893	 55.56	0	899665..899997	-	110	161618884	qacF	BCAN_A0939	-	quaternary ammonium compound-resistance protein qacF
894	 57.63	0	900109..900783	-	224	161618885	-	BCAN_A0940	-	hypothetical protein
895	 60.14	0	900988..902166	+	392	161618886	iscS	BCAN_A0941	-	cysteine desulfurase
896	 55.97	0	902347..903870	+	507	161618887	sufB	BCAN_A0942	-	cysteine desulfurase activator complex subunit SufB
897	 56.22	0	903938..904693	+	251	161618888	sufC	BCAN_A0943	-	FeS assembly ATPase SufC
898	 59.08	0	904707..905984	+	425	161618889	sufD	BCAN_A0944	-	FeS assembly protein SufD
899	 55.42	0	906066..907310	+	414	161618890	sufS	BCAN_A0945	-	SufS subfamily cysteine desulfurase
900	 57.38	0	907307..907726	+	139	161618891	-	BCAN_A0946	-	FeS assembly SUF system protein
901	 51.65	-1	907760..908731	-	323	161618892	-	BCAN_A0947	-	glycosyl transferase, group 2 family protein
902	 54.52	0	909158..909931	+	257	161618893	ppnK	BCAN_A0949	-	inorganic polyphosphate/ATP-NAD kinase
903	 57.97	0	910259..911707	+	482	161618894	-	BCAN_A0950	-	ATP-dependent RNA helicase DDX17
904	 54.40	0	911962..912450	-	162	161618895	sufA	BCAN_A0951	-	FeS assembly scaffold SufA
905	 54.66	0	912460..913017	-	185	161618896	-	BCAN_A0952	-	hypothetical protein
906	 54.65	0	912517..913140	+	207	161618897	-	BCAN_A0953	-	hypothetical protein
907	 60.20	0	913221..913421	+	66	161618898	-	BCAN_A0954	-	heavy metal transport/detoxification protein
908	 54.47	0	913465..913710	+	81	161618899	-	BCAN_A0955	-	hypothetical protein
909	 56.05	0	913748..914416	+	222	161618900	pcm	BCAN_A0956	-	protein-L-isoaspartate O-methyltransferase
910	 59.08	0	914555..915925	+	456	161618901	-	BCAN_A0957	-	TolC family type I secretion outer membrane protein
911	 57.79	0	916175..916906	+	243	161618902	-	BCAN_A0958	-	hypothetical protein
912	 57.19	0	917197..919929	+	910	161618903	valS	BCAN_A0959	-	valyl-tRNA synthetase
913	 52.73	-1	920293..920622	+	109	161618904	-	BCAN_A0960	-	membrane protein involved in aromatic hydrocarbon degradation
914	 52.53	-1	920731..921621	+	296	161618905	-	BCAN_A0961	-	membrane protein involved in aromatic hydrocarbon degradation
915	 56.16	0	921687..922562	-	291	161618906	-	BCAN_A0962	-	6-phosphogluconate dehydrogenase NAD-binding
916	 57.49	0	922590..923210	-	206	161618907	-	BCAN_A0963	-	glutathione S-transferase IV
917	 56.35	0	923383..924216	-	277	161618908	-	BCAN_A0964	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
918	 57.40	0	924219..924941	-	240	161618909	-	BCAN_A0965	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
919	 47.78	-2	924957..925136	-	59	161618910	-	BCAN_A0966	-	hypothetical protein
920	 55.27	0	925184..925990	-	268	161618911	-	BCAN_A0967	-	extracellular solute-binding protein
921	 58.45	0	927662..928696	-	344	161618912	moaA	BCAN_A0970	-	molybdenum cofactor biosynthesis protein A
922	 55.28	0	928883..929242	+	119	161618913	-	BCAN_A0971	-	hypothetical protein
923	 56.28	0	929310..930416	-	368	161618914	-	BCAN_A0972	-	monooxygenase, FAD-binding
924	 58.46	0	930760..932379	-	539	161618915	-	BCAN_A0973	-	tartrate/fumarate subfamily Fe-S type hydro-lyase beta subunit
925	 55.38	0	933157..934689	+	510	161618916	-	BCAN_A0974	-	peptidoglycan binding domain-containing protein
926	 53.57	0	935490..935741	-	83	161618917	-	BCAN_A0977	-	transglycosylase-associated protein
927	 54.94	0	935896..936057	+	53	161618918	-	BCAN_A0978	-	hypothetical protein
928	 50.78	-1	936250..937275	-	341	161618919	-	BCAN_A0980	-	hypothetical protein
929	 57.69	0	937450..938652	+	400	161618920	-	BCAN_A0981	-	hypothetical protein
930	 51.47	-1	937680..937883	-	67	161618921	-	BCAN_A0982	-	hypothetical protein
931	 51.52	-1	938649..938879	+	76	161618922	-	BCAN_A0983	-	hypothetical protein
932	 57.61	0	938876..939151	+	91	161618923	-	BCAN_A0984	-	hypothetical protein
933	 54.76	0	939174..939761	+	195	161618924	-	BCAN_A0985	-	hypothetical protein
934	 57.58	0	940907..941038	-	43	161618925	-	BCAN_A0988	-	hypothetical protein
935	 52.05	-1	941055..941225	-	56	161618926	-	BCAN_A0989	-	hypothetical protein
57.15	MEAN

4.17	STD DEV
