IslandPathversion 1.0

IslandPath Analysis: Brucella canis ATCC 23365

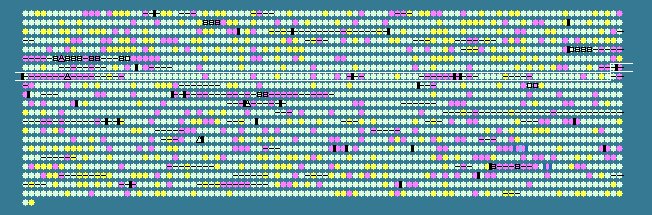

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.15 STD DEV: 4.17
Brucella canis ATCC 23365 chromosome I, complete sequence - 1..2105969
2102 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
699	 58.42	0	701797..703470	-	557	161618690	-	BCAN_A0733	-	L-lactate transport
700	 53.27	0	704004..704309	+	101	161618691	-	BCAN_A0735	-	NADH-ubiquinone oxidoreductase
701	 56.01	0	704875..705465	+	196	161618692	-	BCAN_A0737	-	hypothetical protein
702	 52.61	-1	705686..706297	-	203	161618693	-	BCAN_A0738	-	hypothetical protein
703	 53.48	0	706622..707167	-	181	161618694	-	BCAN_A0739	-	adenylate kinase
704	 52.12	-1	707164..708435	-	423	161618695	-	BCAN_A0740	-	GCN5-related N-acetyltransferase
705	 51.45	-1	708377..709171	-	264	161618696	-	BCAN_A0741	-	helix-turn-helix domain-containing protein
706	 43.33	-2	709196..709615	-	139	161618697	-	BCAN_A0742	-	hypothetical protein
707	 53.29	0	709995..710891	+	298	161618698	-	BCAN_A0743	-	hypothetical protein
708	 52.56	-1	711270..713006	+	578	161618699	-	BCAN_A0744	-	integrase catalytic subunit
709	 52.05	-1	712999..713949	+	316	161618700	-	BCAN_A0745	-	transposition protein
710	 48.10	-2	713946..715523	+	525	161618701	-	BCAN_A0746	-	hypothetical protein
711	 47.98	-2	715822..716019	-	65	161618702	-	BCAN_A0747	-	hypothetical protein
712	 46.56	-2	716260..717567	+	435	161618703	-	BCAN_A0748	-	hypothetical protein
713	 60.04	0	718021..719394	+	457	161618704	-	BCAN_A0749	-	hypothetical protein
714	 57.00	0	719483..720361	+	292	161618705	-	BCAN_A0750	-	hypothetical protein
715	 62.38	+1	720745..721257	-	170	161618706	-	BCAN_A0751	-	SH3 type 3 domain-containing protein
716	 59.84	0	721417..721665	-	82	161618707	-	BCAN_A0752	-	lipoprotein
717	 48.72	-2	721768..721923	-	51	161618708	-	BCAN_A0753	-	hypothetical protein
718	 56.15	0	721910..723079	-	389	161618709	metC	BCAN_A0754	-	cystathionine beta-lyase
719	 56.77	0	723290..724057	+	255	161618710	bcrC	BCAN_A0755	-	bacitracin transport permease protein BCRC
720	 55.33	0	724513..725544	+	343	161618711	-	BCAN_A0756	-	lysine-arginine-ornithine-binding periplasmic protein
721	 54.82	0	725578..725805	+	75	161618712	-	BCAN_A0757	-	hypothetical protein
722	 56.70	0	725841..727034	+	397	161618713	-	BCAN_A0758	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
723	 58.38	0	727037..728194	+	385	161618714	-	BCAN_A0759	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
724	 54.90	0	728209..729024	+	271	161618715	bztD	BCAN_A0760	-	glutamate/glutamine/aspartate/asparagine transport ATP-binding protein bztD
725	 59.12	0	729072..730277	-	401	161618716	-	BCAN_A0761	-	salicylate hydroxylase
726	 54.51	0	730307..730561	-	84	161618717	-	BCAN_A0762	-	hypothetical protein
727	 59.19	0	733082..734620	+	512	161618718	-	BCAN_A0764	-	Ppx/GppA phosphatase
728	 60.49	0	734782..735930	-	382	161618719	rnd	BCAN_A0765	-	ribonuclease D
729	 58.45	0	736157..737944	+	595	161618720	aspS	BCAN_A0766	-	aspartyl-tRNA synthetase
730	 55.64	0	738028..739224	-	398	161618721	-	BCAN_A0767	-	hypothetical protein
731	 46.67	-2	739279..739518	+	79	161618722	-	BCAN_A0768	-	hypothetical protein
732	 58.11	0	739624..741936	+	770	161618723	parC	BCAN_A0769	-	DNA topoisomerase IV subunit A
733	 58.53	0	742115..742864	-	249	161618724	ate	BCAN_A0770	-	arginyl-tRNA-protein transferase
734	 54.14	0	742985..743455	-	156	161618725	-	BCAN_A0771	-	RDD domain-containing protein
735	 59.34	0	743602..744639	-	345	161618726	hemB	BCAN_A0772	-	delta-aminolevulinic acid dehydratase
736	 58.38	0	744807..745856	+	349	161618727	-	BCAN_A0773	-	enoyl-CoA hydratase
737	 58.39	0	745870..746304	+	144	161618728	-	BCAN_A0774	-	hypothetical protein
738	 55.00	0	746535..747134	+	199	161618729	-	BCAN_A0775	-	MarR family transcriptional regulator
739	 52.48	-1	747221..747361	-	46	161618730	-	BCAN_A0776	-	hypothetical protein
740	 58.22	0	747496..748797	+	433	161618731	-	BCAN_A0777	-	peptidoglycan binding domain-containing protein
741	 58.24	0	749028..750344	+	438	161618732	glyA	BCAN_A0778	-	serine hydroxymethyltransferase
742	 58.07	0	750586..751062	+	158	161618733	-	BCAN_A0779	-	transcriptional regulator NrdR
743	 61.76	+1	751064..752185	+	373	161618734	ribD	BCAN_A0780	-	riboflavin biosynthesis protein RibD
744	 57.31	0	752185..752793	+	202	161618735	ribE	BCAN_A0781	-	riboflavin synthase subunit alpha
745	 58.44	0	752888..753349	+	153	161618736	ribH	BCAN_A0782	-	riboflavin synthase subunit beta
746	 59.11	0	753355..753870	+	171	161618737	nusB	BCAN_A0783	-	transcription antitermination protein NusB
747	 59.62	0	754321..756477	+	718	161618738	-	BCAN_A0784	-	membrane-bound proton-translocating pyrophosphatase
748	 58.38	0	756549..757055	-	168	161618739	-	BCAN_A0785	-	SmpA/OmlA domain-containing protein
749	 53.33	0	757157..757711	+	184	161618740	-	BCAN_A0786	-	ubiquinol-cytochrome C chaperone
750	 55.38	0	757831..758388	+	185	161618741	-	BCAN_A0787	-	hypothetical protein
751	 58.12	0	758506..759546	+	346	161618742	plsX	BCAN_A0788	-	putative glycerol-3-phosphate acyltransferase PlsX
752	 59.57	0	759794..760765	+	323	161618743	fabH	BCAN_A0789	-	3-oxoacyl-(acyl carrier protein) synthase III
753	 52.78	-1	760884..761207	+	107	161618744	ihfA	BCAN_A0790	-	integration host factor subunit alpha
754	 58.01	0	761741..762283	+	180	161618745	-	BCAN_A0791	-	HTH-type transcriptional regulator in himA 3'region
755	 52.52	-1	762333..762650	-	105	161618746	sugE	BCAN_A0792	-	quaternary ammonium compound-resistance protein sugE
756	 56.48	0	764665..764880	-	71	161618747	-	BCAN_A0796	-	glycosyl transferase group 1
757	 53.57	0	764889..765476	-	195	161618748	-	BCAN_A0797	-	polysaccharide export protein
758	 54.60	0	765600..766262	+	220	161618749	-	BCAN_A0798	-	exopolysaccharide transport protein family
759	 54.34	0	766330..766548	-	72	161618750	-	BCAN_A0799	-	hypothetical protein
760	 58.50	0	766900..767976	+	358	161618751	-	BCAN_A0800	-	cytochrome oxidase assembly
761	 59.27	0	768129..769061	-	310	161618752	argC	BCAN_A0801	-	N-acetyl-gamma-glutamyl-phosphate reductase
762	 59.31	0	769151..770101	-	316	161618753	speB	BCAN_A0802	-	agmatinase
763	 61.22	0	770192..770668	-	158	161618754	rpsI	BCAN_A0803	-	30S ribosomal protein S9
764	 57.20	0	770671..771135	-	154	161618755	rplM	BCAN_A0804	-	50S ribosomal protein L13
765	 58.61	0	771371..771817	-	148	161618756	-	BCAN_A0805	-	hypothetical protein
766	 57.17	0	772051..773334	+	427	161618757	-	BCAN_A0806	-	O-acetylhomoserine aminocarboxypropyltransferase
767	 60.04	0	773406..773858	-	150	161618758	-	BCAN_A0807	-	hypothetical protein
768	 49.71	-1	773908..774078	-	56	161618759	-	BCAN_A0808	-	hypothetical protein
769	 46.08	-2	774422..774931	+	169	161618760	-	BCAN_A0809	-	hypothetical protein
770	 47.98	-2	774928..775323	+	131	161618761	-	BCAN_A0810	-	hypothetical protein
771	 51.19	-1	775377..775712	+	111	161618762	-	BCAN_A0811	-	hypothetical protein
772	 48.51	-2	775769..776170	-	133	161618763	-	BCAN_A0812	-	hypothetical protein
773	 43.72	-2	776467..776649	+	60	161618764	-	BCAN_A0814	-	hypothetical protein
774	 53.92	0	777033..777236	-	67	161618765	-	BCAN_A0816	-	hypothetical protein
775	 51.91	-1	777744..778109	+	121	161618766	nuoA	BCAN_A0817	-	NADH dehydrogenase subunit A
776	 60.14	0	778100..778681	+	193	161618767	-	BCAN_A0818	-	NADH dehydrogenase subunit B
777	 56.98	0	778794..779402	+	202	161618768	nuoC	BCAN_A0819	-	NADH dehydrogenase subunit C
778	 58.02	0	779420..780610	+	396	161618769	nuoD	BCAN_A0820	-	NADH dehydrogenase subunit D
779	 58.68	0	780610..781323	+	237	161618770	nuoE	BCAN_A0821	-	NADH dehydrogenase subunit E
780	 59.40	0	781327..782634	+	435	161618771	nuoF	BCAN_A0822	-	NADH dehydrogenase I subunit F
781	 61.06	0	782769..784853	+	694	161618772	-	BCAN_A0823	-	NADH dehydrogenase subunit G
782	 55.27	0	784873..785916	+	347	161618773	nuoH	BCAN_A0824	-	NADH dehydrogenase subunit H
783	 58.74	0	785929..786420	+	163	161618774	-	BCAN_A0825	-	NADH dehydrogenase subunit I
784	 57.77	0	786594..787211	+	205	161618775	nuoJ	BCAN_A0826	-	NADH dehydrogenase subunit J
785	 51.78	-1	787222..787530	+	102	161618776	nuoK	BCAN_A0827	-	NADH dehydrogenase subunit K
786	 57.05	0	787538..789523	+	661	161618777	-	BCAN_A0828	-	NADH dehydrogenase subunit L
787	 57.39	0	789523..791031	+	502	161618778	-	BCAN_A0829	-	NADH dehydrogenase subunit M
788	 57.06	0	791053..792489	+	478	161618779	-	BCAN_A0830	-	NADH dehydrogenase subunit N
789	 58.27	0	792515..793312	+	265	161618780	-	BCAN_A0831	-	biotin--acetyl-CoA-carboxylase ligase
790	 59.81	0	793506..795182	+	558	161618781	-	BCAN_A0832	-	hypothetical protein
791	 57.28	0	795222..795626	+	134	161618782	-	BCAN_A0833	-	methylmalonyl-CoA epimerase
792	 53.70	0	795629..795898	+	89	161618783	-	BCAN_A0834	-	hypothetical protein
793	 53.90	0	796256..796396	+	46	161618784	-	BCAN_A0835	-	hypothetical protein
794	 38.71	-2	796427..796519	+	30	161618785	-	BCAN_A0836	-	hypothetical protein
795	 57.11	0	796746..798074	+	442	161618786	proS	BCAN_A0837	-	prolyl-tRNA synthetase
796	 57.29	0	798116..799384	+	422	161618787	-	BCAN_A0838	-	LolC/E family lipoprotein releasing system, transmembrane protein
797	 61.40	+1	799384..800067	+	227	161618788	lolD	BCAN_A0839	-	lipoprotein-releasing system ATP-binding protein lolD
798	 57.96	0	800726..804217	+	1163	161618789	dnaE	BCAN_A0840	-	DNA polymerase III subunit alpha
57.15	MEAN

4.17	STD DEV
