IslandPath Analysis: Brucella canis ATCC 23365

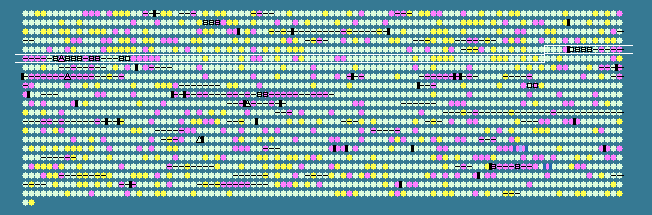

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.15 STD DEV: 4.17
Brucella canis ATCC 23365 chromosome I, complete sequence - 1..2105969
2102 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
488	 57.83	0	507482..508318	+	278	161618479	-	BCAN_A0517	-	hypothetical protein
489	 56.52	0	508807..510492	+	561	161618480	capD	BCAN_A0518	-	capsular polysaccharide biosynthesis protein capD
490	 60.35	0	510565..510849	+	94	161618481	-	BCAN_A0519	-	hypothetical protein
491	 49.29	-1	511235..511516	-	93	161618482	-	BCAN_A0520	-	hypothetical protein
492	 58.24	0	512018..512836	+	272	161618483	-	BCAN_A0522	-	transposase for insertion sequence element IS6501
493	 58.67	0	512568..513155	+	195	161618484	-	BCAN_A0523	-	insertion sequence transposase protein
494	 54.33	0	513212..513511	+	99	161618485	-	BCAN_A0524	-	insertion sequence transposase protein
495	 54.11	0	513568..513798	+	76	161618486	-	BCAN_A0525	-	transposase IS4
496	 55.68	0	513923..514186	-	87	161618487	-	BCAN_A0526	-	hypothetical protein
497	 53.17	0	514049..514174	+	41	161618488	-	BCAN_A0527	-	hypothetical protein
498	 56.43	0	514168..514890	+	240	161618489	-	BCAN_A0528	-	hypothetical protein
499	 45.13	-2	515230..516009	-	259	161618490	arnA	BCAN_A0529	-	bifunctional polymyxin resistance arnA protein
500	 44.21	-2	516036..516890	-	284	161618491	-	BCAN_A0530	-	WbcT protein
501	 48.88	-1	516887..517645	-	252	161618492	rfbB	BCAN_A0531	-	O-antigen export system ATP-binding protein rfbB
502	 45.98	-2	517642..518424	-	260	161618493	rfbD	BCAN_A0532	-	O-antigen export system permease protein rfbD
503	 47.19	-2	518439..519542	-	367	161618494	rbmB	BCAN_A0533	-	L-glutamine:2-deoxy-scyllo-inosose aminotransferase
504	 47.93	-2	519550..520638	-	362	161618495	gmd	BCAN_A0534	-	GDP-mannose 4,6-dehydratase
505	 60.14	0	521157..521585	+	142	161618496	-	BCAN_A0535	-	hypothetical protein
506	 58.93	0	521504..521878	+	124	161618497	-	BCAN_A0536	-	transposase for insertion sequence element IS6501
507	 53.08	0	521908..522702	+	264	161618498	-	BCAN_A0537	-	integrase catalytic subunit
508	 58.81	0	522772..523140	+	122	161618499	-	BCAN_A0538	-	transposase for insertion sequence element IS6501
509	 53.76	0	523137..523415	+	92	161618500	-	BCAN_A0539	-	transposase for insertion sequence element IS6501
510	 54.17	0	523532..523771	+	79	161618501	-	BCAN_A0540	-	transposase
511	 43.88	-2	523902..525020	+	372	161618502	-	BCAN_A0541	-	mannosyltransferase
512	 47.66	-2	525541..525882	+	113	161618503	-	BCAN_A0542	-	transposase
513	 44.44	-2	525777..525902	-	41	161618504	-	BCAN_A0543	-	IS3 family transposase orfB
514	 54.76	0	525901..525942	+	13	161618505	-	BCAN_A0544	-	hypothetical protein
515	 54.42	0	525972..526559	-	195	161618506	-	BCAN_A0545	-	hypothetical protein
516	 60.14	0	526691..527119	+	142	161618507	-	BCAN_A0546	-	hypothetical protein
517	 57.31	0	527038..527454	+	138	161618508	-	BCAN_A0547	-	transposase
518	 54.00	0	527814..528113	+	99	161618509	-	BCAN_A0548	-	transposase IS629
519	 50.37	-1	528345..529682	+	445	161618510	manB	BCAN_A0549	-	phosphomannomutase
520	 51.23	-1	529707..531131	+	474	161618511	-	BCAN_A0550	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
521	 51.32	-1	531164..532336	+	390	161618512	-	BCAN_A0551	-	hypothetical protein
522	 51.26	-1	532419..533528	+	369	161618513	-	BCAN_A0552	-	glycosyltransferase
523	 46.67	-2	534009..534188	-	59	161618514	-	BCAN_A0553	-	hypothetical protein
524	 56.97	0	534220..535755	+	511	161618515	rbsA	BCAN_A0554	-	ribose import ATP-binding protein rbsA
525	 56.89	0	535776..536777	+	333	161618516	-	BCAN_A0555	-	monosaccharide-transporting ATPase
526	 57.52	0	536604..537587	-	327	161618517	-	BCAN_A0556	-	hypothetical protein
527	 57.11	0	536856..537818	+	320	161618518	-	BCAN_A0557	-	hypothetical protein
528	 58.02	0	537876..538928	+	350	161618519	-	BCAN_A0558	-	hypothetical protein
529	 59.68	0	538936..540108	+	390	161618520	-	BCAN_A0559	-	oxidoreductase domain-containing protein
530	 56.35	0	540150..541457	-	435	161618521	xylA	BCAN_A0560	-	xylose isomerase
531	 61.78	+1	541504..542955	-	483	161618522	xylB	BCAN_A0561	-	xylulokinase
532	 59.50	0	542988..544019	-	343	161618523	degA	BCAN_A0562	-	HTH-type transcriptional regulator degA
533	 57.89	0	544281..545351	-	356	161618524	-	BCAN_A0563	-	helix-turn-helix domain-containing protein
534	 58.74	0	545890..547353	-	487	161618525	betB	BCAN_A0564	-	betaine aldehyde dehydrogenase
535	 59.76	0	547539..549188	-	549	161618526	betA	BCAN_A0565	-	choline dehydrogenase
536	 58.63	0	549191..549787	-	198	161618527	betI	BCAN_A0566	-	transcriptional regulator BetI
537	 60.70	0	549978..551000	+	340	161618528	-	BCAN_A0567	-	L-asparaginase II protein
538	 59.02	0	551045..551515	+	156	161618529	greA	BCAN_A0568	-	transcription elongation factor GreA
539	 50.26	-1	551512..551901	-	129	161618530	-	BCAN_A0569	-	death-on-curing family protein
540	 51.52	-1	551898..552128	-	76	161618531	-	BCAN_A0570	-	addiction module antidote
541	 55.79	0	552189..553181	-	330	161618532	-	BCAN_A0571	-	Mg2 transporter protein CorA family protein
542	 60.47	0	553337..554014	+	225	161618533	-	BCAN_A0572	-	GntR domain-containing protein
543	 61.63	+1	554011..555321	+	436	161618534	-	BCAN_A0573	-	major facilitator transporter
544	 60.61	0	555378..555740	-	120	161618535	-	BCAN_A0574	-	hypothetical protein
545	 59.66	0	556076..557587	+	503	161618536	-	BCAN_A0575	-	protein of unknown function DUF853 NPT hydrolase
546	 48.48	-2	557629..557727	+	32	161618537	-	BCAN_A0576	-	hypothetical protein
547	 60.81	0	557785..558501	-	238	161618538	-	BCAN_A0577	-	ErfK/YbiS/YcfS/YnhG family protein
548	 58.10	0	558804..559457	-	217	161618539	dehII	BCAN_A0578	-	haloacid dehalogenase, type II
549	 54.33	0	559680..560279	+	199	161618540	sodB	BCAN_A0579	-	superoxide dismutase (Fe)
550	 56.60	0	560325..560900	+	191	161618541	-	BCAN_A0580	-	hypothetical protein
551	 58.14	0	560451..560837	-	128	161618542	-	BCAN_A0581	-	hypothetical protein
552	 57.75	0	560904..563012	-	702	161618543	ptrB	BCAN_A0582	-	protease 2
553	 44.10	-2	563436..563630	+	64	161618544	-	BCAN_A0583	-	hypothetical protein
554	 53.61	0	563585..564013	+	142	161618545	rosAR	BCAN_A0584	-	transcriptional regulatory protein rosAr
555	 54.49	0	564221..564532	-	103	161618546	-	BCAN_A0585	-	hypothetical protein
556	 56.80	0	564713..565168	+	151	161618547	-	BCAN_A0586	-	hypothetical protein
557	 59.50	0	565165..565959	+	264	161618548	-	BCAN_A0587	-	hypothetical protein
558	 60.24	0	566050..567387	+	445	161618549	iaaH	BCAN_A0588	-	amidase
559	 59.62	0	567428..567853	-	141	161618550	-	BCAN_A0589	-	hypothetical protein
560	 56.44	0	567933..568382	-	149	161618551	-	BCAN_A0590	-	hypothetical protein
561	 59.18	0	568673..570502	+	609	161618552	-	BCAN_A0591	-	integral membrane sensor signal transduction histidine kinase
562	 60.28	0	570429..571445	+	338	161618553	-	BCAN_A0592	-	peptidoglycan binding domain-containing protein
563	 57.18	0	571459..571806	+	115	161618554	-	BCAN_A0593	-	hypothetical protein
564	 58.50	0	571817..572893	-	358	161618555	-	BCAN_A0594	-	hypothetical protein
565	 55.06	0	573091..573633	-	180	161618556	-	BCAN_A0595	-	hypothetical protein
566	 62.91	+1	573626..574237	-	203	161618557	-	BCAN_A0596	-	hypothetical protein
567	 59.20	0	574244..576400	-	718	161618558	-	BCAN_A0597	-	1A family penicillin-binding protein
568	 60.04	0	576758..577270	+	170	161618559	-	BCAN_A0598	-	hypothetical protein
569	 64.89	+1	577233..578468	+	411	161618560	-	BCAN_A0599	-	hypothetical protein
570	 61.89	+1	578500..579693	+	397	161618561	-	BCAN_A0600	-	HK97 family phage portal protein
571	 61.64	+1	579690..580067	+	125	161618562	-	BCAN_A0601	-	hypothetical protein
572	 62.93	+1	580054..580722	+	222	161618563	-	BCAN_A0602	-	HK97 family phage prohead protease
573	 60.00	0	580744..582018	+	424	161618564	-	BCAN_A0603	-	HK97 family phage major capsid protein
574	 58.73	0	582183..582749	+	188	161618565	-	BCAN_A0604	-	hypothetical protein
575	 58.41	0	582746..583084	+	112	161618566	-	BCAN_A0605	-	phage head-tail adaptor
576	 55.95	0	583081..583248	+	55	161618567	-	BCAN_A0606	-	hypothetical protein
577	 58.33	0	583208..583615	+	135	161618568	-	BCAN_A0607	-	hypothetical protein
578	 58.70	0	583656..584069	+	137	161618569	-	BCAN_A0608	-	TP901-1 family phage major tail protein
579	 62.28	+1	584066..584407	+	113	161618570	-	BCAN_A0609	-	hypothetical protein
580	 64.33	+1	584451..584621	+	56	161618571	-	BCAN_A0610	-	hypothetical protein
581	 63.37	+1	584626..585171	+	181	161618572	-	BCAN_A0611	-	hypothetical protein
582	 59.08	0	585174..585806	+	210	161618573	-	BCAN_A0612	-	hypothetical protein
583	 60.62	0	585803..586678	+	291	161618574	-	BCAN_A0613	-	phage protein
584	 64.37	+1	586675..587109	+	144	161618575	-	BCAN_A0614	-	NlpC/P60 family phage cell wall peptidase
585	 56.04	0	591033..591239	+	68	161618576	-	BCAN_A0617	-	hypothetical protein
586	 62.63	+1	591401..591697	+	98	161618577	-	BCAN_A0618	-	hypothetical protein
587	 57.83	0	591776..592465	+	229	161618578	-	BCAN_A0619	-	two component transcriptional regulator
57.15	MEAN

4.17	STD DEV
